Turbine Shaft Speed (TSS) Sensor

Turbine Shaft Speed (TSS) Sensor

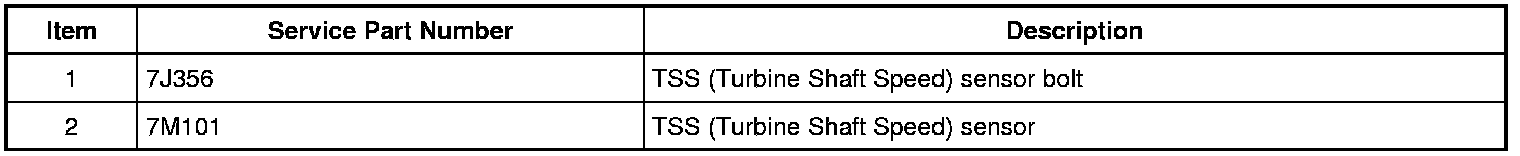

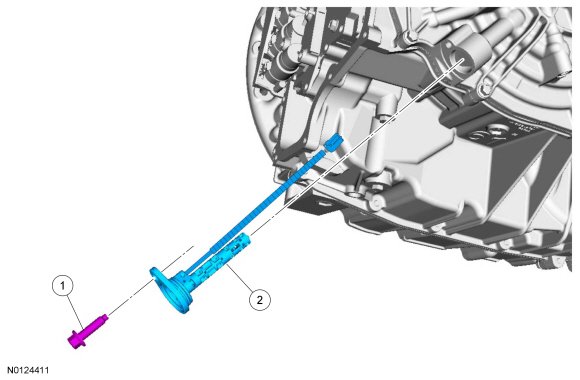

Exploded View









Removal

1. Remove the main control cover. REFER to Main Control Cover .

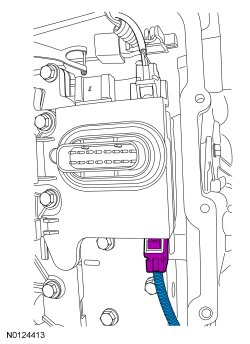

2. Disconnect the TSS (Turbine Shaft Speed) sensor electrical connector.





3. Remove the TSS (Turbine Shaft Speed) bolt and route the TSS (Turbine Shaft Speed) wiring harness out of the transaxle case and remove the TSS (Turbine Shaft Speed) sensor.





Installation

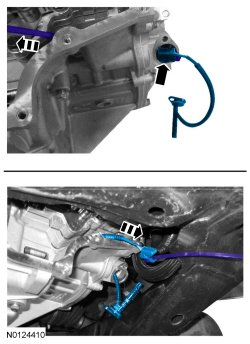

1. NOTE: Use a plastic tie strap big enough so the locking end will not slide through the TSS (Turbine Shaft Speed) sensor electrical connector and long enough so it can be fed through the transaxle case to pull the TSS (Turbine Shaft Speed) sensor electrical connector through the transaxle case.
Route a plastic tie strap through the connector of the new TSS (Turbine Shaft Speed) sensor electrical connector.





2. NOTE: When routing the TSS (Turbine Shaft Speed) sensor electrical connector through the transaxle case, position the TSS (Turbine Shaft Speed) sensor electrical connector locking tab toward the bottom of the TSS (Turbine Shaft Speed) sensor hole.
Route the tie strap through the TSS (Turbine Shaft Speed) sensor hole and route the tie strap to the main control valve body area. Using the tie strap pull the TSS (Turbine Shaft Speed) electrical connector through the transaxle case to the main control valve body area. Remove the tie strap from the TSS (Turbine Shaft Speed) sensor.





3. Install the TSS (Turbine Shaft Speed) sensor in the cover and install the TSS (Turbine Shaft Speed) bolt.
- Tighten to 12 Nm (106 lb-in).





4. Connect the TSS (Turbine Shaft Speed) sensor electrical connector.





5. Install the main control cover. REFER to Main Control Cover .
