Transmission Support Insulator - Anti Roll

Transmission Support Insulator - Anti Roll FWD

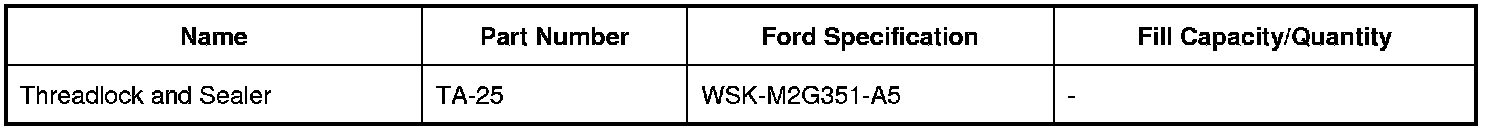

Material(s)

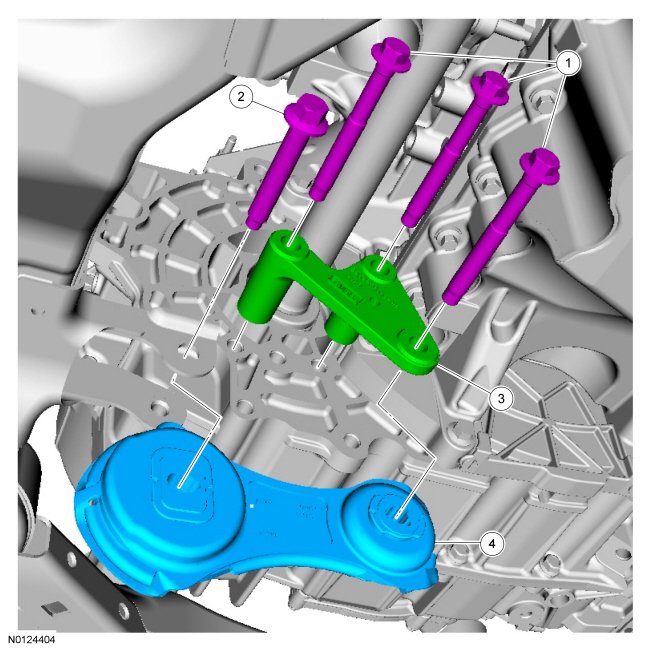

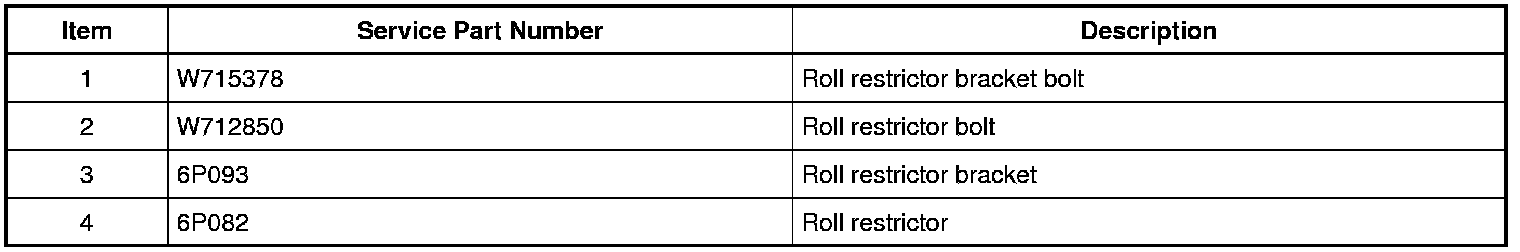

Exploded View









Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Lifting Points .

2. NOTICE: Do not rotate the roll restrictor with the through bolts tight or damage to the roll restrictor can occur.

Remove the 3 roll restrictor bracket bolts and the through bolt and remove the rear roll restrictor.





Installation

1. Clean the roll restrictor bolts using a wire brush and apply new Threadlock and Sealer to the threads.

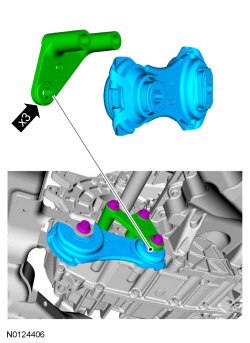

2. NOTE: The bracket has keyed tabs to orientate the roll restrictor.
Position the roll restrictor bracket and the rear roll restrictor in place, align the keyed tabs and install the bolts.
- Tighten to 90 Nm (66 lb-ft).
