Automatic Transmission - 6F35

Symptom Chart(s)

Symptom Chart: Automatic Transmission - 6F35

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

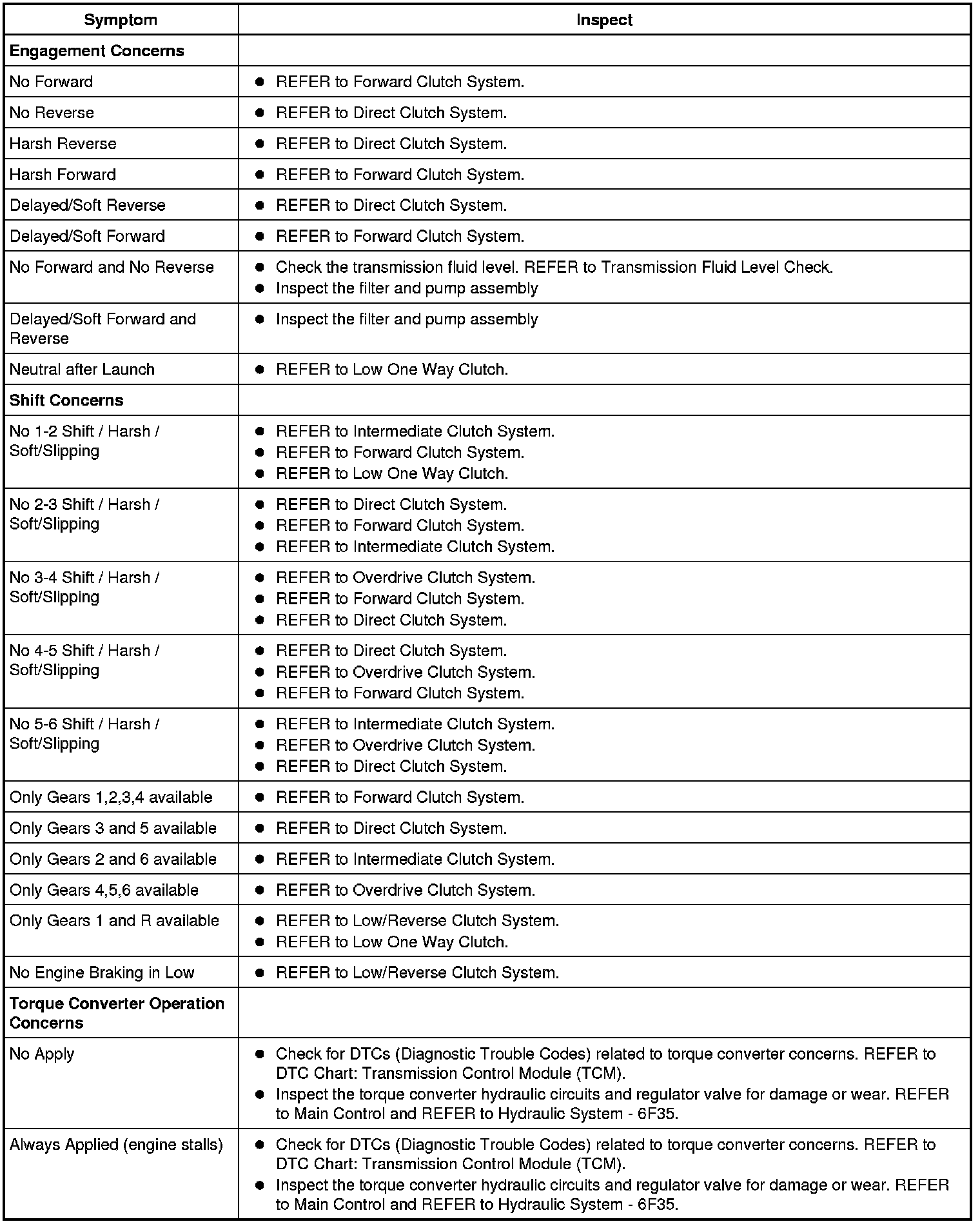

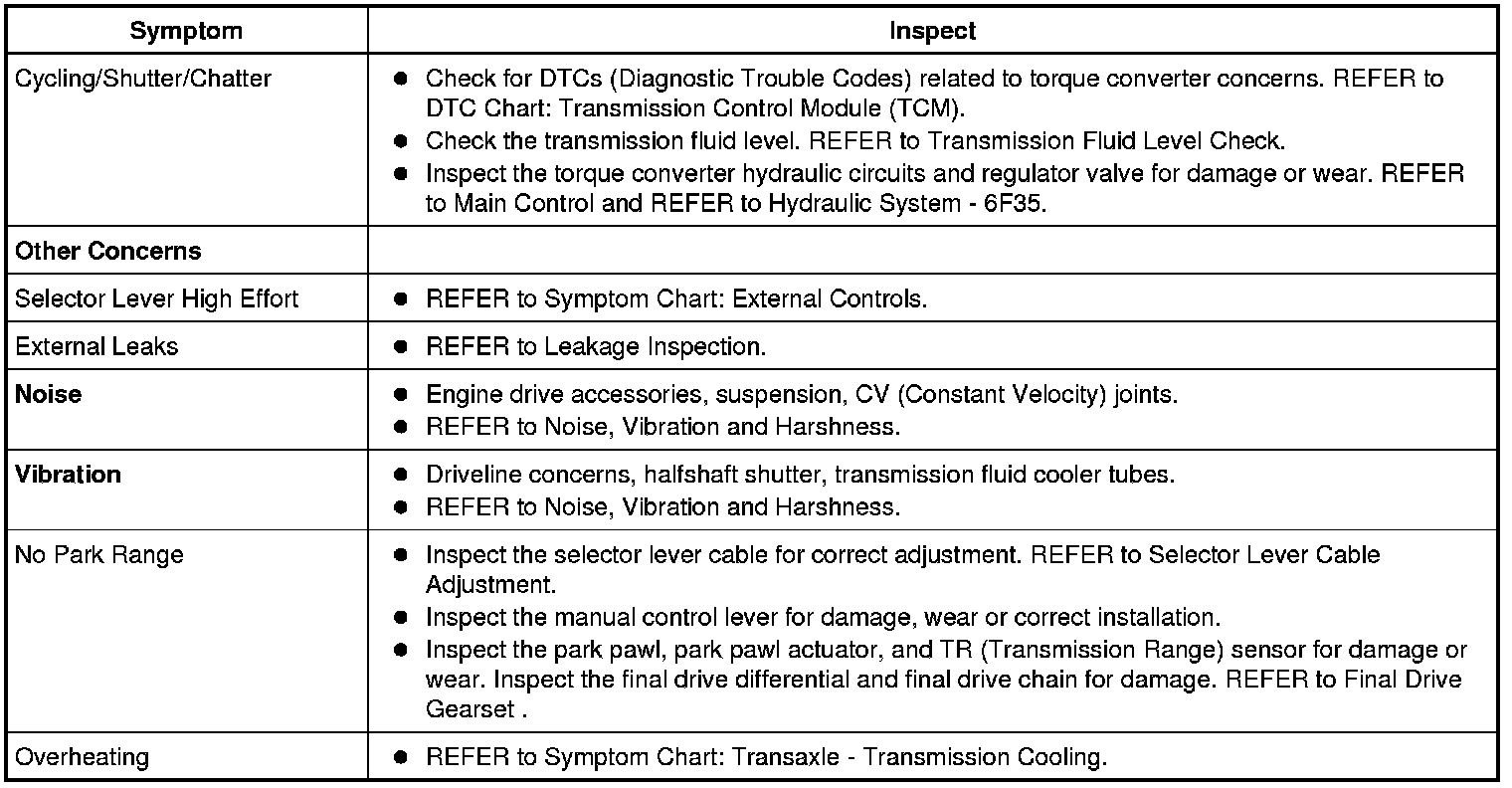

Symptom Chart

In most circumstances, the TCM (Transmission Control Module) sets DTCs (Diagnostic Trouble Codes) to help guide with diagnostics. REFER to DTC Chart: Transmission Control Module (TCM) Automatic Transmission - 6F35 before using the symptom chart. The "Symptom" column lists the vehicle symptom. The "Inspect" column lists the component test that should be performed to determine the cause of the symptom. Each component test lists the components that can cause the symptom and the individual components in that system. The components are listed in order of disassembly. Use the list of components and the required action to focus on disassembly inspections for the root cause of the concern.
