Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Automatic Transmission - 6F35

Automatic Transmission - 6F35

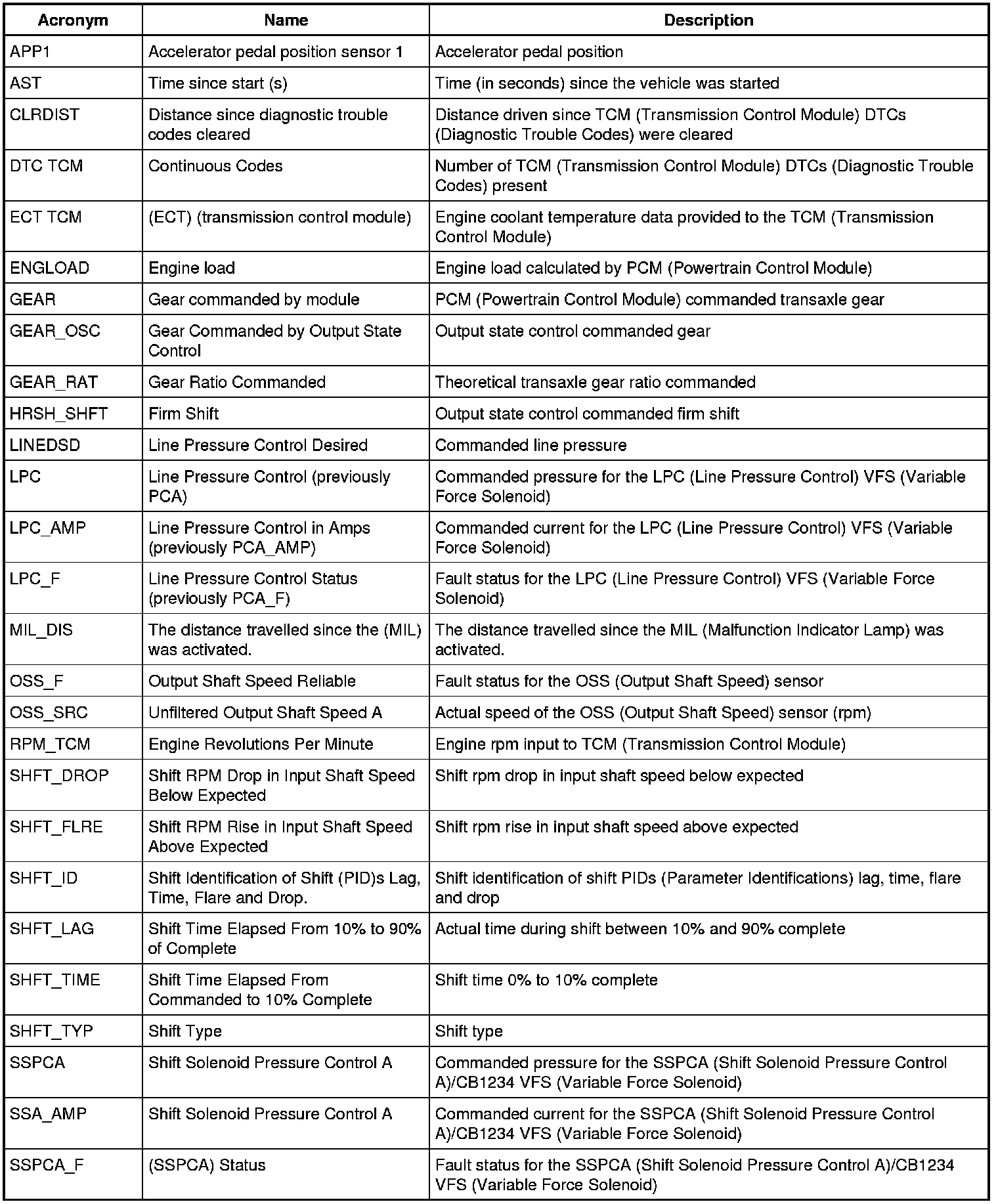

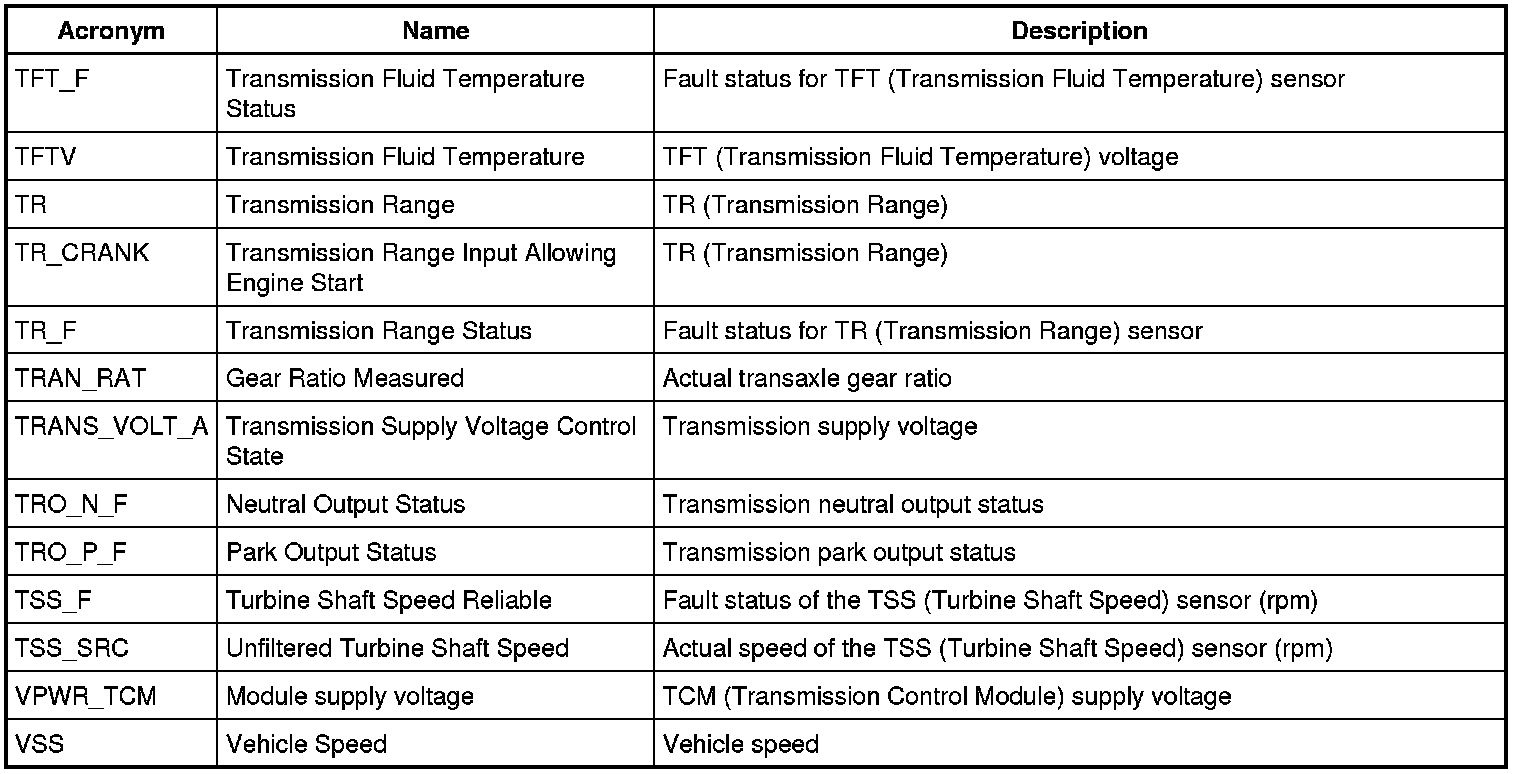

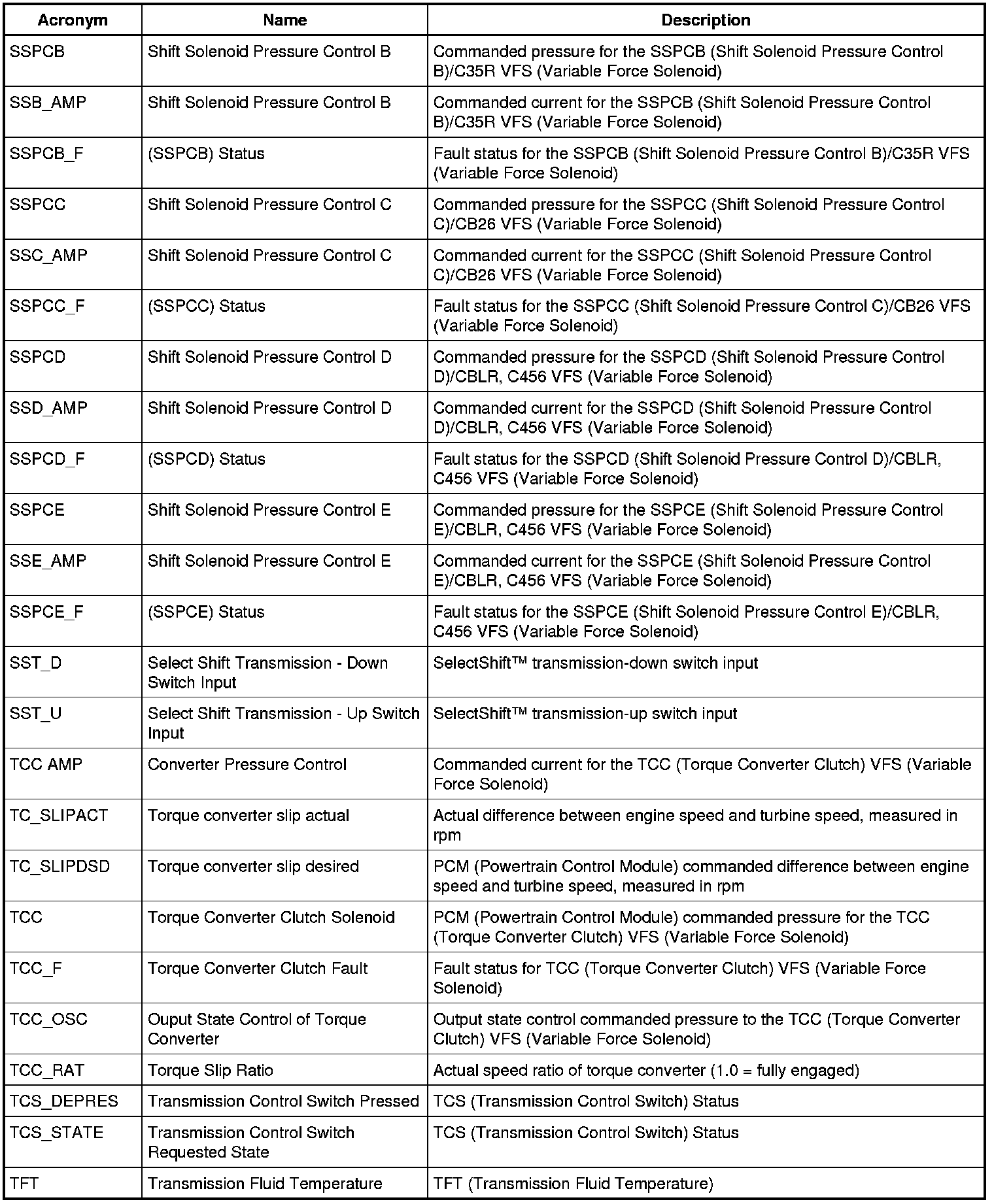

Diagnostic PID Chart

Module PID Chart
