Automatic Transmission - 6F50 and 6F55
>>

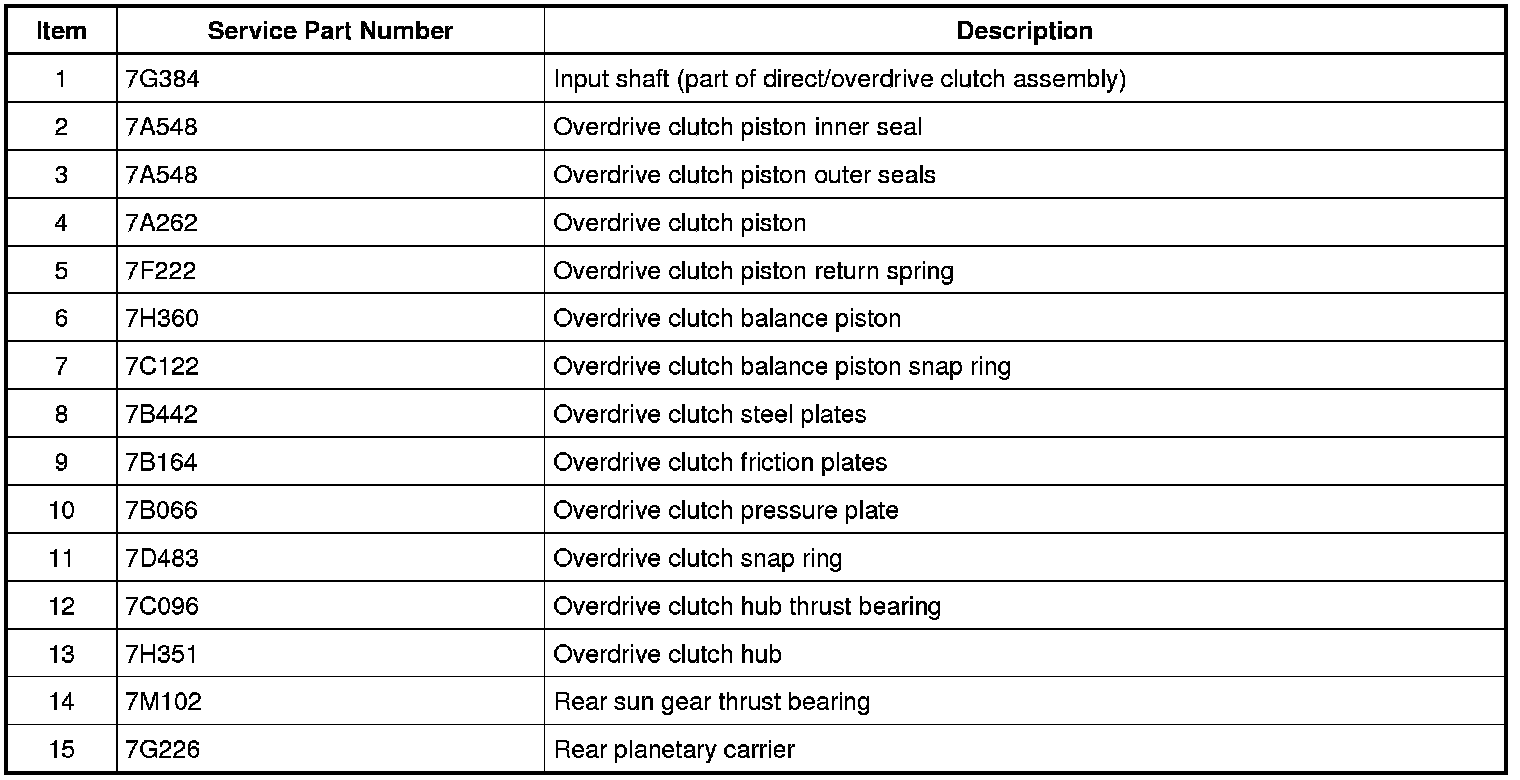

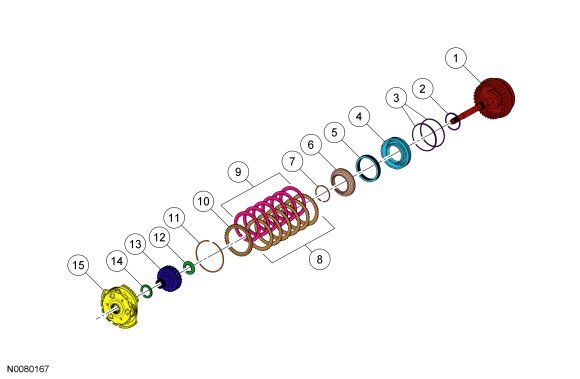

Overdrive Clutch System
Overdrive Clutch System
Overdrive Clutch System
Component Test
1.
For overdrive clutch system operation, REFER to Overdrive Clutch Hydraulic Circuits or REFER to Overdrive Clutch .

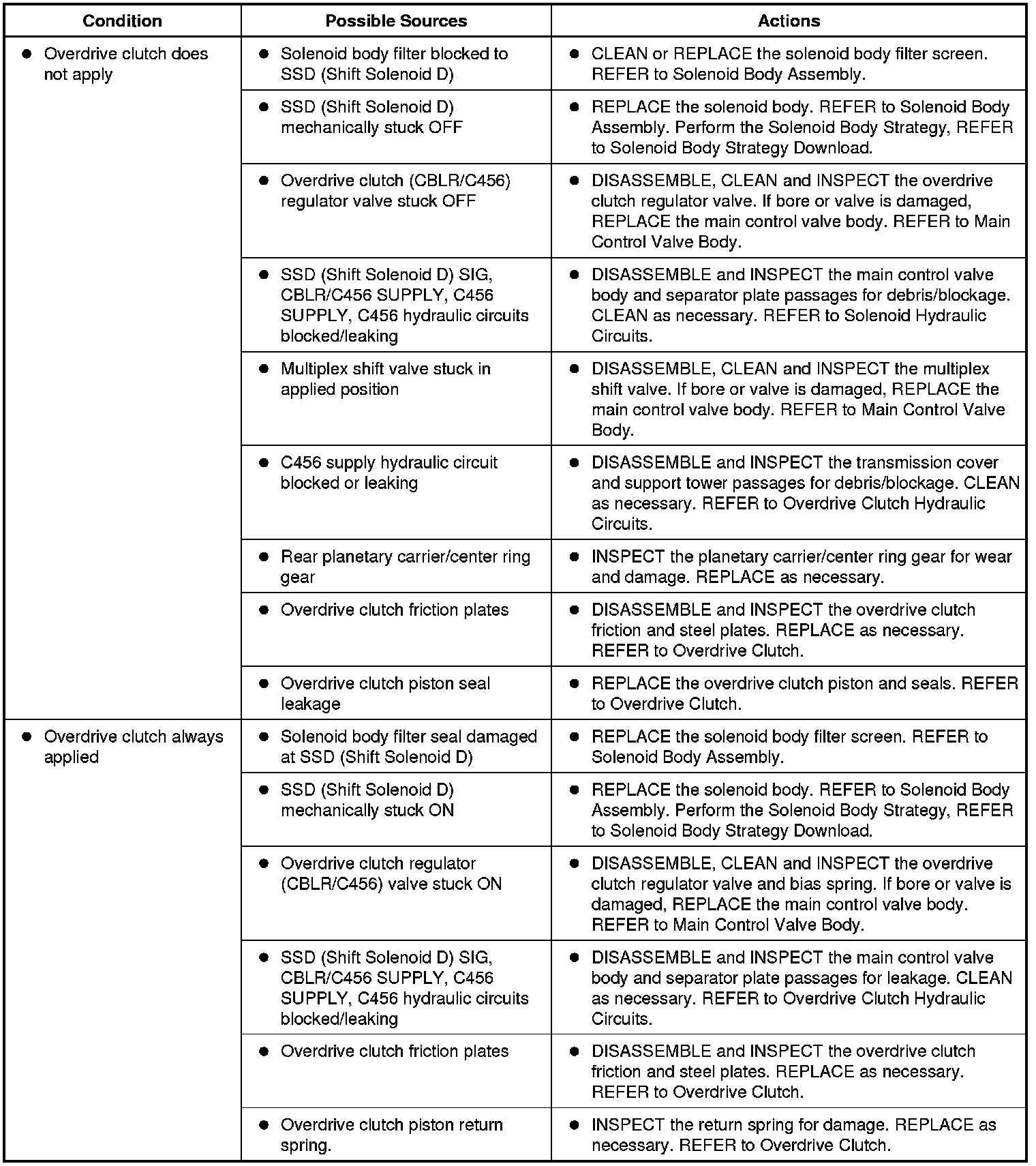

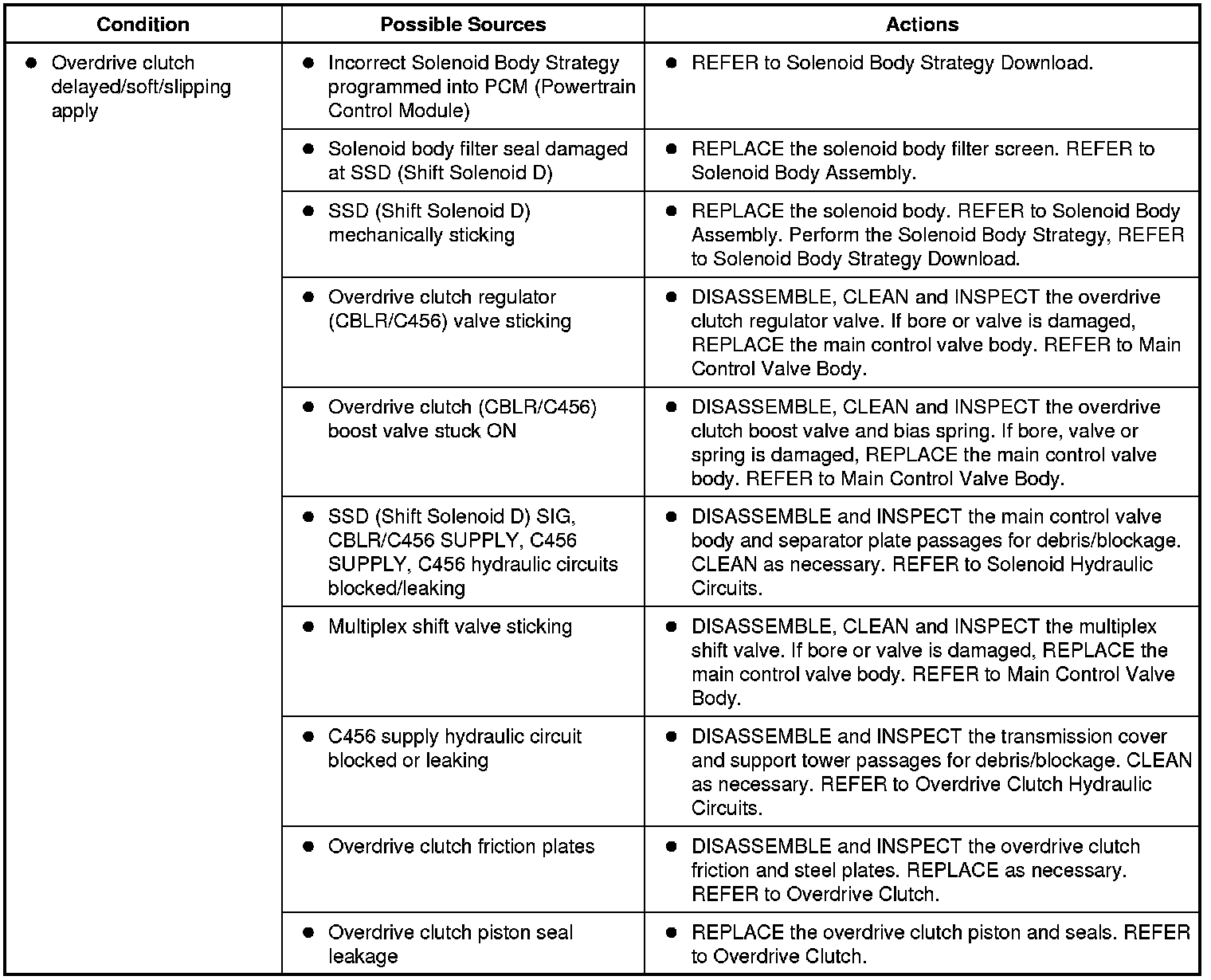

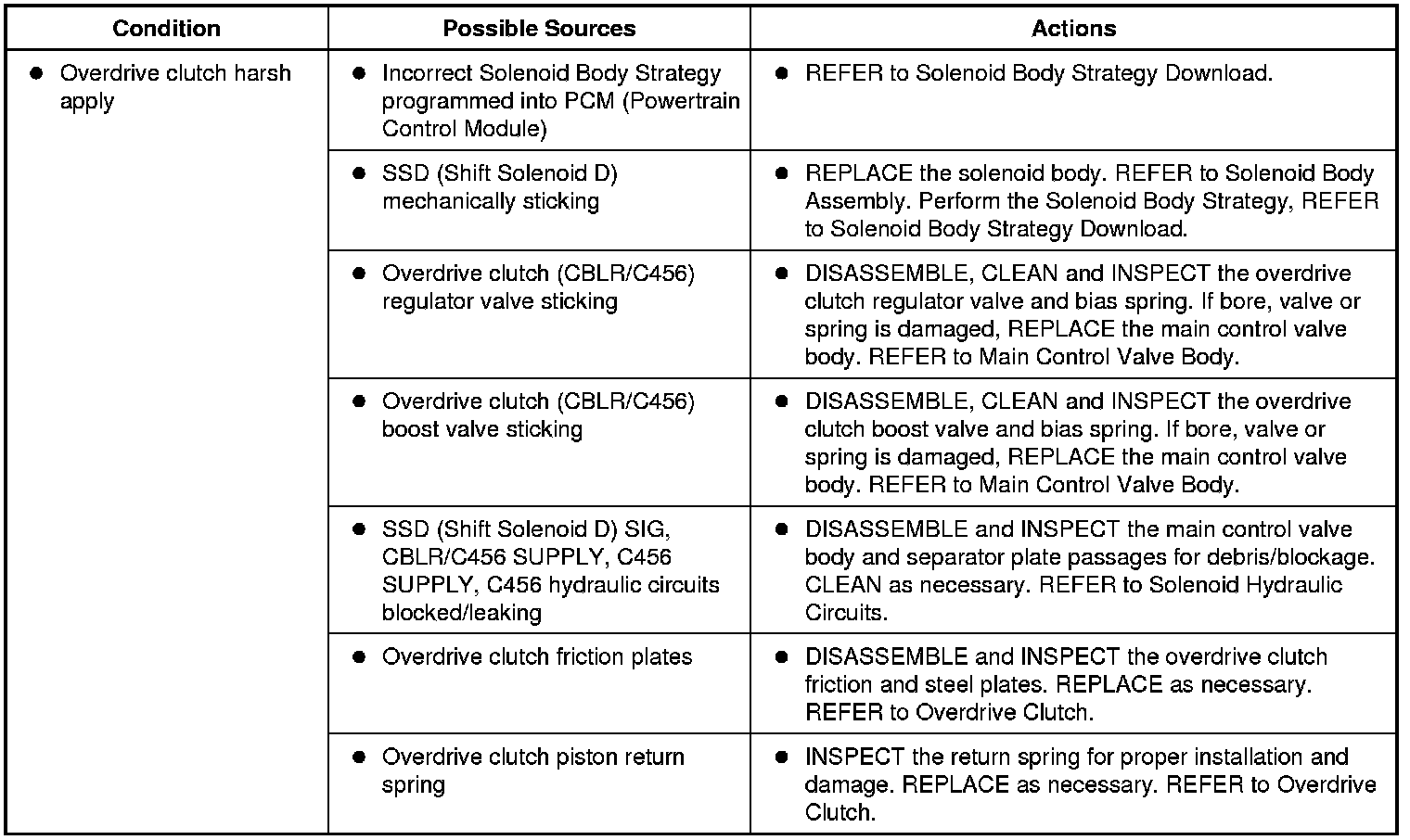

Symptom Chart
