Automatic Transmission - 6F50 and 6F55
>>

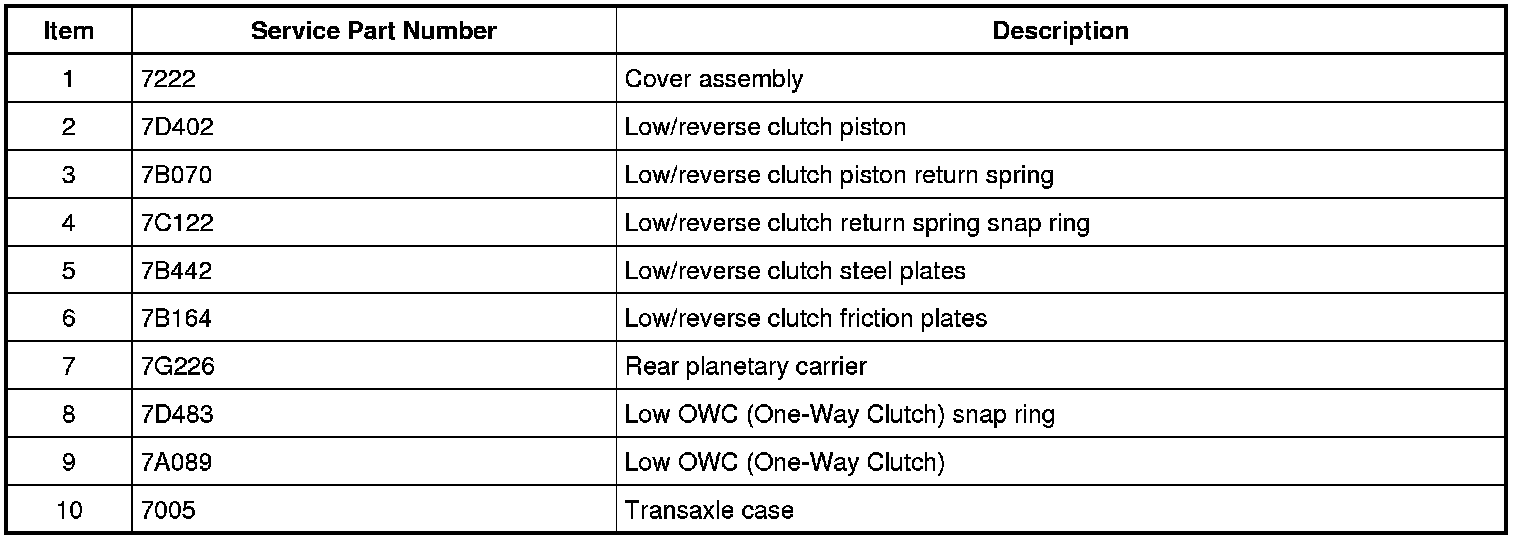

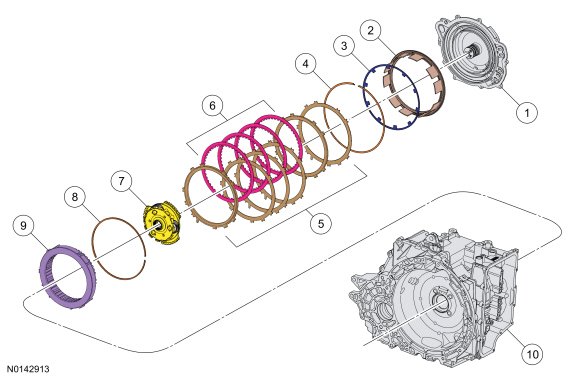

Low - Reverse Clutch System
Low - Reverse Clutch System
Low - Reverse Clutch System
Component Test
1.
For low/reverse clutch operation, REFER to Low - Reverse Clutch Hydraulic Circuits or REFER to Low - Reverse Clutch .

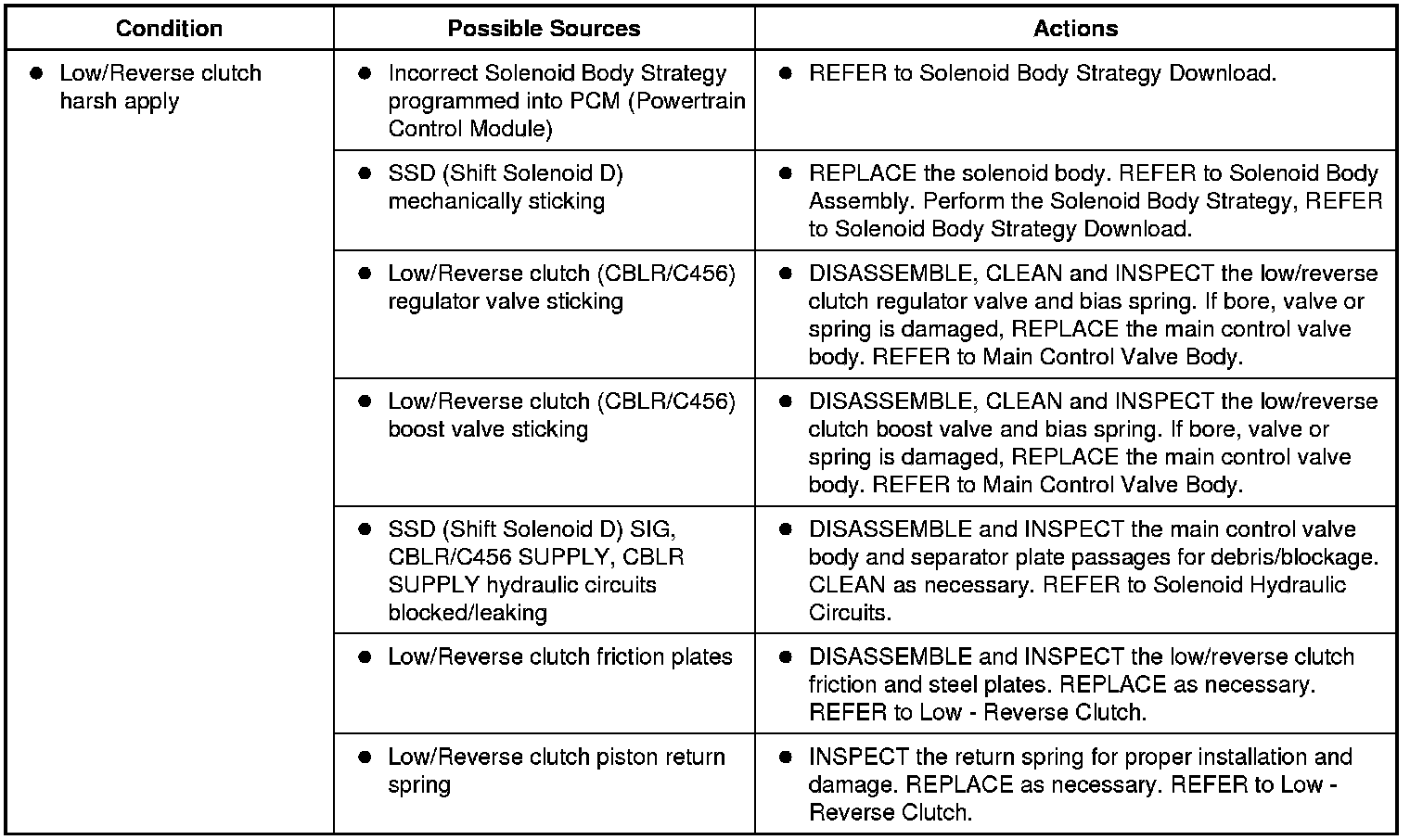

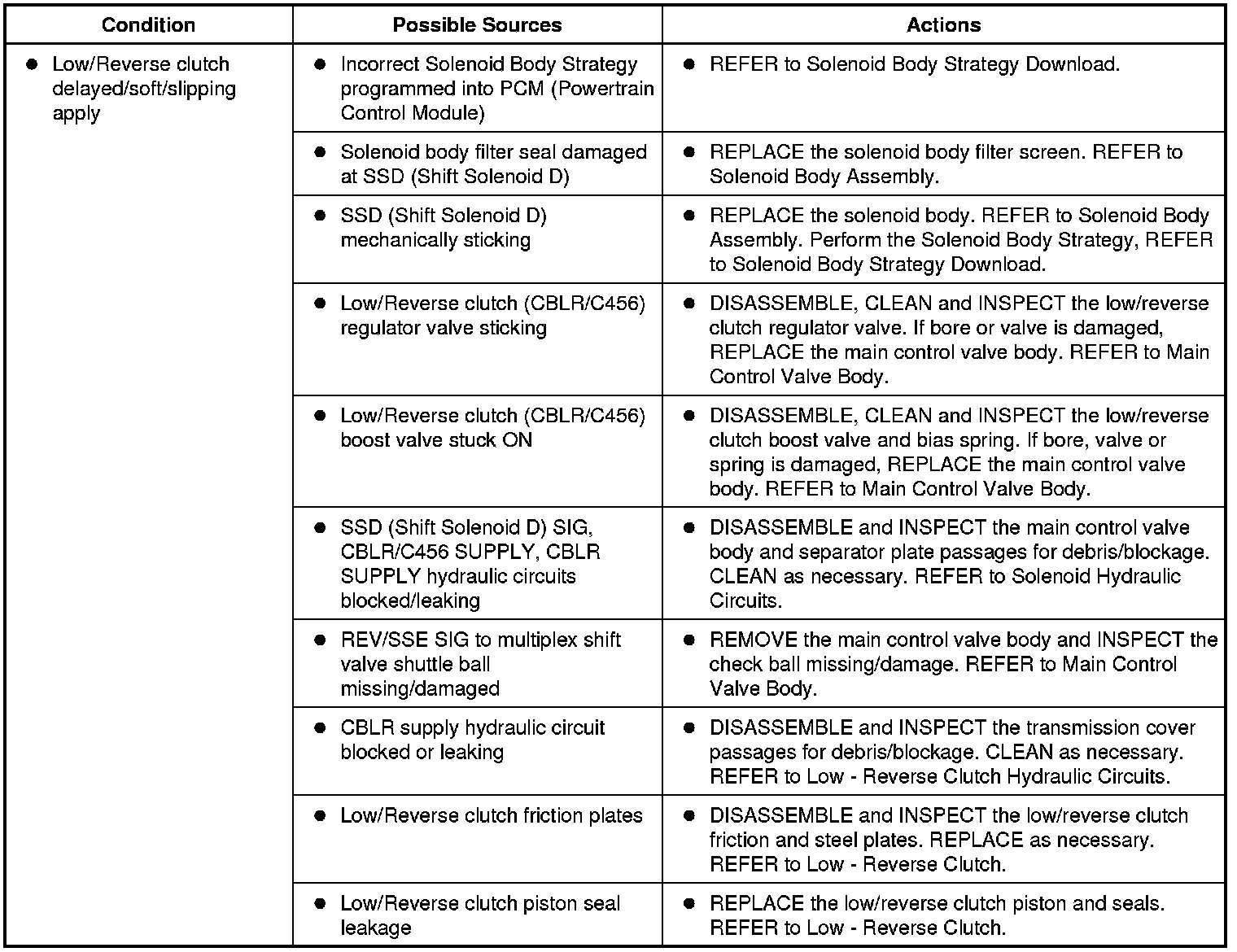

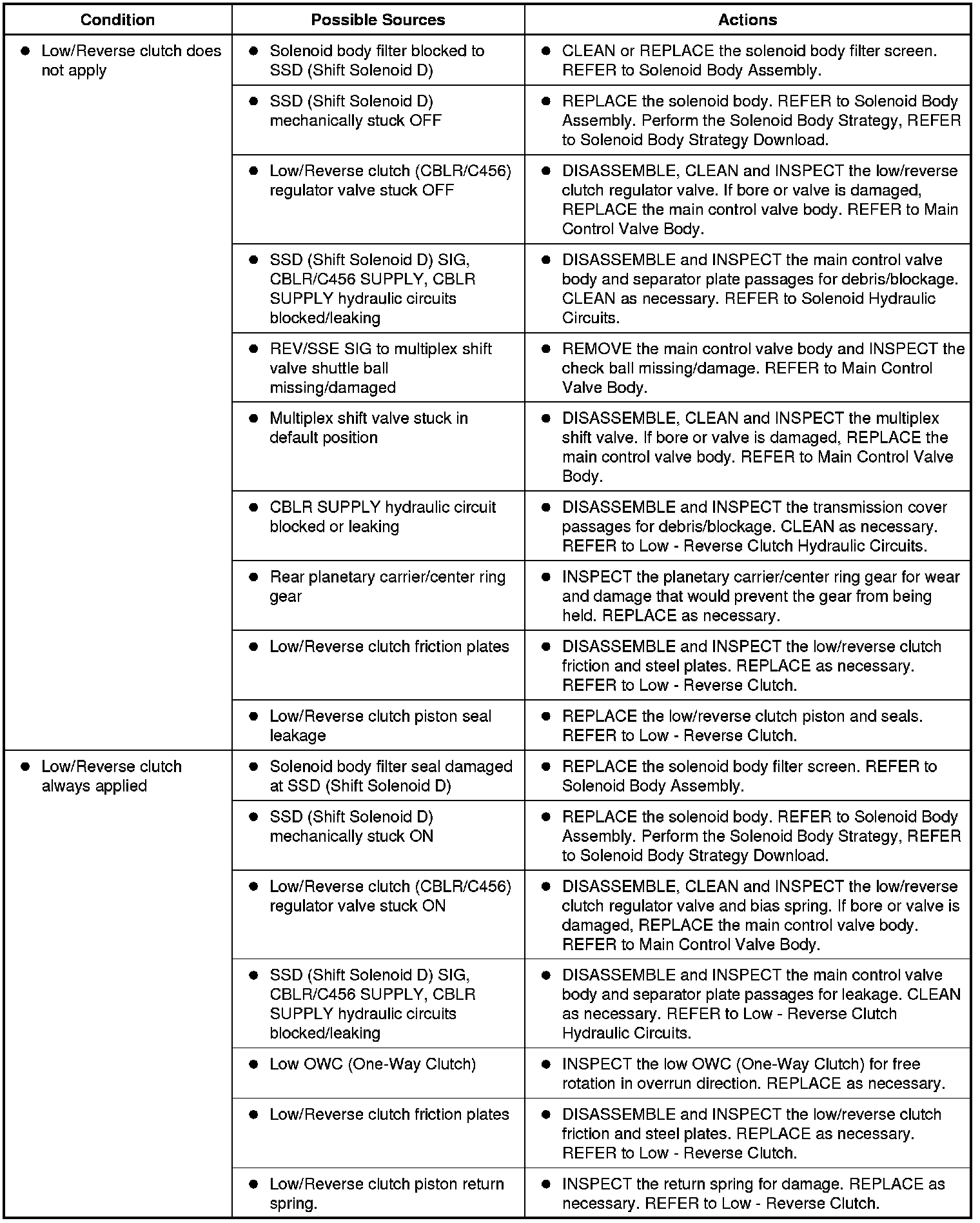

Symptom Chart
