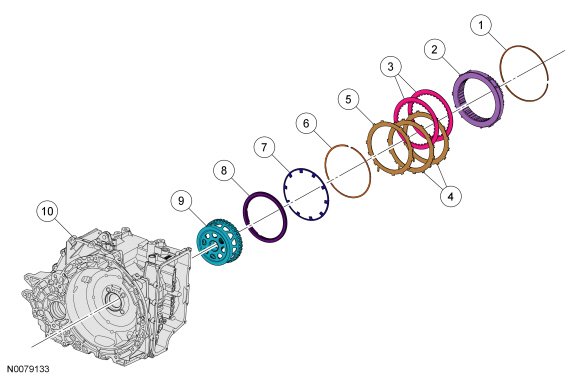

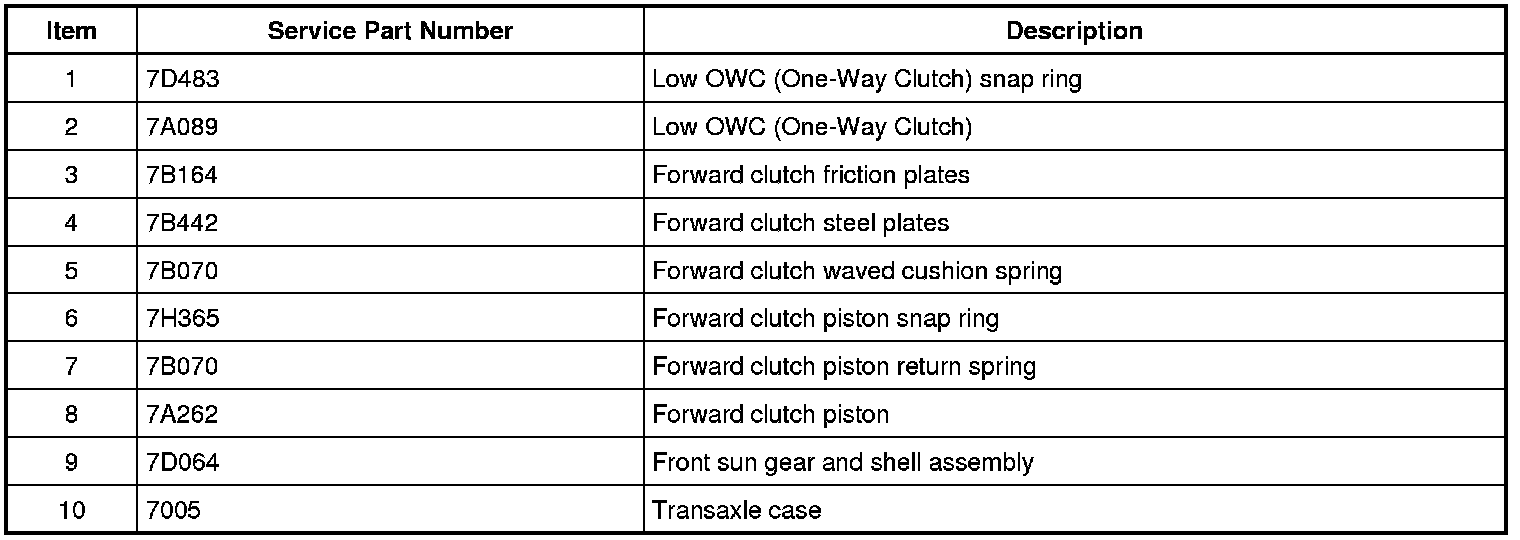

Forward Clutch System




Forward Clutch System

Component Test

1. For forward (1,2,3,4) clutch operation, REFER to Forward Clutch Hydraulic Circuits or REFER to Forward (1, 2, 3, 4) Clutch .

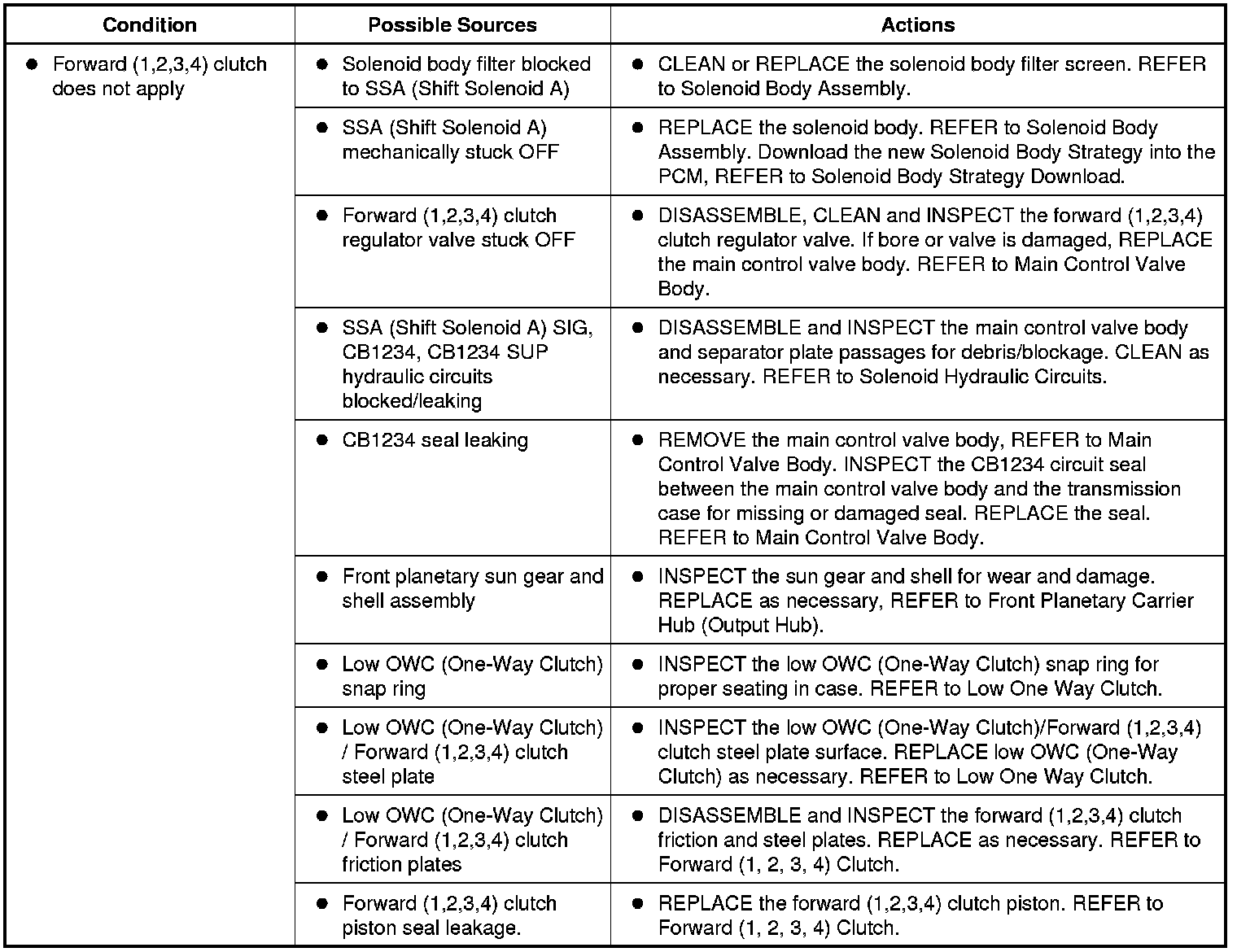

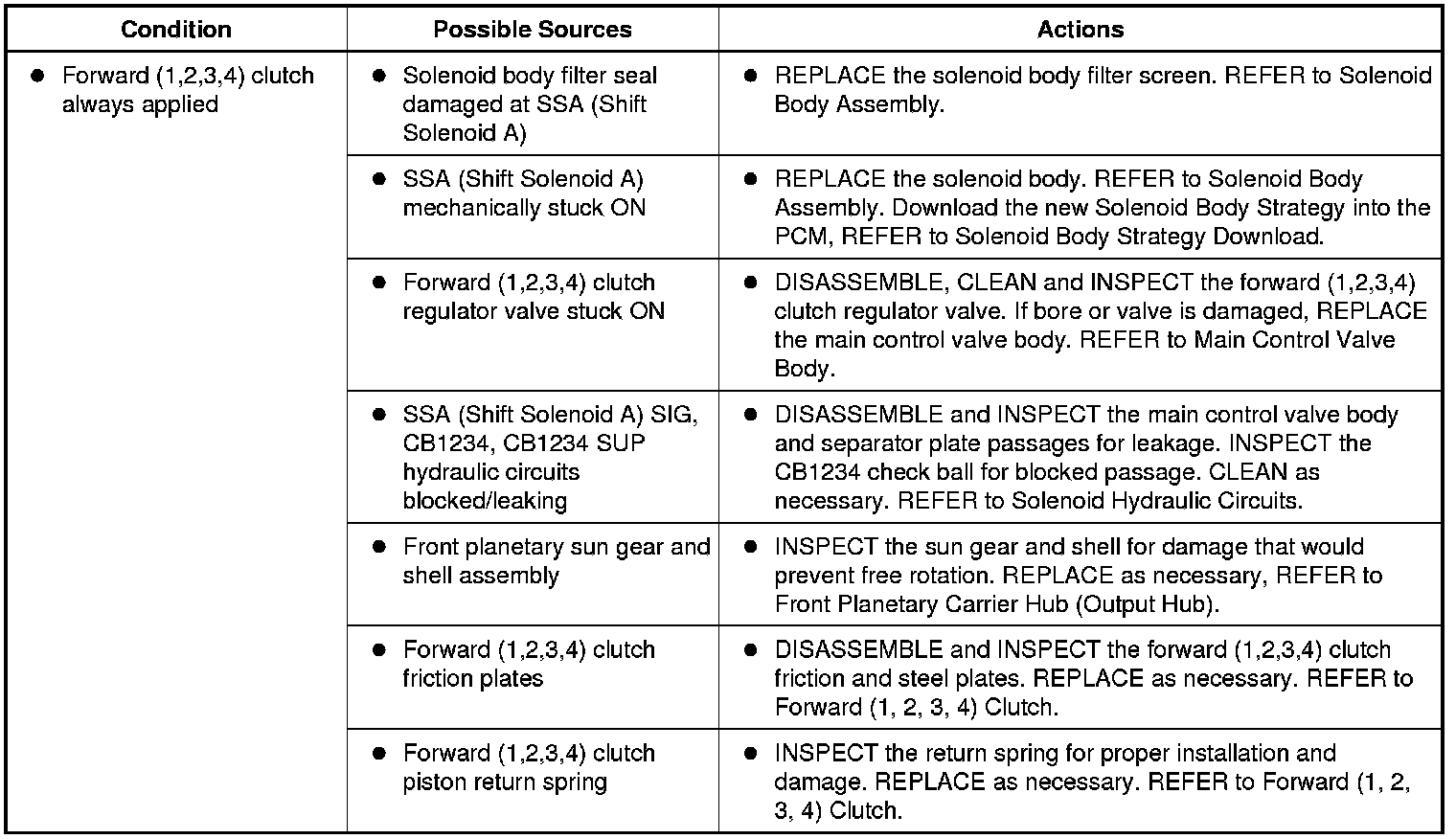

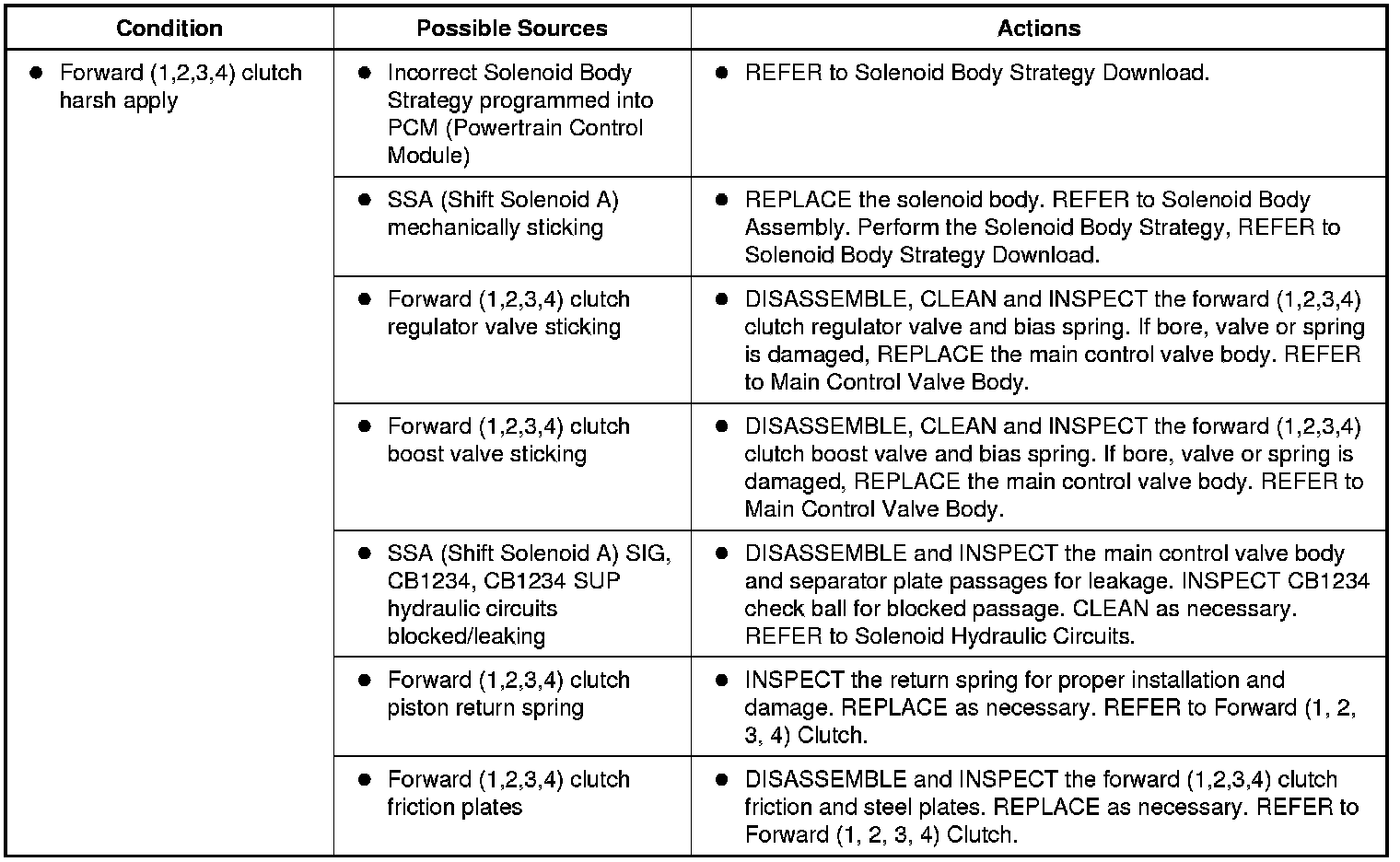

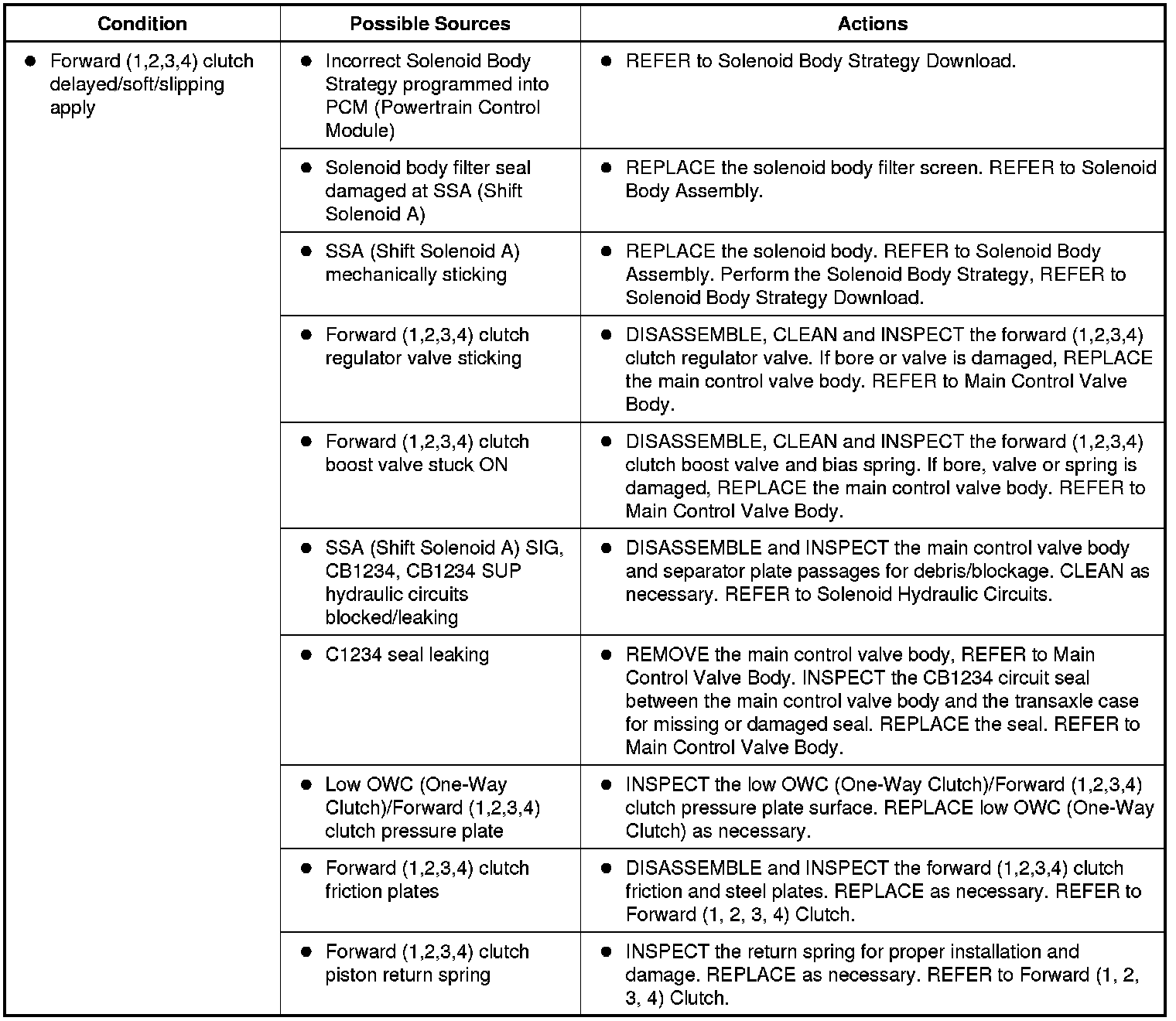

Symptom Chart
