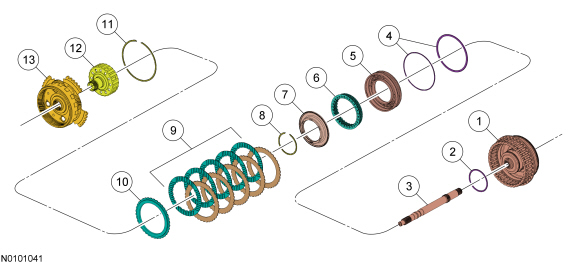

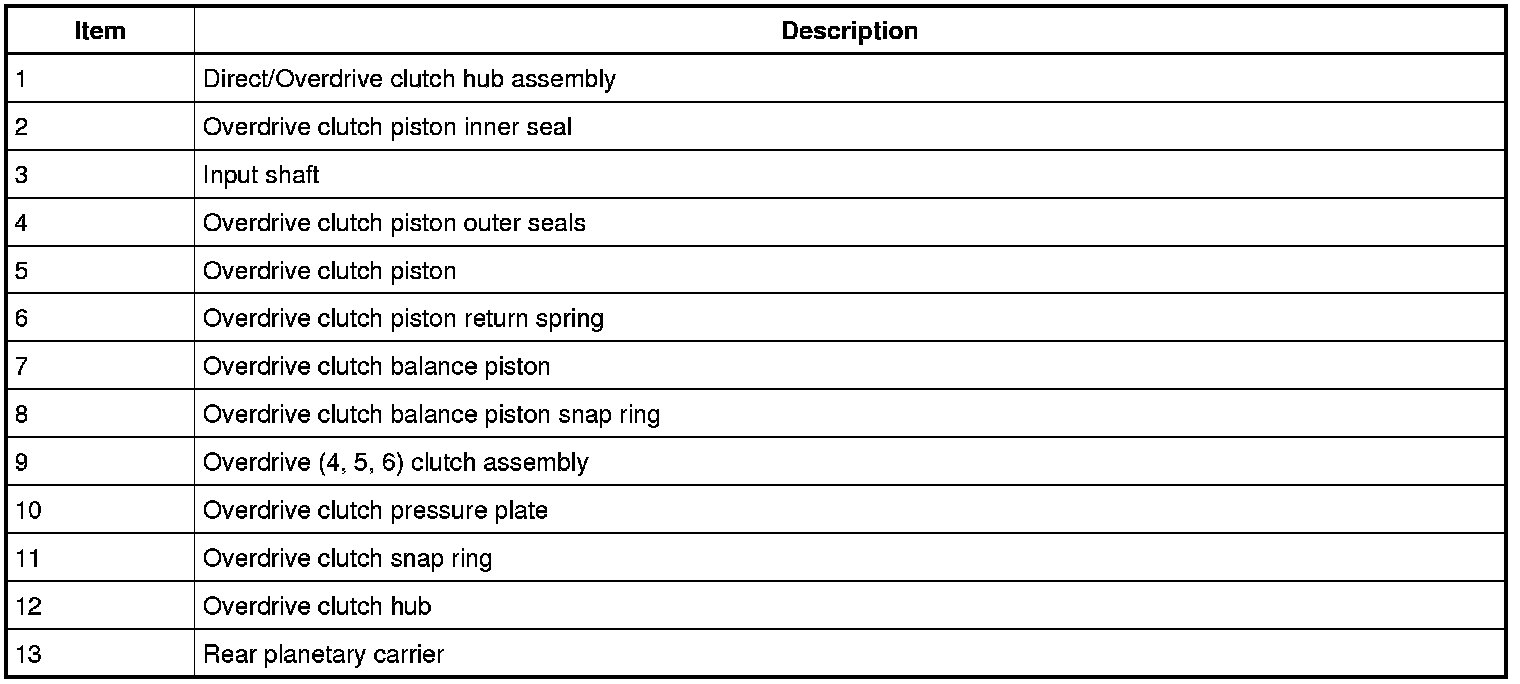

Overdrive Clutch System




Overdrive Clutch System

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

Component Test

1. For overdrive clutch system operation, REFER to Overdrive Clutch Hydraulic Circuits or REFER to Overdrive Clutch .

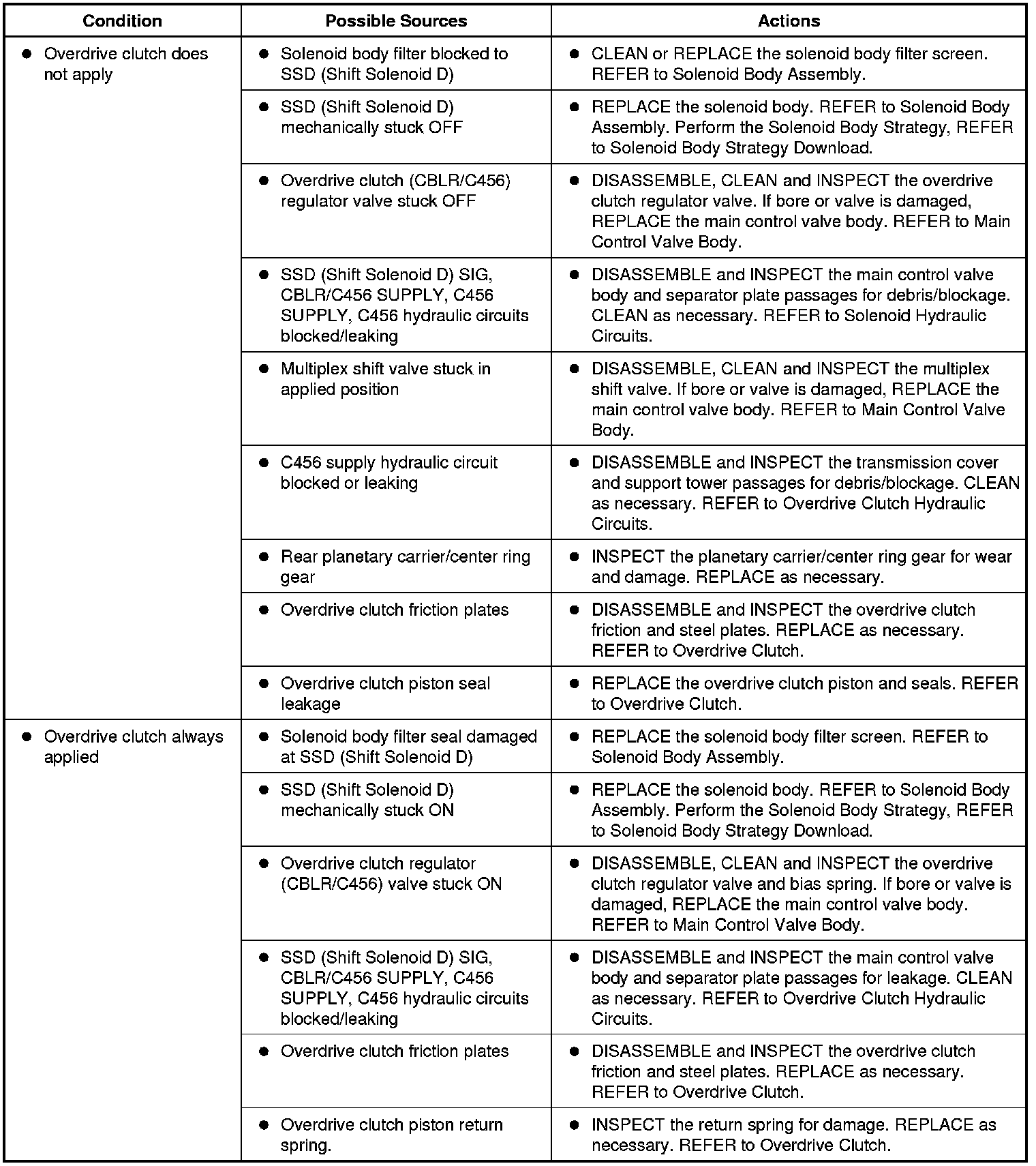

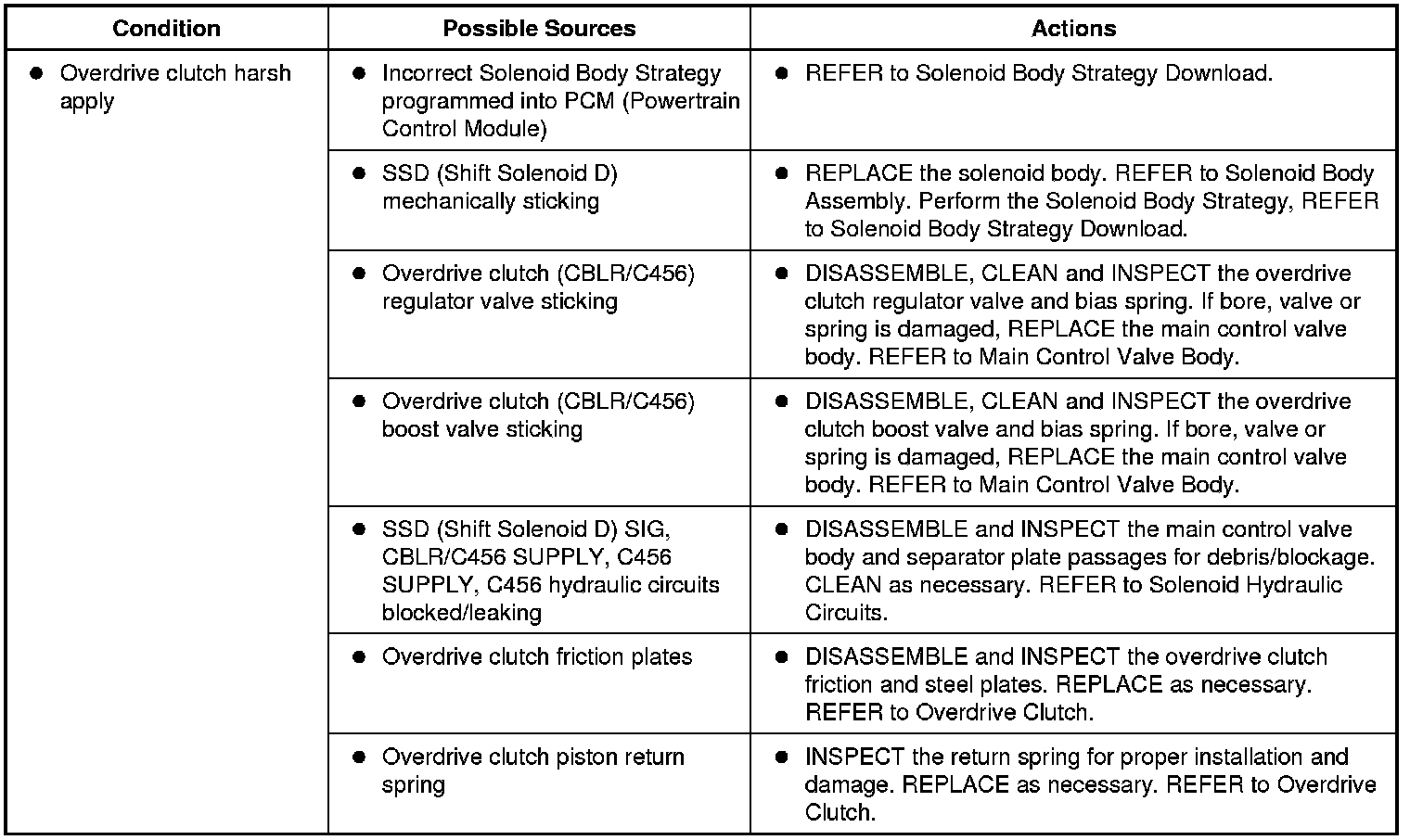

Symptom Chart
