Forward Clutch System

Forward Clutch System

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

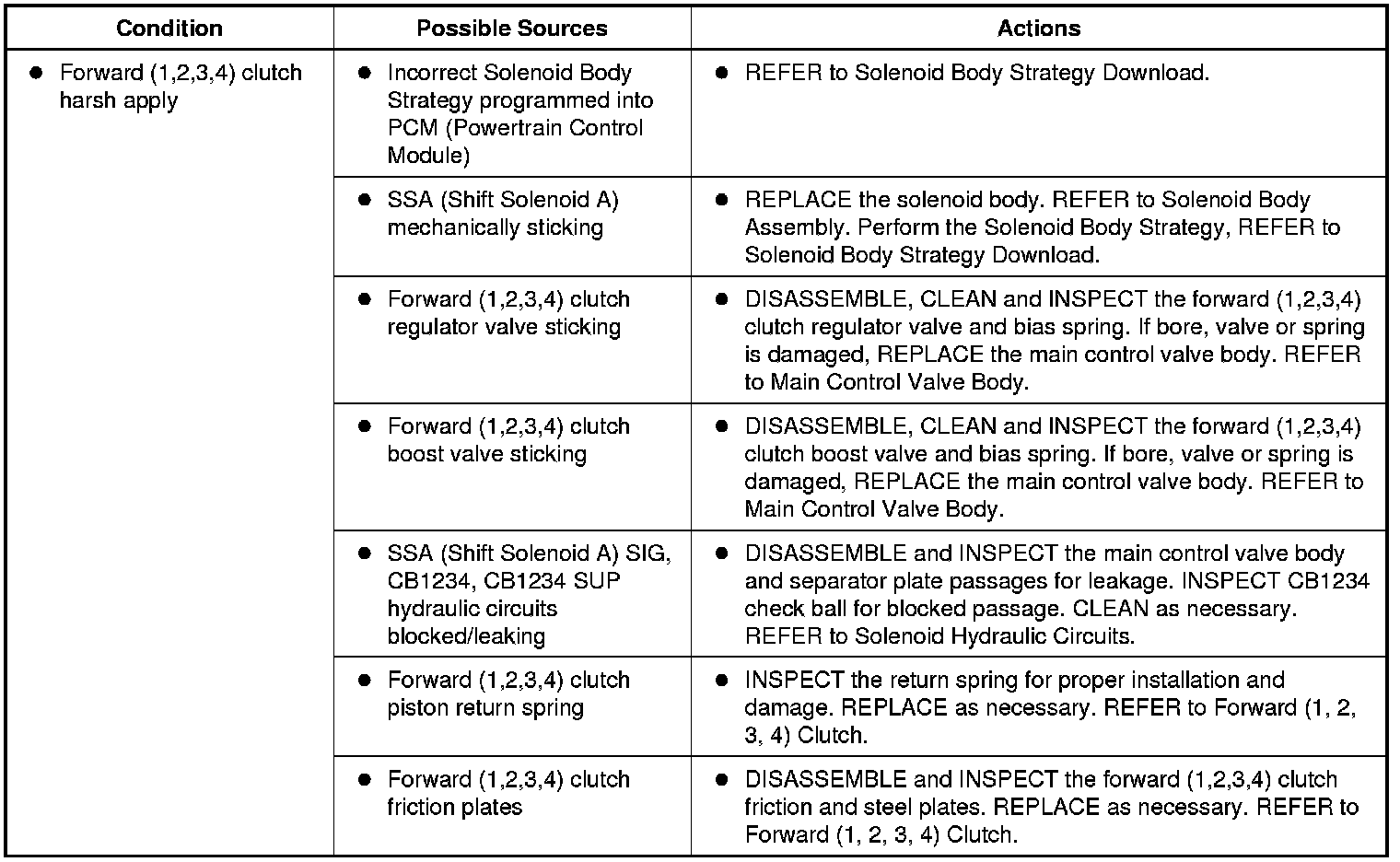

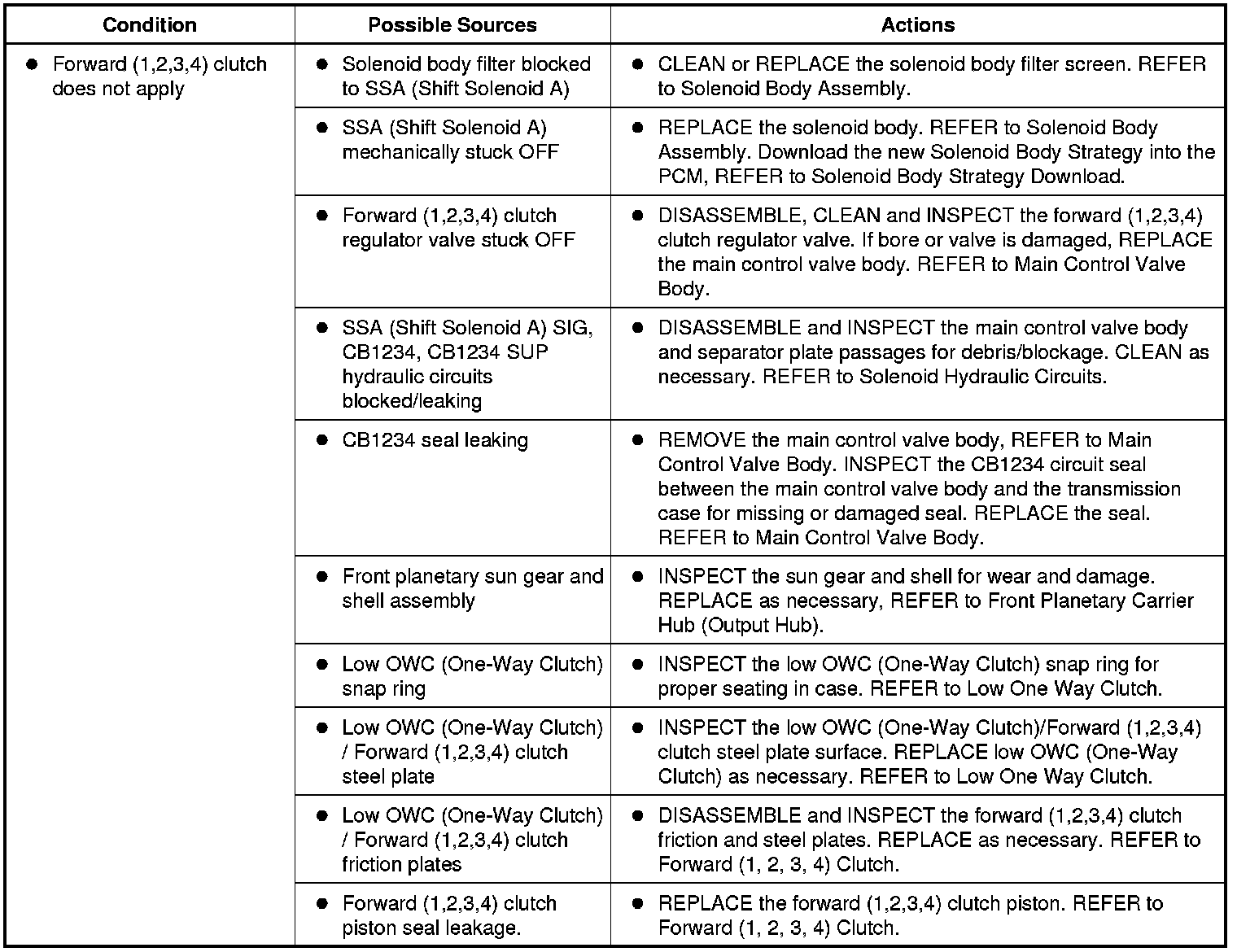

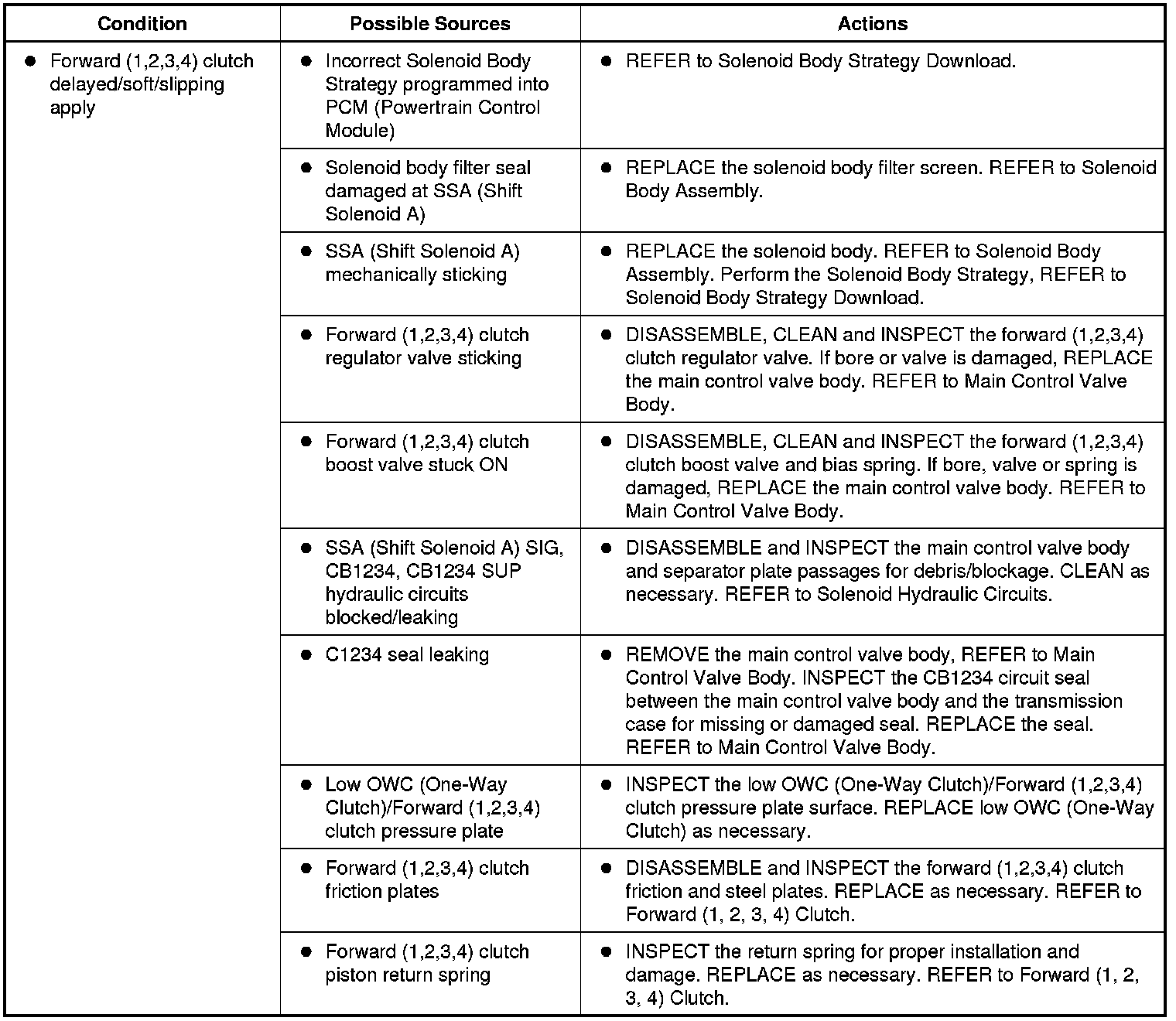

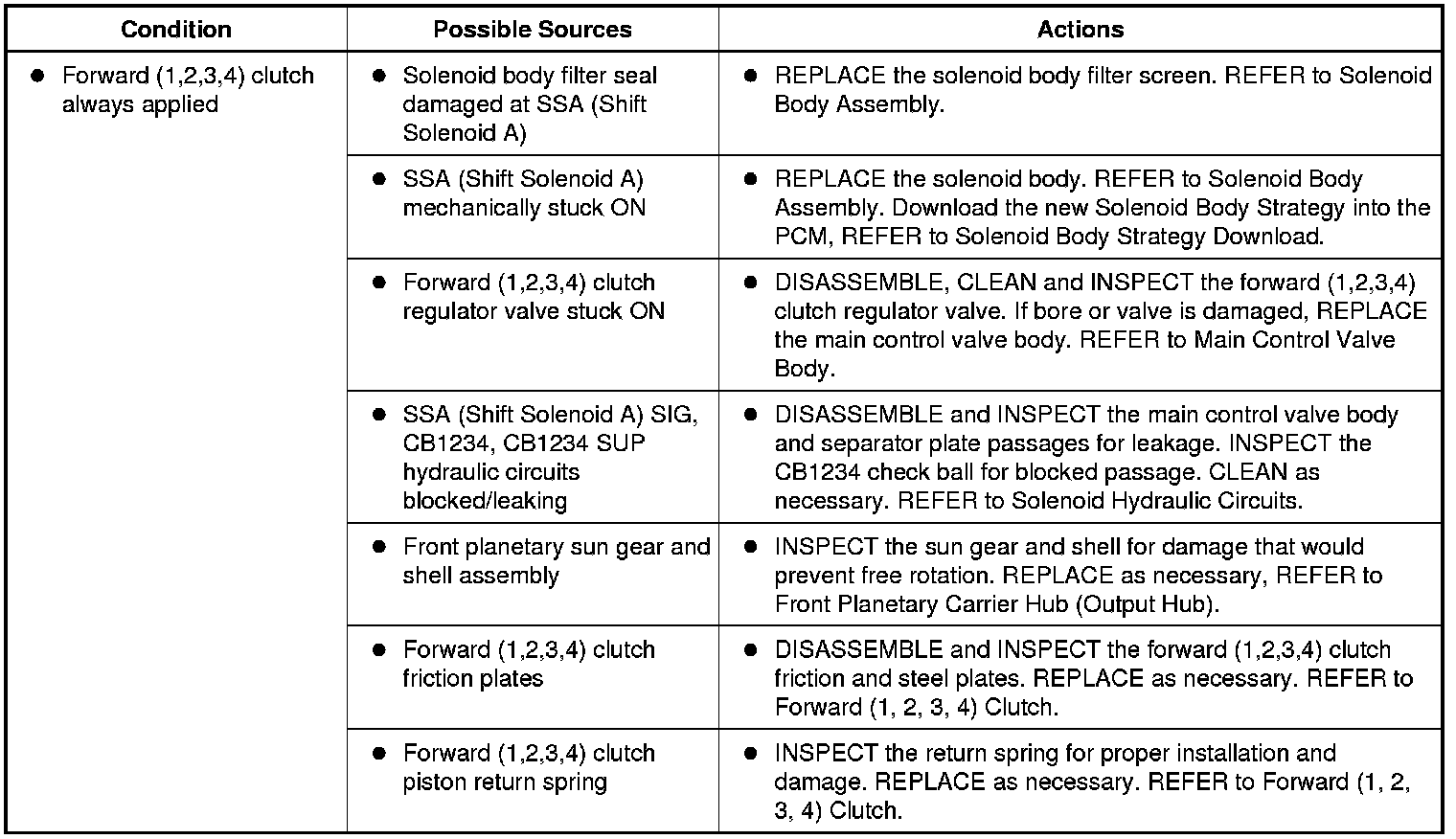

Component Test

1. For forward (1,2,3,4) clutch operation, REFER to Forward Clutch Hydraulic Circuits or REFER to Forward (1, 2, 3, 4) Clutch .
