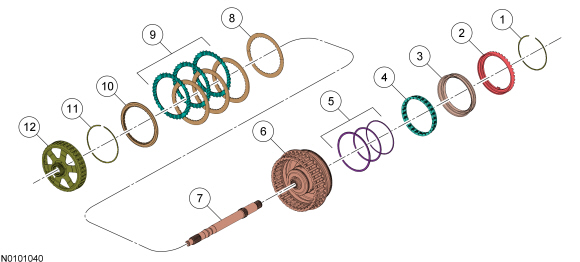

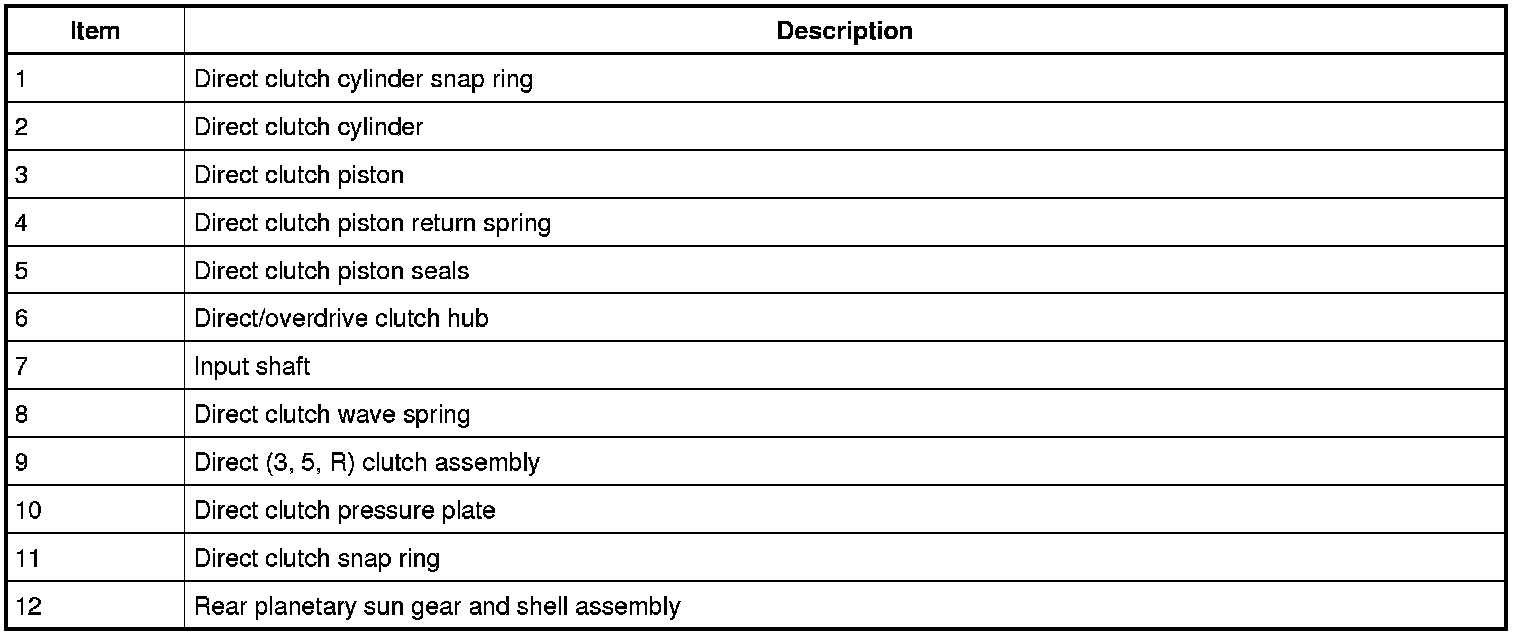

Direct Clutch System

Direct Clutch System

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

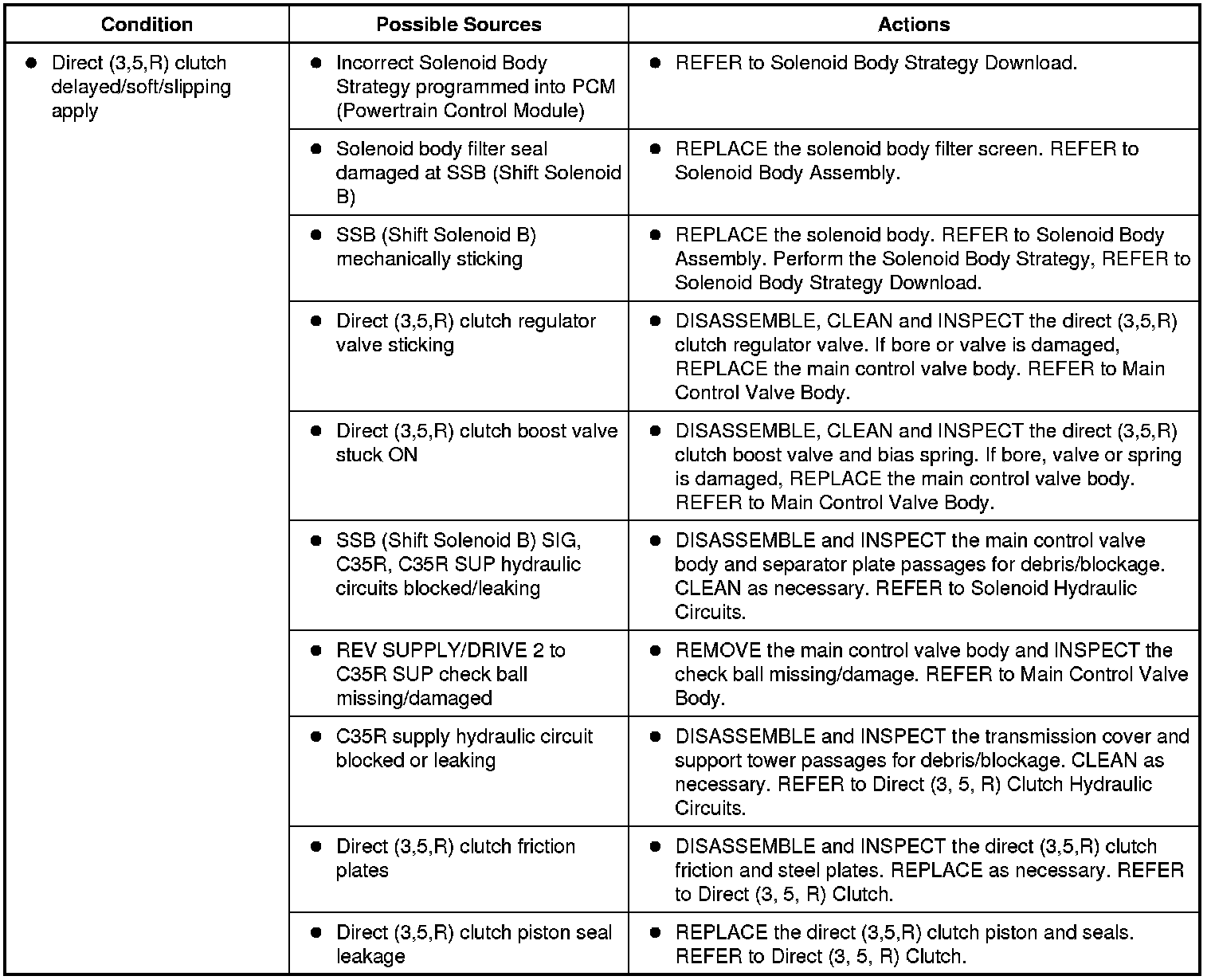

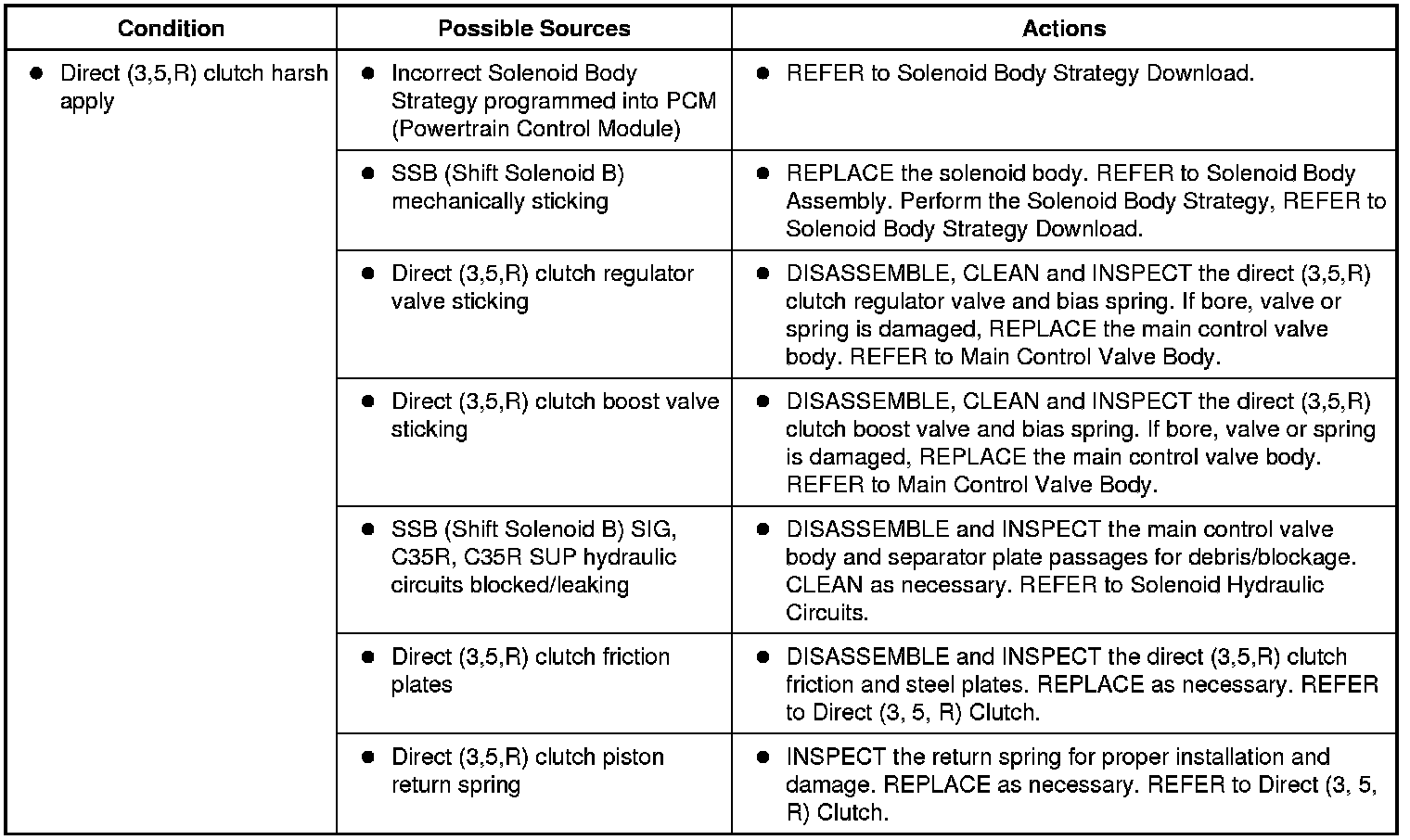

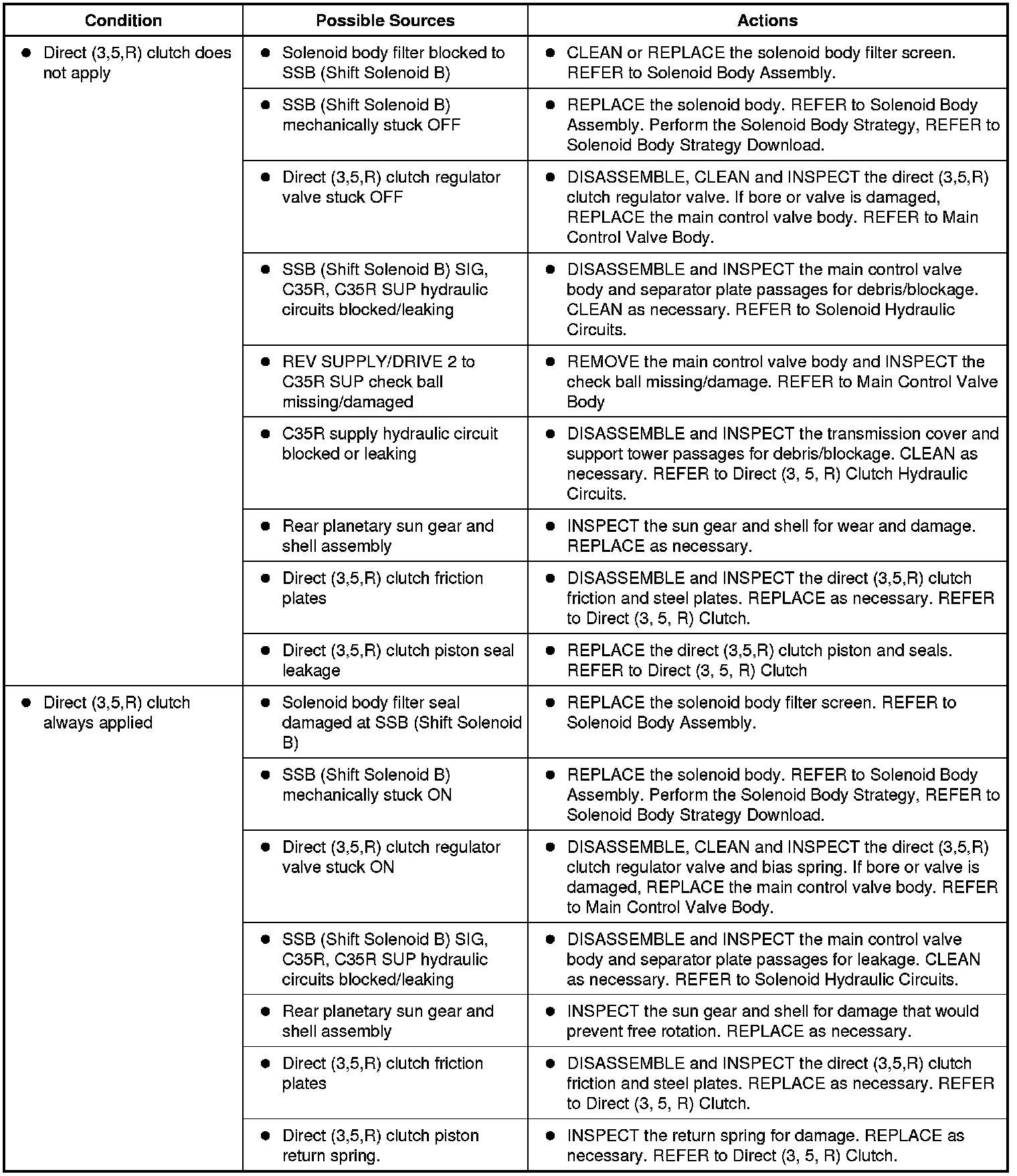

Component Test

1. For direct clutch (3, 5, R) operation, REFER to Direct (3, 5, R) Clutch Hydraulic Circuits or REFER to Direct (3, 5, R) Clutch .
