Automatic Transaxle-Transmission External Controls - Select Shift

Selector Lever Cable

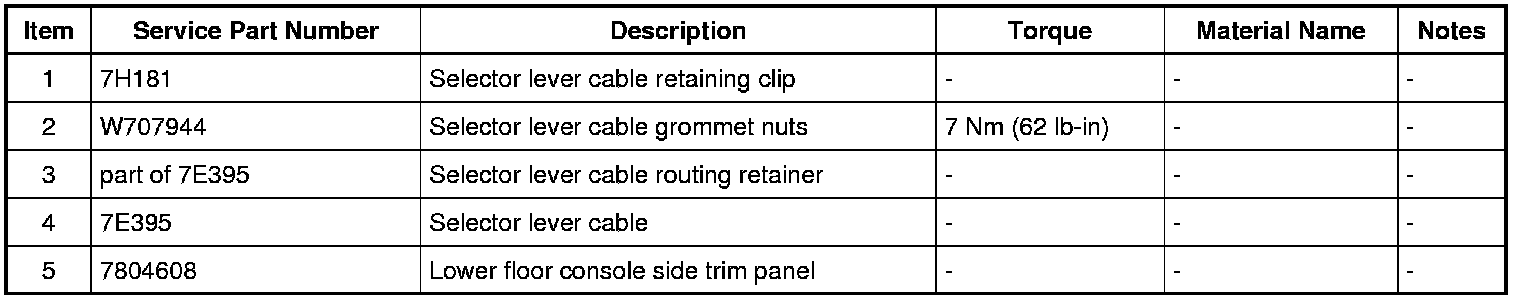

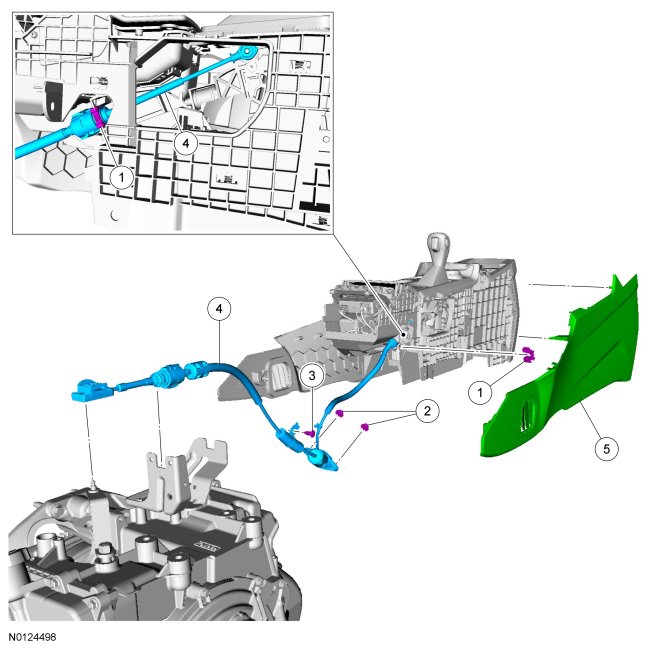

Exploded View

Selector Lever Cable- SelectShift(TM)











Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Lifting Points .

2. Remove the air cleaner outlet pipe. REFER to Intake Air System Components - Exploded View .

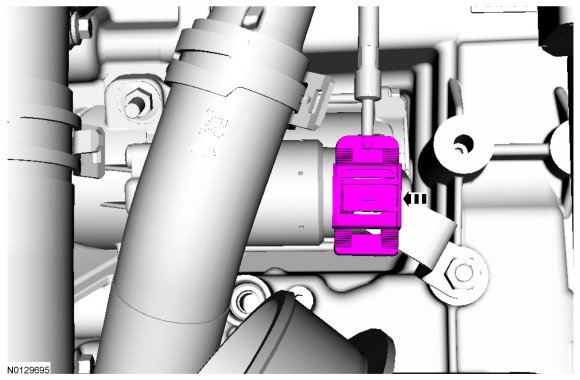

3. Disconnect the selector lever cable end from the manual control lever.

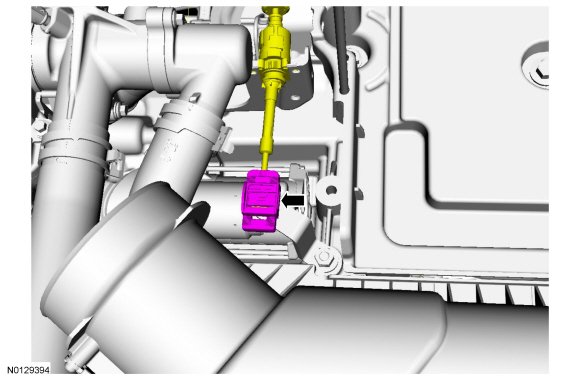

4. Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket.

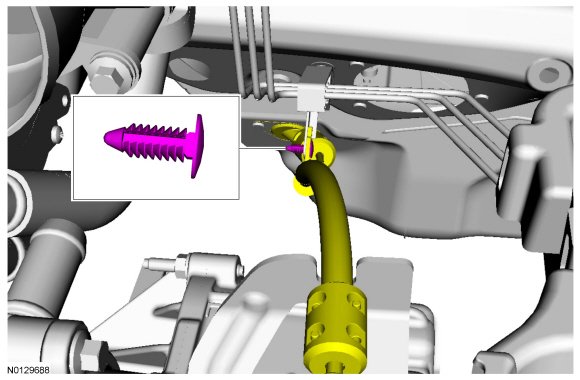

5. Remove the selector lever cable bracket pushpin.





6. Position the drivers seat to the full rearward and downward position and fully recline the seat back.

7. Remove the LH (Left Hand) floor console side trim panel.





8. NOTE: The console upper finish panel is removed for clarity.

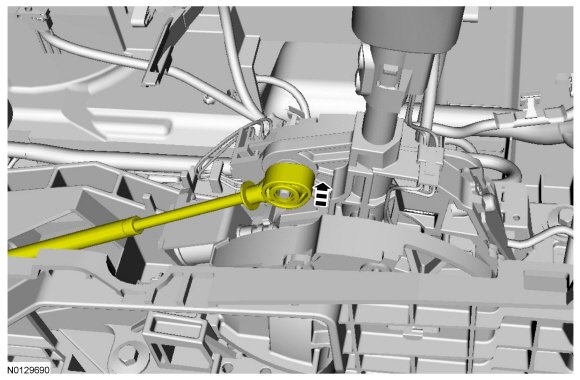

Disconnect the selector lever cable from the selector lever.

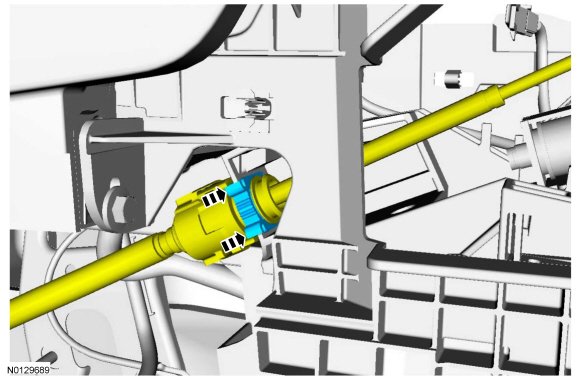

9. Remove the selector lever cable from the selector lever cable bracket and discard the selector lever cable retaining clip.

1. Release the 2 selector cable retaining tabs and pull the selector lever outward.

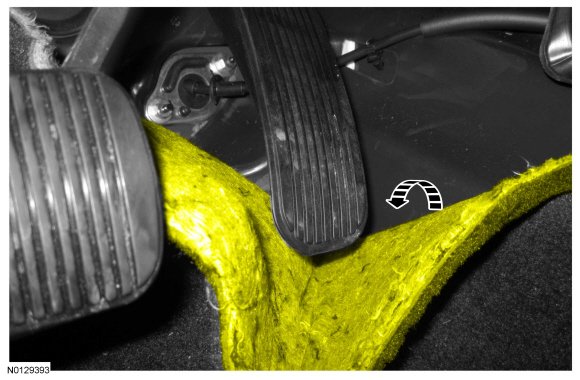

10. Position the carpet aside.

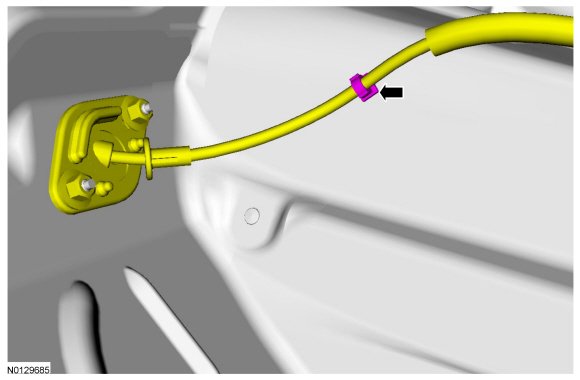

11. Release the selector lever cable from the pin-type retainer.

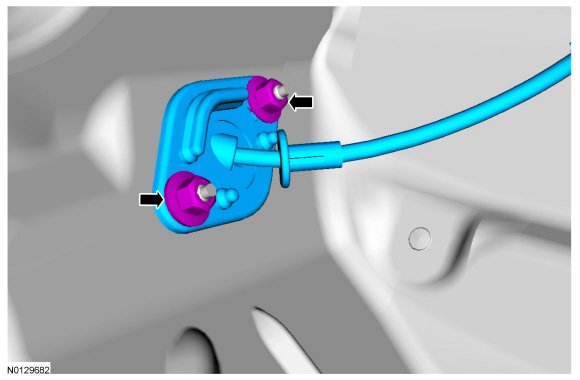

12. Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.






Installation

1. Install the selector lever cable, position the grommet in place and install the 2 nuts.
- Tighten to 7 Nm (62 lb-in).





2. Attach the selector lever cable to the pin-type retainer.





3. Position the carpet back.

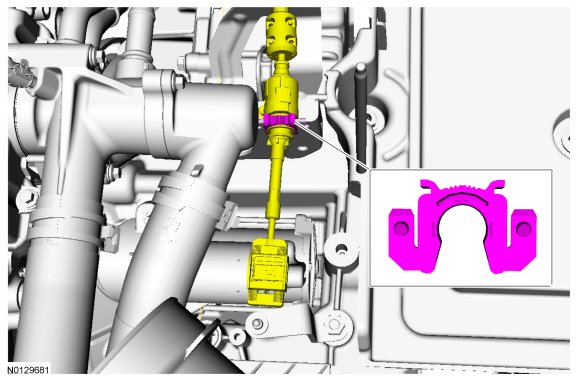

4. Install a new plastic selector lever cable retaining clip on the selector lever cable and install the selector lever cable into the selector lever cable bracket.





5. NOTE: The console upper finish panel is removed for clarity.

Connect the selector lever cable to the selector lever.





6. Install the LH (Left Hand) floor console side trim panel.





7. Position the drivers seat back to the original position.

8. Place the selector lever in DRIVE.


9. Install the selector lever cable bracket pushpin.





10. NOTICE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: When installing the selector lever cable, make sure that the selector lever cable locking tabs are locked in place. Press the selector lever cable into the selector lever cable bracket and listen for the selector lever cable retainer to click in place. Pull back on the selector lever cable to make sure that the selector lever is locked into the selector lever cable bracket.

Install the selector lever cable in the selector lever cable bracket.

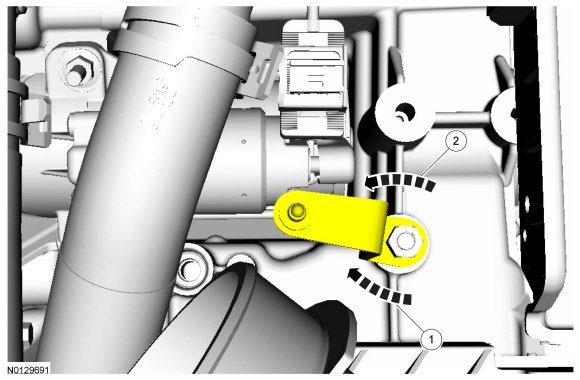

11. Place the manual control lever in DRIVE.

1. Rotate the manual control lever clockwise until it stops.

2. Rotate the manual control lever counterclockwise one detent.

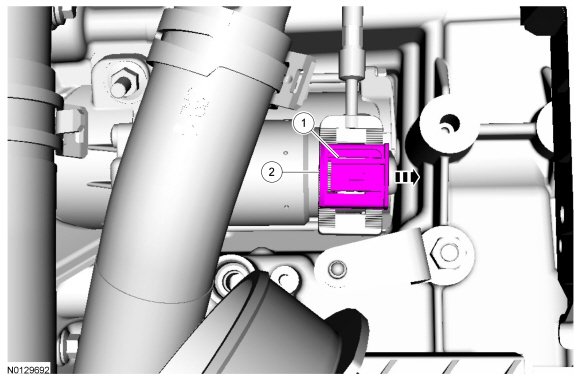

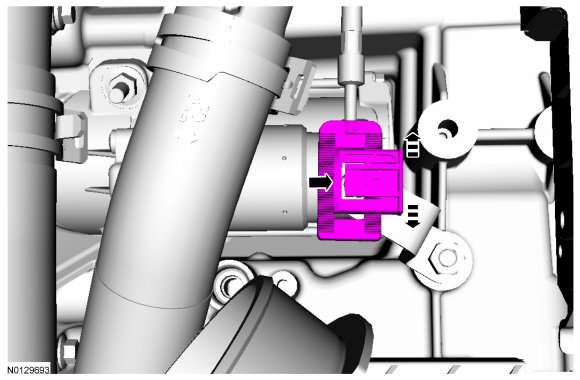

12. Unlock the adjuster.

1. Pry the latch up.

2. Push the lock tab to slide it over.





13. Slide the selector lever cable end forward or backward to align it with the manual control lever.





14. NOTICE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: When installing the selector lever cable end, make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud. Pull back on the selector lever cable end to make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud.

With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.

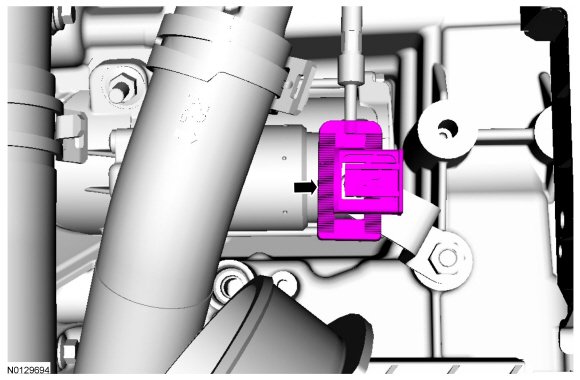

15. Slide the release tab back to lock the adjuster.





16. Install the air cleaner outlet pipe. REFER to Intake Air System Components - Exploded View .
