Transmission Service Components - Exploded View, Internal Components




Transmission Service Components - Exploded View, Internal Components

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

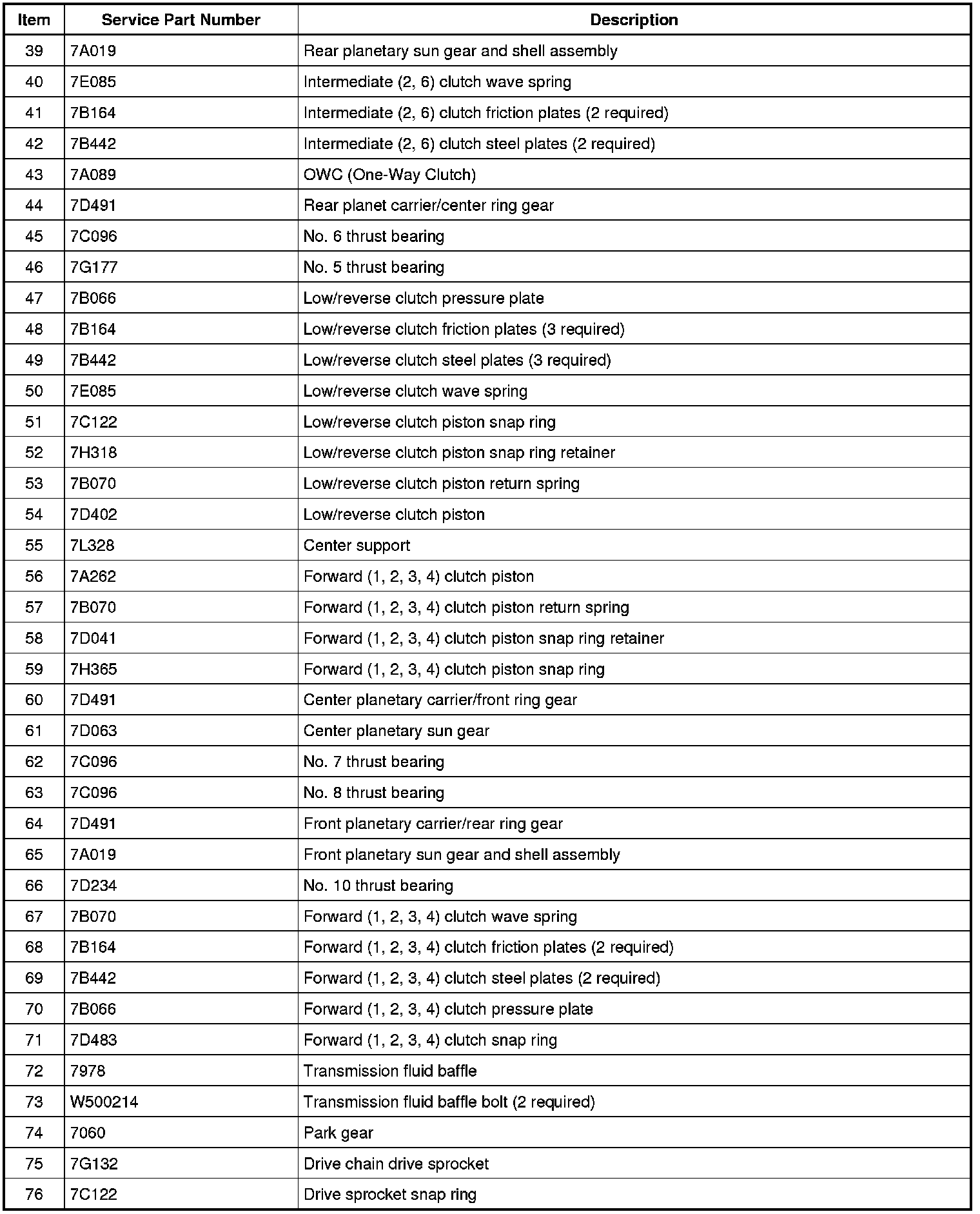

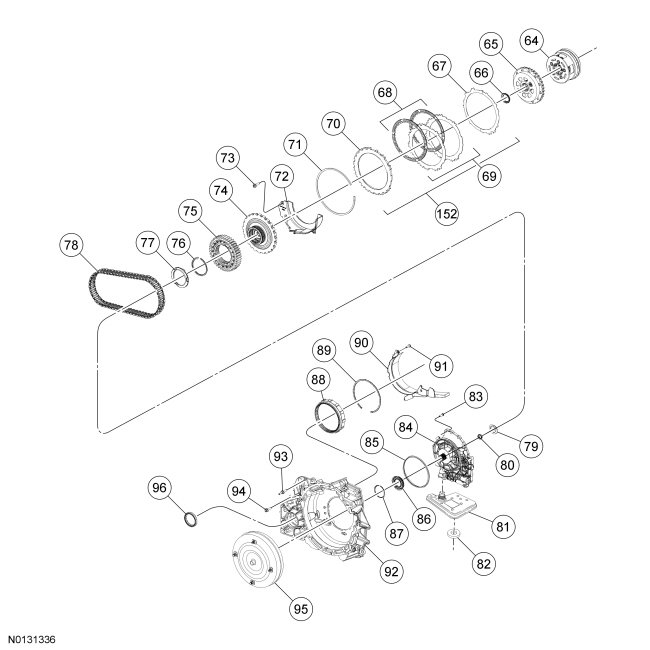

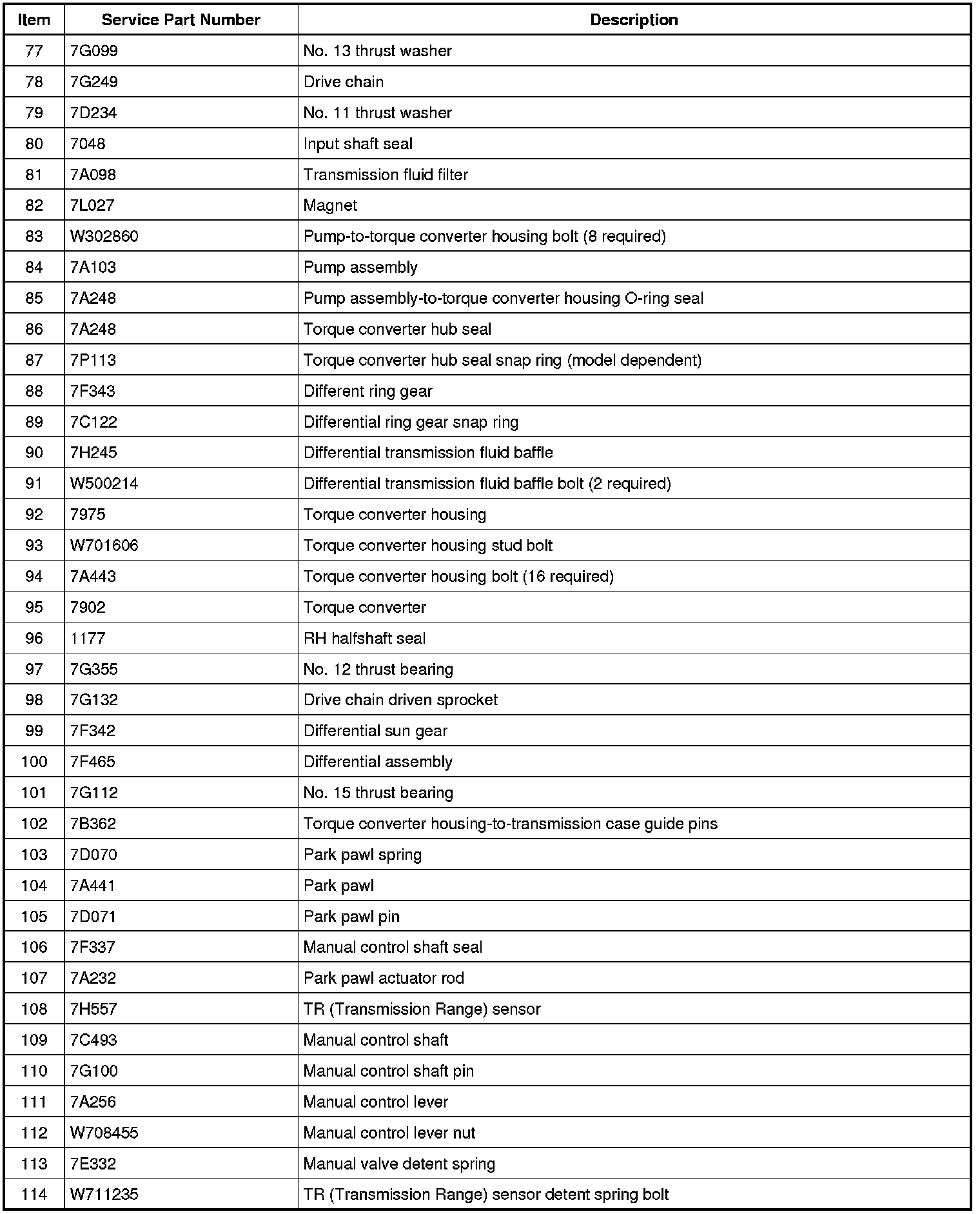

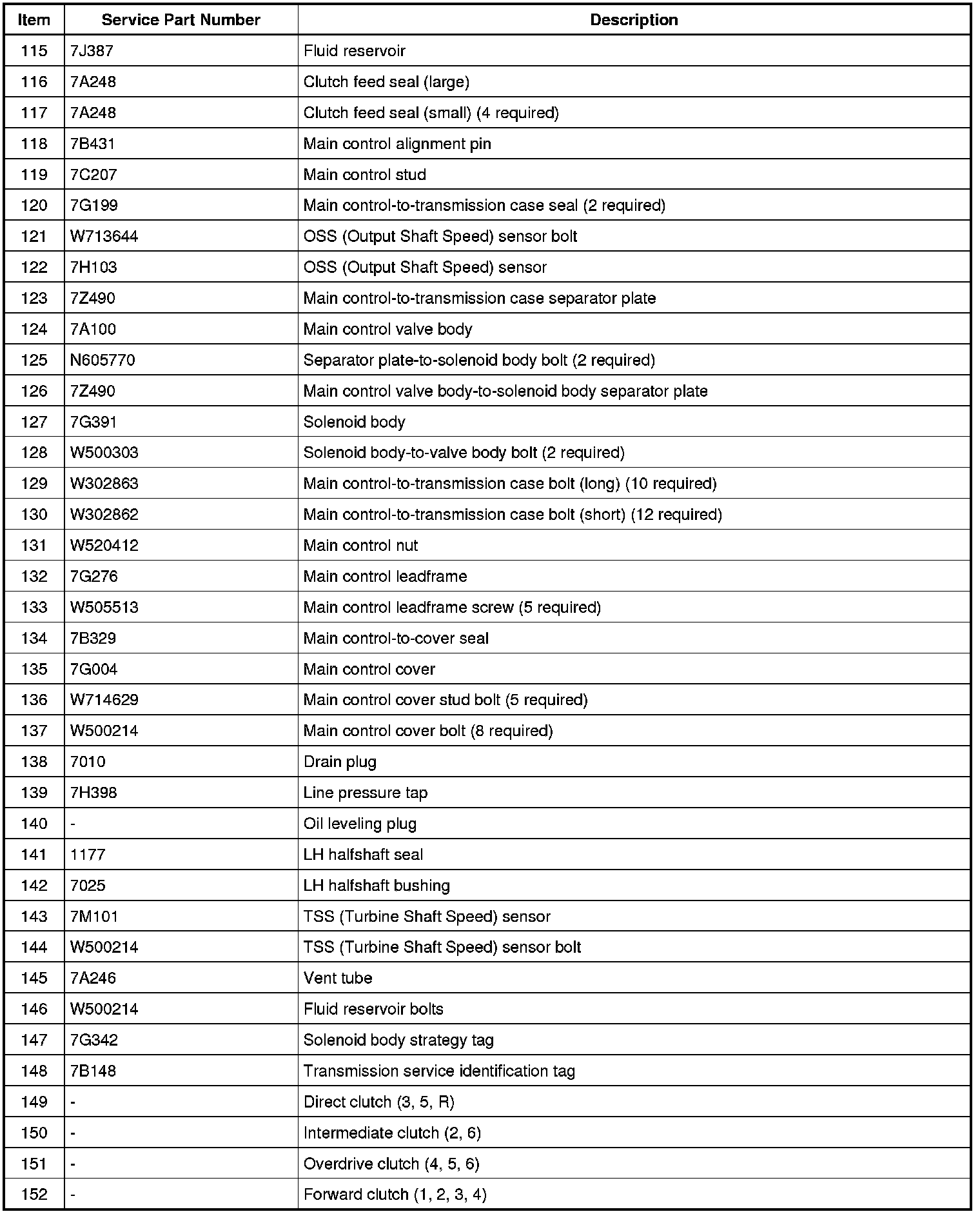

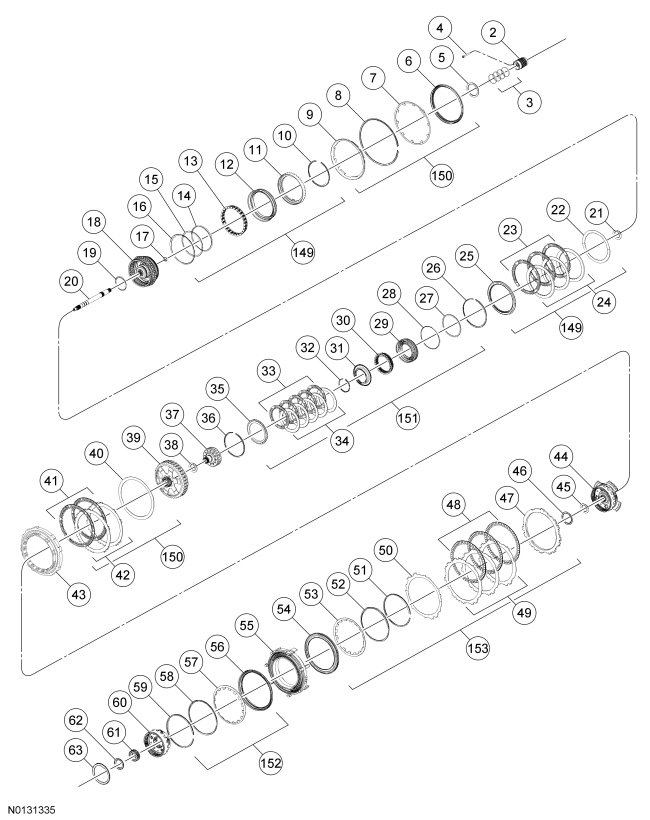

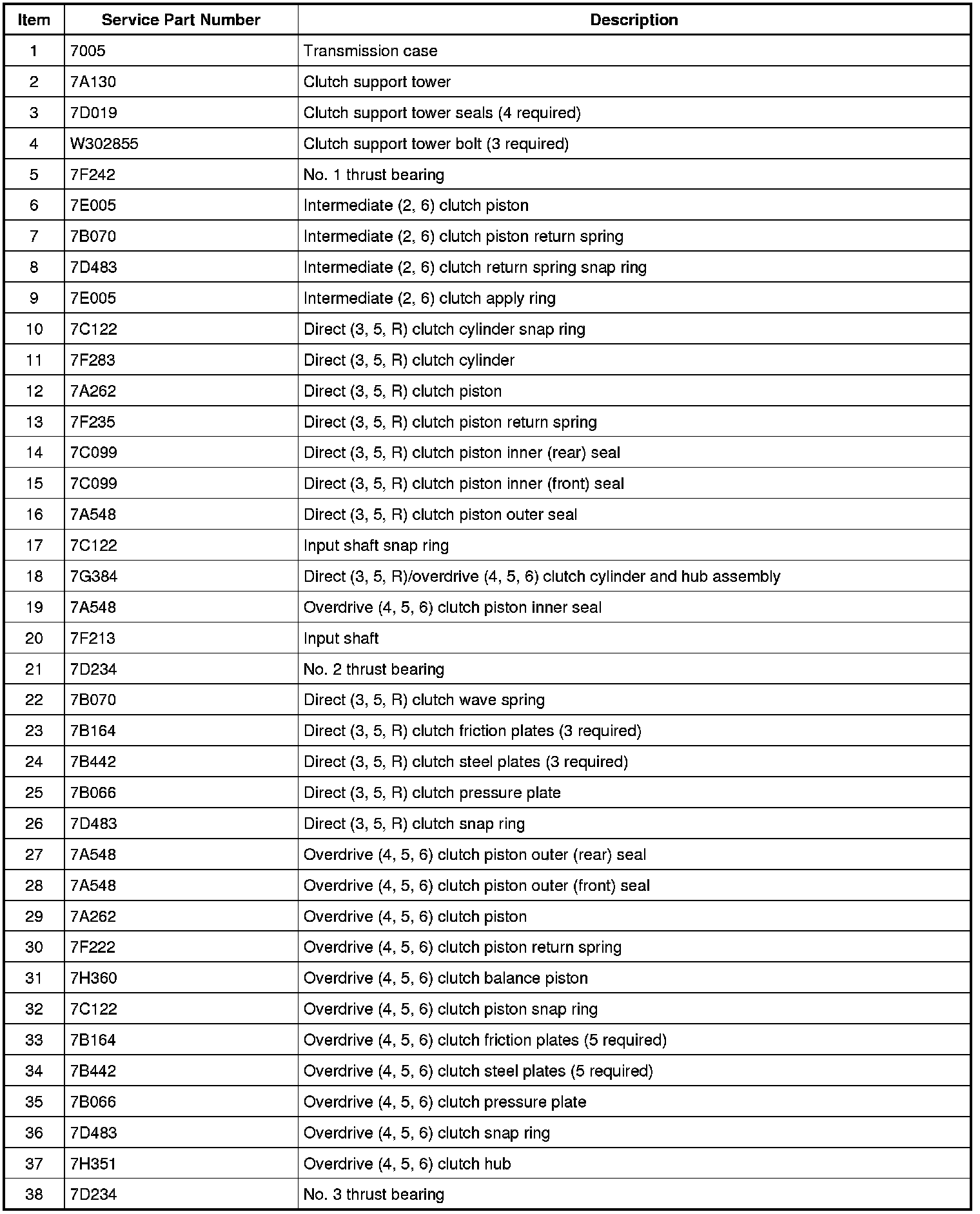

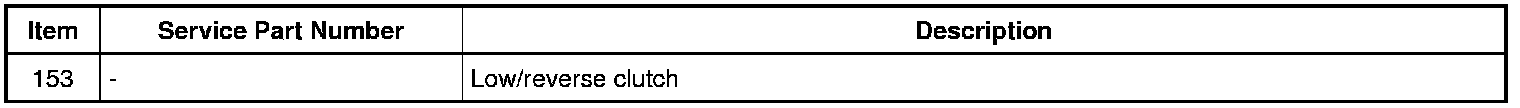

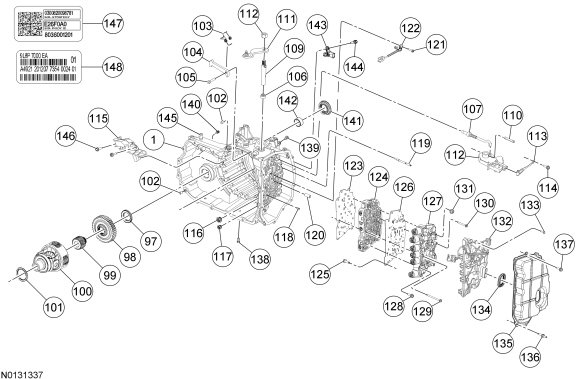

Exploded View
