Component Location




Transaxle-Transmission Cooling

Component Location

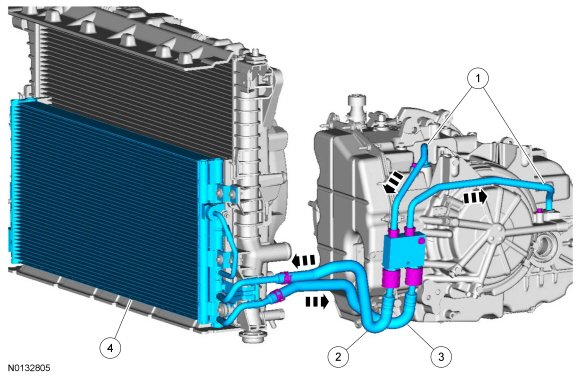

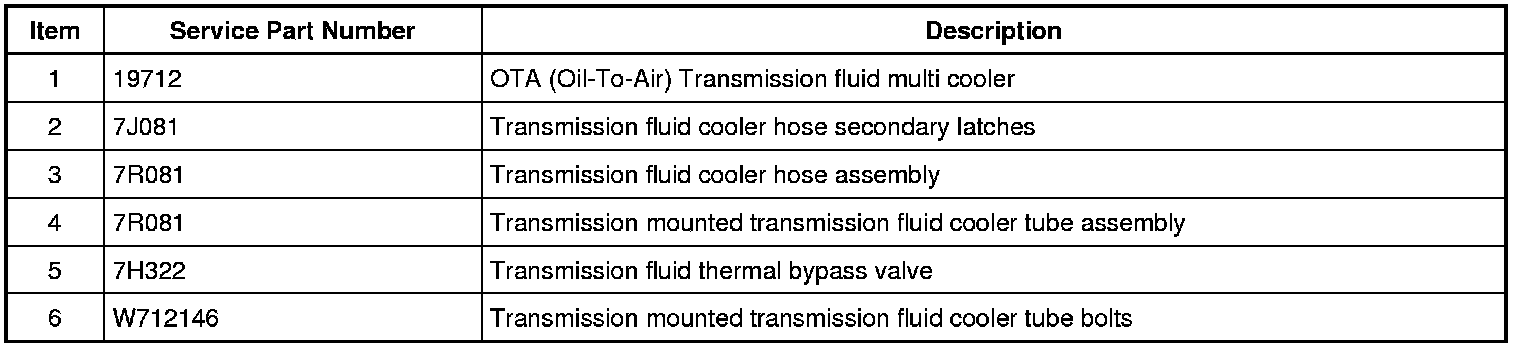

Transmission Cooling - 6F50 and 6F55

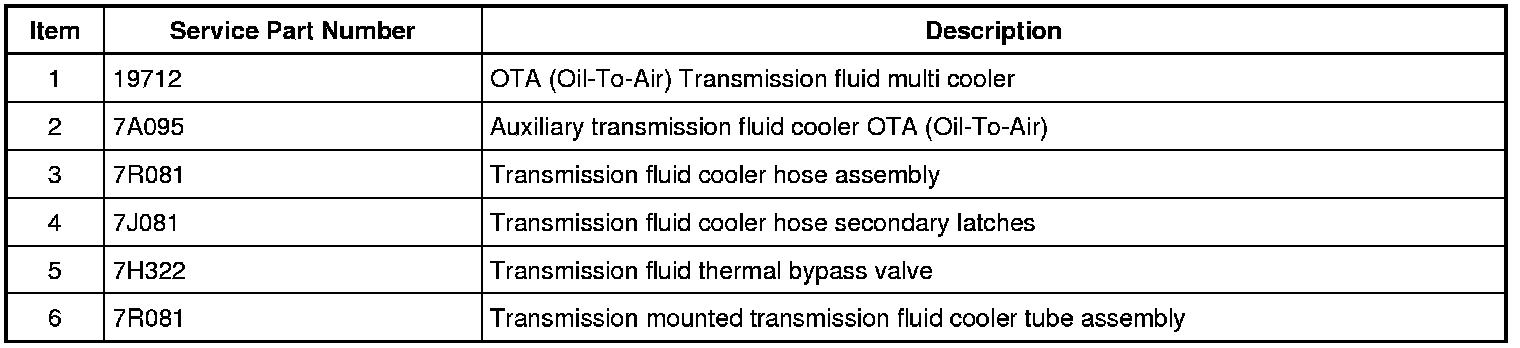

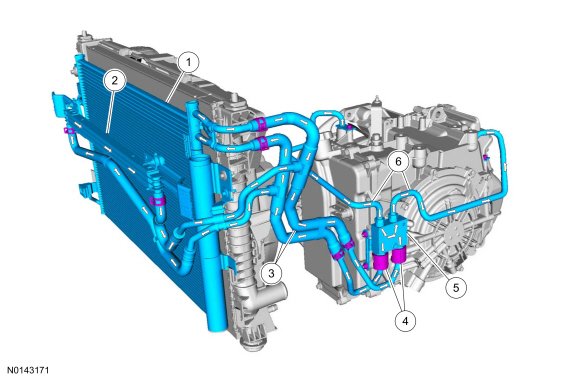

Transmission Cooling - 6F50 and 6F55 with Auxiliary Cooler

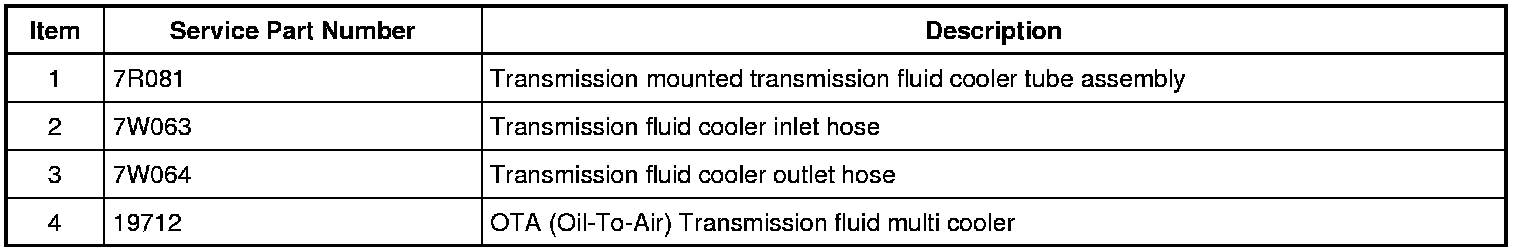

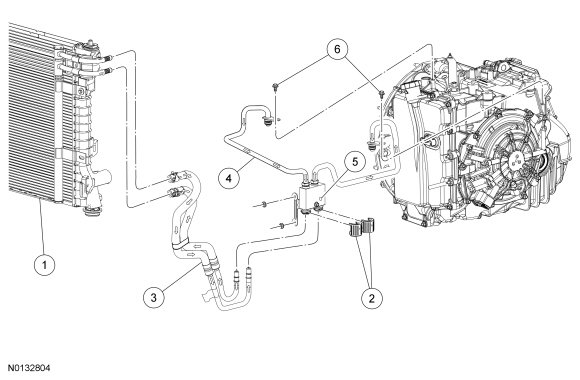

Transmission Cooling - 6F35
