Component Location




Electrical System - 6F35

Component Location

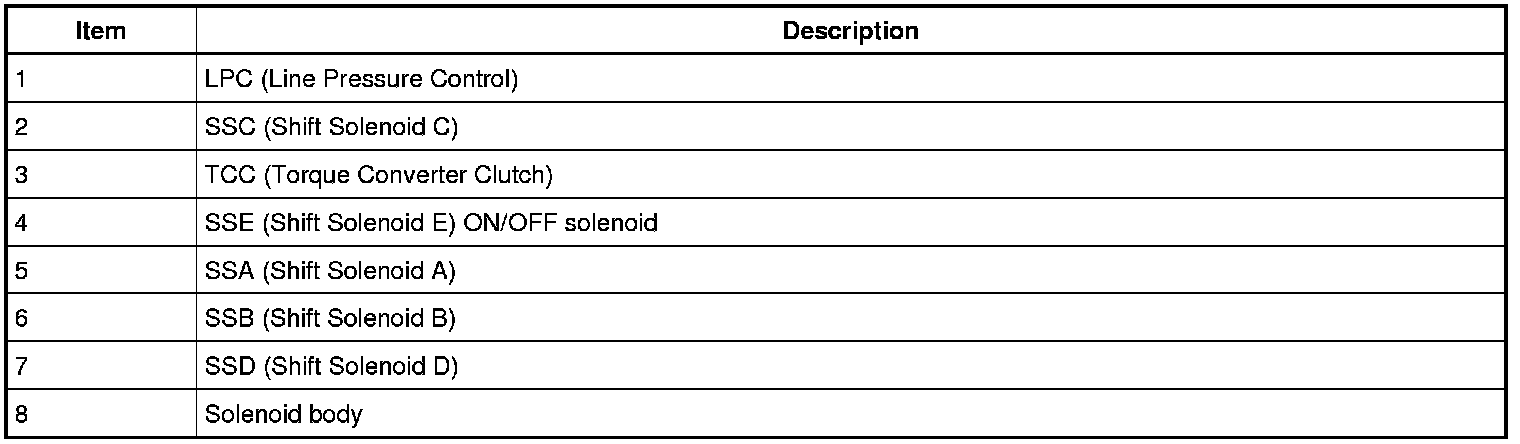

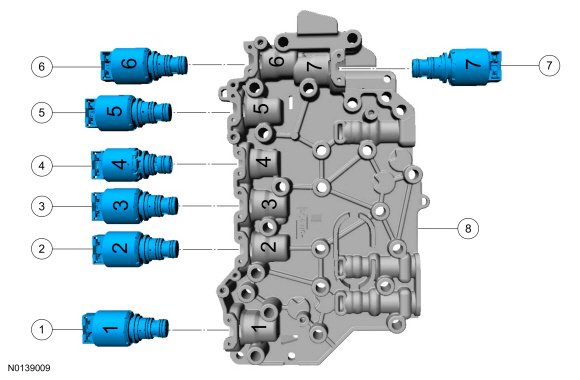

The solenoid body contains 5 shift solenoids, 1 TCC (Torque Converter Clutch) solenoid and 1 LPC (Line Pressure Control) solenoid.
