Selector Lever Cable Adjustment - 6F35

Selector Lever Cable Adjustment - 6F35

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

General Procedure

1. Remove the ACL (Air Cleaner) outlet pipe. REFER to Exploded View .

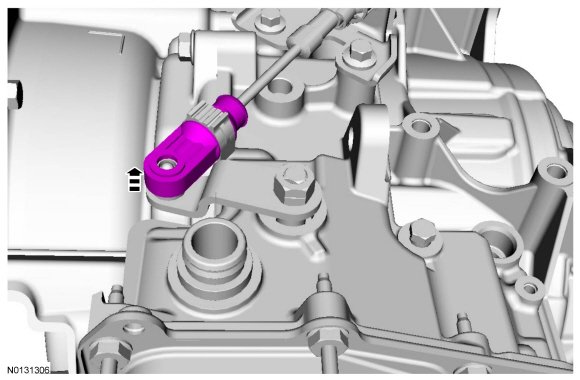

2. Disconnect the selector lever cable end from the manual control lever.





3. Place the selector lever in DRIVE.

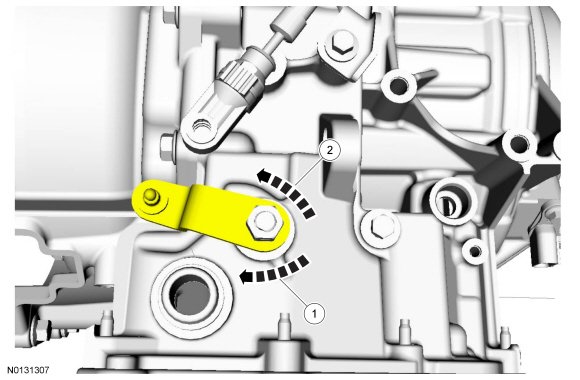

4. Place the manual control lever in DRIVE.

1. Rotate the manual control lever clockwise until it stops.
2. Rotate the manual control lever counterclockwise 3 detent stops.

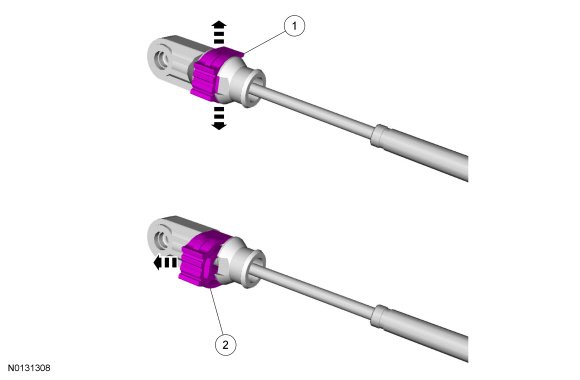

5. Release the selector lever cable adjuster lock.

1. Carefully pry outward the adjuster lock tabs.
2. While holding the adjuster lock tabs outward, slide the lock to unlock the selector lever cable.

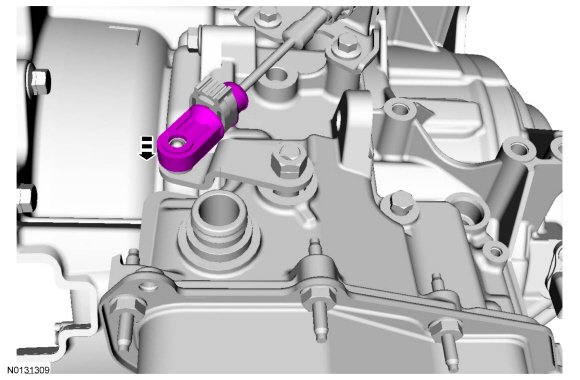

6. NOTICE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

With the adjuster locking tab released, connect the selector lever cable end to the manual control lever.

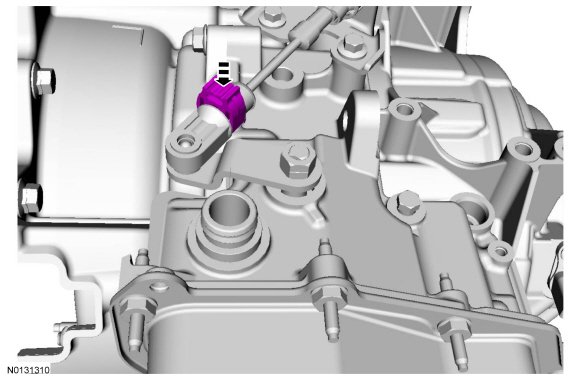

7. NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.
Slide the release tab back to lock the adjuster.





8. Install the ACL (Air Cleaner) outlet pipe. REFER to Exploded View .

9. Verify the vehicle starts in PARK and NEUTRAL only and the reverse lamps illuminate in REVERSE.
