Steering Wheel Switch

Steering Wheel Switch

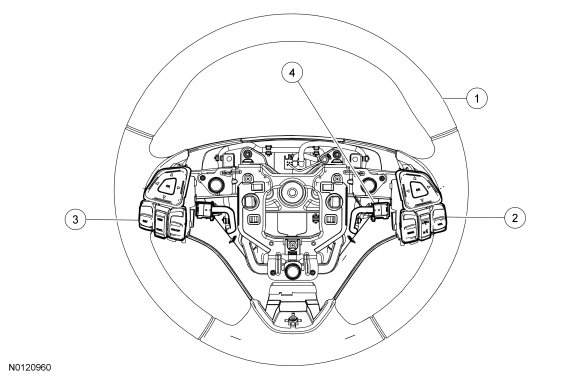

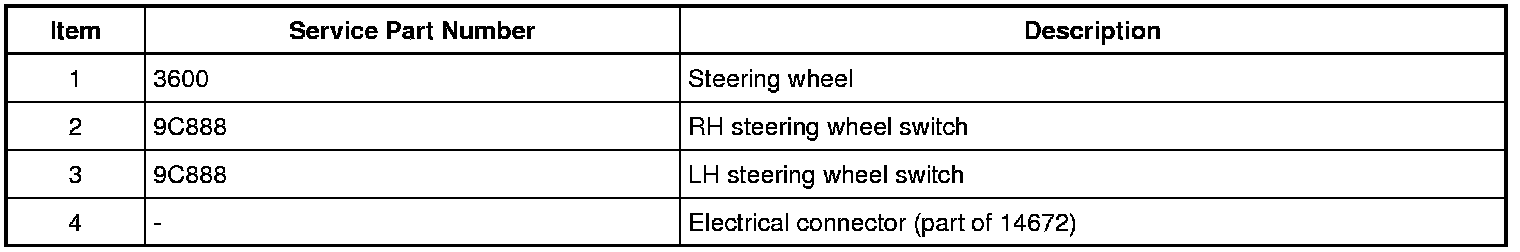

Exploded View










Removal

1. Remove the steering wheel. REFER to Steering Wheel .

2. Remove the 3 screws and the steering wheel trim cover.





3. Disconnect the electrical connector.

4. Release the 3 tab retainers and remove the steering wheel switch.

Installation

1. Install steering wheel switch making sure all 3 tabs are seated in the retainers.

2. Connect the electrical connector.

3. Position the steering wheel trim cover and install the 3 screws.





4. Install the steering wheel. REFER to Steering Wheel .
