Tire Pressure Sensor: Service and Repair

Tire Pressure Monitoring System (TPMS) Sensor

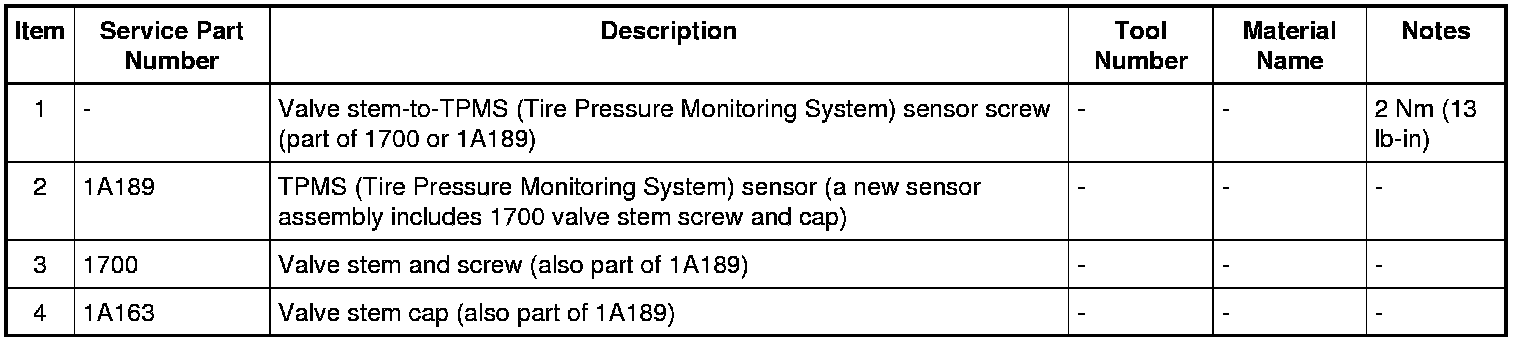

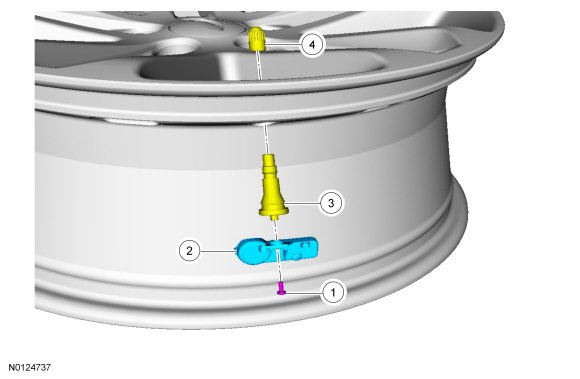

Exploded View










Removal

1. WARNING: The TPMS (Tire Pressure Monitoring System) sensor battery may release hazardous chemicals if exposed to extreme mechanical damage. If these chemicals contact the skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention. If any part of the battery is swallowed, contact a physician immediately. When disposing of TPMS (Tire Pressure Monitoring System) sensors, follow the correct procedures for hazardous material disposal. Failure to follow these instructions may result in serious personal injury.

NOTE: The TPMS (Tire Pressure Monitoring System) sensor cannot be removed without disassembly of the wheel and tire.
Disassemble the wheel and tire. REFER to Wheel and Tire .

Installation

1. NOTE: The TPMS (Tire Pressure Monitoring System) sensor cannot be installed without disassembly of the wheel and tire.

Assemble the wheel and tire. REFER to Wheel and Tire .
