Symptom Related Diagnostic Procedures

Symptom Chart(s)

Symptom Chart: Starting System

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Fundamentals and Basics for information regarding Ford-specific diagnostic practices.

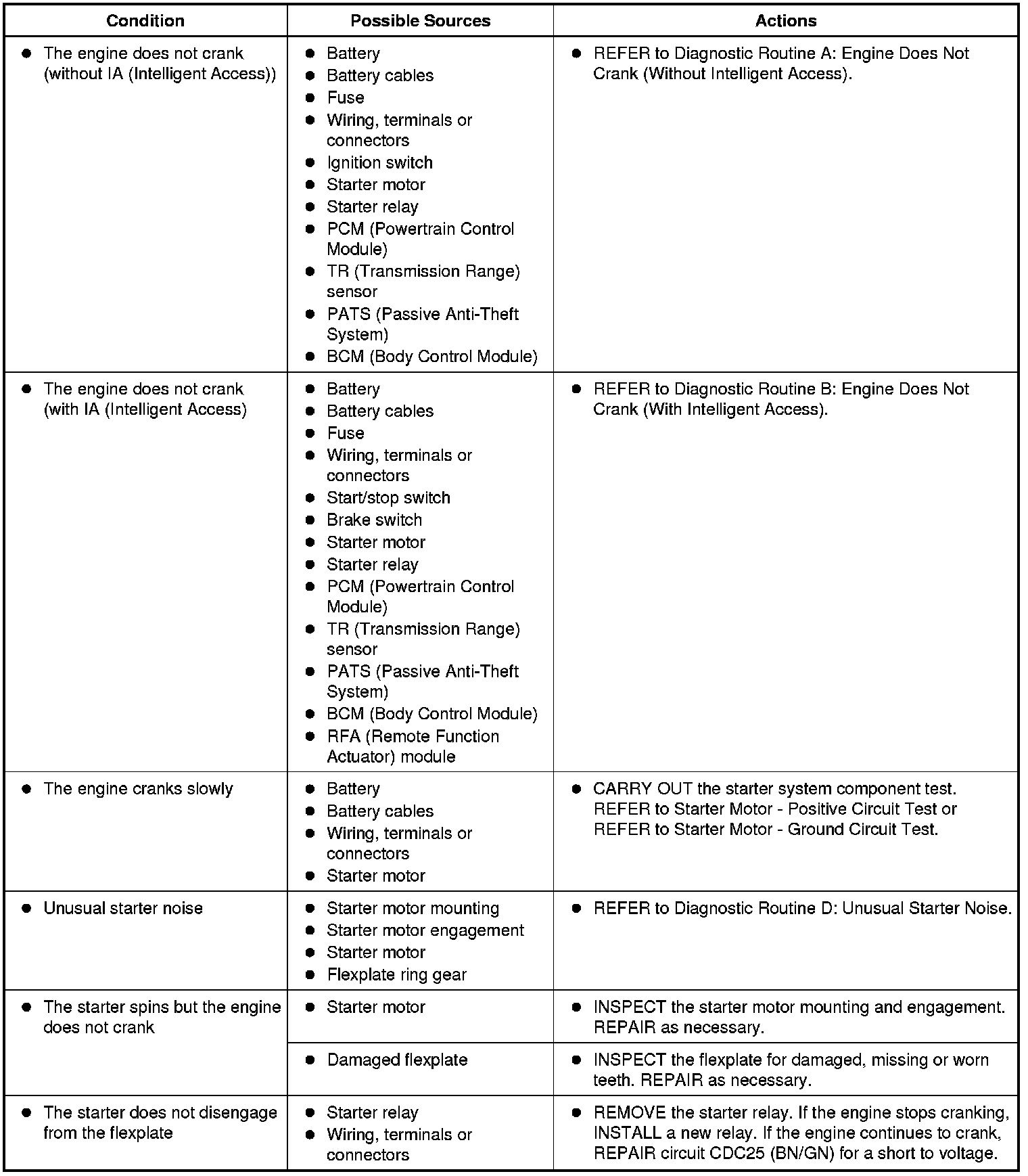

Symptom Chart
