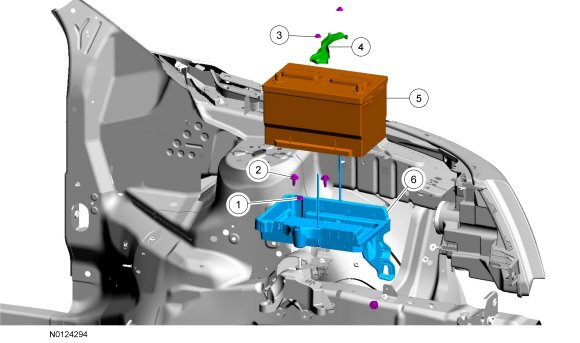

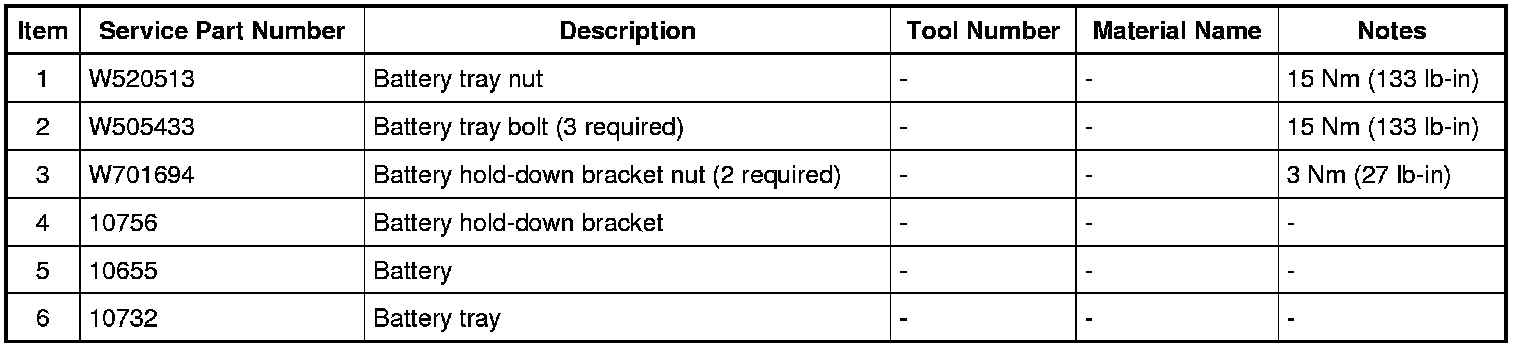

Battery and Battery Tray - Exploded View




Battery and Battery Tray - Exploded View

Exploded View










NOTE: Remove the ACL (Air Cleaner) tray assembly and outlet pipe. REFER to Intake Air System Components - Exploded View .
