Battery Current Sensor

Battery Current Sensor

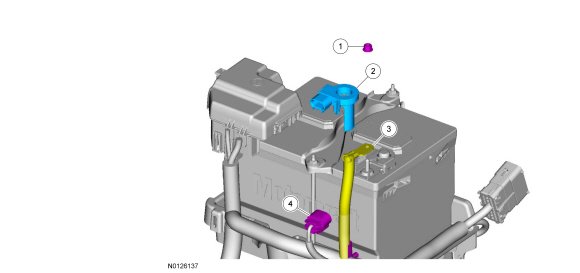

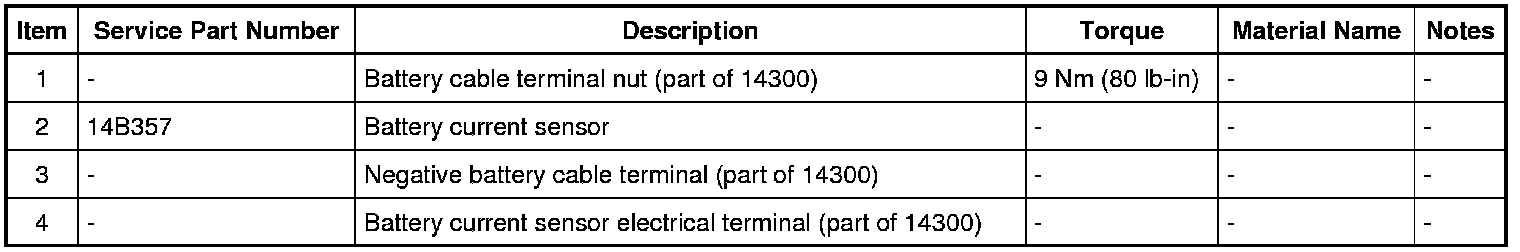

Exploded View










Removal

1. Remove nut and position the negative battery cable terminal aside.

2. Remove the ACL (Air Cleaner) outlet pipe and cover. REFER to Intake Air System Components - Exploded View .

3. Disconnect the battery current sensor electrical connector.

4. NOTE: Note the orientation and position of the battery current sensor tape tab.
Index-mark the battery cable at the battery current sensor. Remove and discard the tape securing the battery current sensor to the battery cable and remove the battery current sensor.

Installation

1. NOTE: The battery current sensor must be installed in the proper position and orientation to function correctly.
With the battery current sensor tape tab pointing downward, position the battery current sensor to the index-mark on the battery cable and secure with electrical tape.

2. Connect the battery current sensor electrical connector.

3. Install the ACL (Air Cleaner) outlet pipe and cover. REFER to Intake Air System Components - Exploded View .

4. Connect the negative battery cable terminal to the battery terminal and install the battery cable terminal nut.

- Tighten to 9 Nm (80 lb-in).
