Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Fuel Delivery and Air Induction
>>
System Specifications
>>
Fuel Charging and Controls
Fuel Charging and Controls
Fuel Charging and Controls - 2.0L GTDI

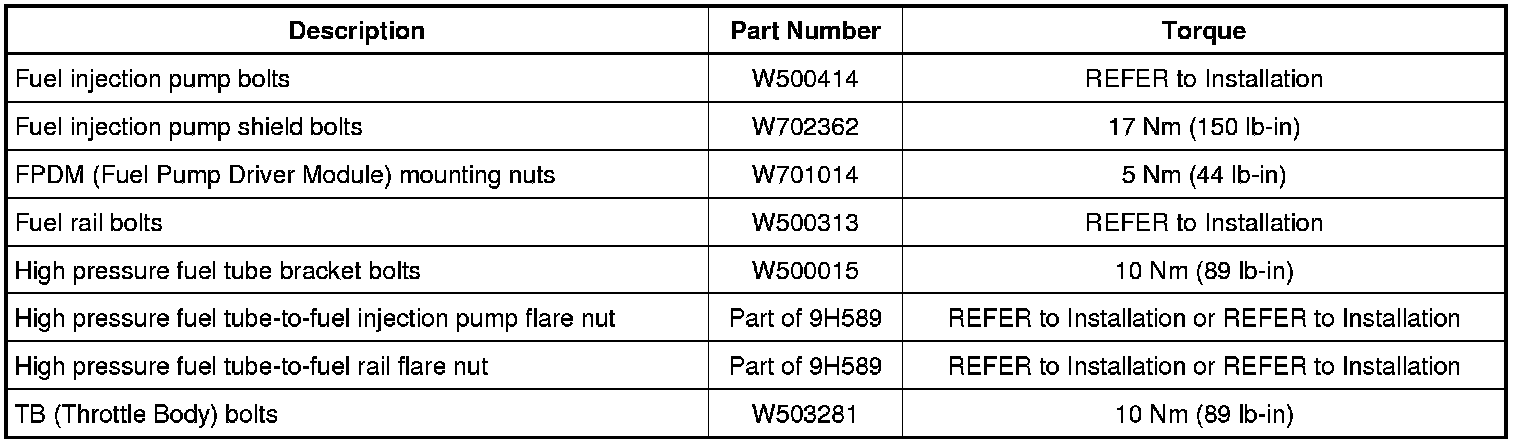

Torque Specifications
