System Specifications




Engine Cooling

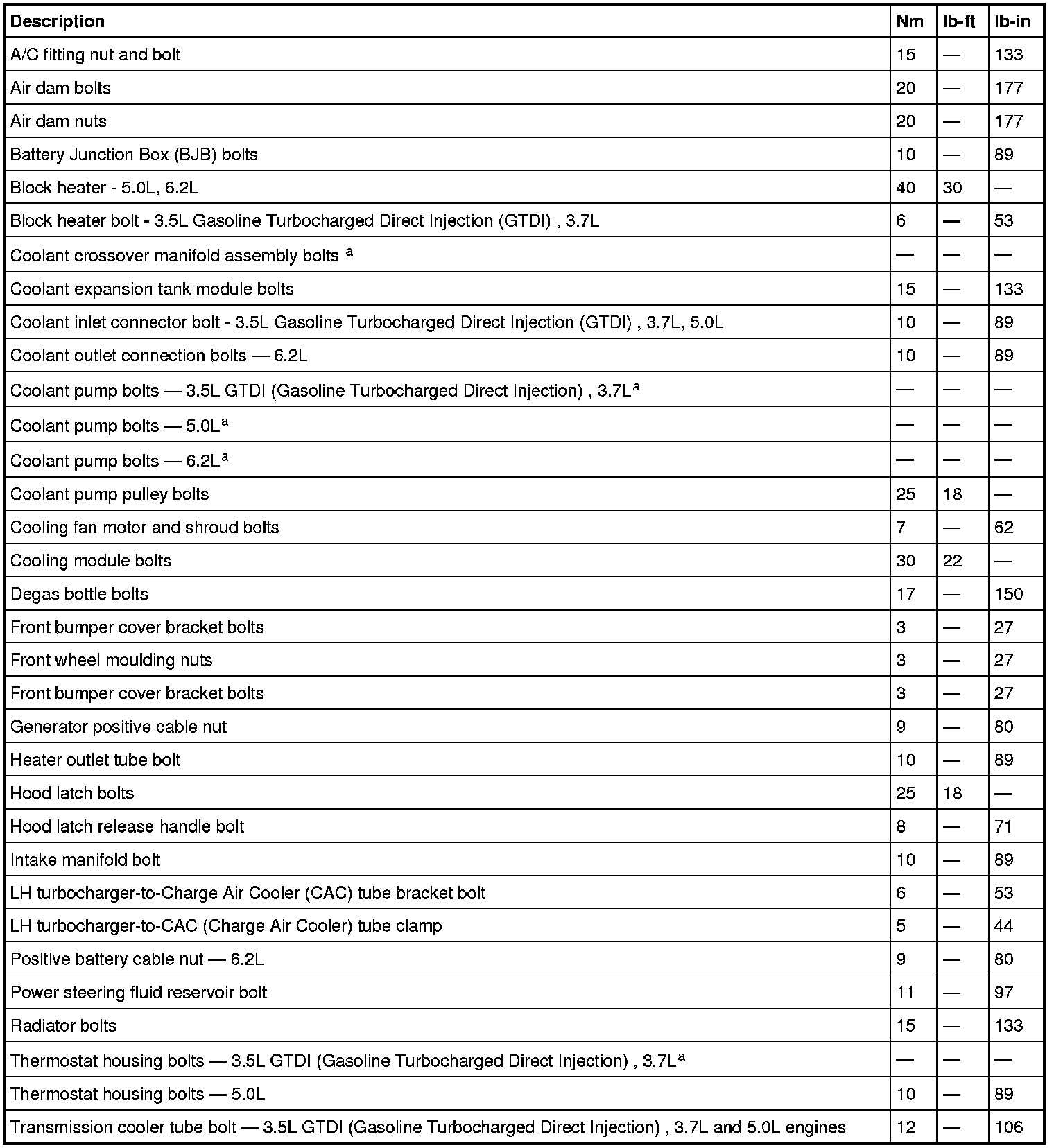

Torque Specifications





a Refer to the procedure in Cooling System.
