Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Transaxle-Transmission Cooling
Transaxle-Transmission Cooling
Transaxle-Transmission Cooling

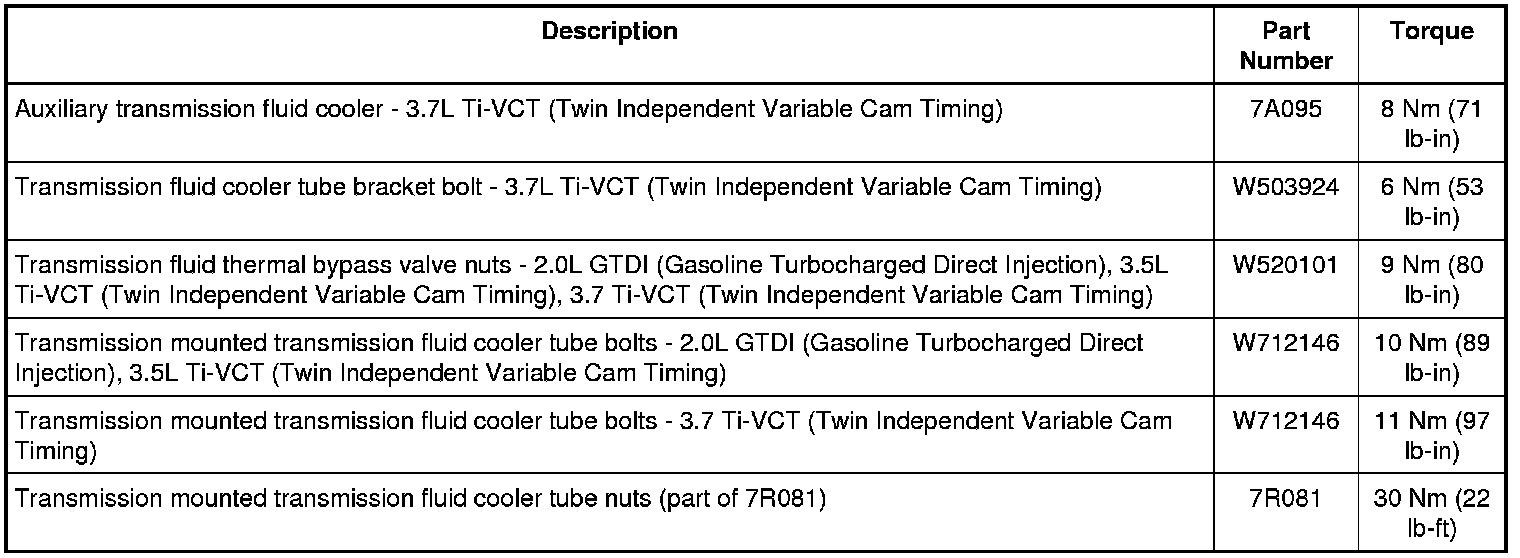

Torque Specifications
