Automatic Transmission - 6F50 and 6F55

Automatic Transmission - 6F50 and 6F55

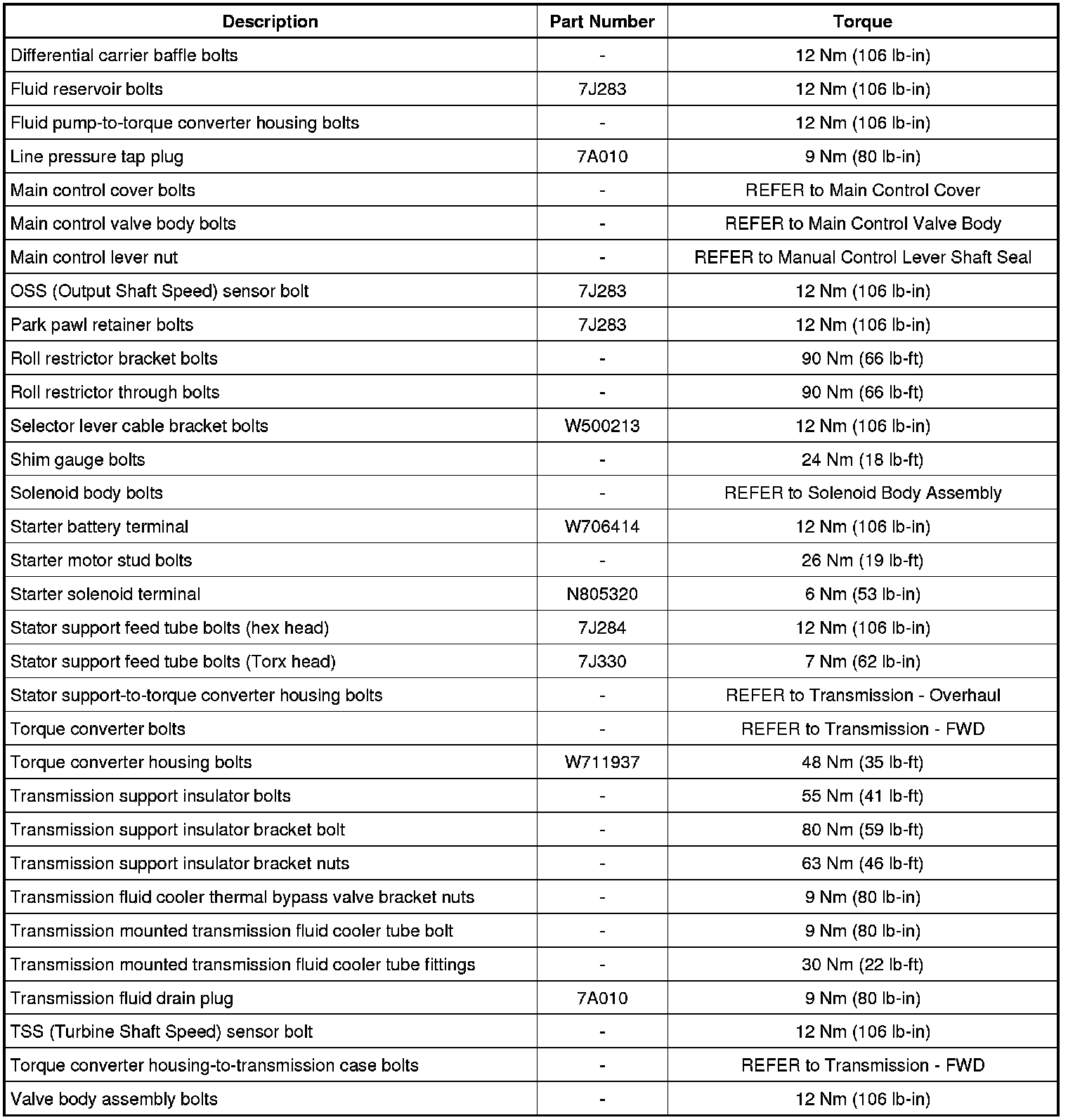

Torque Specifications

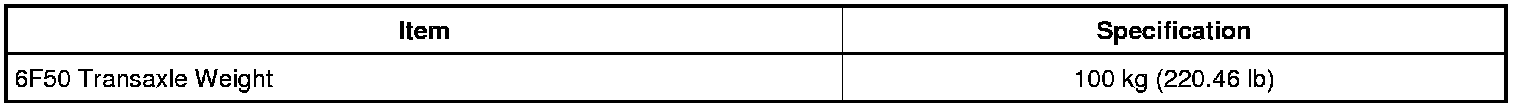

General Specifications

General Specifications

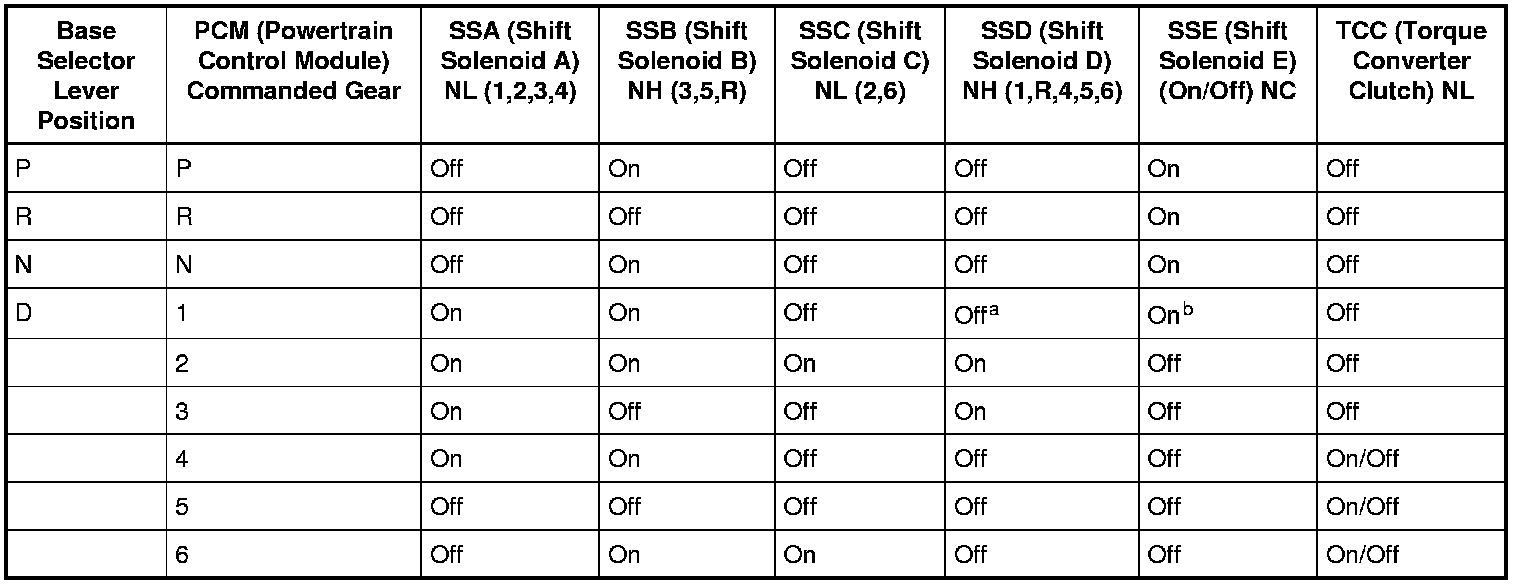

Solenoid Operation Chart





a Turns on above 8 km/h (5 mph).

b Turns off above 8 km/h (5 mph).

NC = Normally closed

NH = Normally high

NL = Normally low

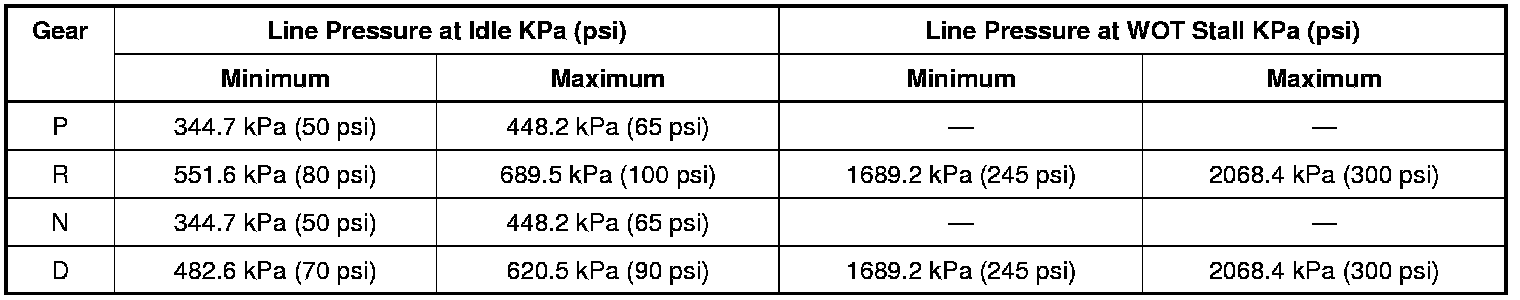

Pressure Chart

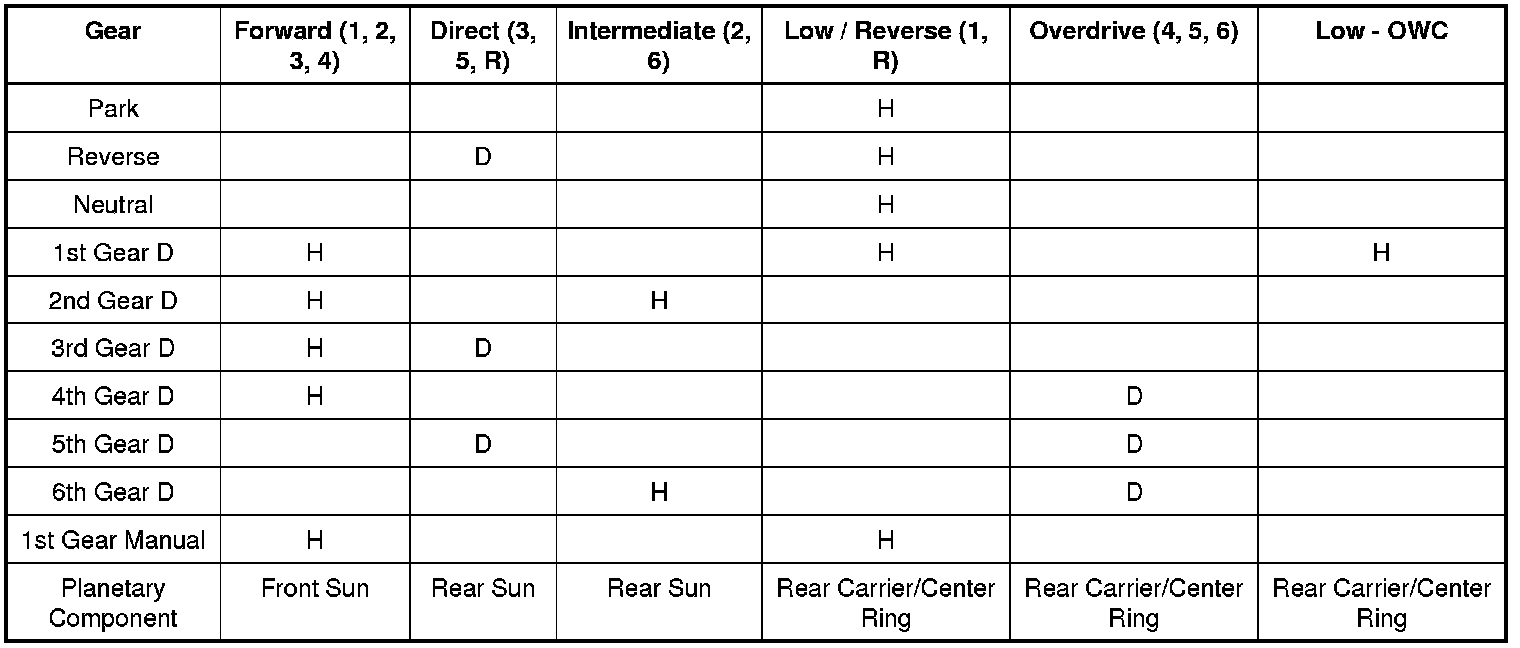

Clutch Application Chart





H = Holding

D = Driven

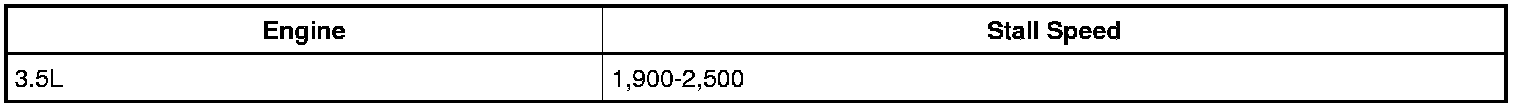

Stall Speed Chart

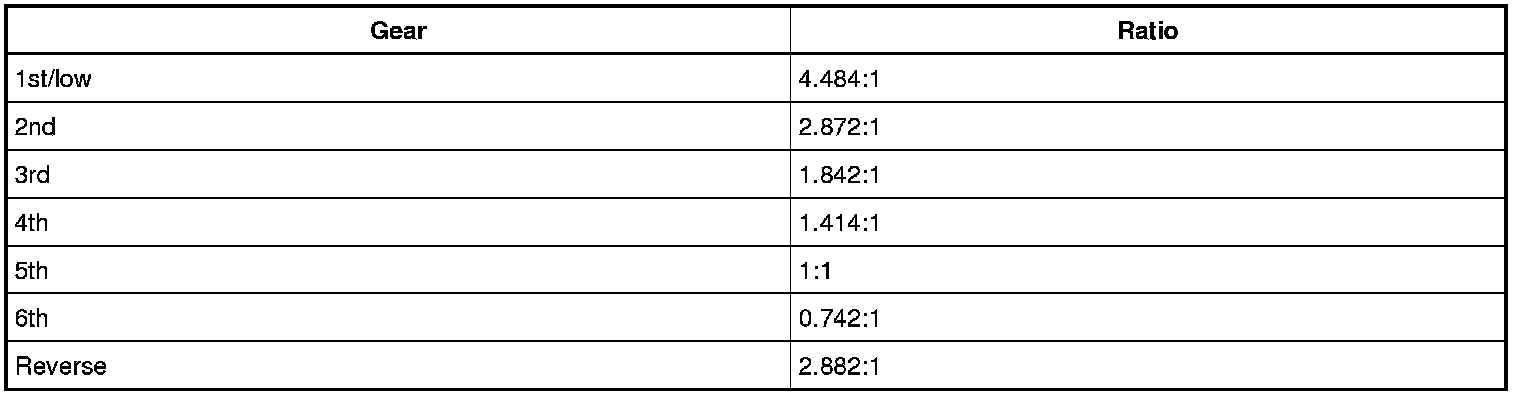

Gear Ratio Chart

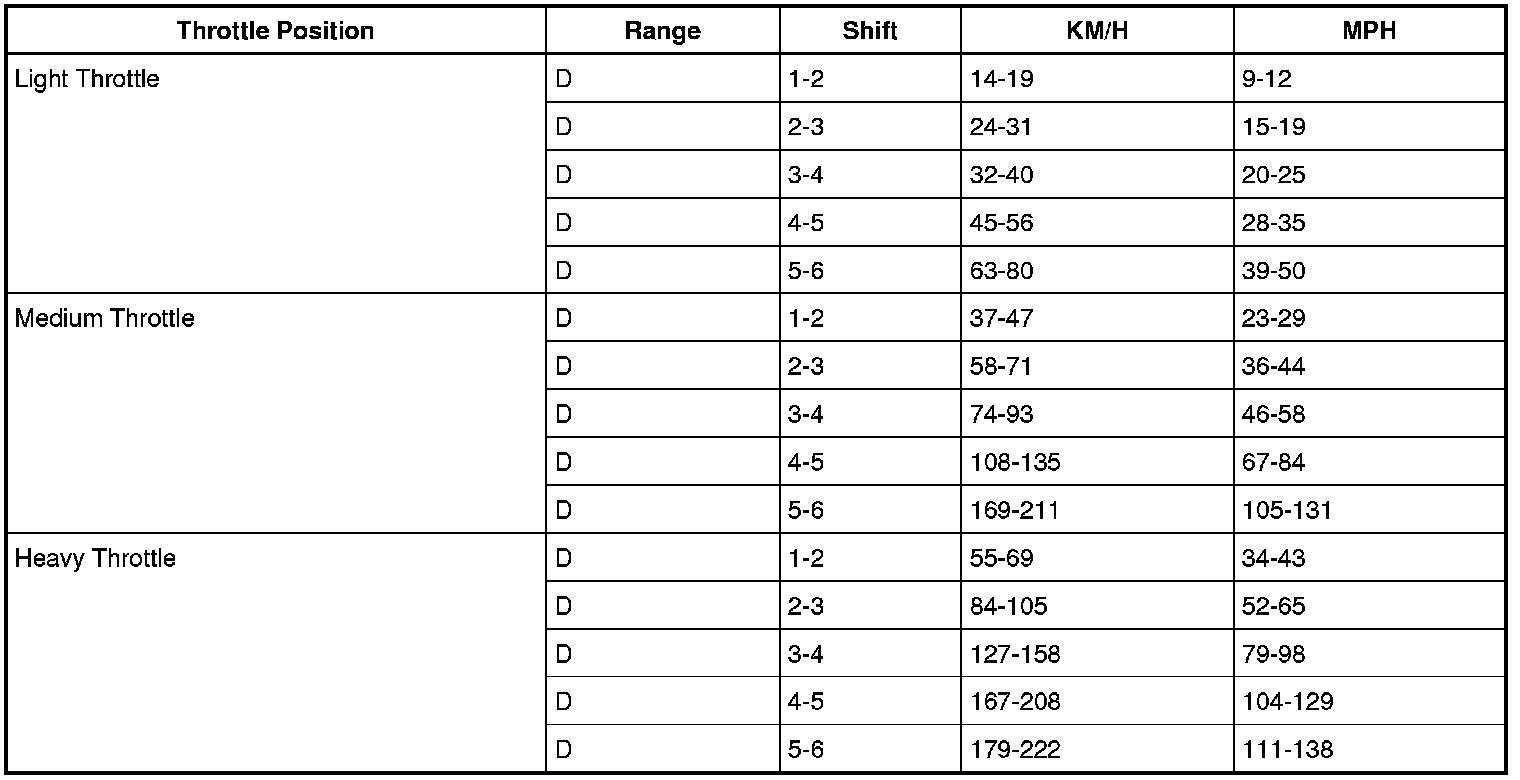

Shift Speeds

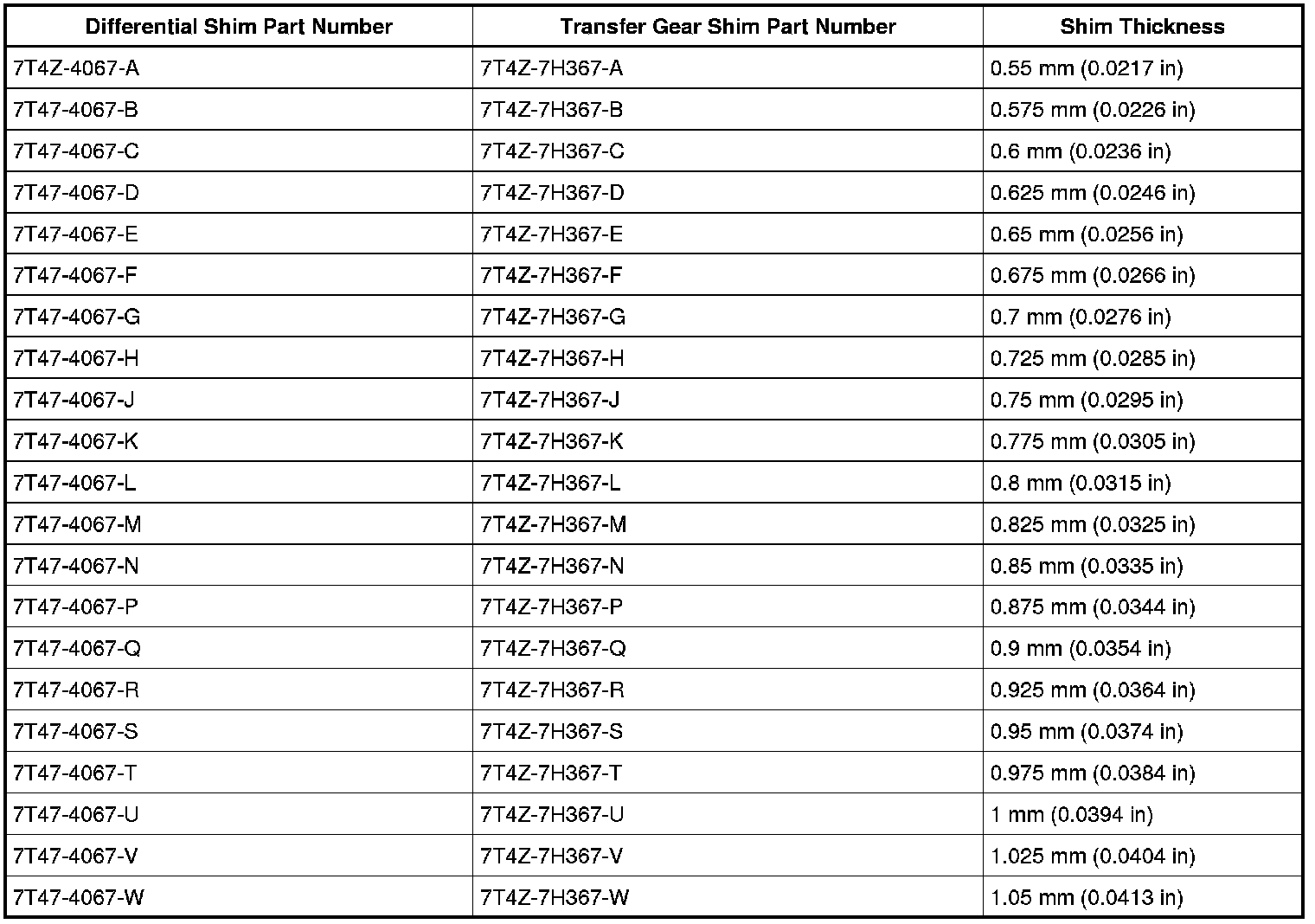

Differential and Transfer Gear Bearing Preload Shim Selection Chart
