Automatic Transmission - 6F35

Automatic Transmission - 6F35

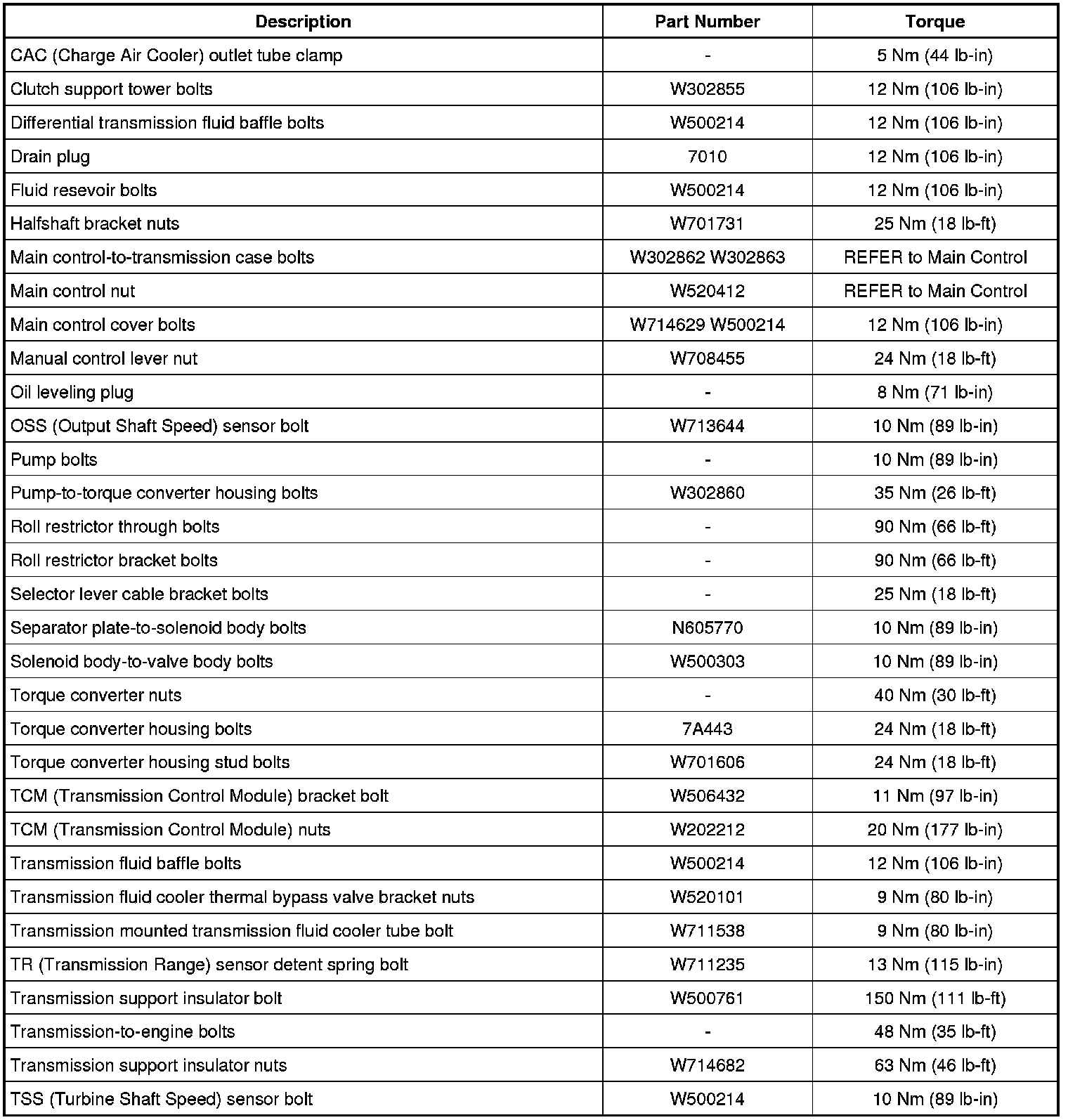

Torque Specifications





General Specifications

General Specifications

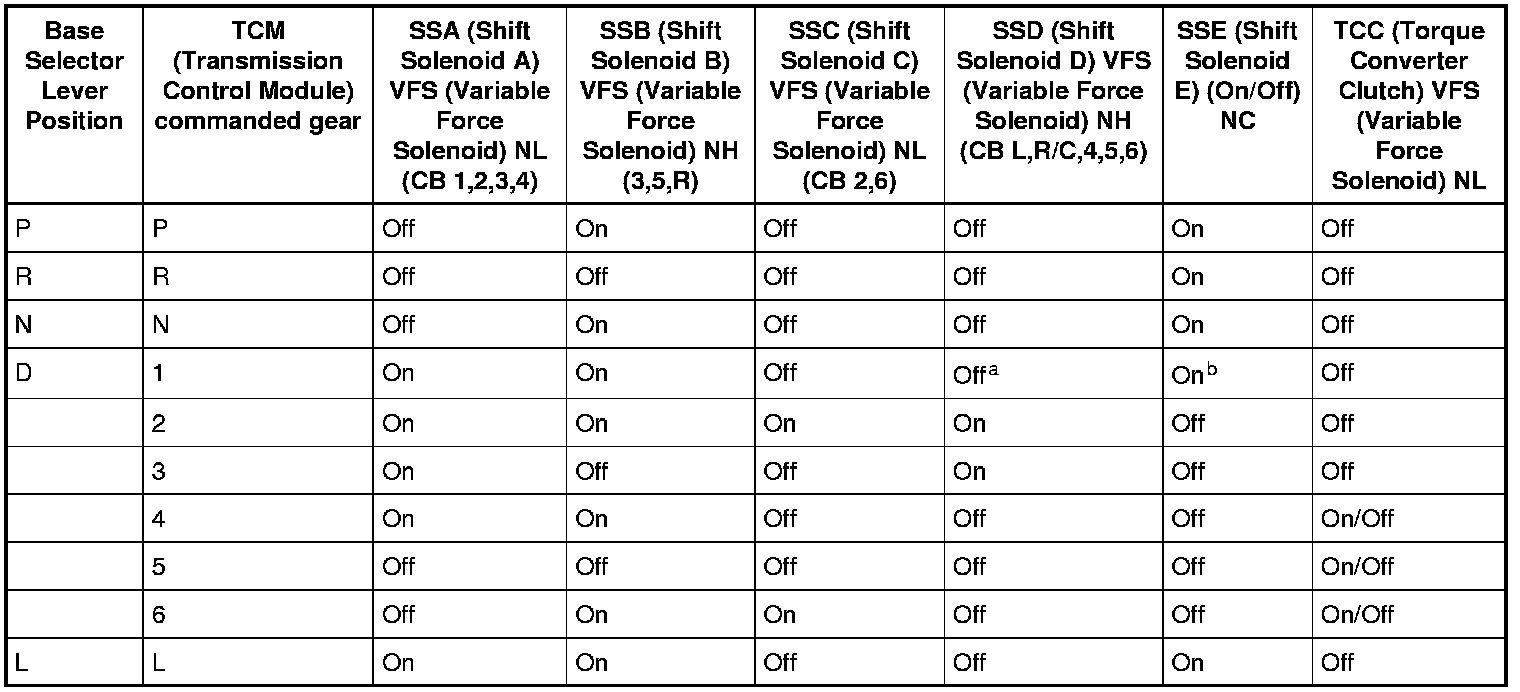

Solenoid Operation Chart





a Turns on above 8 km/h (5 mph).

b Turns off above 8 km/h (5 mph).

CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

Pressure Chart

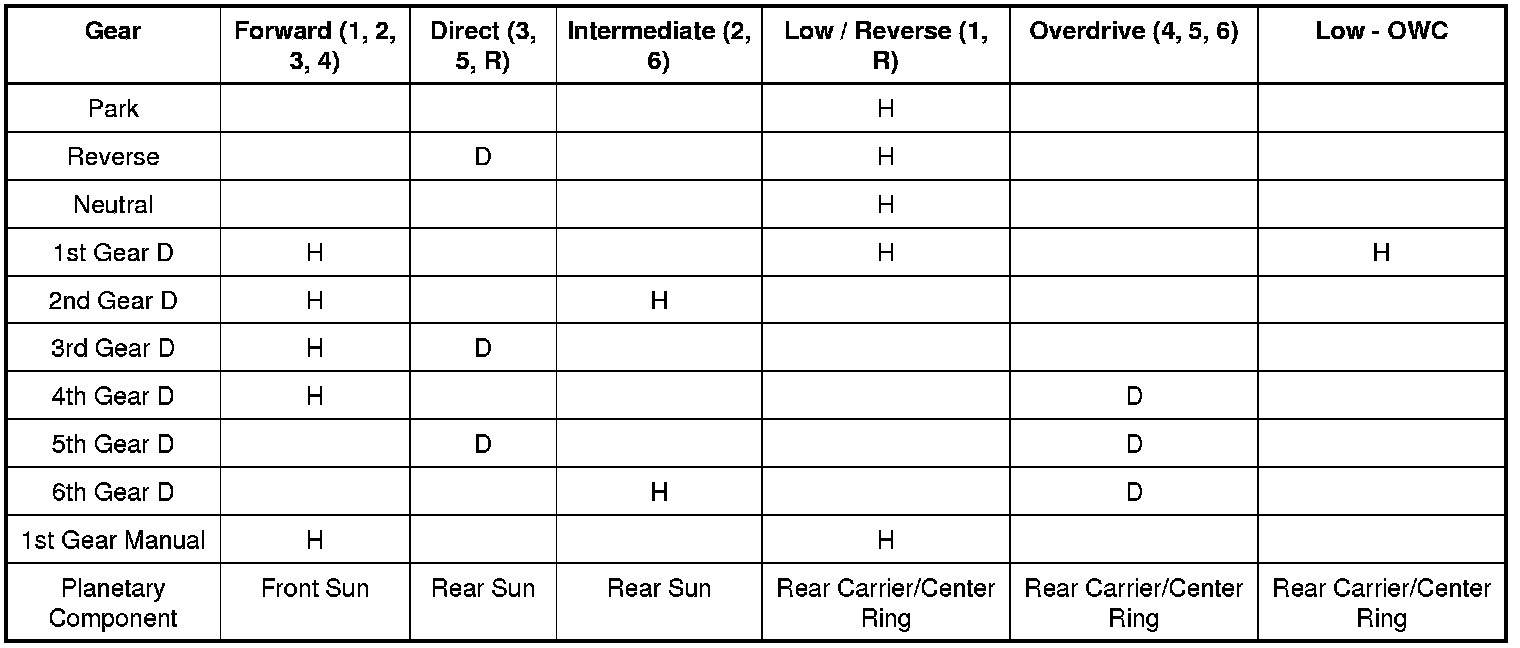

Clutch Application Chart





H = Holding

D = Driven

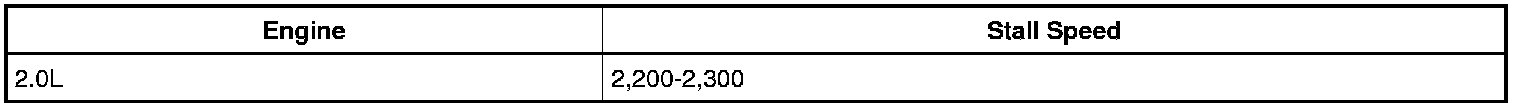

Stall Speed Chart

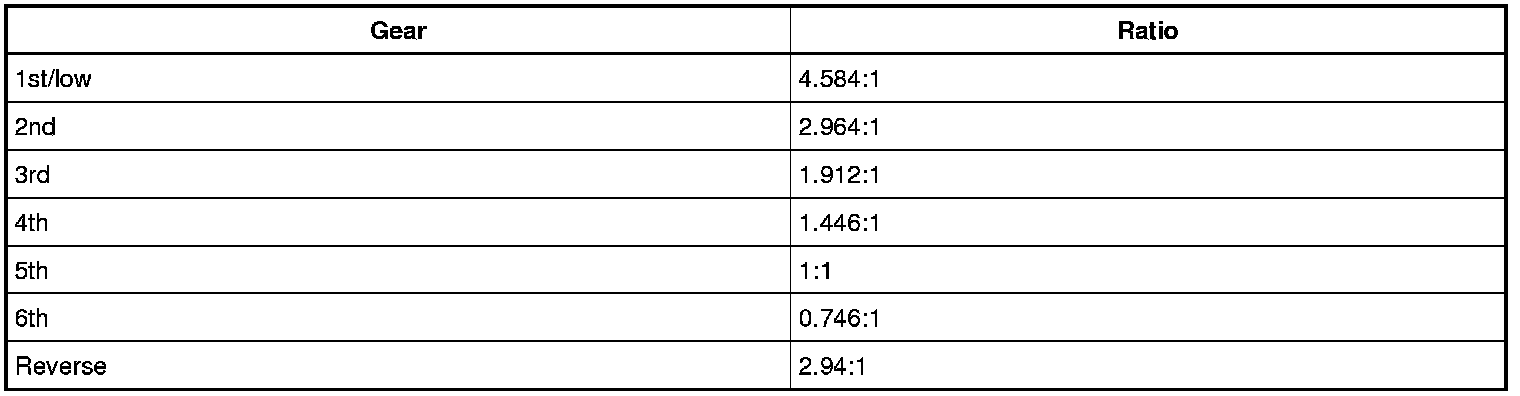

Gear Ratio Chart

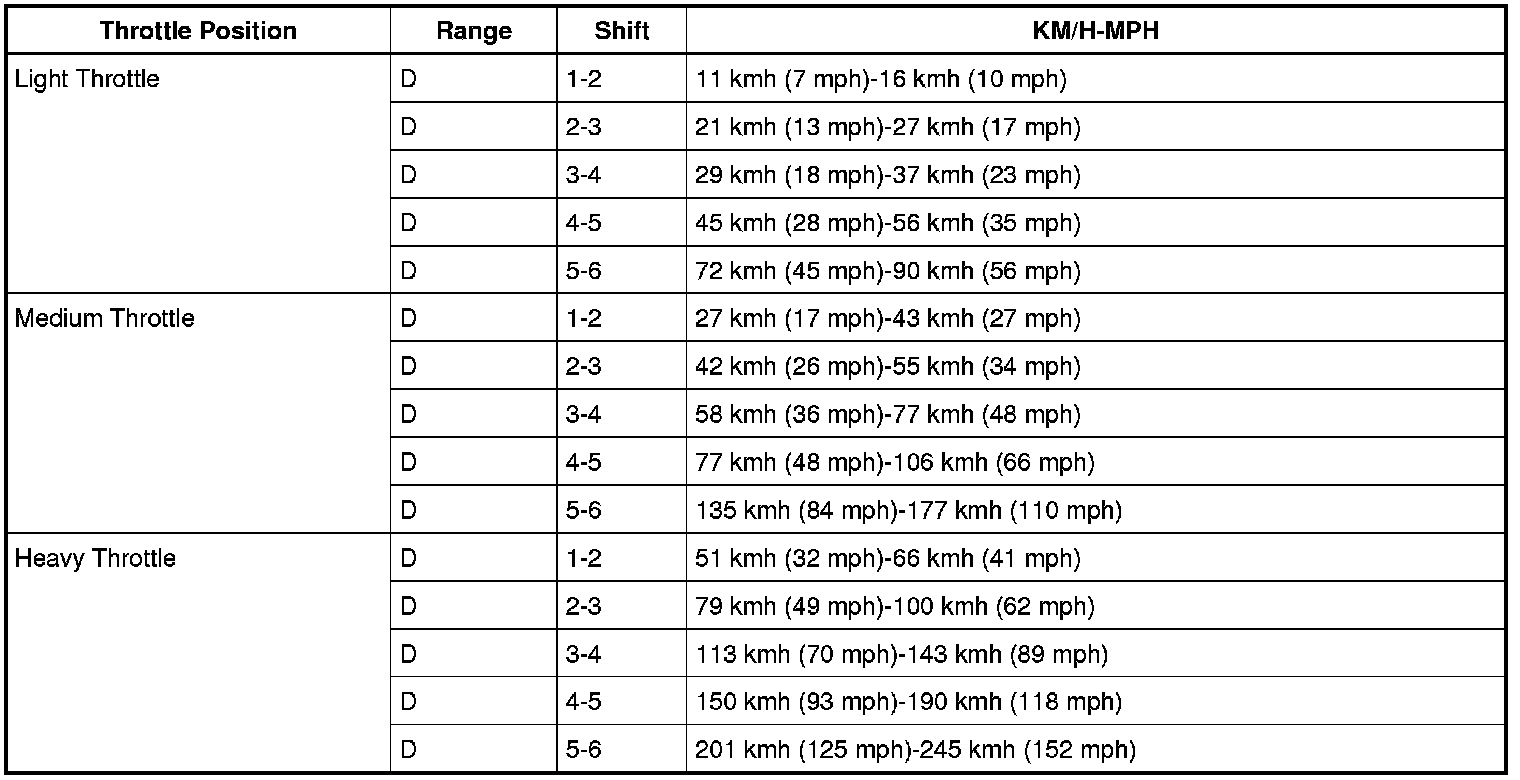

Shift Speeds
