Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> Fluid Pan, A/T

Fluid Pan, A/T

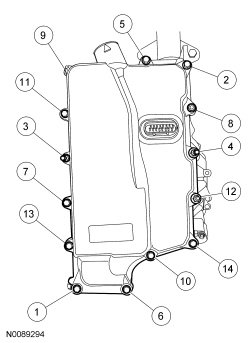

Tighten the main control cover bolts in the following sequence.
Tighten to 12 Nm (106 lb-in).
