Suspension System - General Information

Suspension System - General Information

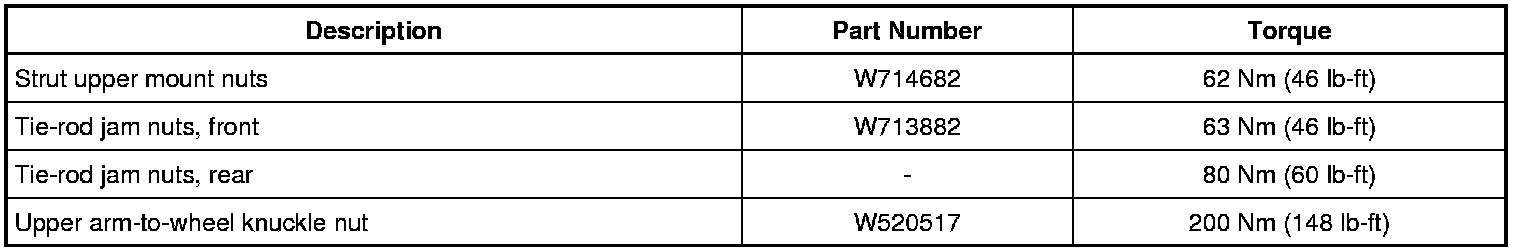

Torque Specifications






General Specifications

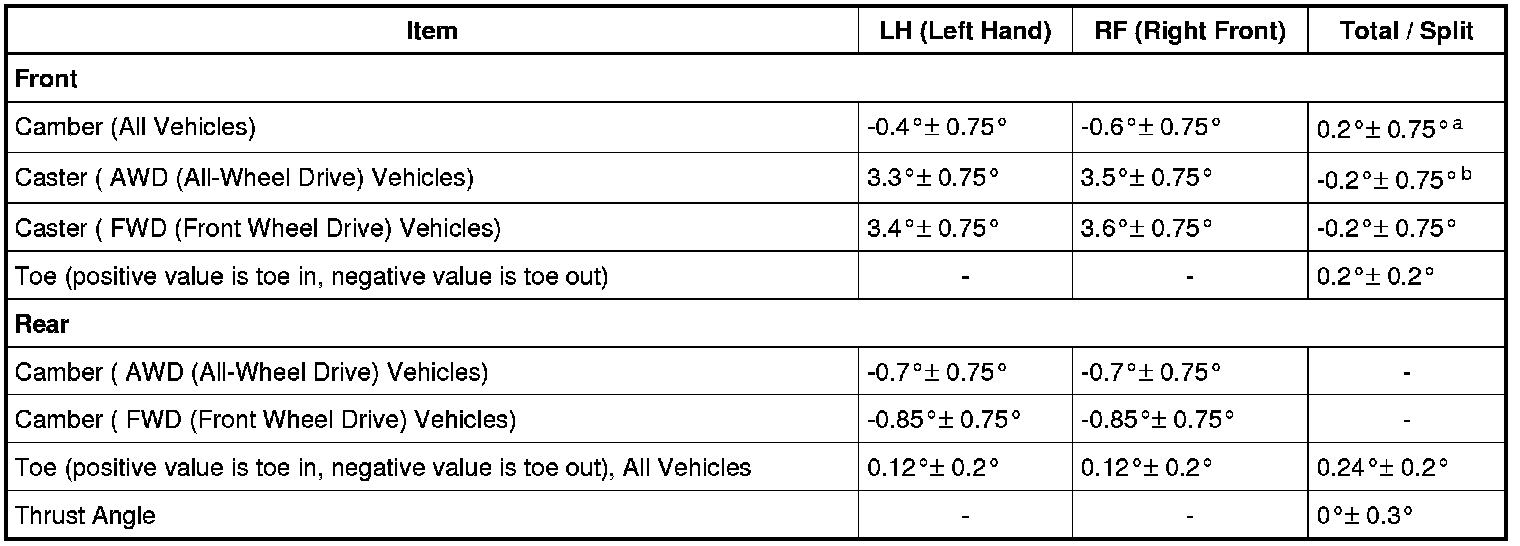

Alignment Specifications





a Camber Total/Split = LH (Left Hand) Camber - RH (Right Hand) Camber

b Caster Total/Split = LH (Left Hand) Caster - RH (Right Hand) Caster
