Start / Stop Switch: Service and Repair

Start-Stop Switch

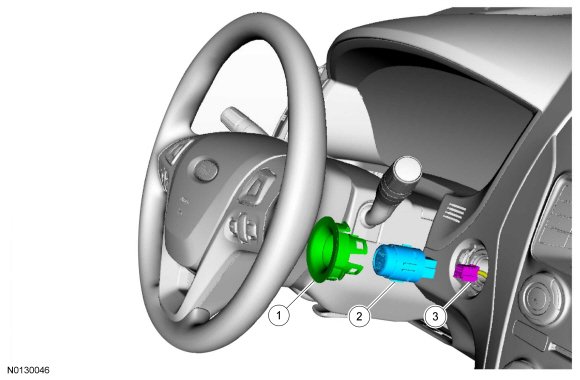

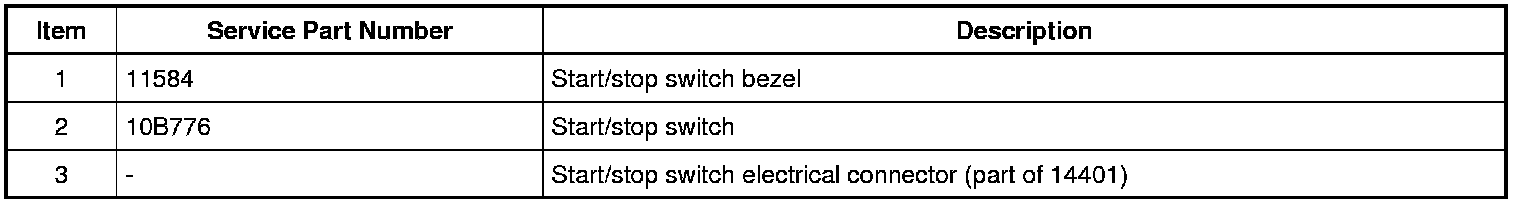

Exploded View










Removal

1. Using an appropriate trim tool, separate the start/stop switch bezel from the instrument panel.





2. Disconnect the electrical connector and remove the start/stop switch and bezel.





3. Using a pocket screwdriver (or similar tool), disengage the 4 retainer tabs and separate the start/stop switch from the bezel.





Installation

1. To install, reverse the removal procedure.
