Steering Angle Sensor: Service and Repair

Steering Wheel Rotation Sensor

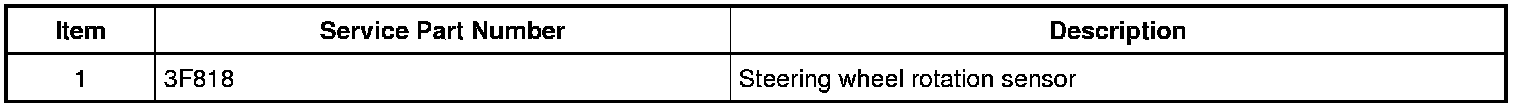

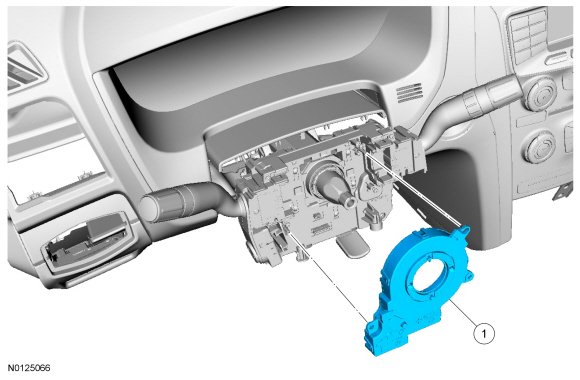

Exploded View










Removal

1. Remove the clockspring. REFER to Clockspring .

2. Remove the steering wheel rotation sensor.

Installation

1. Install the steering wheel rotation sensor.

2. Install the clockspring. REFER to Clockspring .
