Side Impact Sensor - C-Pillar

Side Impact Sensor - C-Pillar

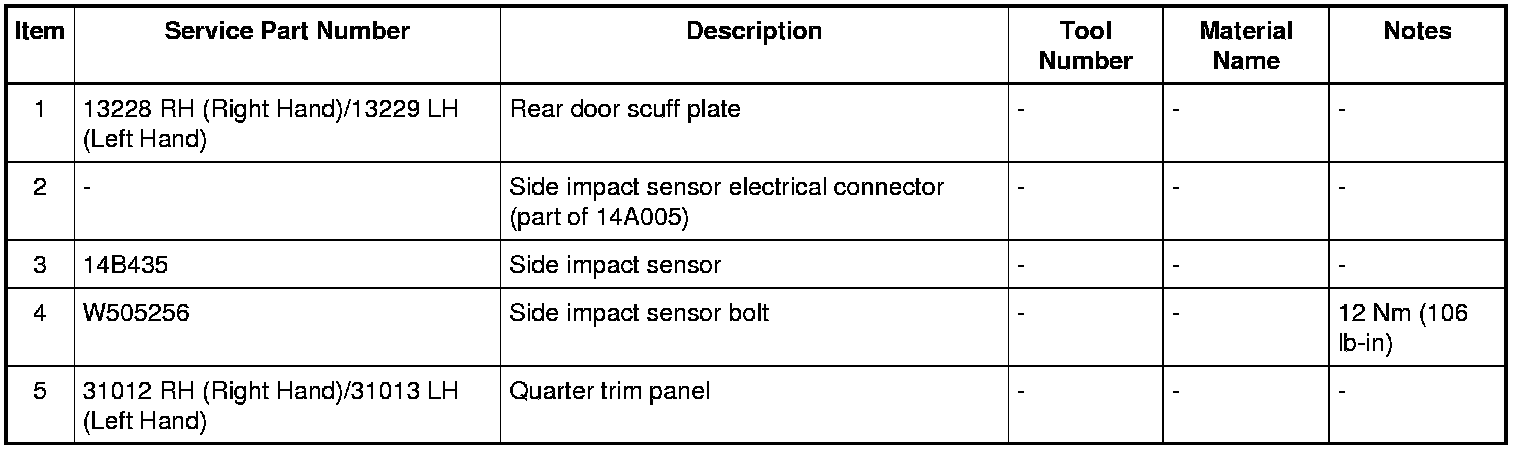

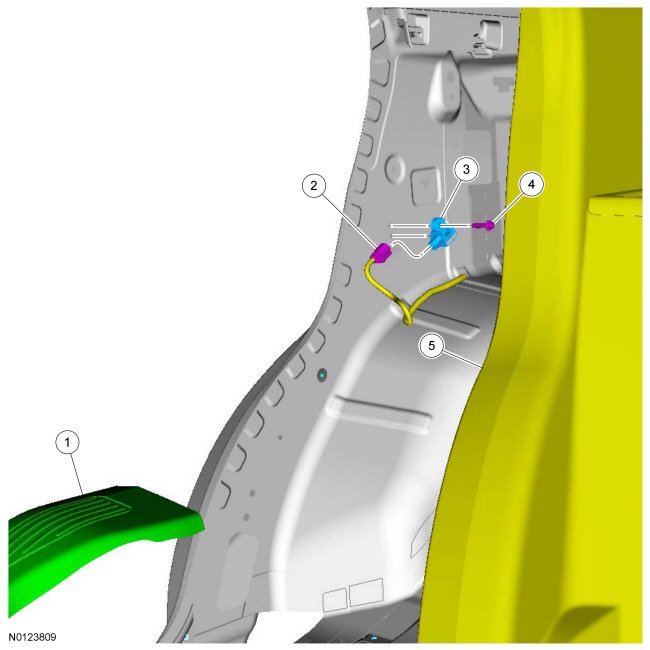

Exploded View










Removal

WARNING: If a vehicle has been in a crash, inspect the RCM (Restraints Control Module) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM (Restraints Control Module) and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

NOTE: The air bag warning indicator illuminates when the correct RCM (Restraints Control Module) fuse is removed and the ignition is on.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .



2. Position the second row seat on the side of the affected side impact sensor to the easy entry position.

3. Position the third row seats to the load floor position.

4. Push the third row seat load floor support rearward and slightly lift the load floor to disengage.

- For a manual third row seat, separate the load floor support on the side of the affected side impact sensor and fold the load floor flapper panel back on top of the seat.

- NOTICE: If equipped with a power seat, do not lift the load floor flapper panels too far or damage to the wire harness retainers will occur.

For a power third row seat, separate both load floor supports and fold the load floor flapper panels back on top of the seat.






5. Lift upward to release the retaining clips and remove the rear door scuff plate trim panel.

6. Pull the quarter trim panel out at the front.

7. Disconnect the side impact sensor electrical connector, remove the side impact sensor bolt and the side impact sensor.

Installation

1. NOTE: Make sure the C-pillar and side impact sensor mating surfaces are clean and free of foreign material.
Position the side impact sensor, install the side impact sensor bolt and connect the side impact sensor electrical connector.
- Tighten to 12 Nm (106 lb-in).

2. NOTICE: To avoid damage to the quarter trim panels, remove any retaining clips from the body and attach them to the quarter trim panels before installing.

Install the quarter trim panel at the front.

3. NOTICE: To avoid damage to the rear door scuff plate trim panel, remove any retaining clips from the body and attach them to the rear door scuff plate trim panel before installing.

Install the rear door scuff plate trim panel.

4. Attach the load floor flapper panel(s) to the load floor support(s).

5. If necessary, reposition the second and third row seats.

6. Repower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
