Safety Belt Retractor - 2nd Row, Outboard, without Inflatable Safety Belts

Safety Belt Retractor - 2nd Row, Outboard, without Inflatable Safety Belts

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

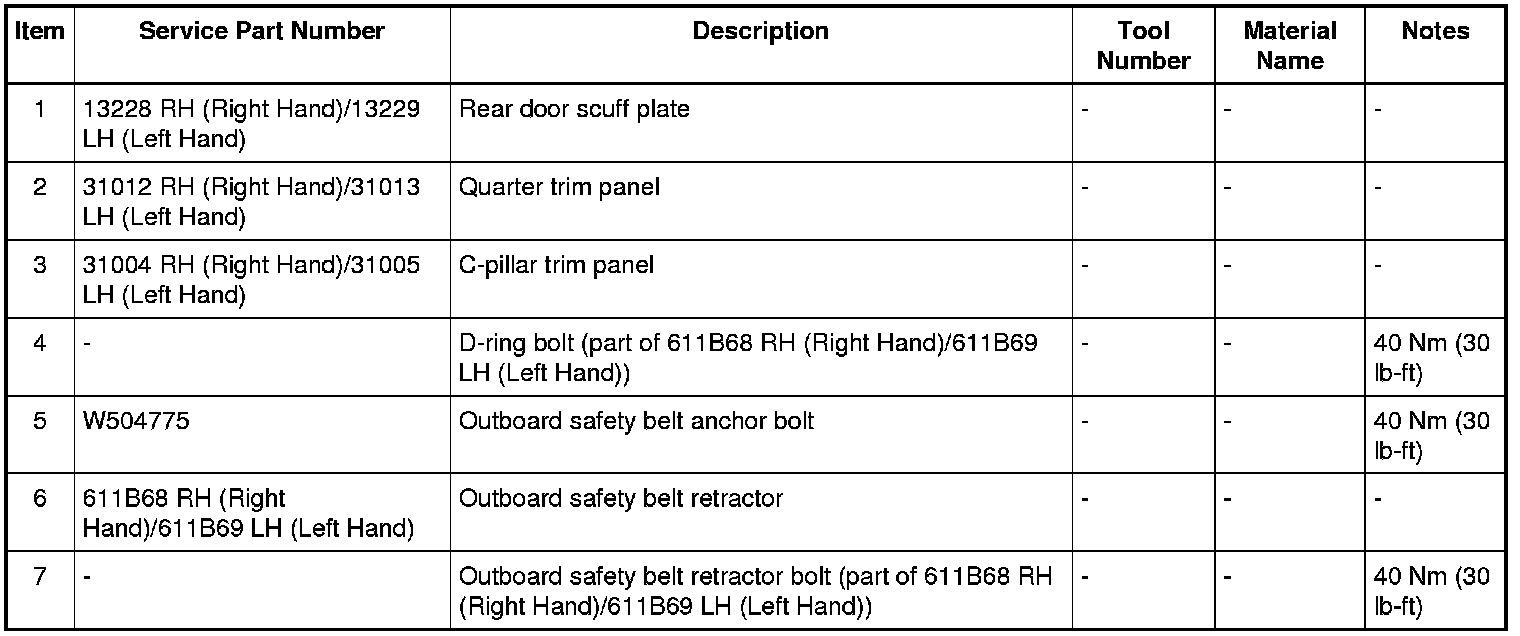

Exploded View










Removal

WARNING: After any crash, all of the following safety belt assemblies and attaching hardware must be inspected by an authorized dealer to verify correct function:
- Retractors
- Buckles
- Front safety belt buckle support assemblies (slide bar) (if equipped)
- Safety belt shoulder belt height adjusters (if equipped)
- Child safety seat tether bracket assemblies
- ALR (Automatic Locking Retractor) feature for child safety seats (passenger seating positions only)

If any safety belt assembly is damaged, does not operate correctly or does not pass all of the Functional Tests in the Component Tests, a new safety belt assembly must be installed. If any safety belt assembly attaching areas are damaged or distorted, the sheet metal must be restored to its original structural integrity and new safety belt assembly and attaching hardware must be installed. Failure to install new safety belt assemblies and attaching hardware may increase the risk of serious personal injury or death in a crash.

1. Remove the C-pillar trim panel. REFER to C-Pillar Trim Panel - Without Inflatable Safety Belts .

2. Remove the outboard safety belt anchor bolt and the outboard safety belt anchor.

3. For LH (Left Hand) retractor with auxiliary HVAC (Heating, Ventilation, and Air Conditioning), remove the 2 bolts.





4. Remove the bolt and separate the D-ring.

5. Remove the bolt and the outboard safety belt retractor.

Installation

1. Position the outboard safety belt retractor and install the bolt.
- Tighten to 40 Nm (30 lb-ft).

2. Position the D-ring and install the bolt.
- Tighten to 40 Nm (30 lb-ft).

3. For LH (Left Hand) retractor with auxiliary HVAC (Heating, Ventilation, and Air Conditioning), install the 2 bolts.
- Tighten to 9 Nm (80 lb-in).

4. Install the C-pillar trim panel. REFER to C-Pillar Trim Panel - With Inflatable Safety Belts .

5. Position the outboard safety belt anchor and install the bolt.

- Tighten to 40 Nm (30 lb-ft).

6. Check the active restraint system for correct operation. REFER to Functional Test - Safety Belt Retractor, Road Test Inspection Functional Test - Safety Belt Retractor, Road Test Inspection.
