Safety Belt Buckle and Pretensioner

Safety Belt Buckle and Pretensioner

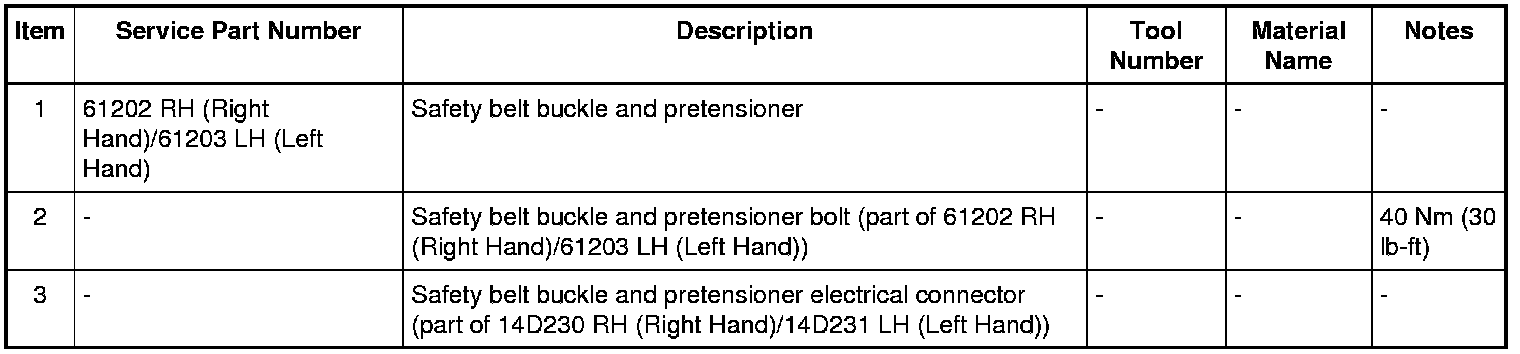

Exploded View










Removal

WARNING: After a crash, the following safety belt components and attaching hardware must be inspected and tested to verify correct function:
- Retractors
- Buckles
- Child safety seat tether bracket assemblies
- ALR (Automatic Locking Retractor) feature for child safety seats (passenger seating positions only)
- BTS (Belt Tension Sensor) (if equipped)
- Front safety belt buckle support assemblies (slide bar) (if equipped)
- Safety belt shoulder belt height adjusters (if equipped)

Components that do not operate correctly or pass all Functional Tests in the Component Tests must be replaced with new components.

Safety belt assembly attaching areas must be inspected. Damaged or distorted attaching areas must be restored to their original structural integrity and a new safety belt assembly with new attaching hardware must be installed.

After deployment of the front safety belt pretensioners, a new safety belt system (including retractors, buckles and height adjusters) must be installed.

Failure to follow this instruction may result in incorrect operation of the safety belt system and increases the risk of serious personal injury or death in a crash.

WARNING: Never disassemble or tamper with seat belt deployable components, including pretensioners, load limiters and inflators. Never back probe deployable device electrical connectors. Tampering or back probing may cause an accidental deployment and result in personal injury or death.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the seat. REFER to Seat .

2. Disconnect the electrical connector and detach the wiring harness pin-type retainer.

3. Remove the bolt and safety belt buckle and pretensioner.

Installation

1. Position the safety belt buckle and pretensioner and install the bolt.
- Tighten to 40 Nm (30 lb-ft).

2. Connect the electrical connector and attach the wiring harness pin-type retainer.

3. Install the seat. REFER to Seat .

4. Check the active restraint system for correct operation. REFER to Functional Test - Safety Belt Buckle and Tongue Functional Test - Safety Belt Buckle and Tongue.
