Home >> Ford Truck >> 2012 >> Explorer FWD L4-2.0L Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Description and Operation >> Component Location

Component Location




Supplemental Restraint System (SRS)

Component Location

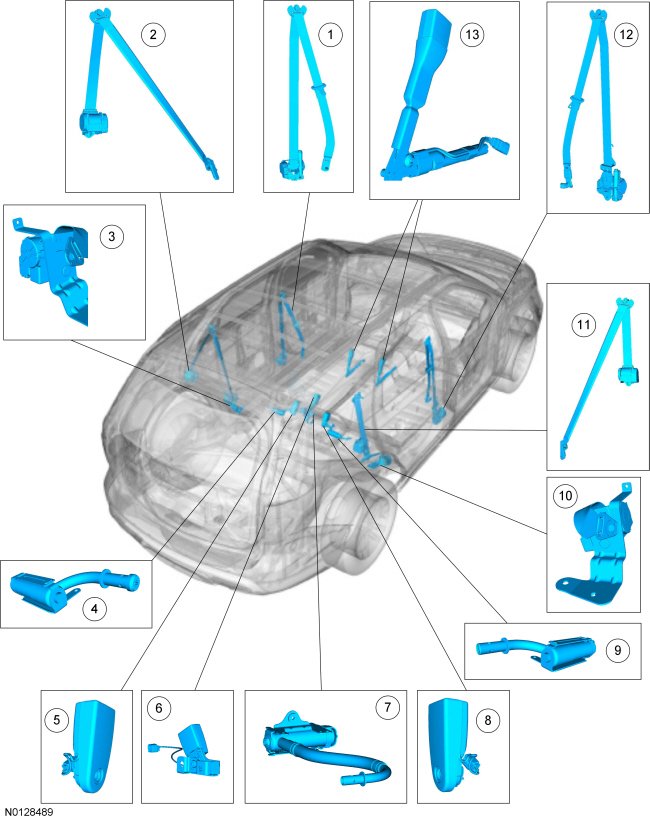

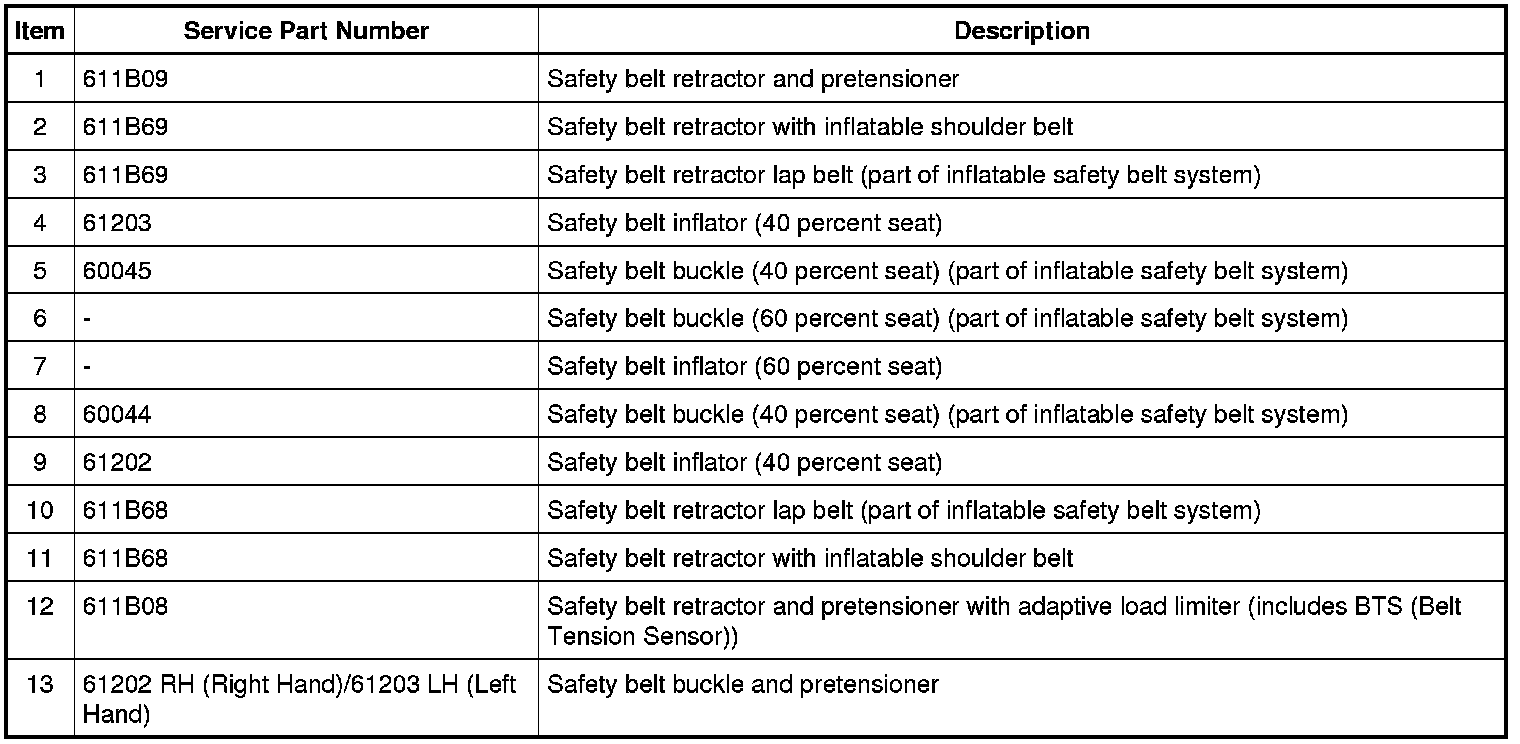

Safety Belt System Pretensioners and Inflatable Belts

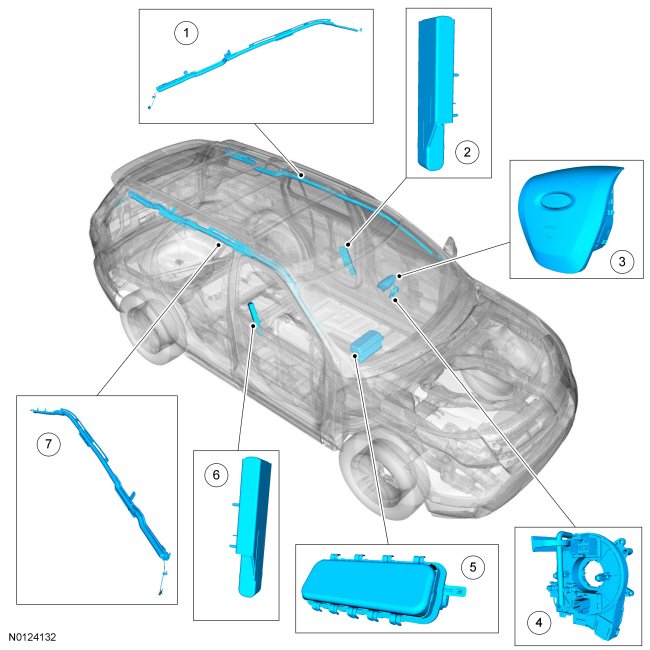

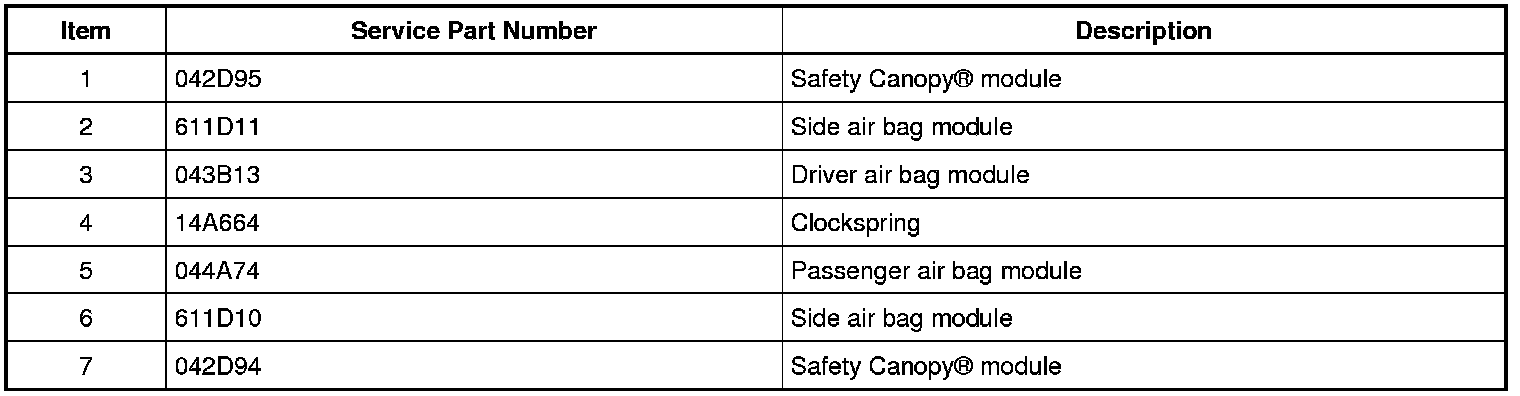

SRS (Supplemental Restraint System) Deployable Devices

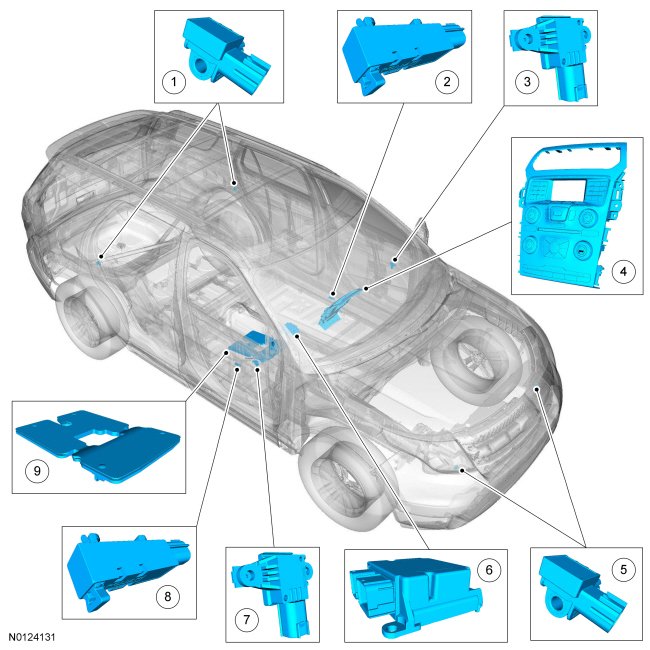

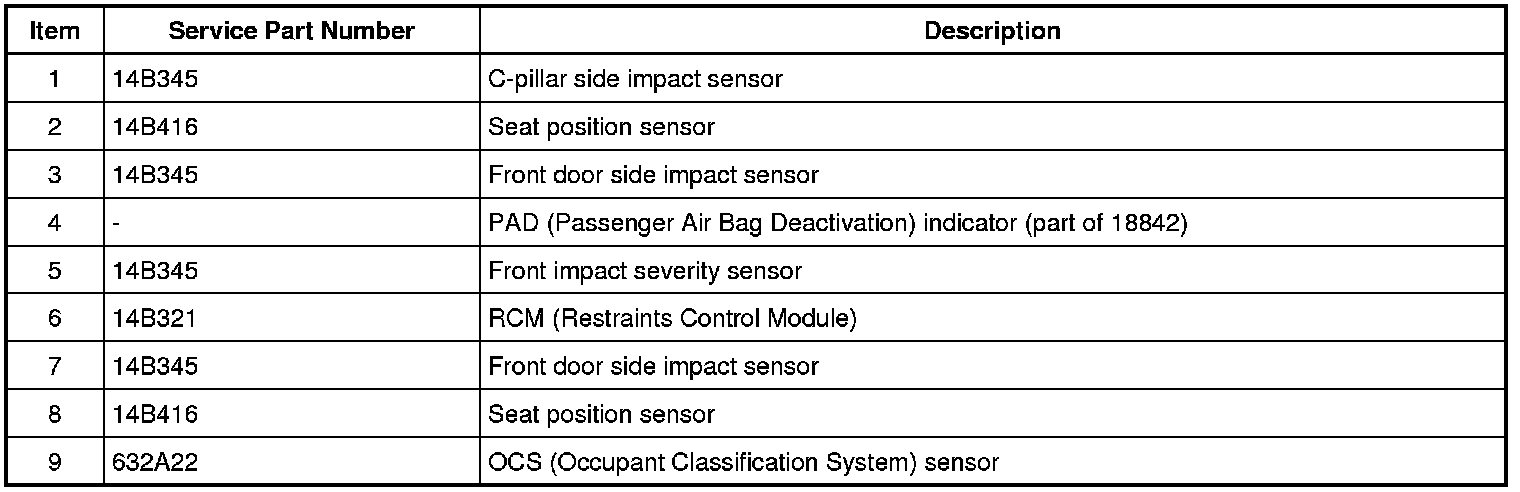

SRS (Supplemental Restraint System) Sensors and Indicator
