Safety Canopy Module

Safety Canopy Module

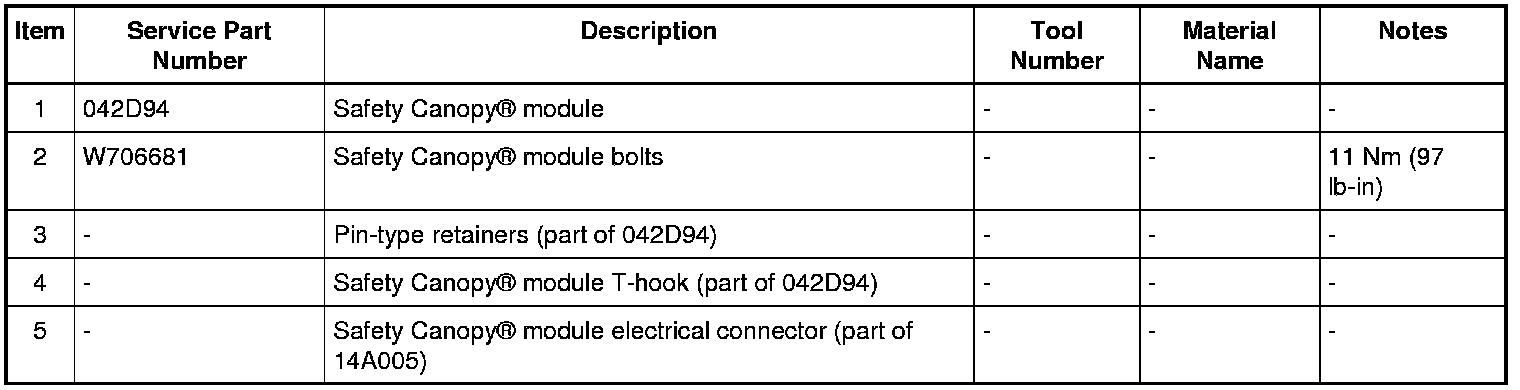

Exploded View

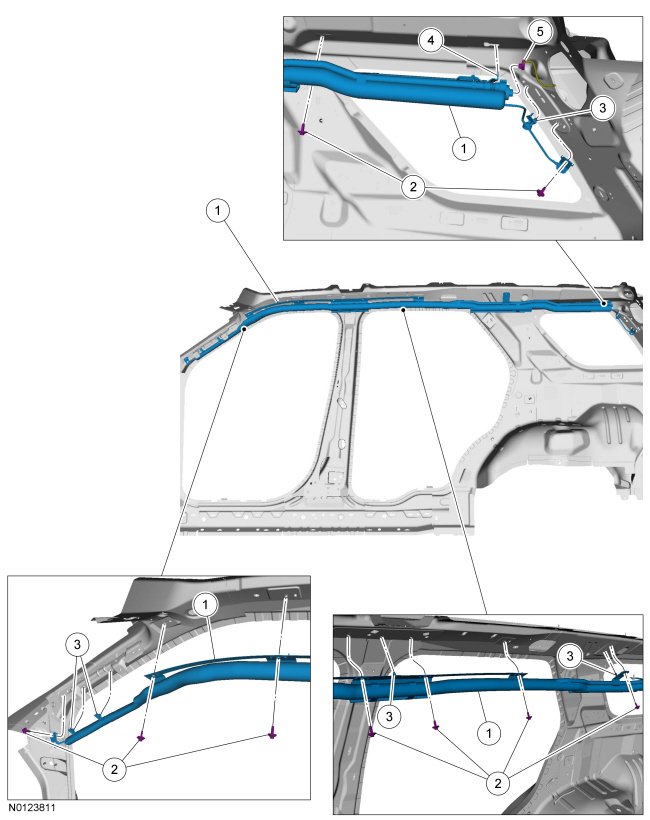

RH (Right Hand) Safety Canopy(R) Module

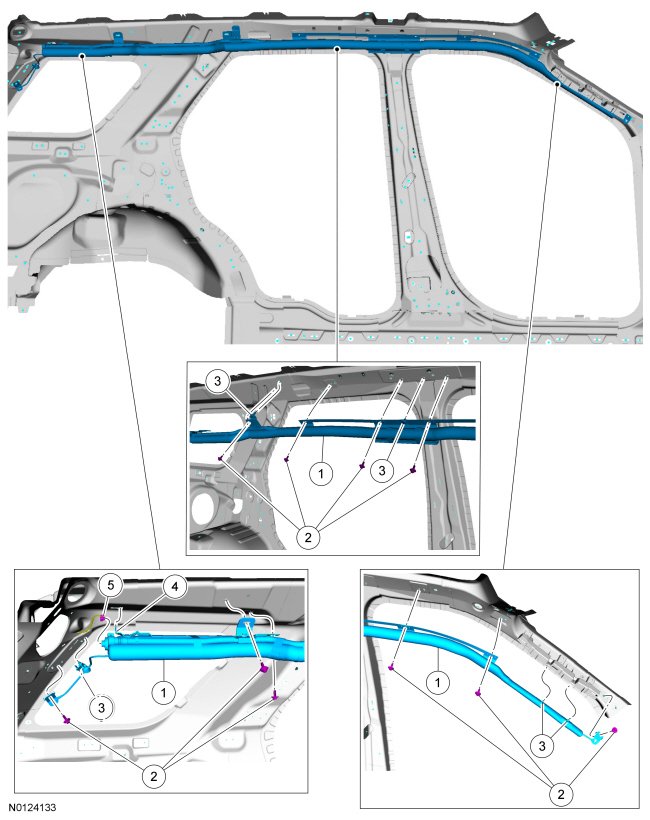

LH (Left Hand) Safety Canopy(R) Module










Removal

WARNING: Always carry or place a live Safety Canopy(R) , or side air curtain module, with the module and tear seam pointed away from your body. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

WARNING: Anytime the Safety Canopy(R) or side air curtain module has deployed, a new headliner and new A-, B-, C- and D-pillar upper trim panels and attaching hardware must be installed. Remove any other damaged components and hardware and install new components and hardware as needed. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

NOTE: The air bag warning indicator illuminates when the correct RCM (Restraints Control Module) fuse is removed and the ignition is on.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .



2. Remove the headliner. REFER to Headliner .

3. Lift the locking wedge and disconnect the Safety Canopy(R) module electrical connector.





4. If equipped, detach the 2 drain tube pin-type retainers on the RH (Right Hand) side.





5. Detach the 2 front and 1 rear Safety Canopy(R) module tether cord pin-type retainers.

6. Remove all the Safety Canopy(R) module bolts and detach the metal clips.

7. Detach the remaining 2 Safety Canopy(R) module pin-type retainers from the B and C-pillars, slide the Safety Canopy(R) module forward to disengage the T-hook and remove the Safety Canopy(R) module.

Installation

WARNING: Before installing a Safety Canopy(R) or side air curtain module, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

WARNING: Inspect a Safety Canopy(R) or side air curtain module before installation. If the module is damaged, the cover has separated or the Safety Canopy(R) or side air curtain material has been exposed, install a new module. Do not attempt to repair the module. Failure to follow these instructions may result in the Safety Canopy(R) or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

WARNING: Never put any type of fastener or tie strap around any part of a Safety Canopy(R) module, side air curtain module or interior trim panel. This will prevent the Safety Canopy(R) or side air curtain module from deploying correctly. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash.

WARNING: Do not obstruct or place objects in the deployment path of the Safety Canopy(R) or side air curtain module. Failure to follow this instruction may result in the Safety Canopy(R) or side air curtain module deploying incorrectly and increases the risk of serious personal injury or death in a crash.

1. Position and attach the Safety Canopy(R) module in the vehicle in the following sequence.

1. Position the Safety Canopy(R) module T-hook to the roof and slide rearward.

2. Install the 2 Safety Canopy(R) module pin-type retainers at the B and C-pillars.

2. Engage the metal clips to the roof and install all the Safety Canopy(R) module bolts.
- Tighten to 11 Nm (97 lb-in).

3. Attach the 2 front and 1 rear Safety Canopy(R) module tether cord pin-type retainers.

4. If equipped, attach the 2 drain tube pin-type retainers located on the RH (Right Hand) side.

5. Connect the Safety Canopy(R) module electrical connector and push the locking wedge down.

6. Install the headliner. REFER to Headliner .

7. Repower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
