Driver Air Bag Module

Driver Air Bag Module

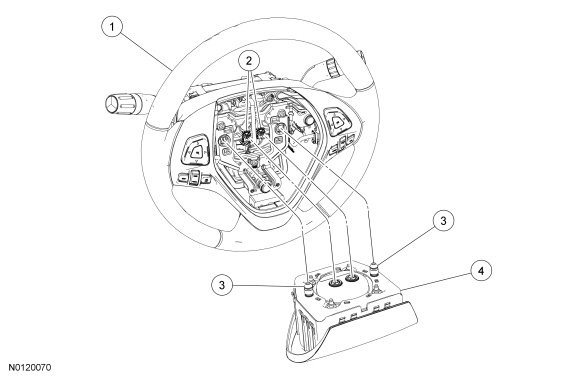

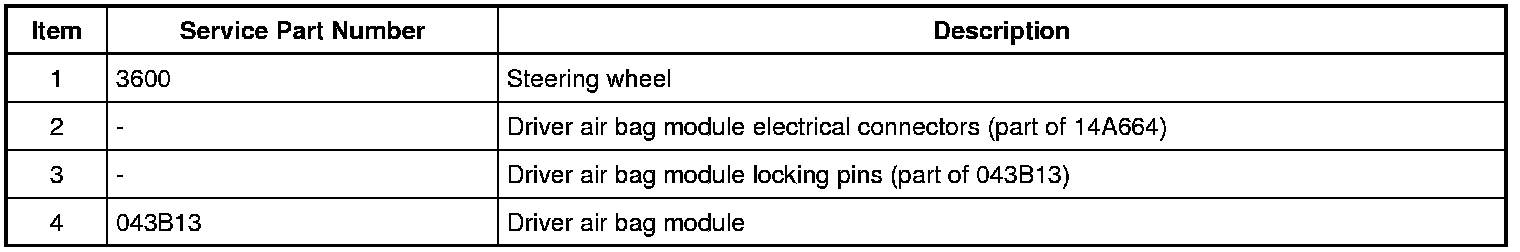

Exploded View










Removal

WARNING: Always carry or place a live air bag module with the air bag and deployment door/trim cover/tear seam pointed away from the body. Do not set a live air bag module down with the deployment door/trim cover/tear seam face down. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

WARNING: Never probe the electrical connectors on air bag, Safety Canopy(R) or side air curtain modules. Failure to follow this instruction may result in the accidental deployment of these modules, which increases the risk of serious personal injury or death.

WARNING: Do not paint any air bag module trim covers or deployment doors. Paint may cause the air bag to deploy incorrectly. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash.

NOTE: The air bag warning indicator illuminates when the correct RCM (Restraints Control Module) fuse is removed and the ignition is on.

NOTE: The SRS (Supplemental Restraint System) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Depower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .



2. NOTE: Repeat this step for both driver air bag module locking pins.
Using a 3 mm (0.1181 in) Allen wrench or a suitable tool, position it through the access hole on the backside of the steering wheel and against the spring clip. Push in, disengaging the clip from the driver air bag module locking pin. With the spring clip disengaged from the driver air bag module locking pin, gently pull back on that side of the driver air bag module to release it from the steering wheel.





3. Disconnect the 2 driver air bag module electrical connectors and remove the driver air bag module.

Installation

1. NOTICE: The driver air bag module electrical connectors are unique and cannot be reversed when connected to the driver air bag module. Match the electrical connector key to the keyway in the driver air bag module. Do not force the electrical connectors into the driver air bag module. Damage to the connector or component may occur.

Connect the 2 driver air bag module electrical connectors.

2. NOTE: Audible clicks will be heard when both wire clips are seated in the driver air bag module.

Align the driver air bag module locking pins to the steering wheel and, while pushing inward, seat the 2 driver air bag module locking pins to the steering wheel wire clips.

- When the 2 driver air bag module locking pins are seated, there should be an even gap between the driver air bag module trim cover and the steering wheel.

3. Repower the SRS (Supplemental Restraint System). REFER to Supplemental Restraint System (SRS) Depowering and Repowering - with Intelligent Access (IA) or REFER to Supplemental Restraint System (SRS) Depowering and Repowering - without Intelligent Access (IA) .
