Front Lighting Control Module (FLM)

Front Lighting Control Module (FLM)

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

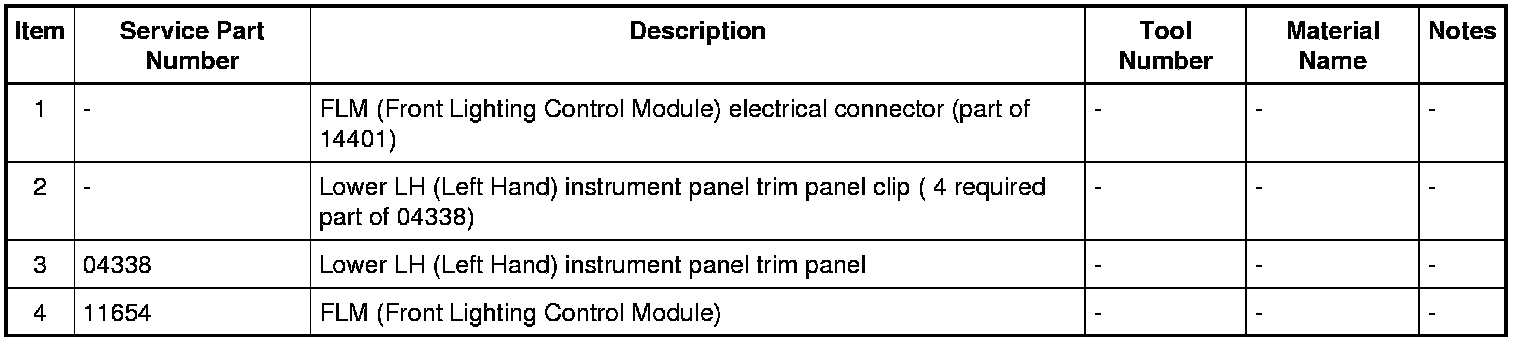

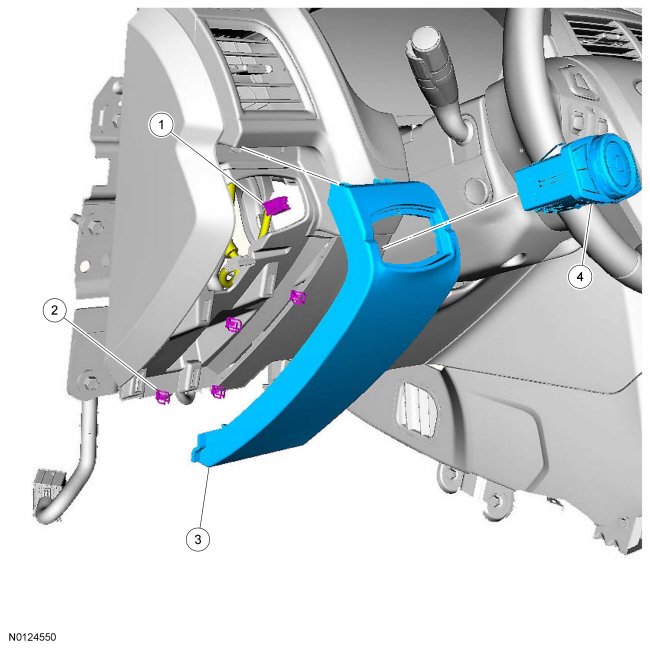

Exploded View










Removal

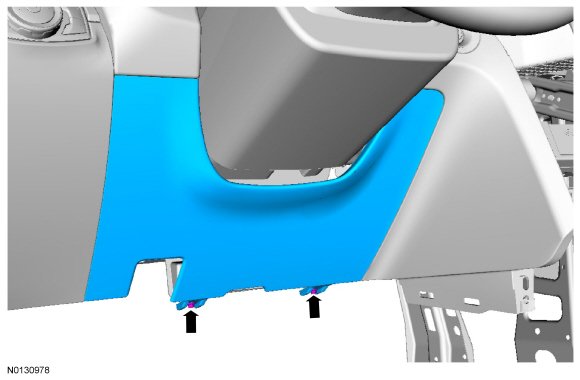

1. Remove the 2 screws and the steering column cover trim panel.





2. Remove the lower LH (Left Hand) instrument panel trim panel.

3. Disconnect and remove the FLM (Front Lighting Control Module) from the lower LH (Left Hand) instrument panel trim panel.

Installation

1. Connect and install the FLM (Front Lighting Control Module) into the lower LH (Left Hand) instrument panel trim panel.

2. Install the lower LH (Left Hand) instrument panel trim panel.

3. Install the steering column cover trim panel and the 2 trim panel screws.
