Fuel Tank and Filler Pipe - Exploded View

Fuel Tank and Filler Pipe - Exploded View

Exploded View

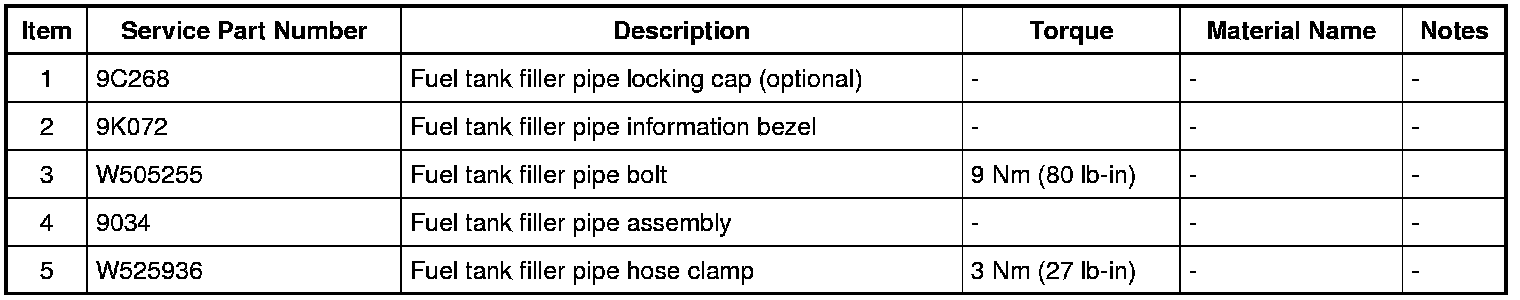

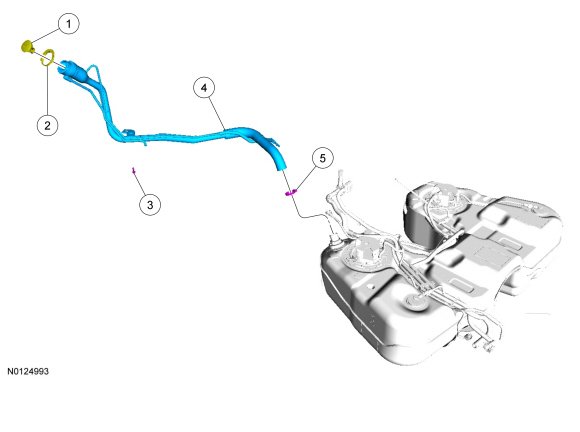

Fuel Tank Filler Pipe Assembly

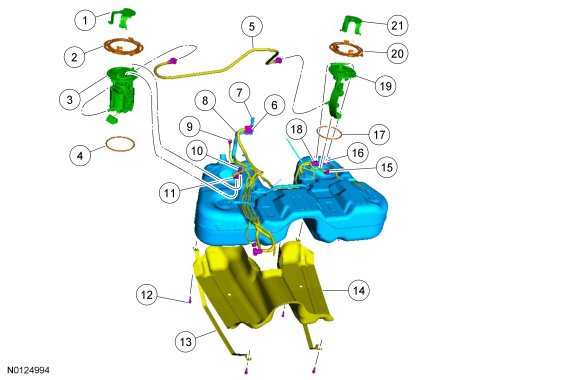

Fuel Tank Assembly
