Quick Connect Coupling
Quick Connect Coupling
Disconnect - Type 1
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur.
NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. REFER to Fuel System Pressure Release .
2. Disconnect the battery ground cable. REFER to Battery Disconnect .
3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.

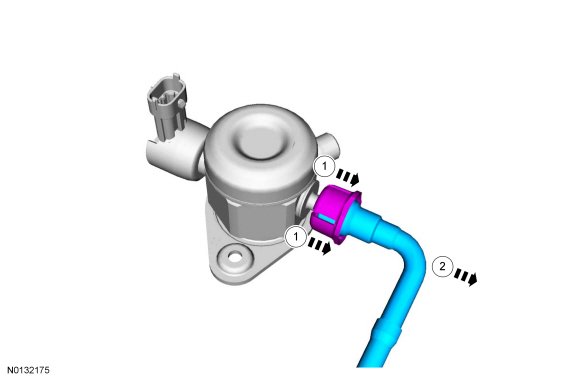

Separate the tabs of the retainer clip and pull it to the outward position in the quick connect coupling.
4. Depress the retainer clip and disconnect the quick connect coupling from the tube.
Connect - Type 1
1. Inspect and clean both quick coupling ends.

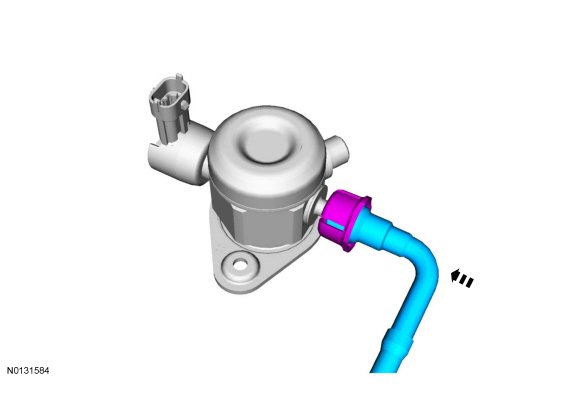

2. Install the quick connect coupling onto the tube.
3. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.
Press the retainer clip into the quick connect coupling body until flush and the tabs are locked in place.
4. Connect the battery ground cable. REFER to Battery Disconnect .
Disconnect - Type 2
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur.
NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. REFER to Fuel System Pressure Release .
2. Disconnect the battery ground cable. REFER to Battery Disconnect .
3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.
Squeeze the quick connect coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
4. Remove the quick connect coupling from the tube.
Connect - Type 2
1. Inspect and clean both quick connect coupling ends.
2. Install the quick connect coupling onto the tube.
3. NOTE: Visually inspect and verify that the locking mechanism is flush with the quick connect coupling housing and that the locking tabs are securely fastened.
Depress the quick connect coupling locking mechanism into the locked position.
4. Pull on the quick connect coupling and the tube to make sure it is securely fastened.
5. Connect the battery ground cable. REFER to Battery Disconnect .
Disconnect - Type 3
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur.
NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. REFER to Fuel System Pressure Release .
2. Disconnect the battery ground cable. REFER to Battery Disconnect .
3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.
Release the lock tab on the quick connect coupling.
4. Separate the quick connect coupling from the fitting.
Connect - Type 3
1. Inspect and clean both quick connect coupling ends.
2. Release the lock tab and install the quick connect coupling onto the fitting.
3. Apply the lock tab into the latched position.
4. Pull on the quick connect coupling to make sure it is securely fastened.
5. Connect the battery ground cable. REFER to Battery Disconnect .
Disconnect - Type 4
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur.
NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. REFER to Fuel System Pressure Release .
2. Disconnect the battery ground cable. REFER to Battery Disconnect .
3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.
Squeeze the quick connect coupling retainer locking tabs to release the locking mechanism and push the locking mechanism outward to release the tube.
4. Remove the quick connect coupling from the tube.
Connect - Type 4
1. Inspect and clean both quick connect coupling ends.
2. Install the quick connect coupling onto the tube.
3. Pull on the quick connect coupling and the tube to make sure it is securely fastened.
4. Connect the battery ground cable. REFER to Battery Disconnect .
Disconnect - Type 5
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.
NOTICE: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip can occur.
NOTICE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage can occur. Always install plugs to any open orifices or tubes.
NOTICE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. REFER to Fuel System Pressure Release .
2. Disconnect the battery ground cable. REFER to Battery Disconnect .
3. NOTE: When reusing liquid or vapor tube quick connect couplings, make sure to use compressed air to remove any foreign material from the retaining clip area before disconnecting from the tube.
Remove the quick connect coupling from the fitting.
1. Depress the clip into the quick connect coupling.
2. Remove the quick connect coupling from the fitting.
Connect - Type 5
1. Inspect and clean both quick connect coupling ends.
2. Install the quick connect coupling onto the tube.
3. Pull on the quick connect coupling and the tube to make sure it is securely fastened.
4. Connect the battery ground cable. REFER to Battery Disconnect .
