System Operation




Evaporative Emissions

System Operation

Refer to Computers and Control Systems Information, Description and Operation.

System Diagram

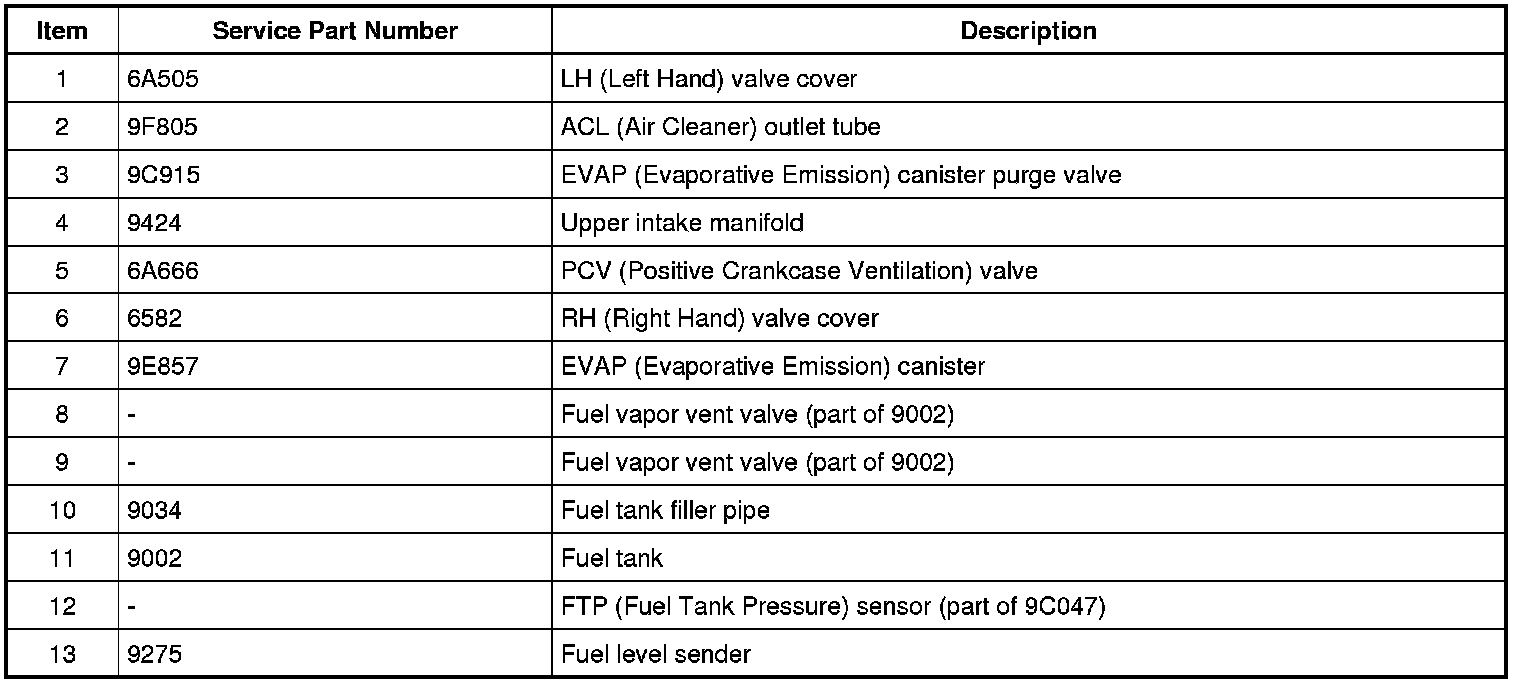

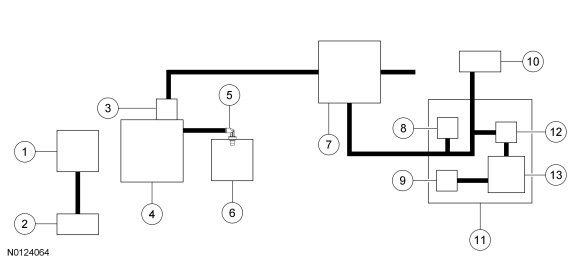

Vehicle Emission Vacuum Routing - 3.5L Ti-VCT

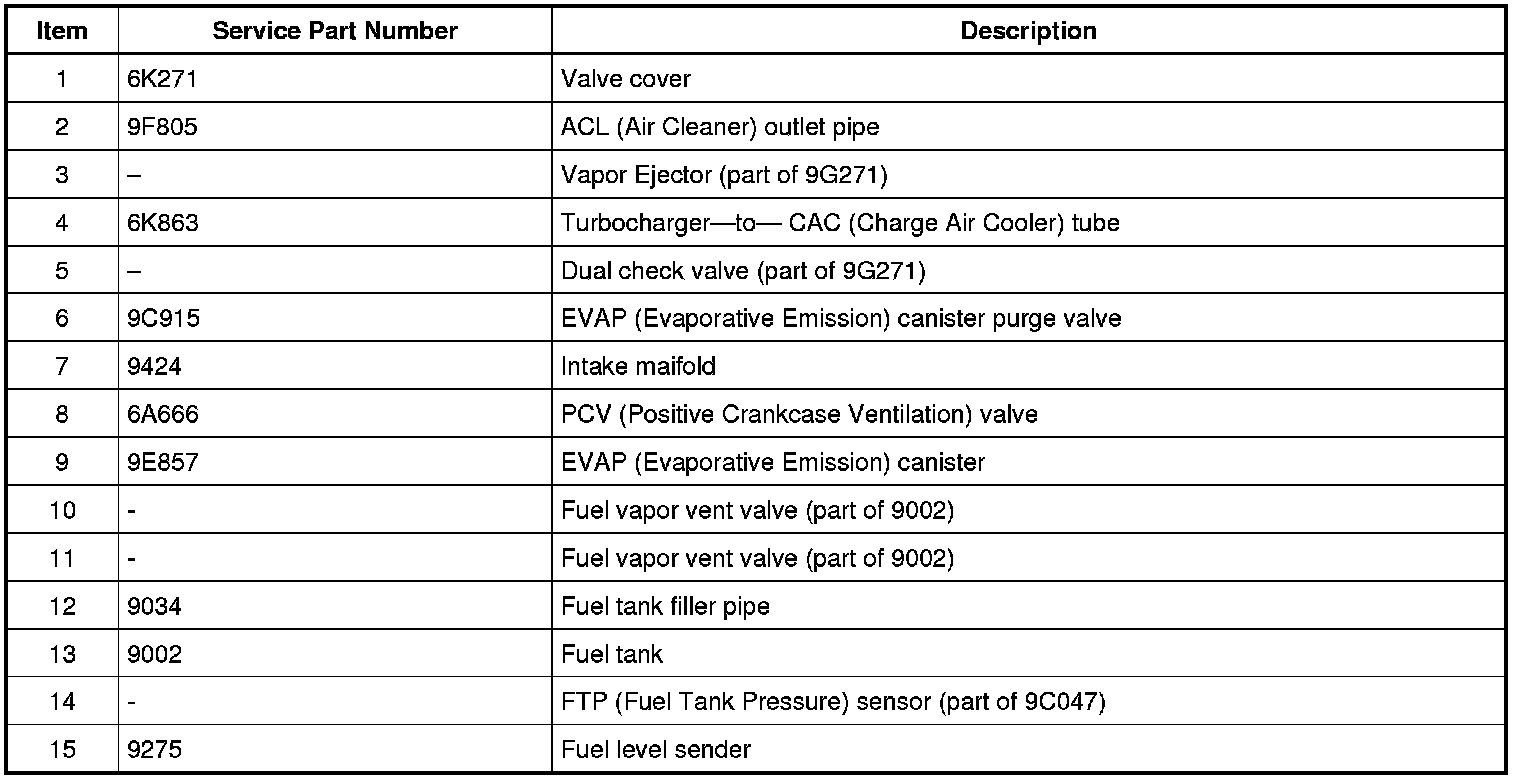

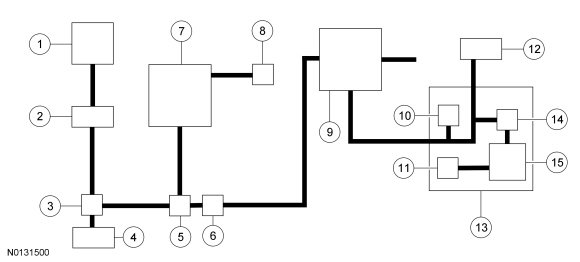

Vehicle Emission Vacuum Routing - 2.0L GTDI (Gasoline Turbocharged Direct Injection)
