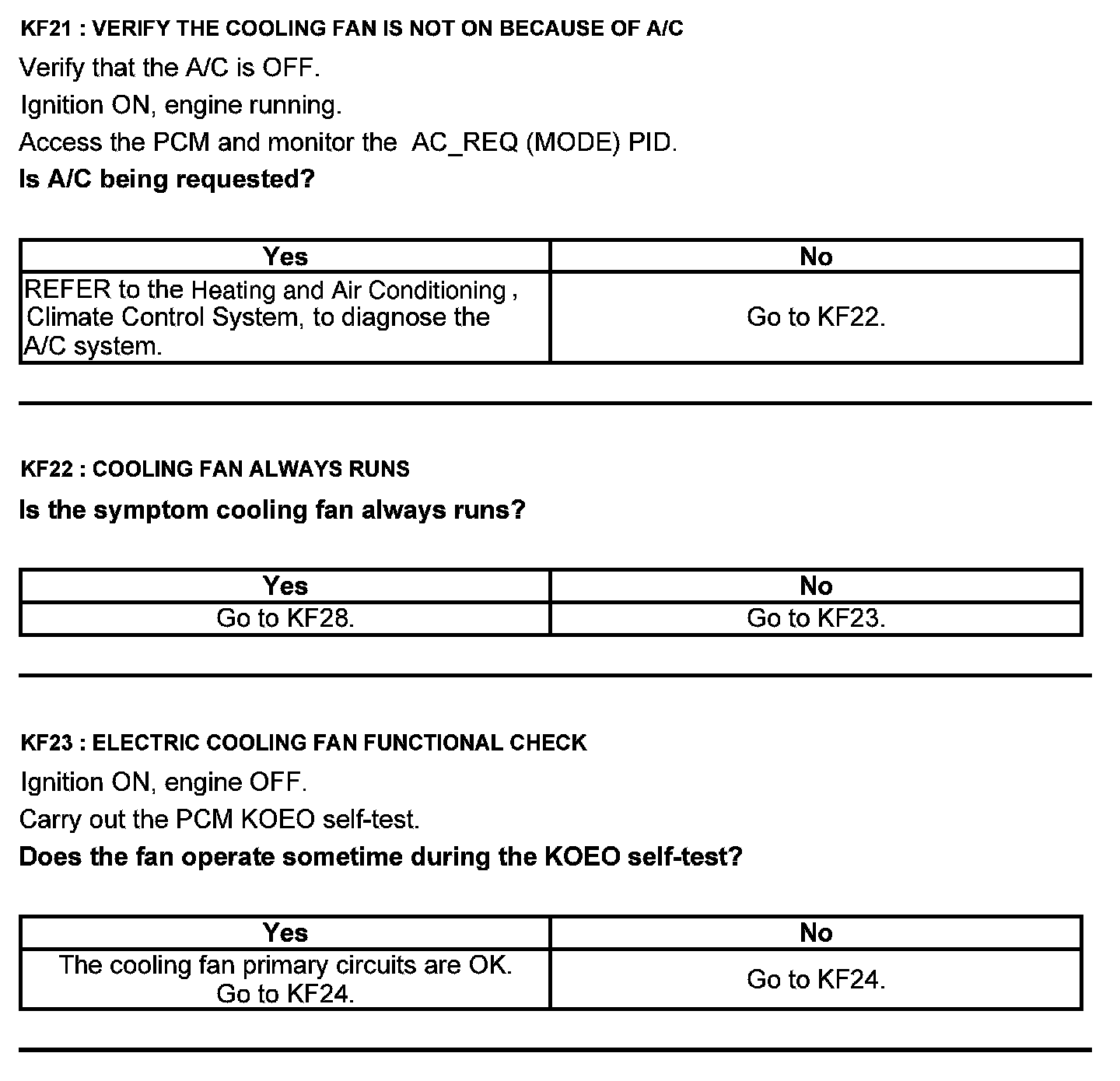

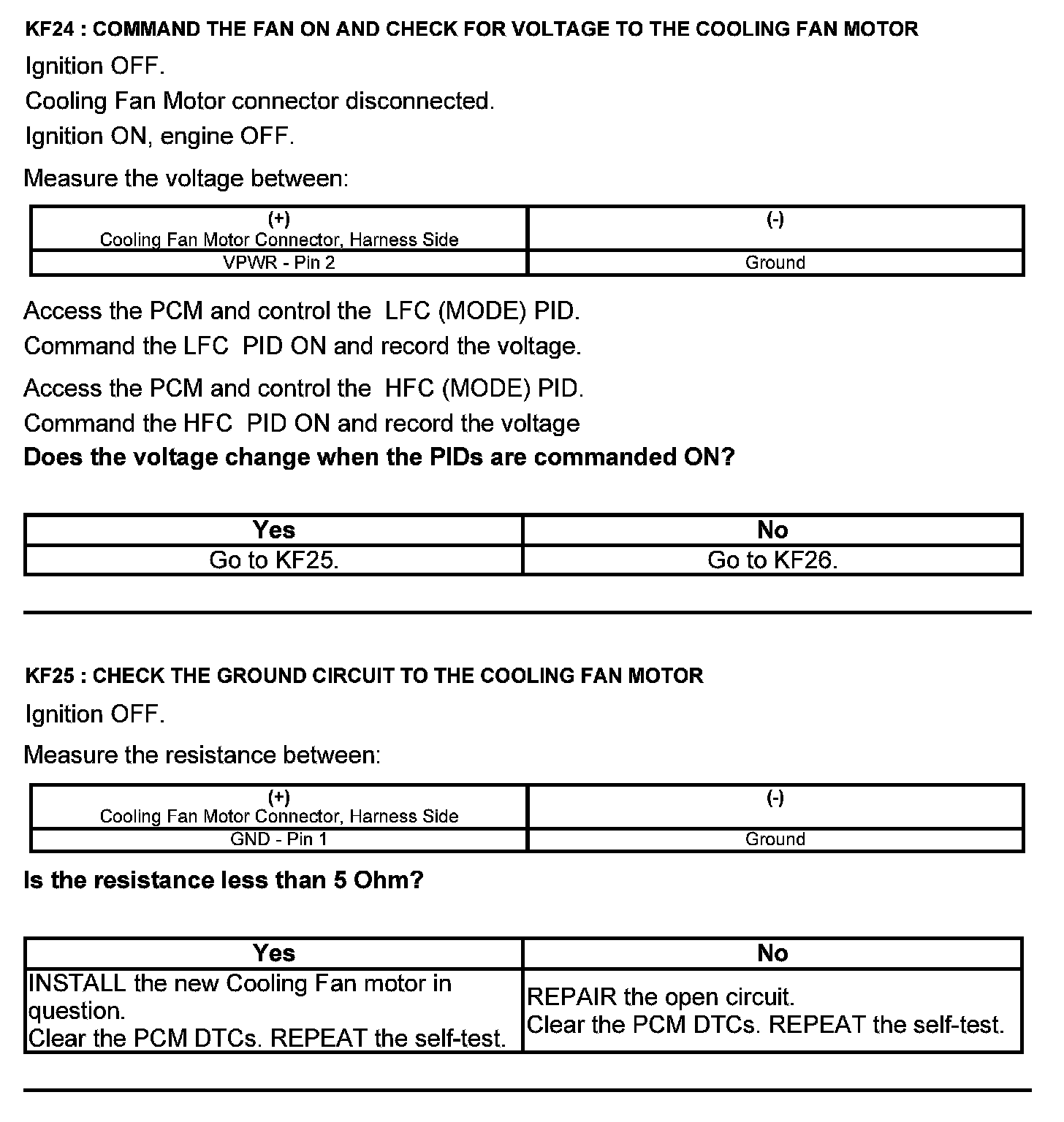

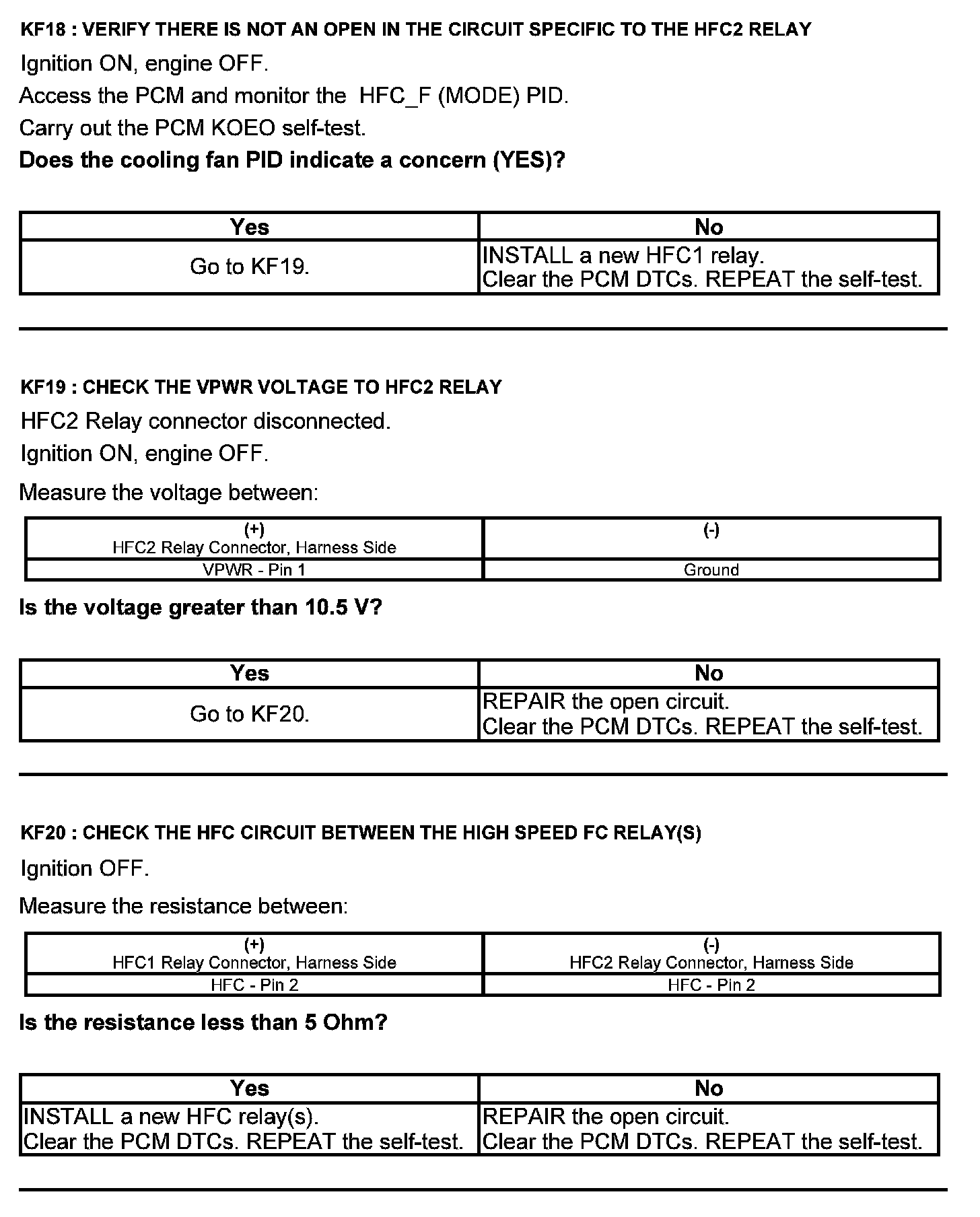

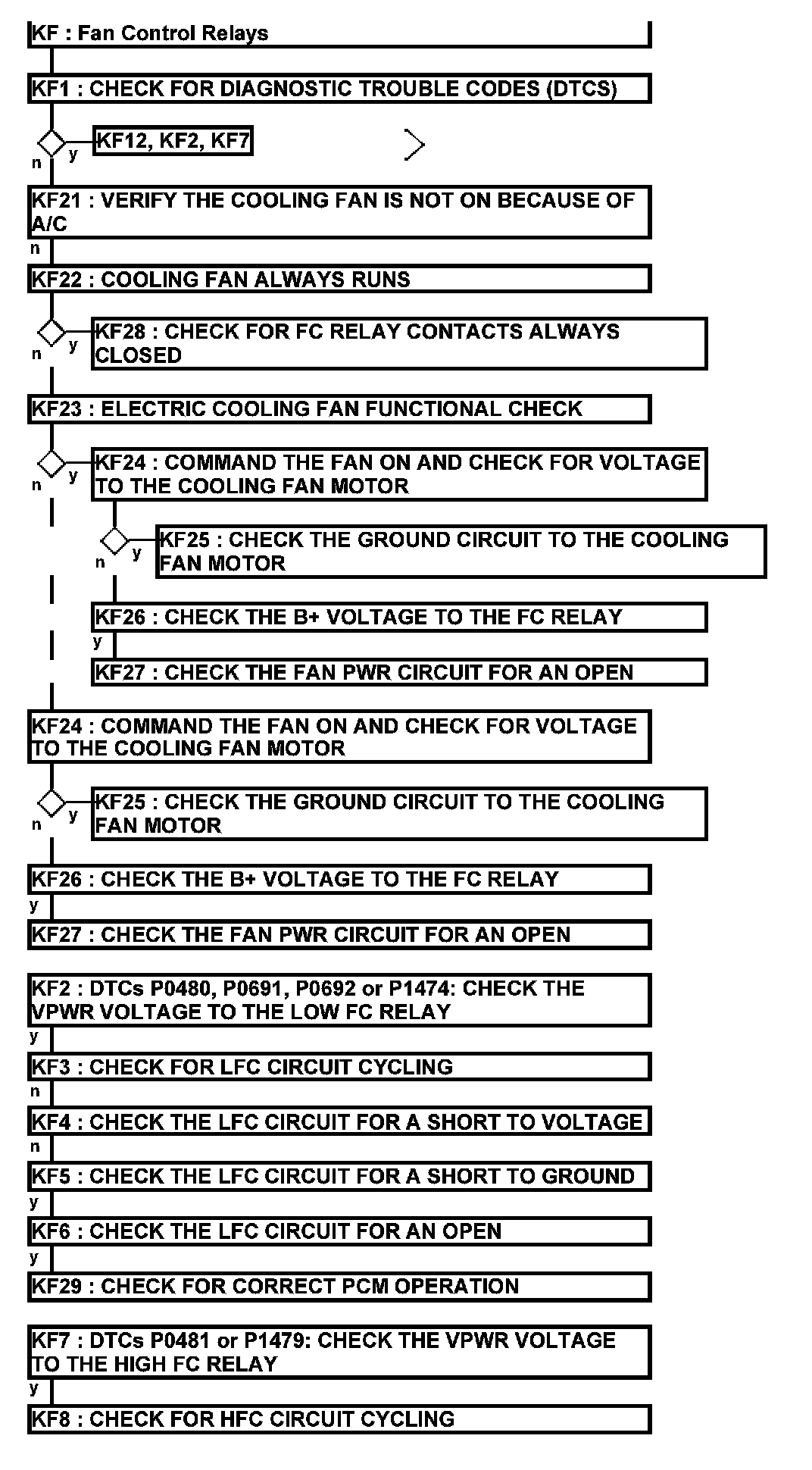

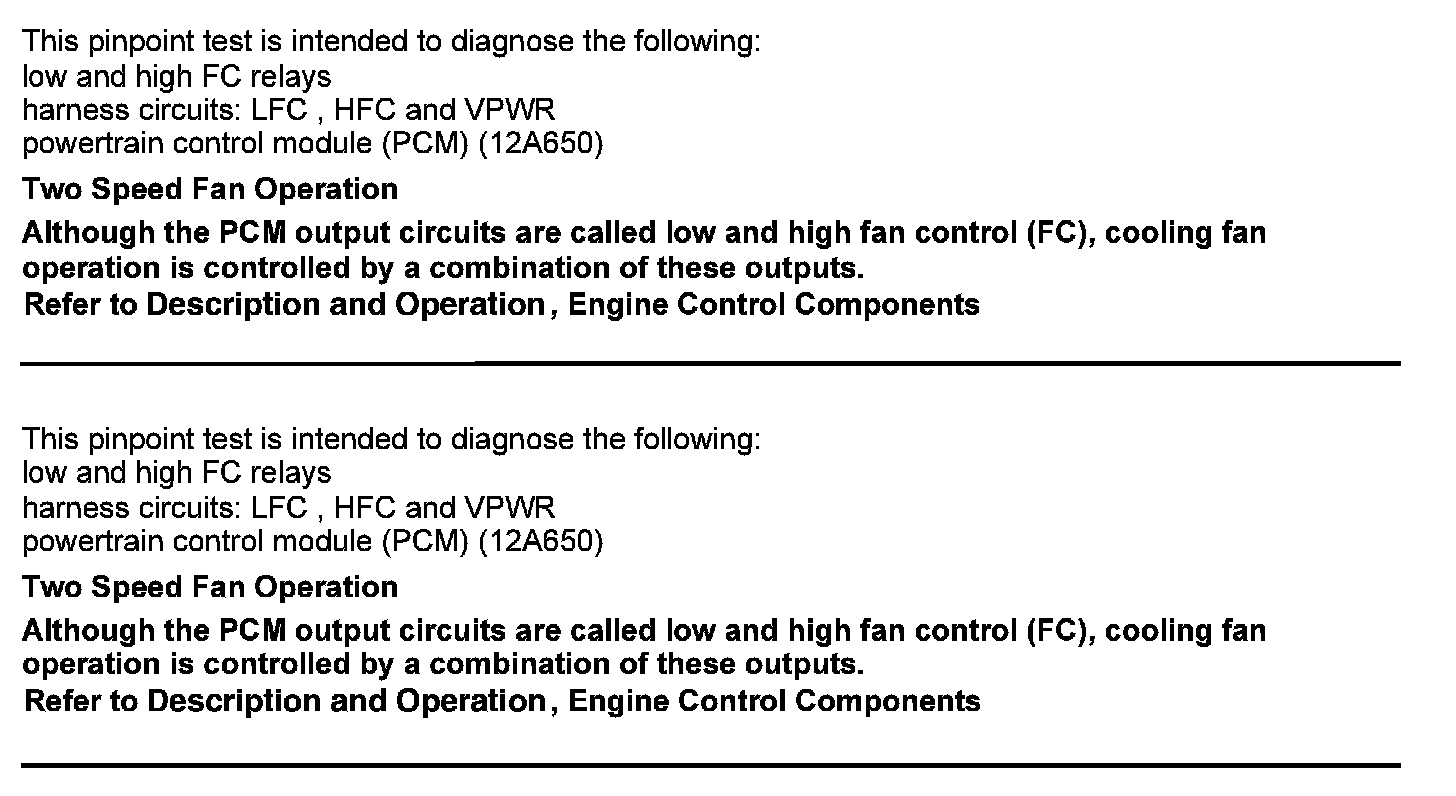

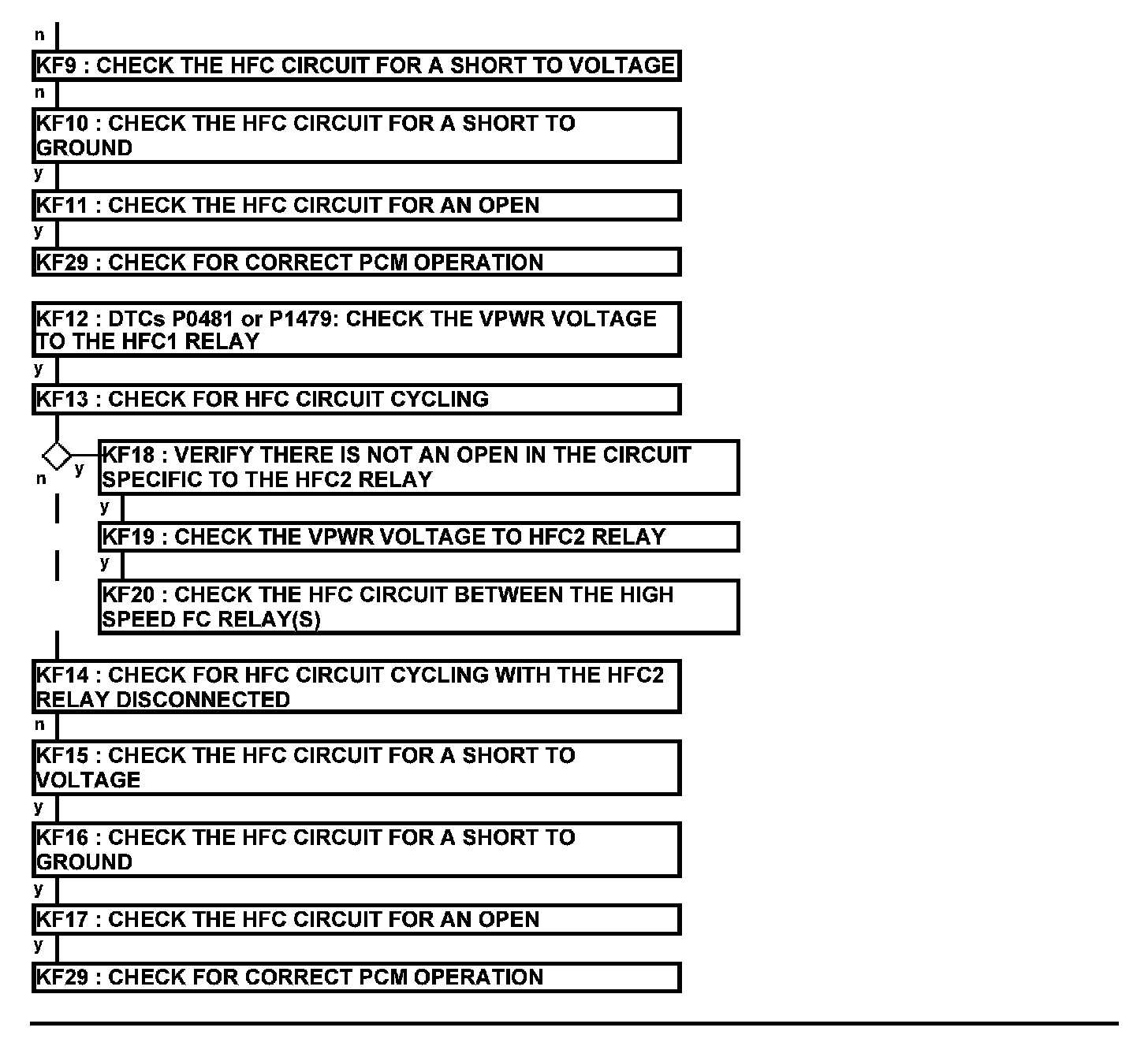

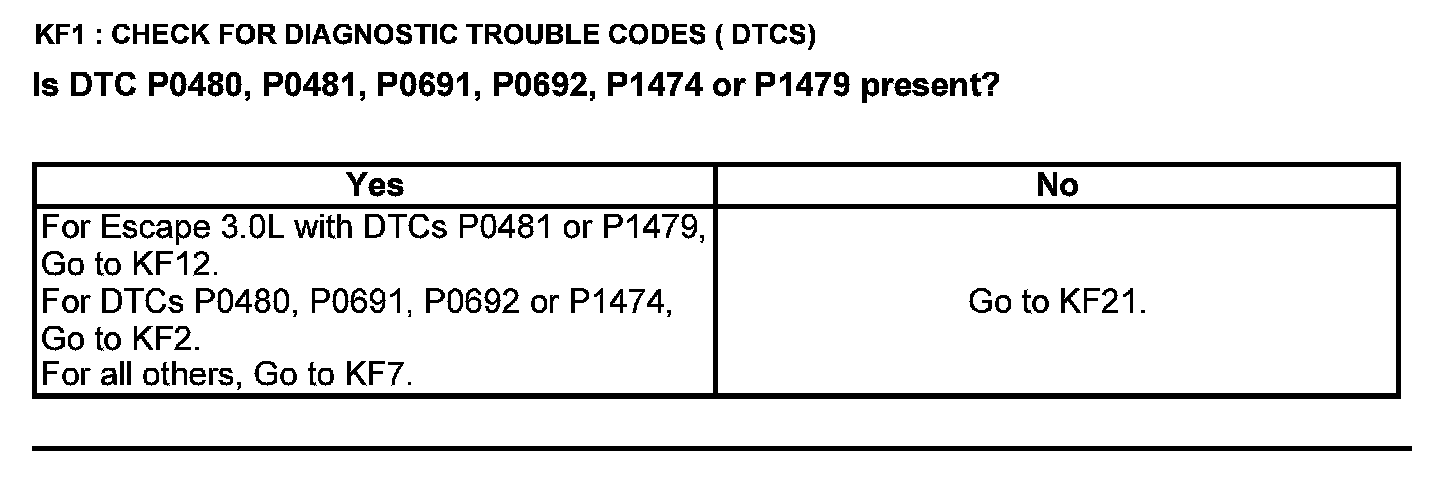

Test KF: Fan Control Relays



Fan Control Relays

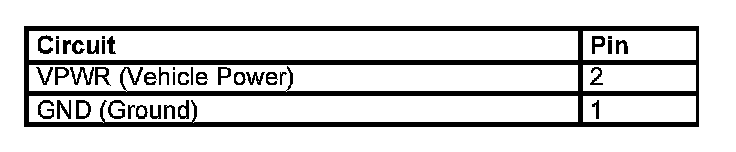

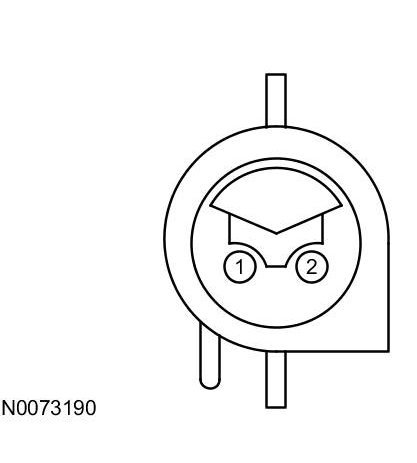

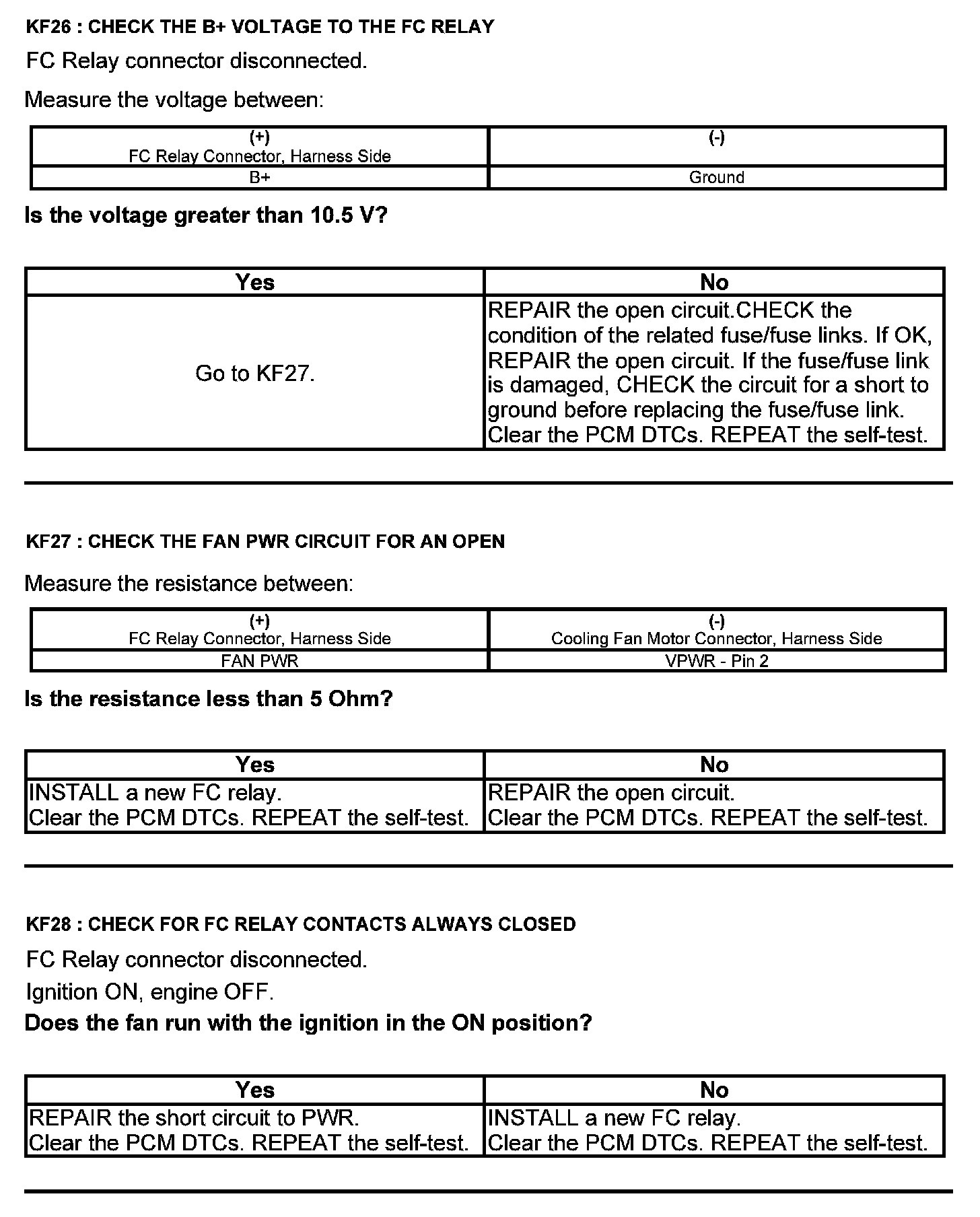

Cooling Fan Motor Connector





Harness Side

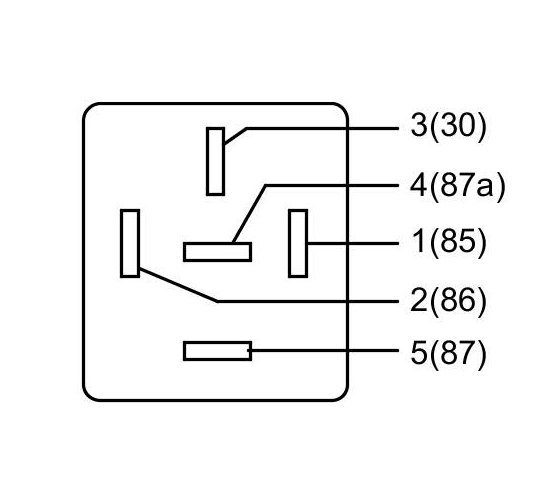

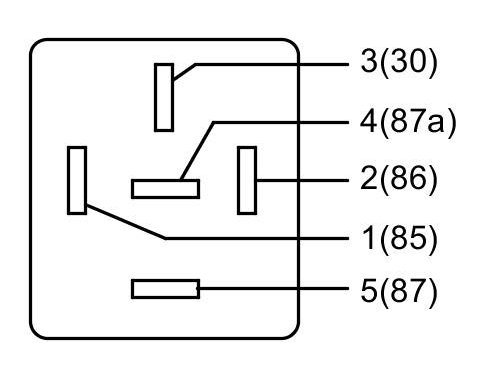

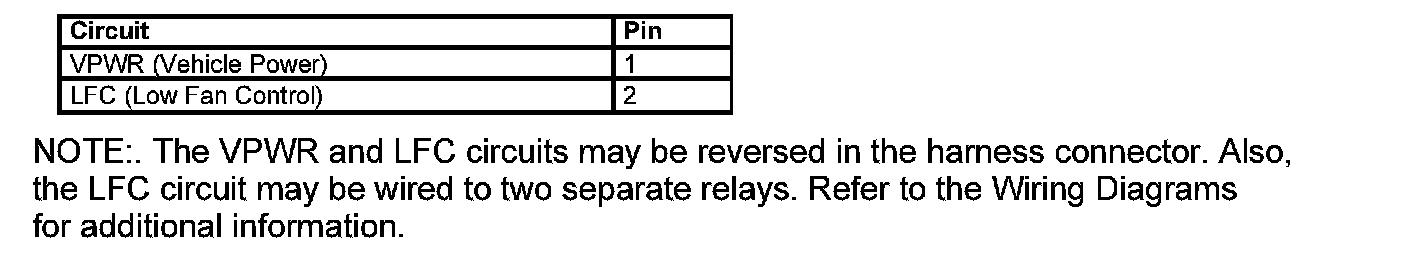

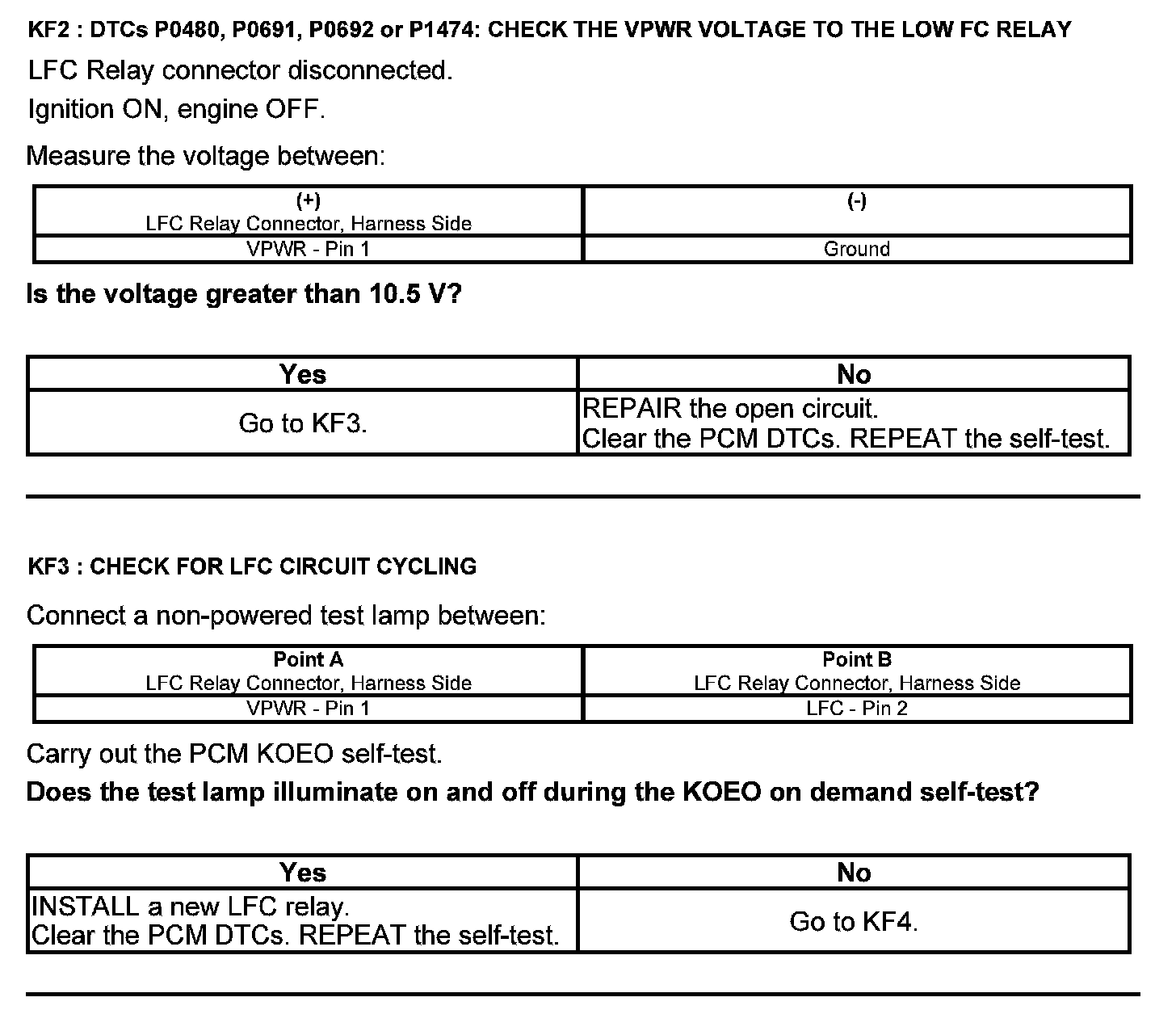

Low Fan Control (LFC) Relay Connector





Harness Side





Component side

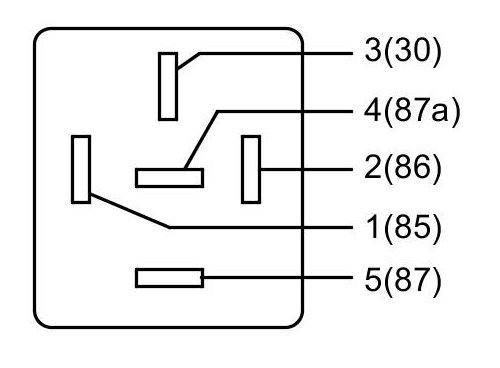

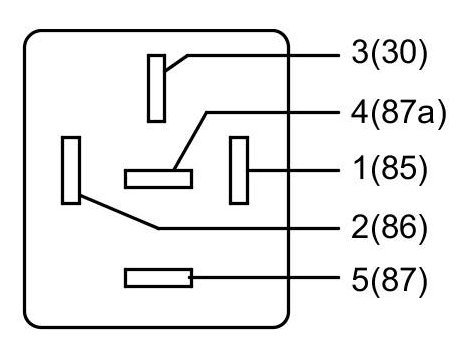

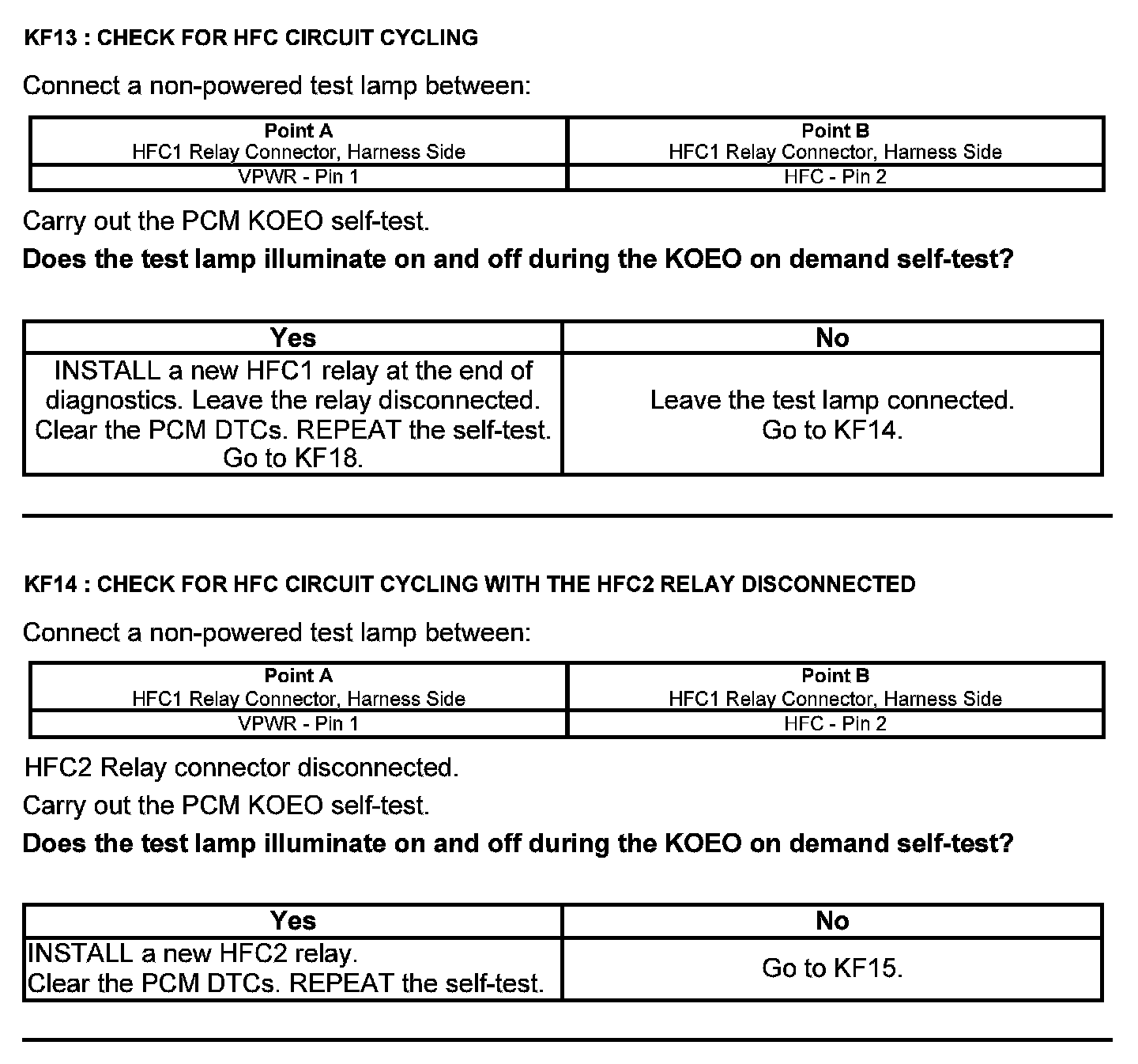

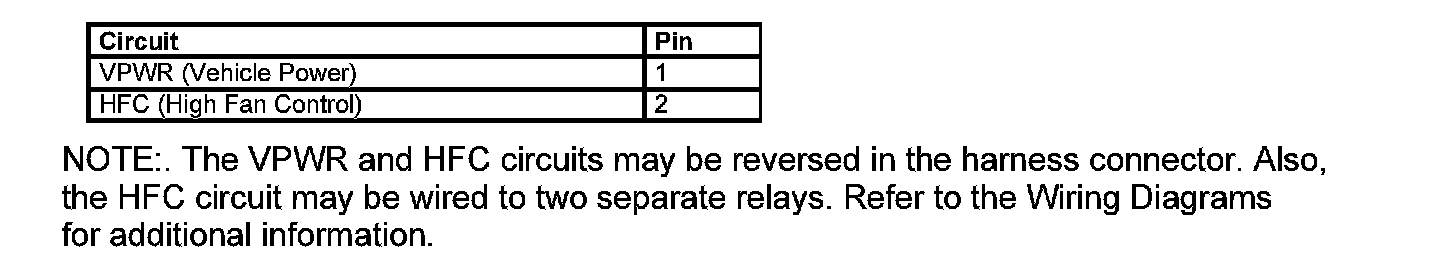

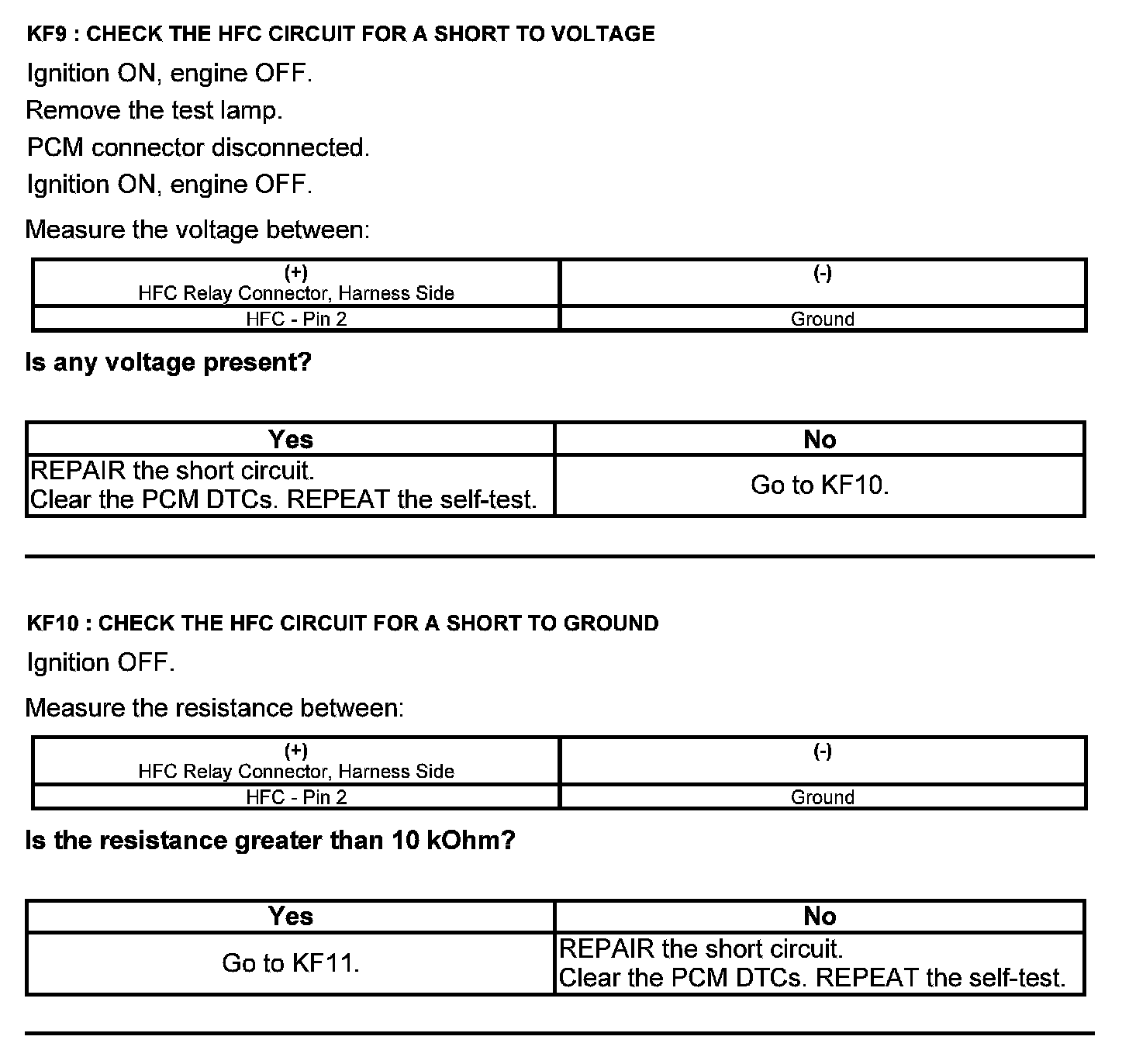

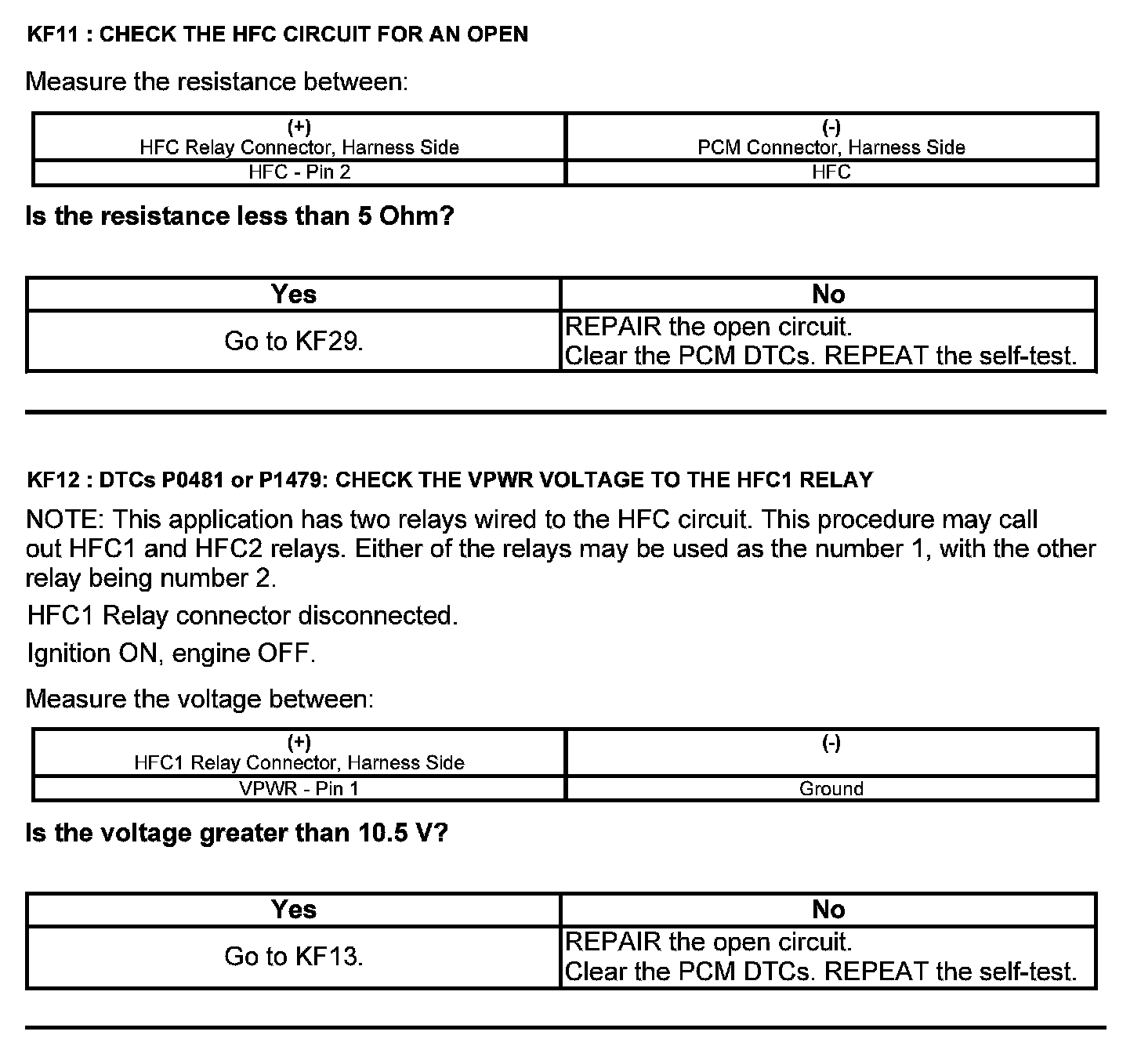

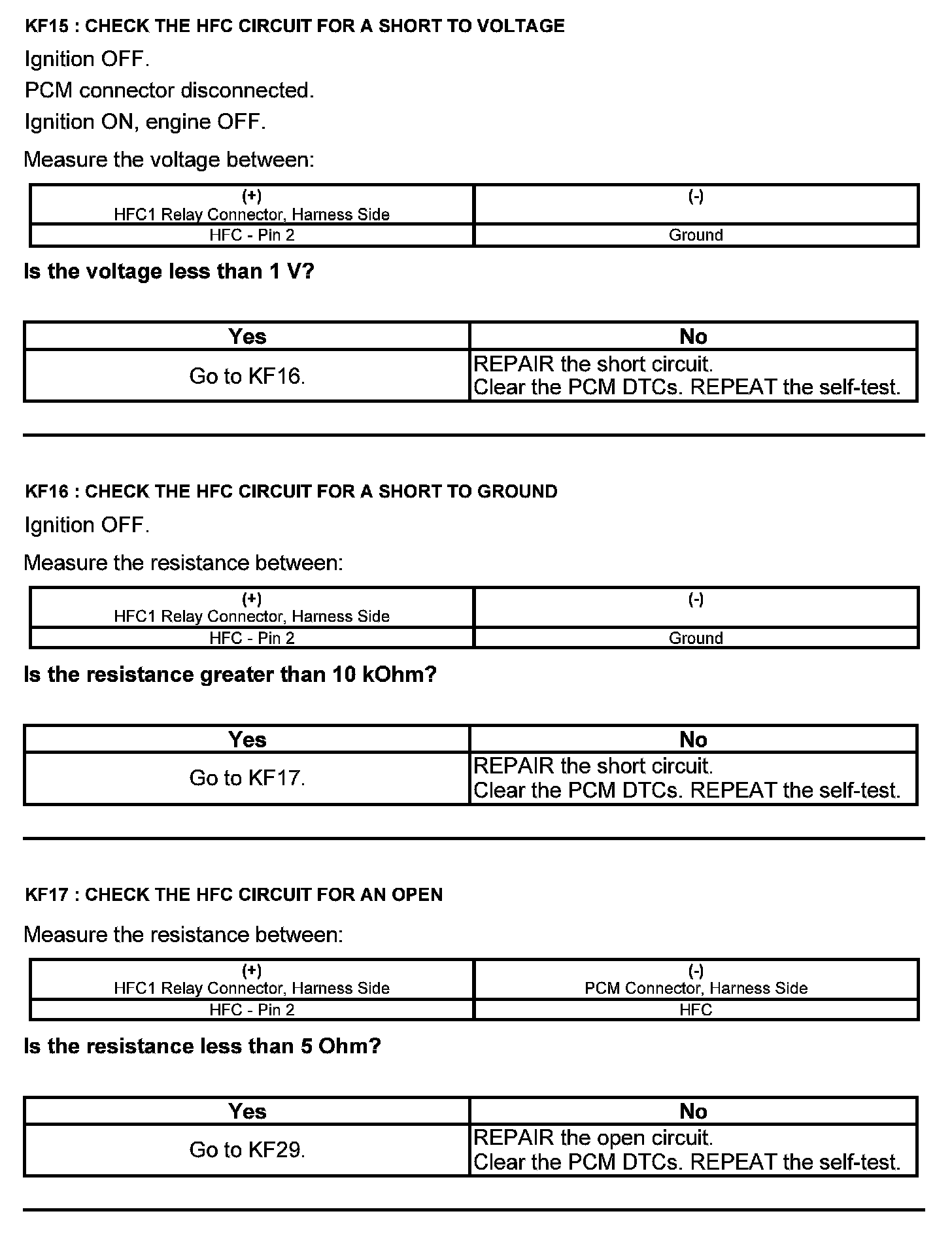

High Fan Control (HFC) Relay Connector




Harness Side




Component side

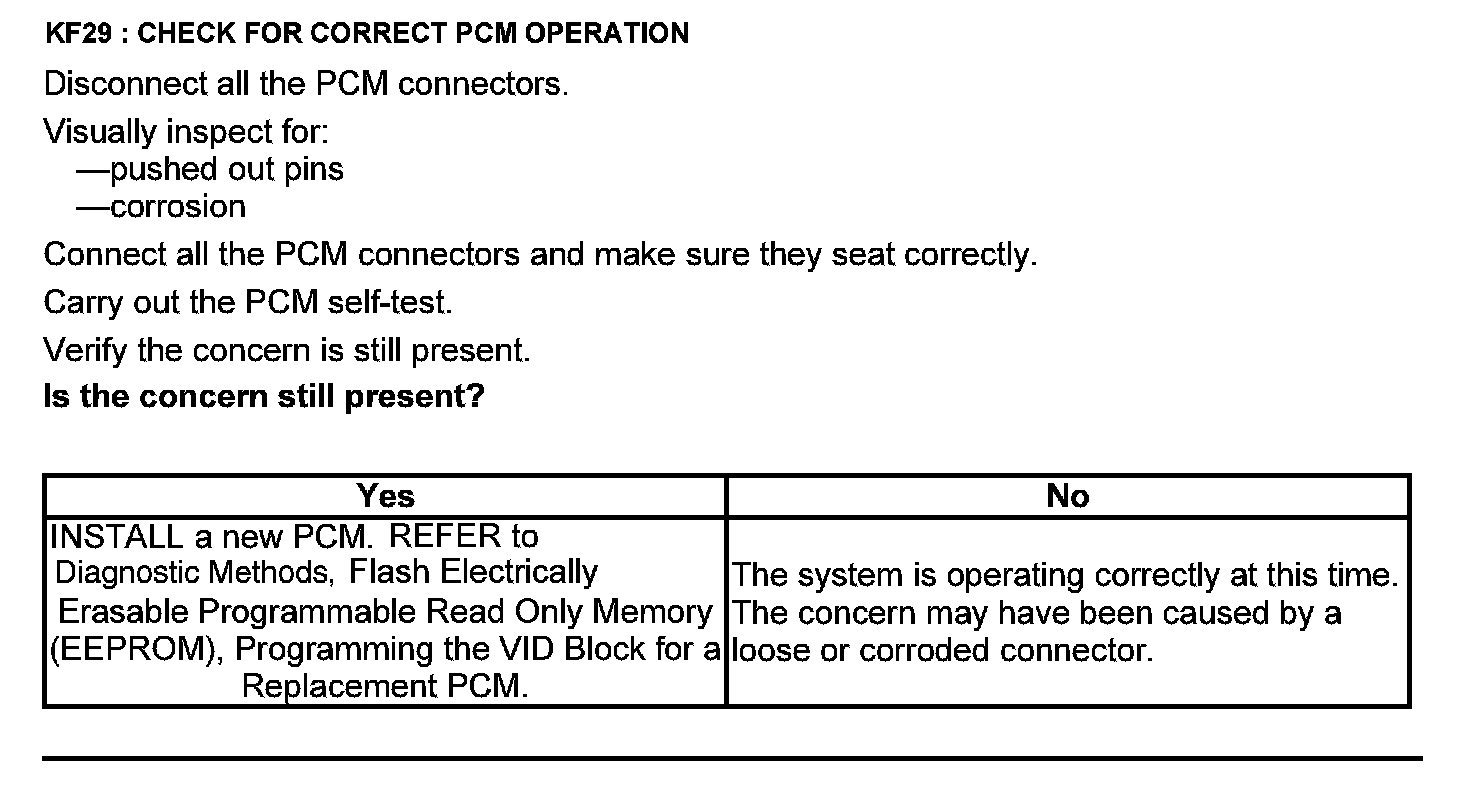

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
