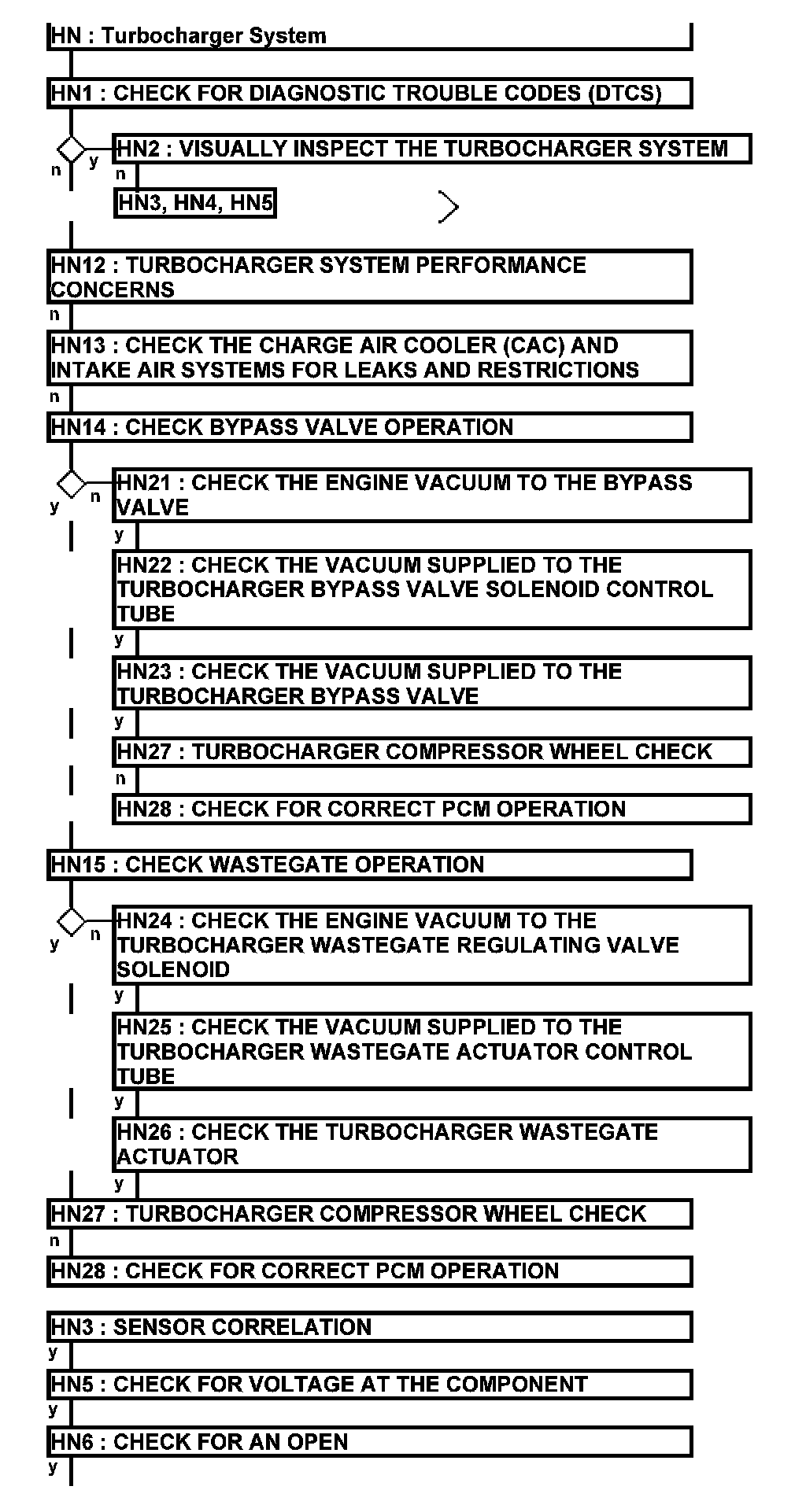

Test HN: Turbocharger System
Turbocharger System

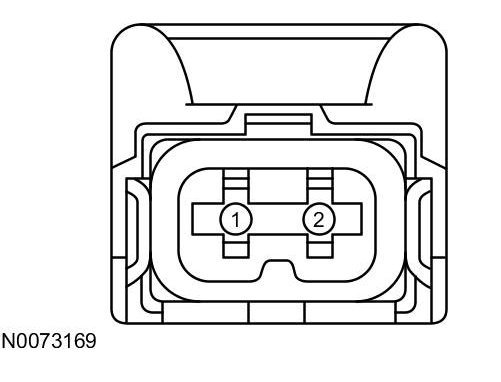

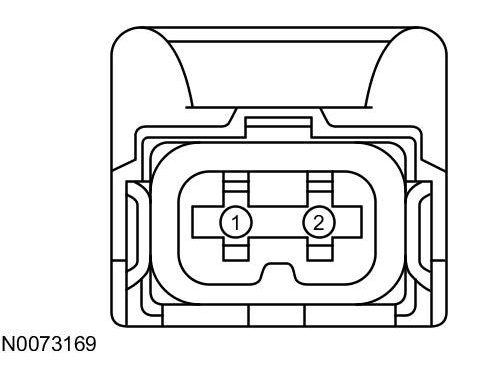

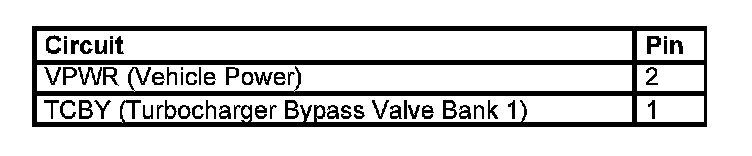

Turbocharger Bypass Valve (TCBY) Connector
Harness Side

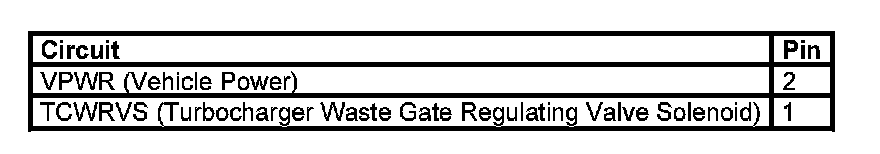

Turbocharger Wastegate Regulating Valve Solenoid Connector
Harness Side

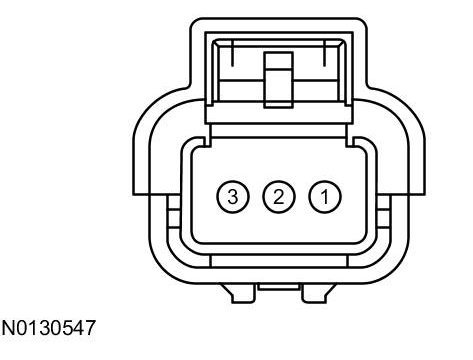

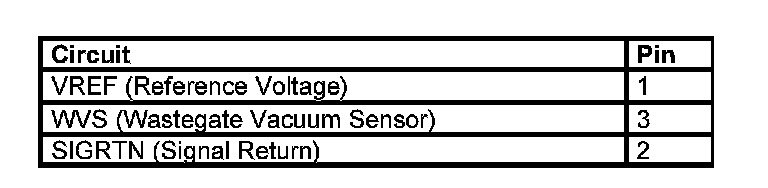

Wastegate Vacuum Sensor Connector
Harness Side

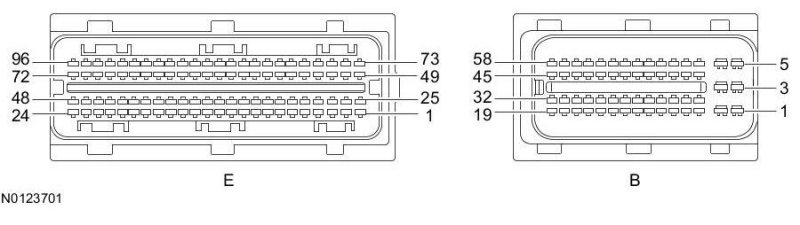

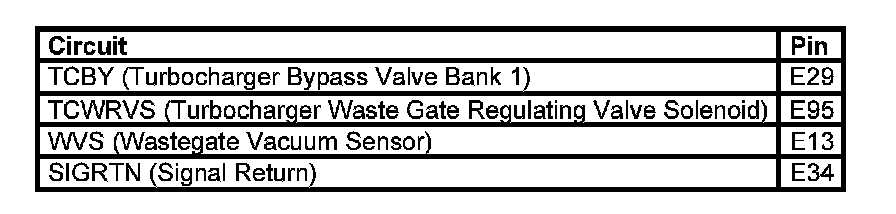

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
