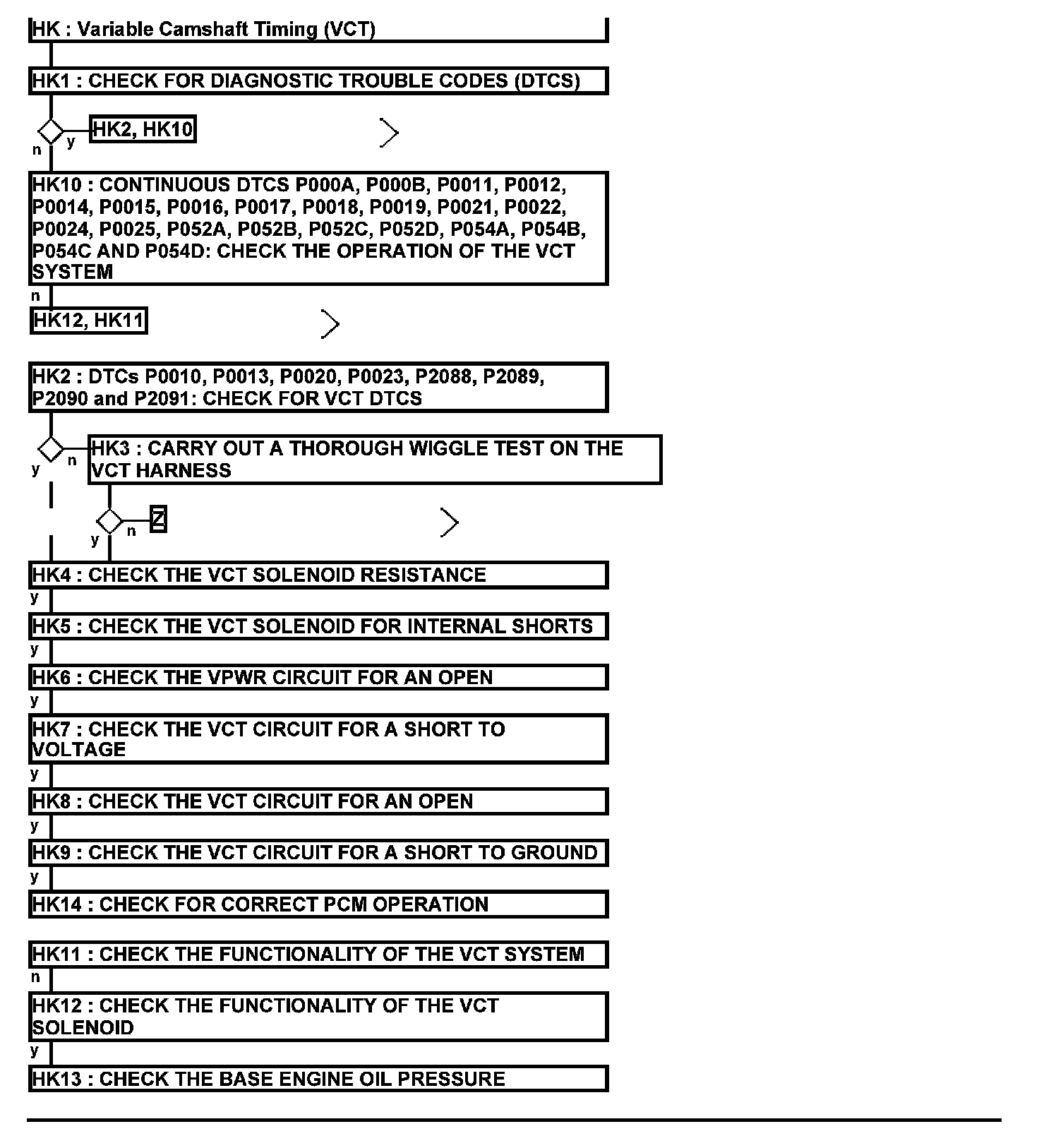

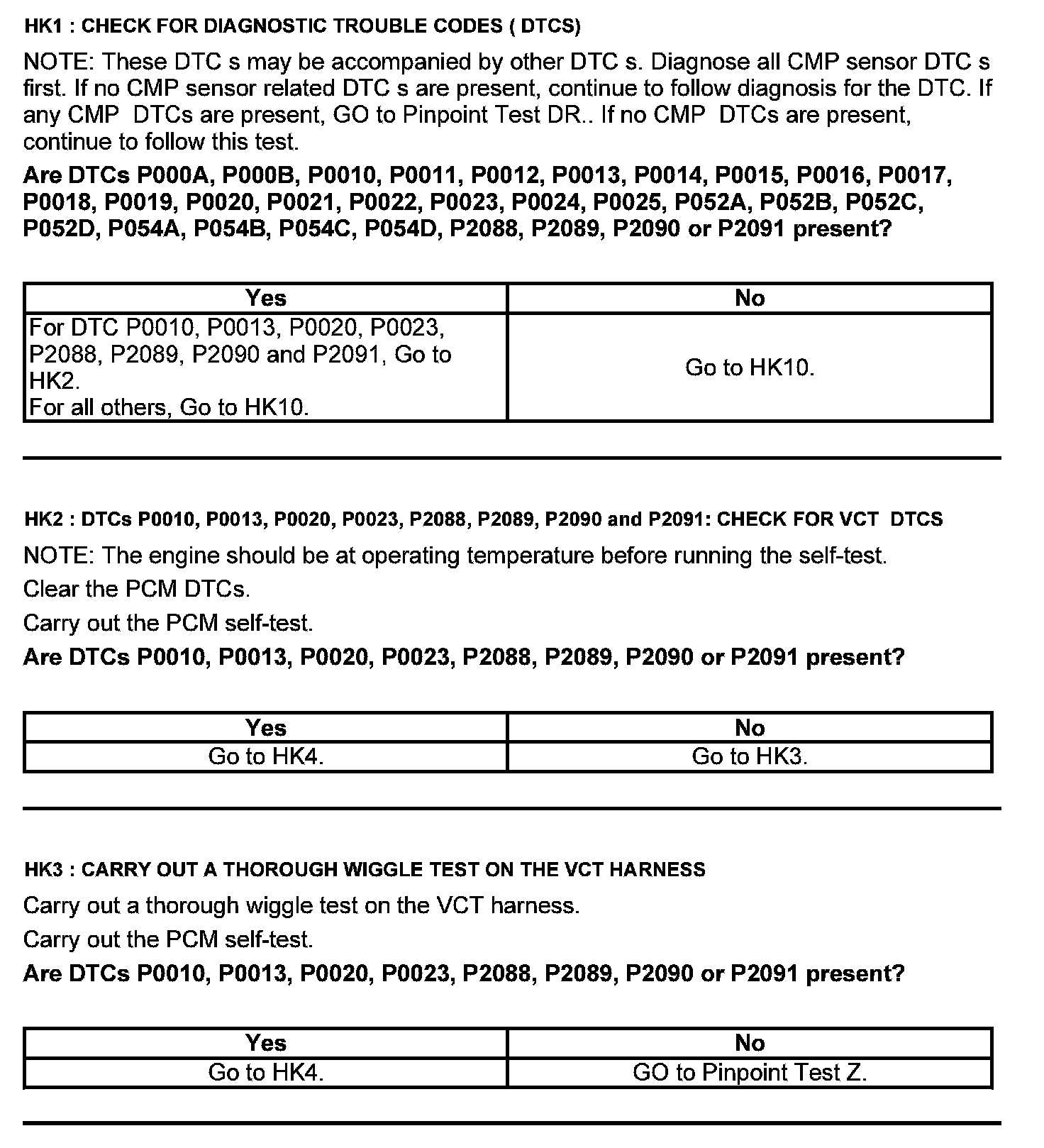

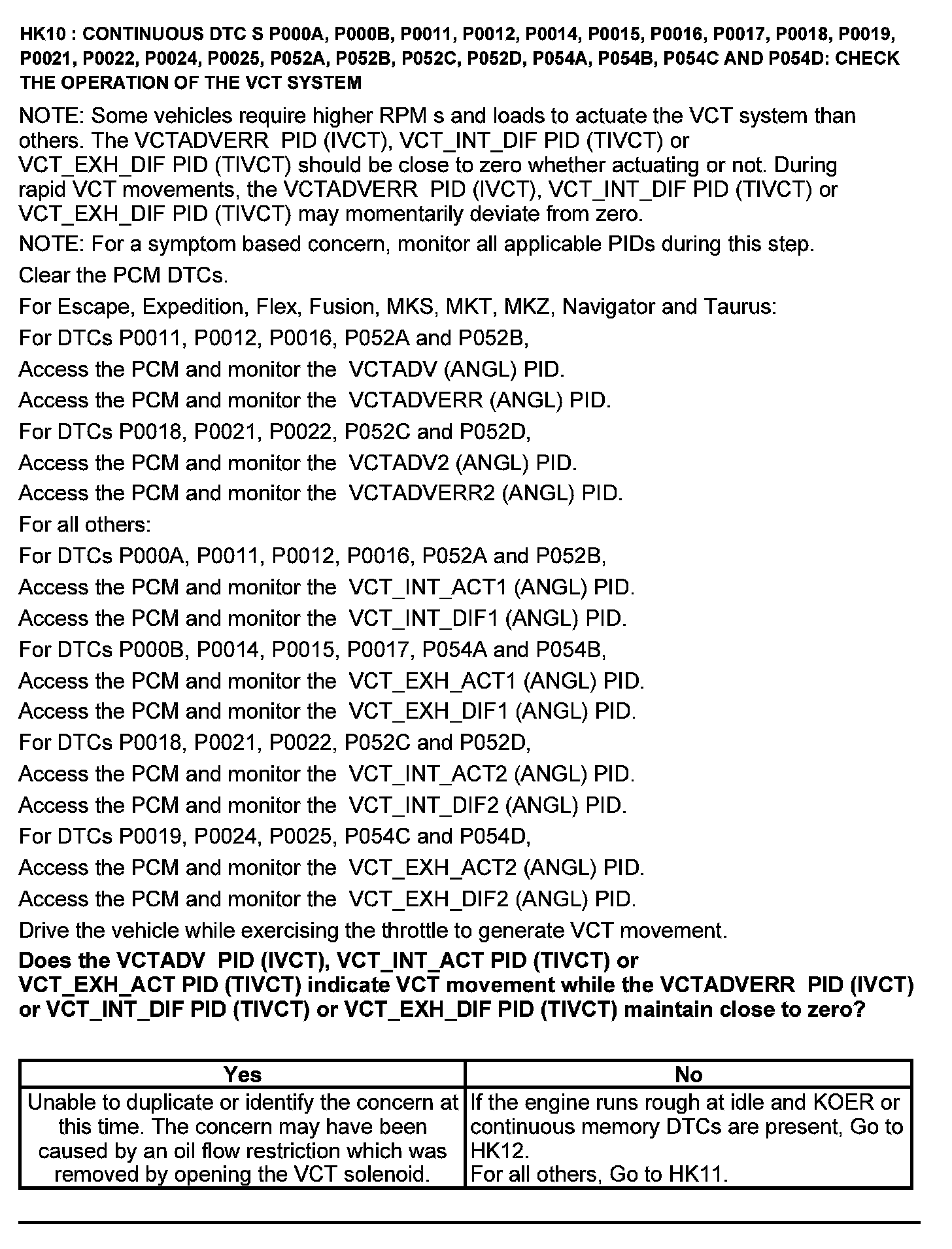

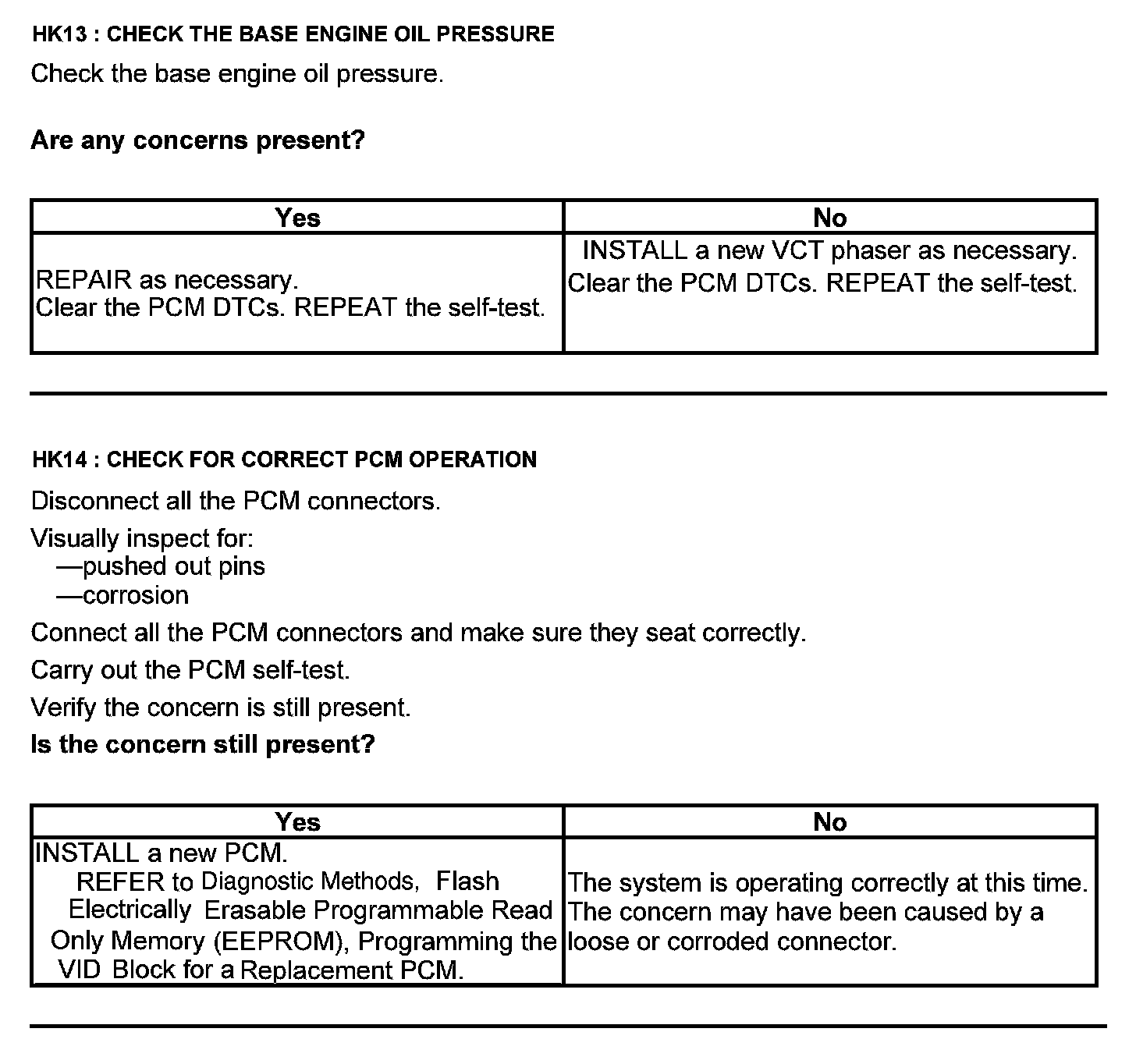

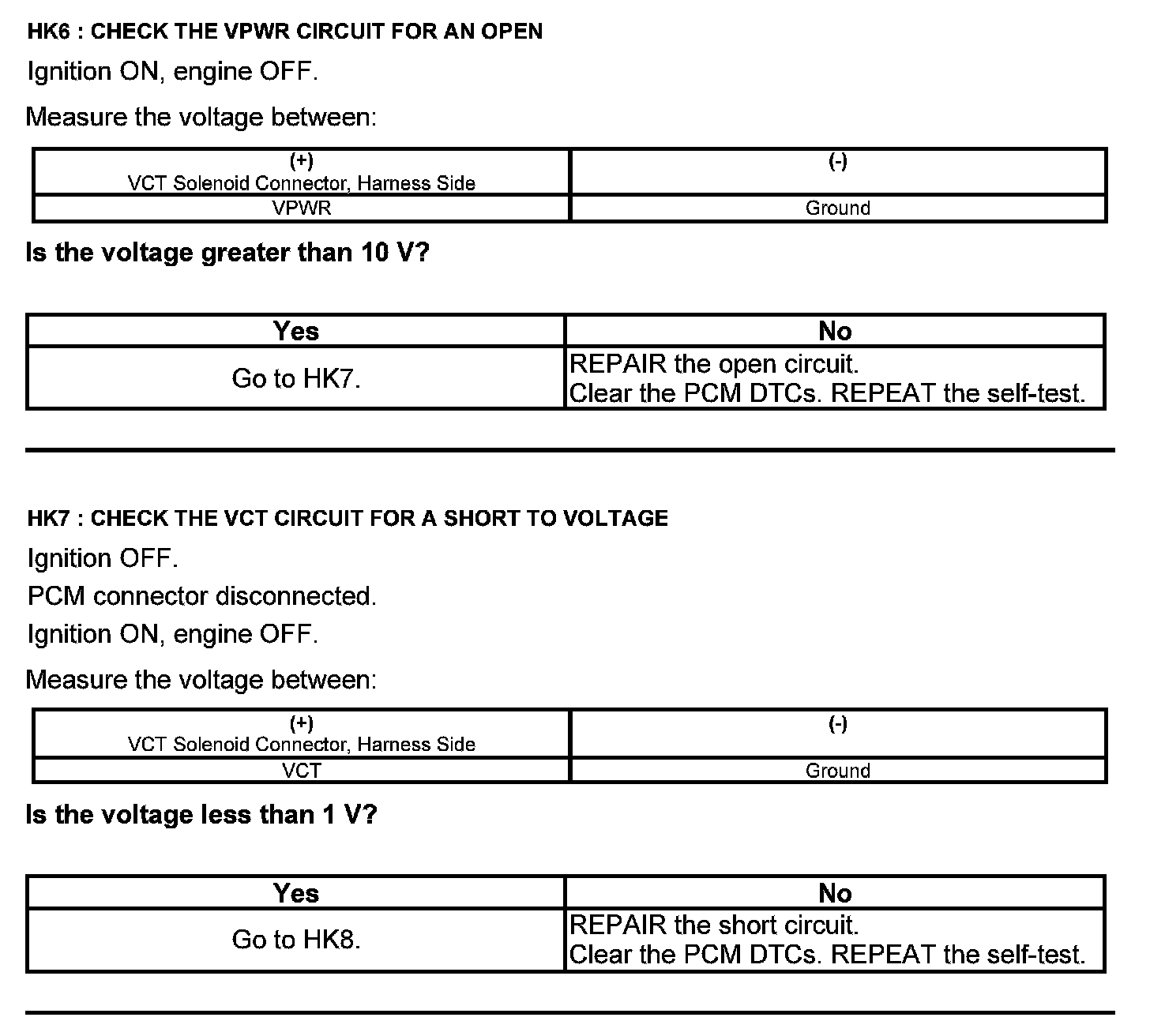

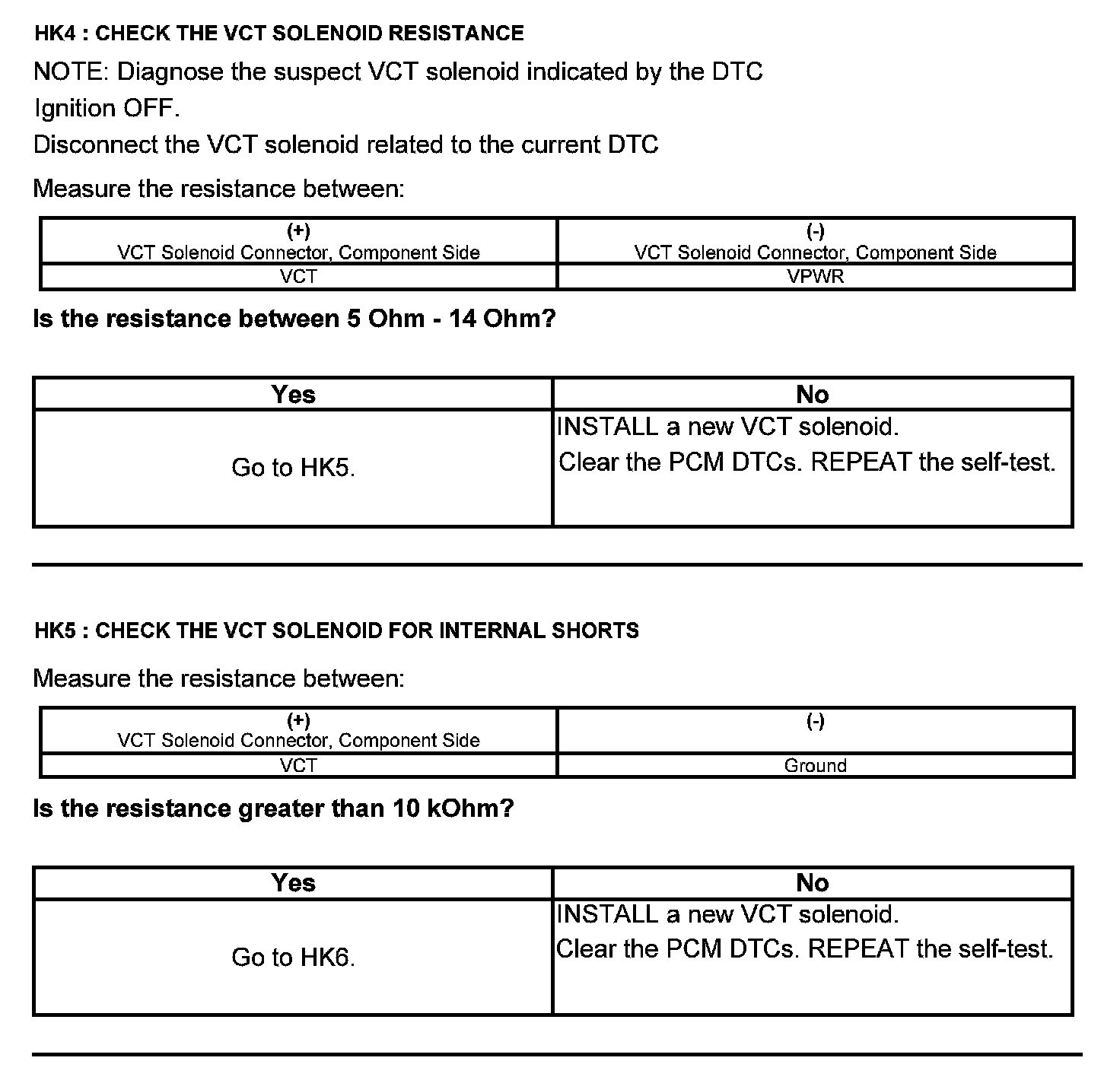

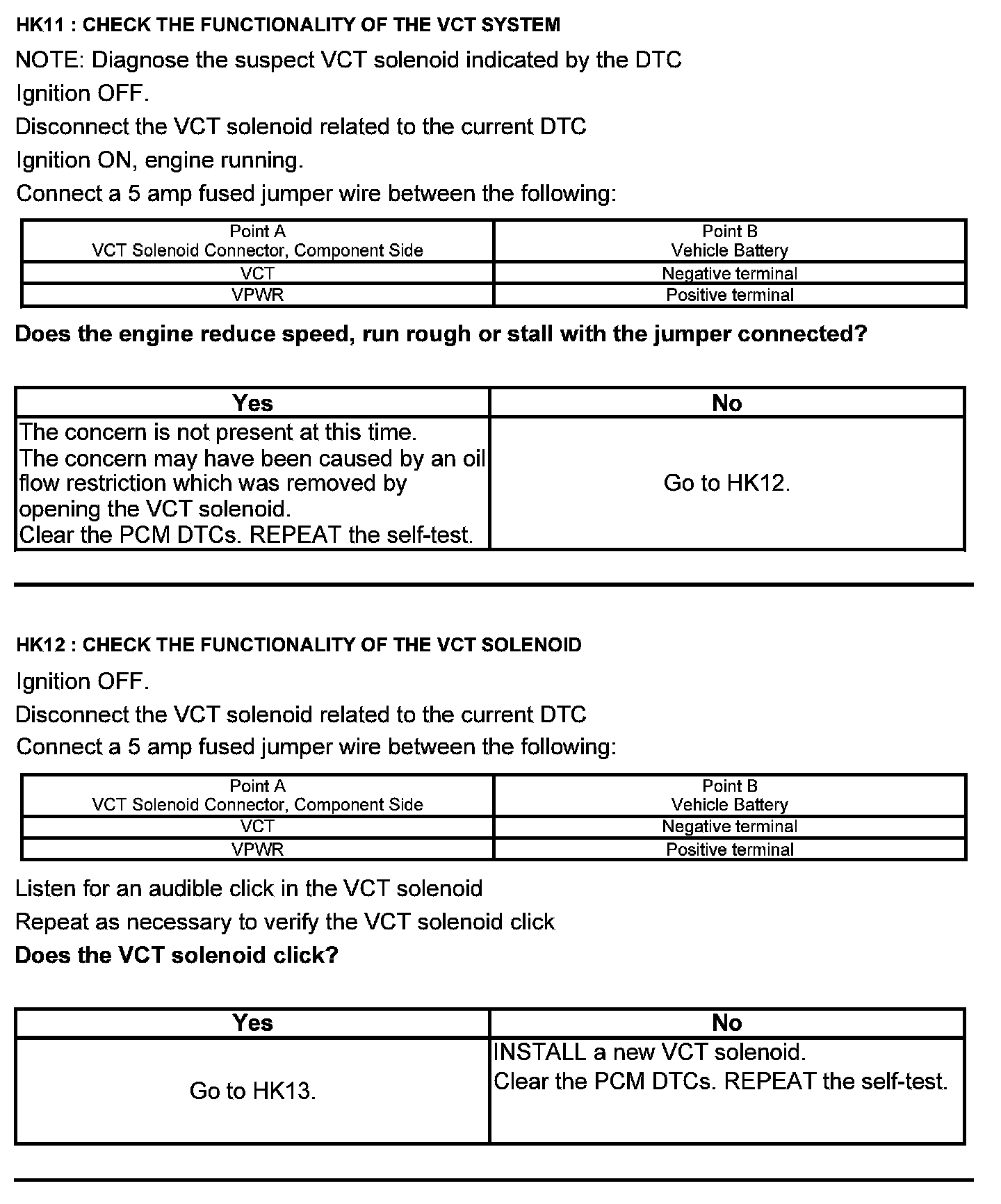

Test HK: Variable Camshaft Timing (VCT)



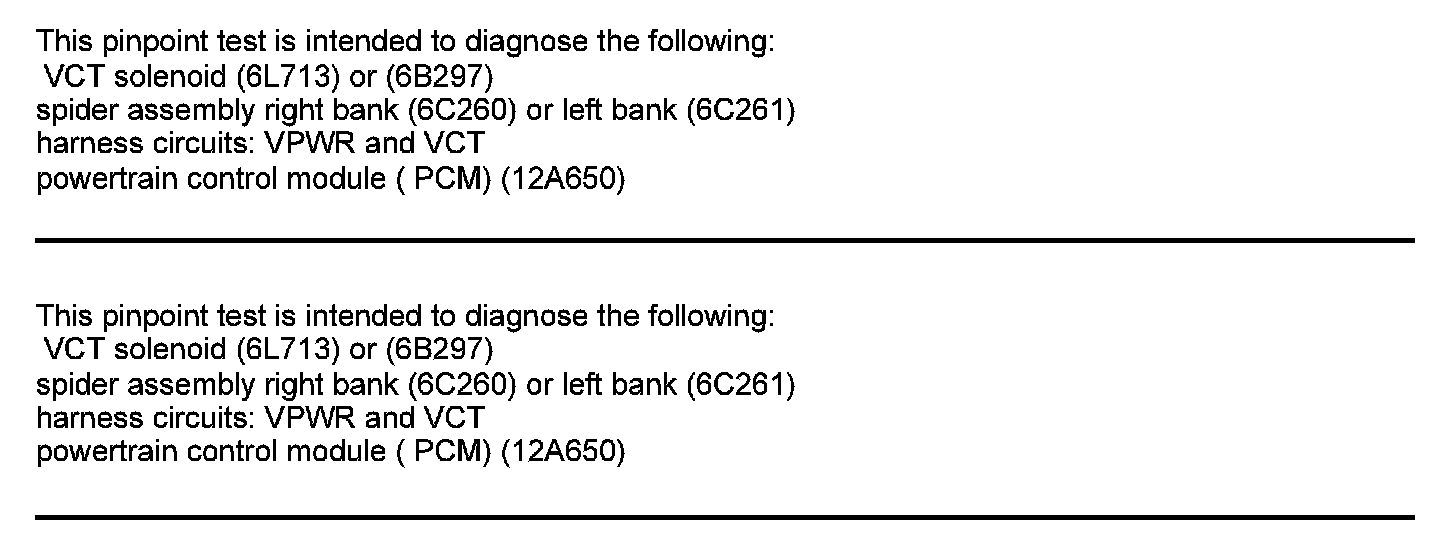

Variable Camshaft Timing (VCT)

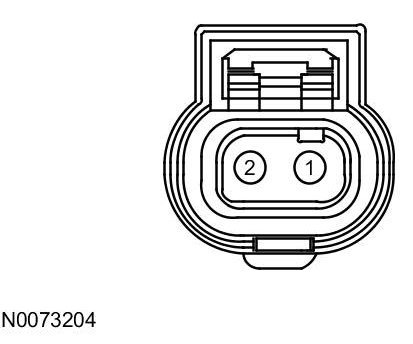

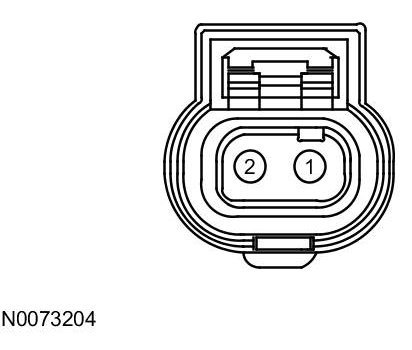

Variable Camshaft Timing Bank 1 (VCT1) Solenoid Connector





Harness Side

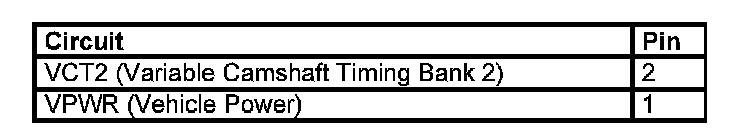

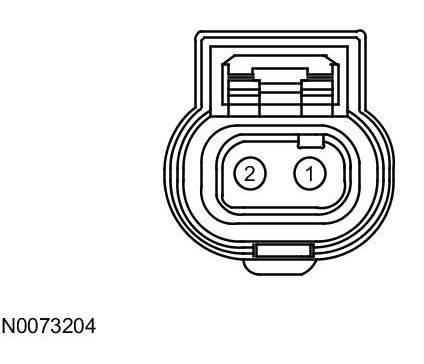

Variable Camshaft Timing Bank 2 (VCT2) Solenoid Connector





Harness Side

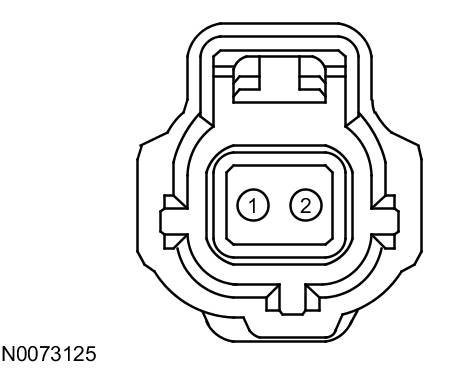

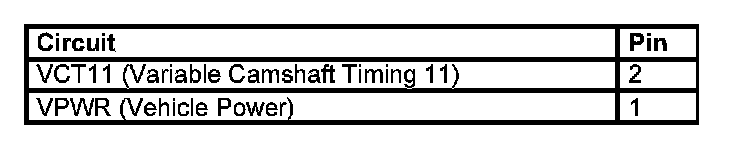

Variable Camshaft Timing 11 (VCT11) Solenoid Connector





Harness Side

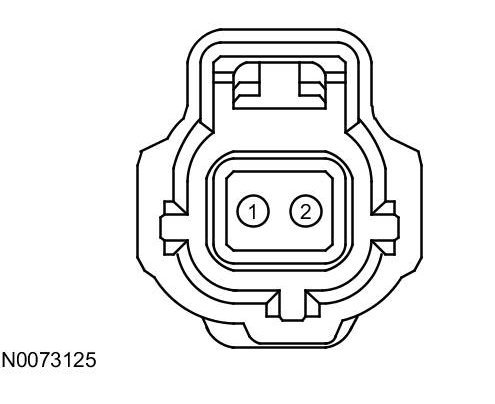

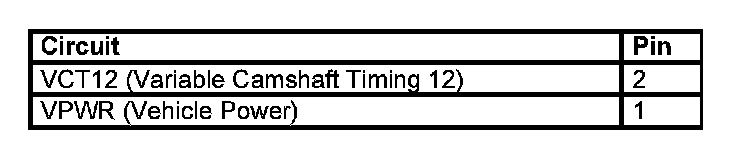

Variable Camshaft Timing 12 (VCT12) Solenoid Connector





Harness Side

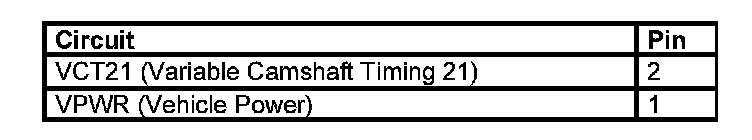

Variable Camshaft Timing 21 (VCT21) Solenoid Connector





Harness Side

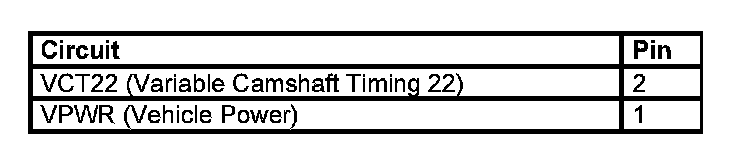

Variable Camshaft Timing 22 (VCT22) Solenoid Connector





Harness Side

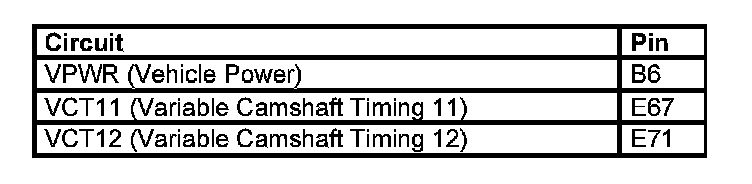

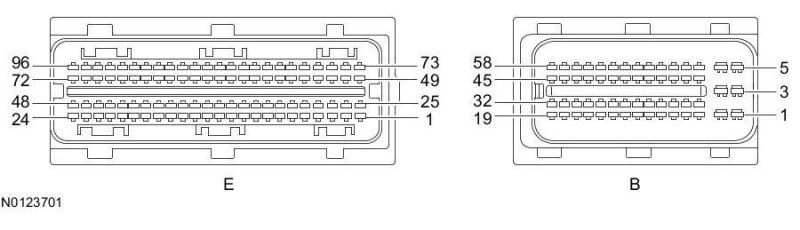

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
