Vehicles That Start

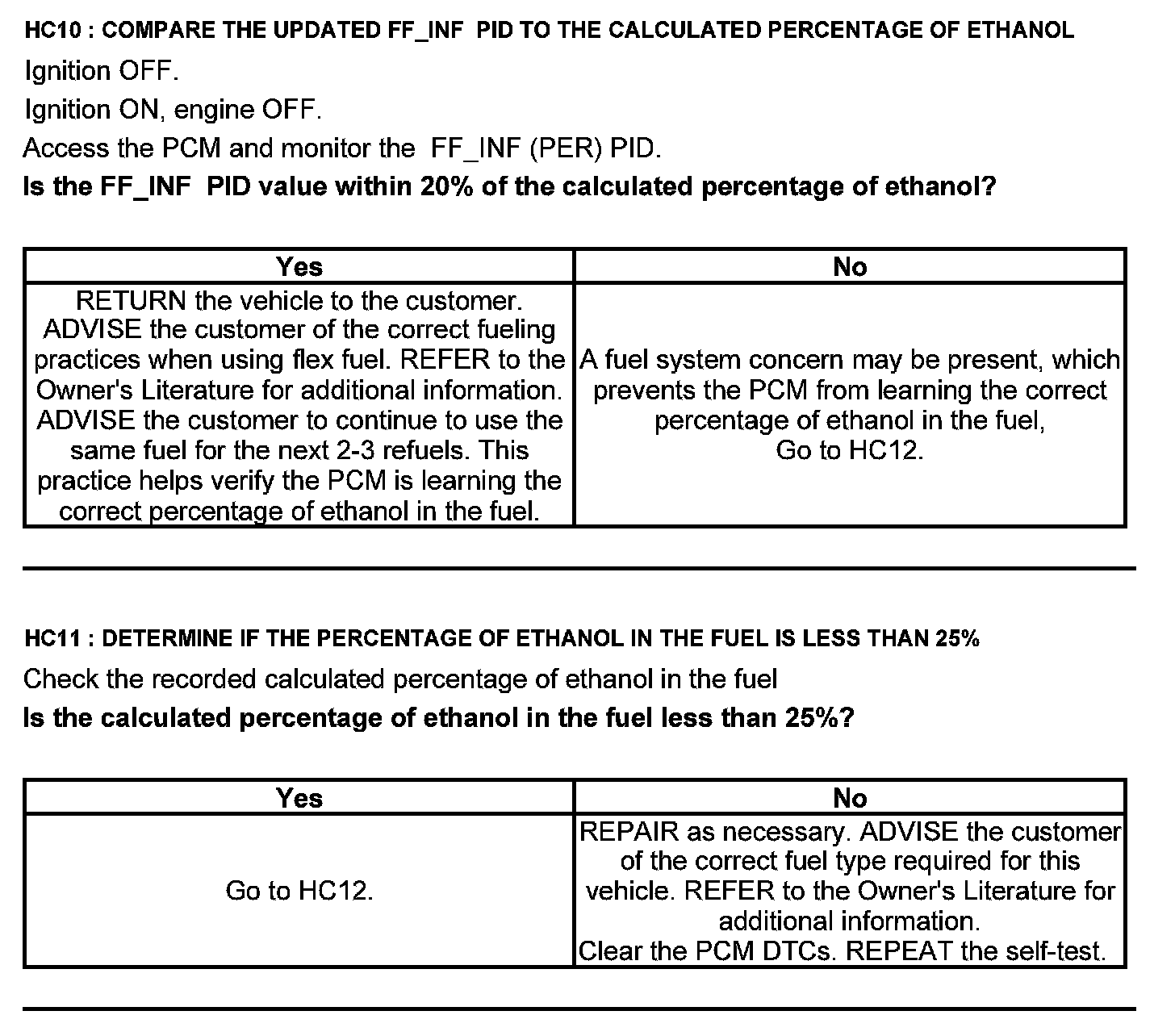

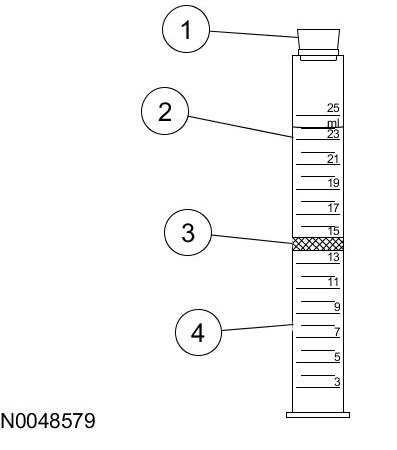

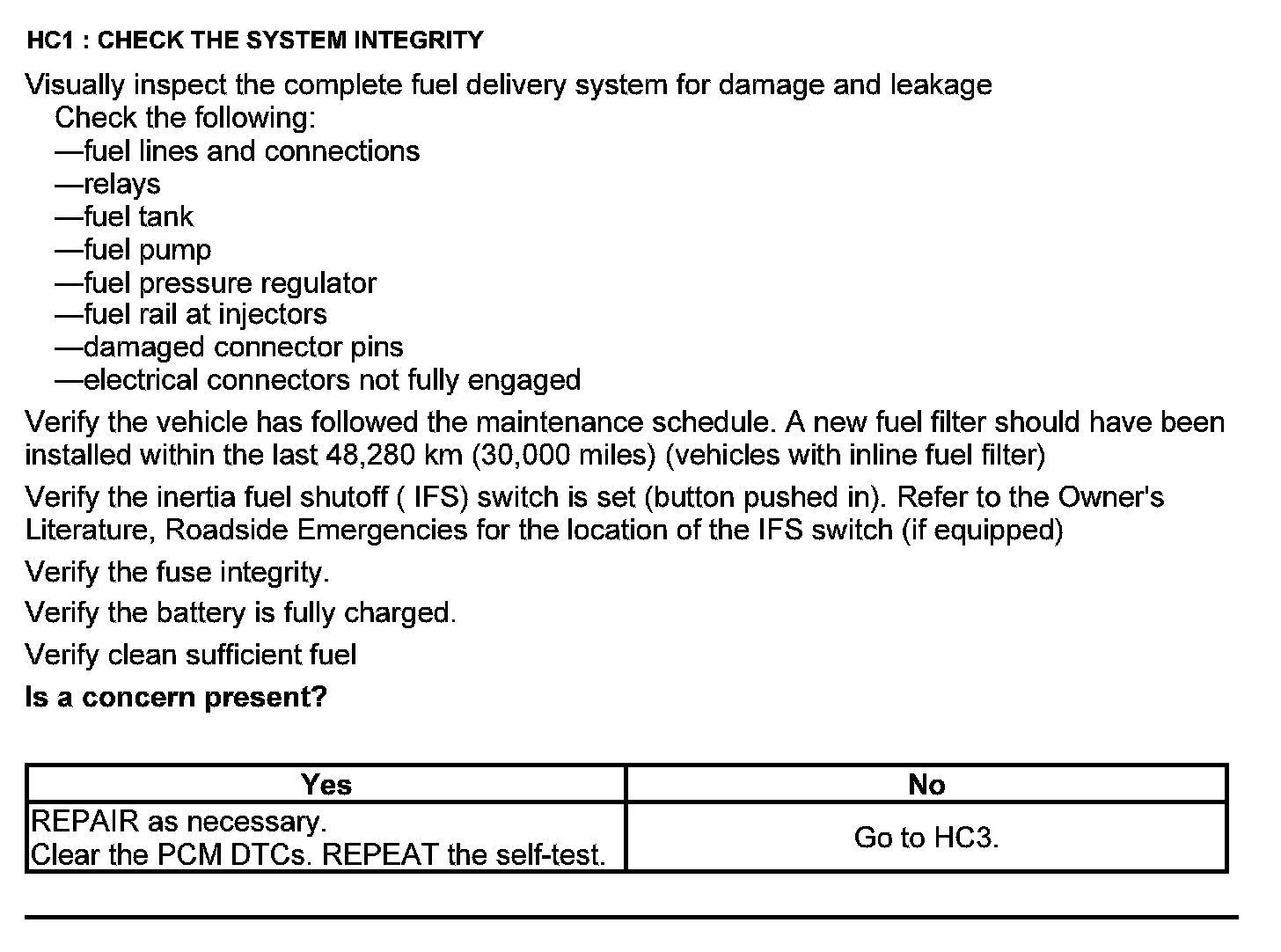

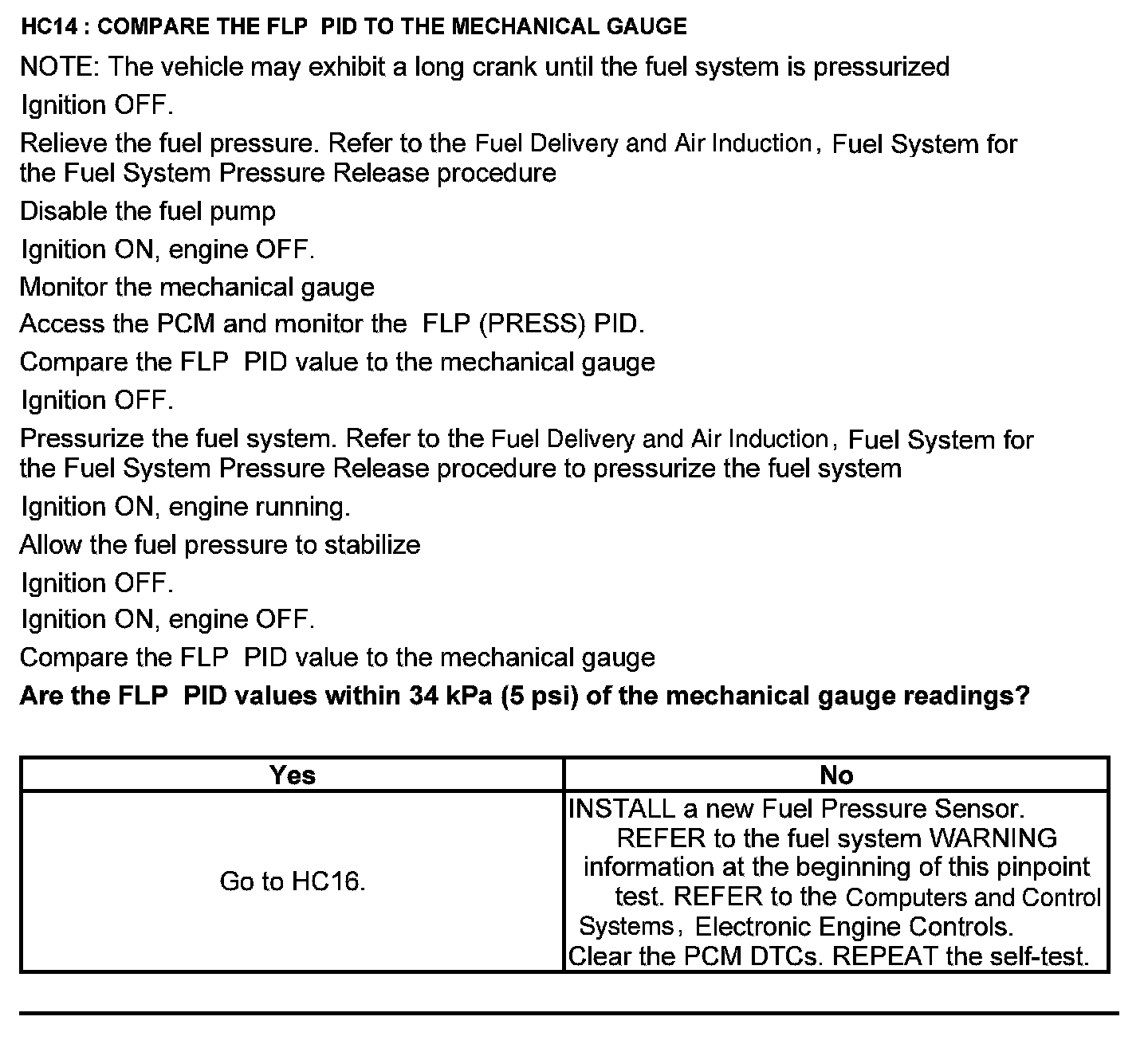

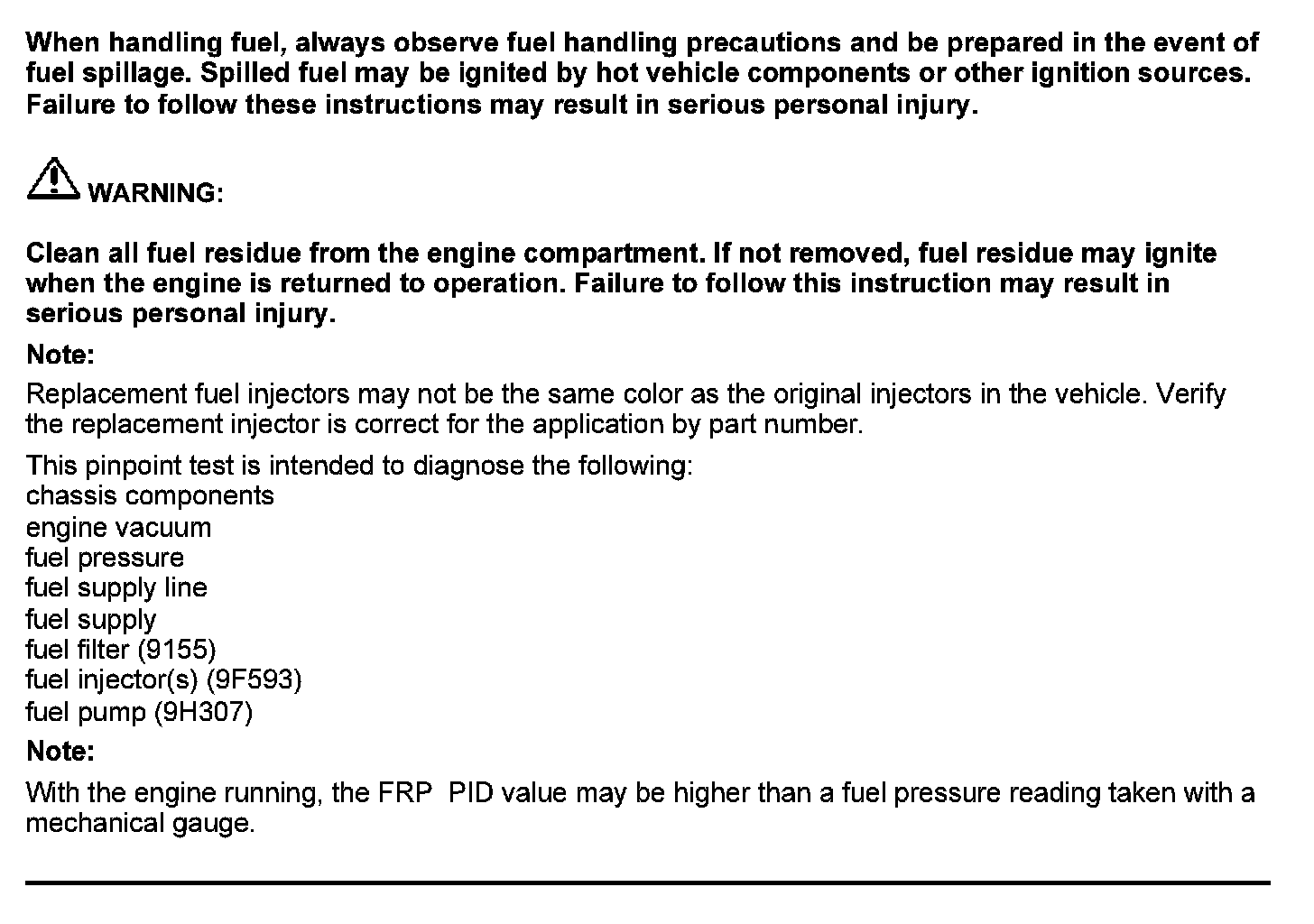

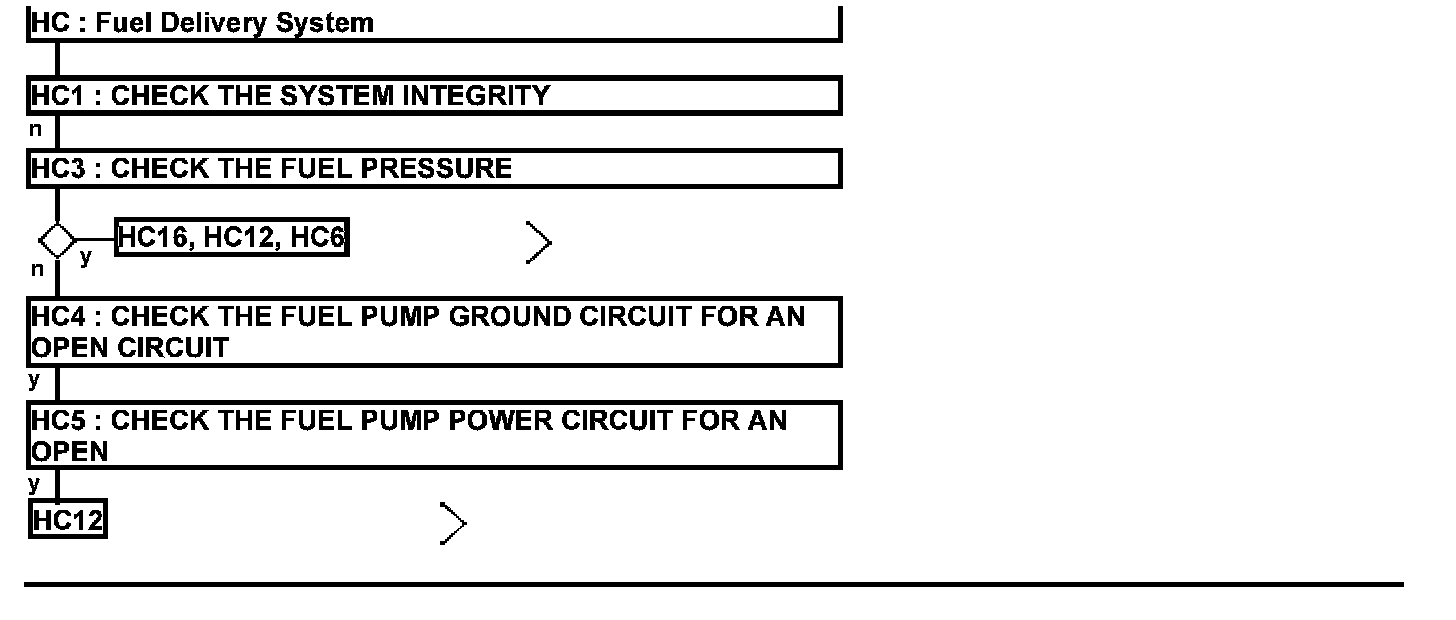

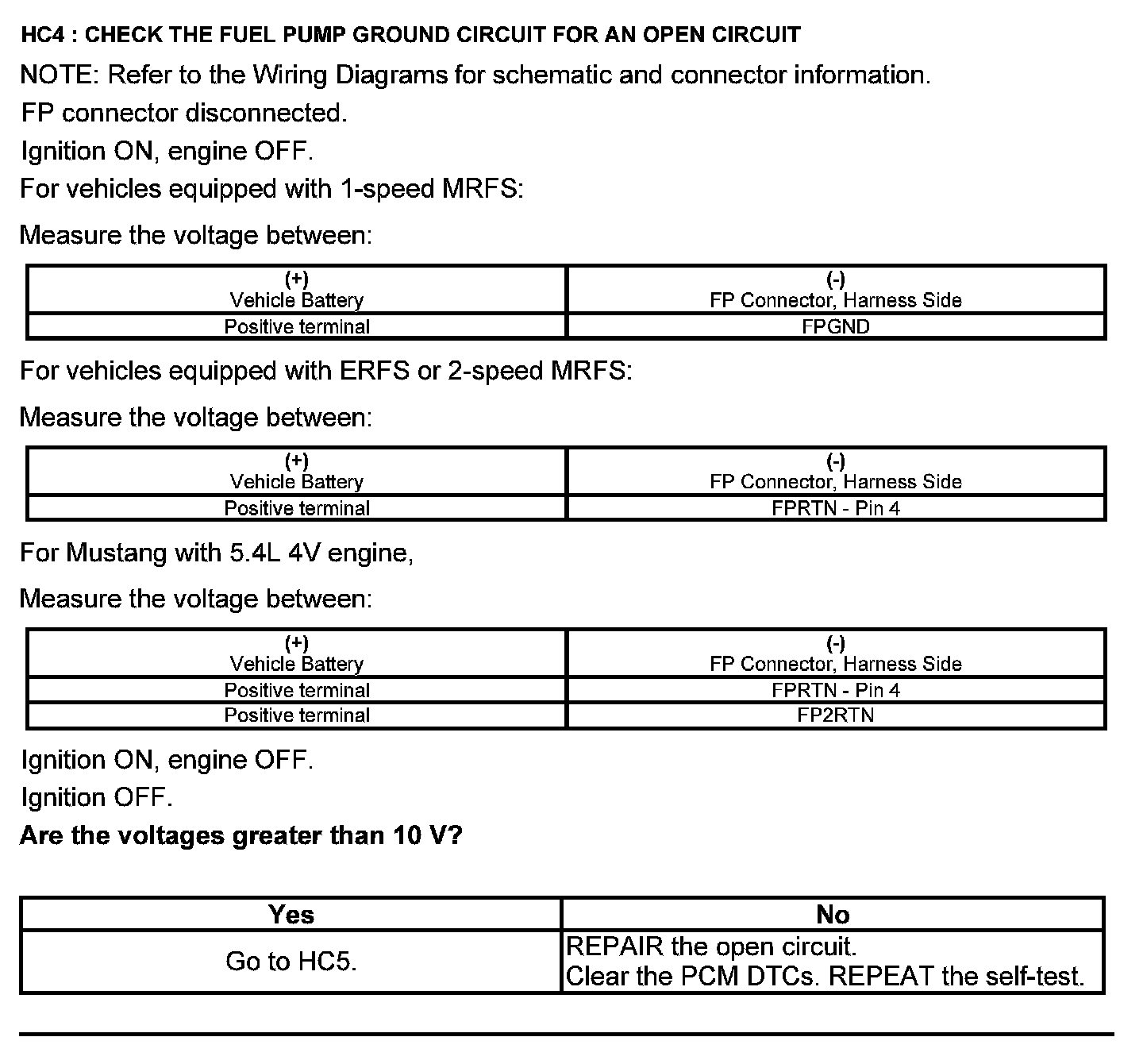

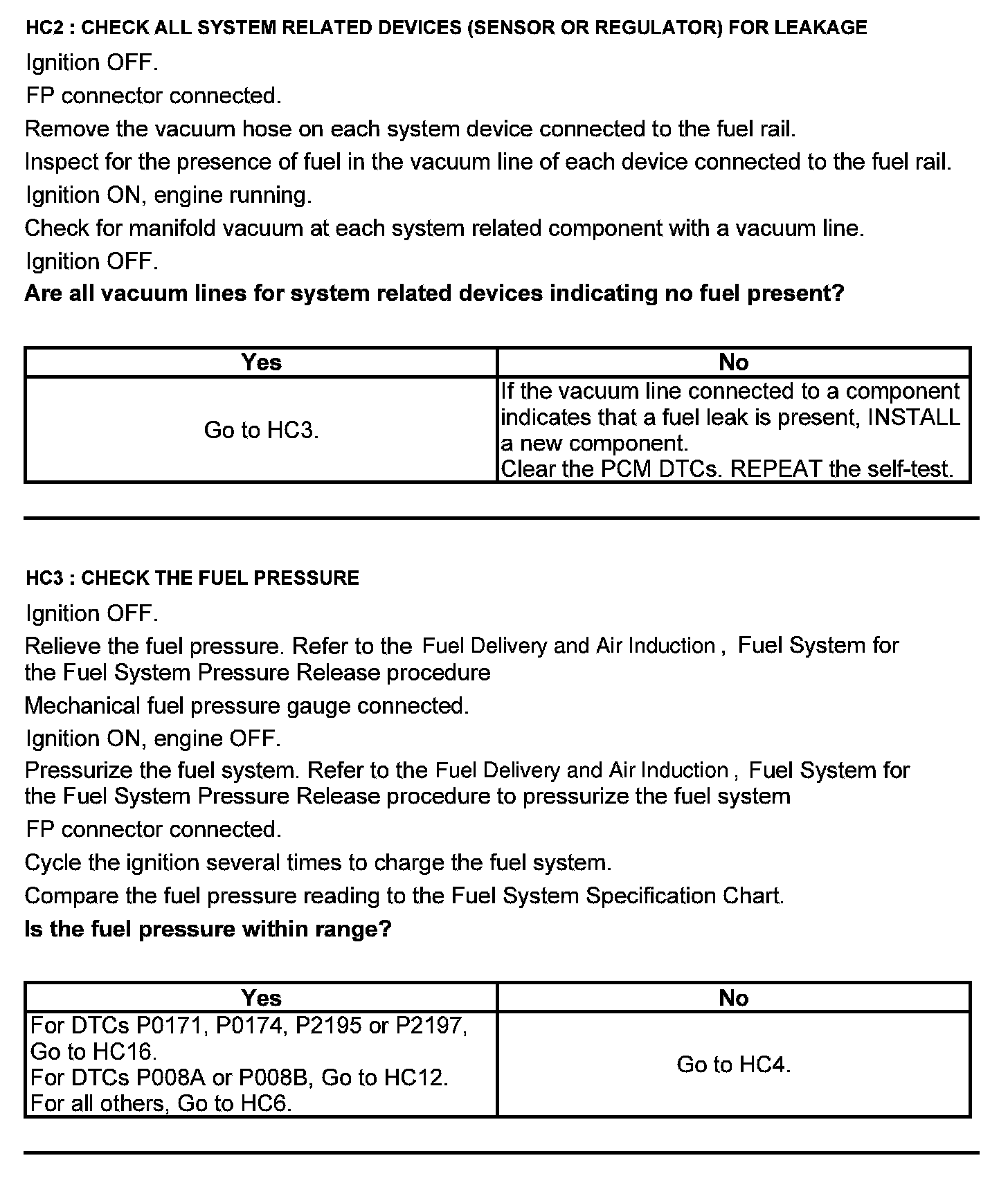

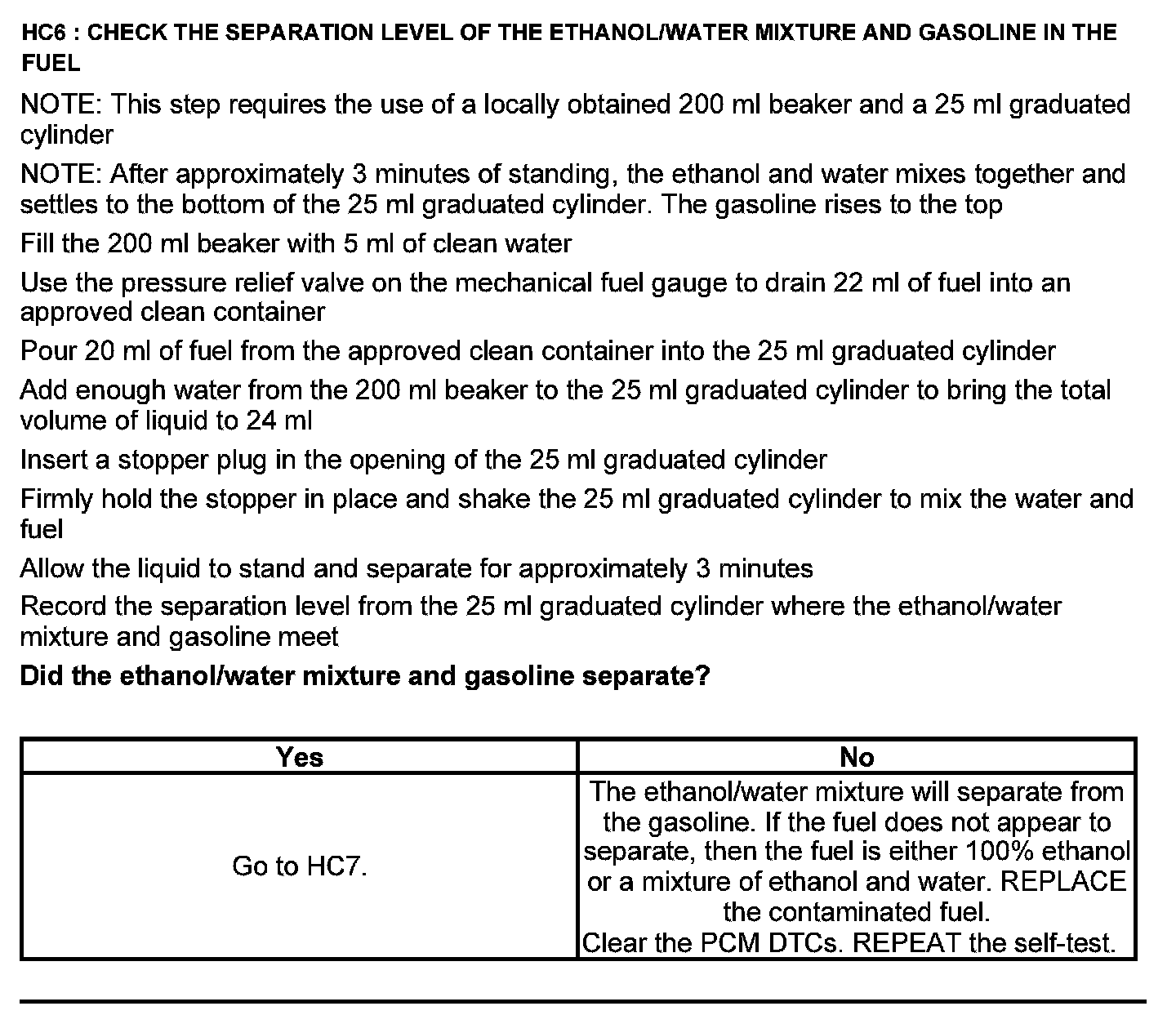

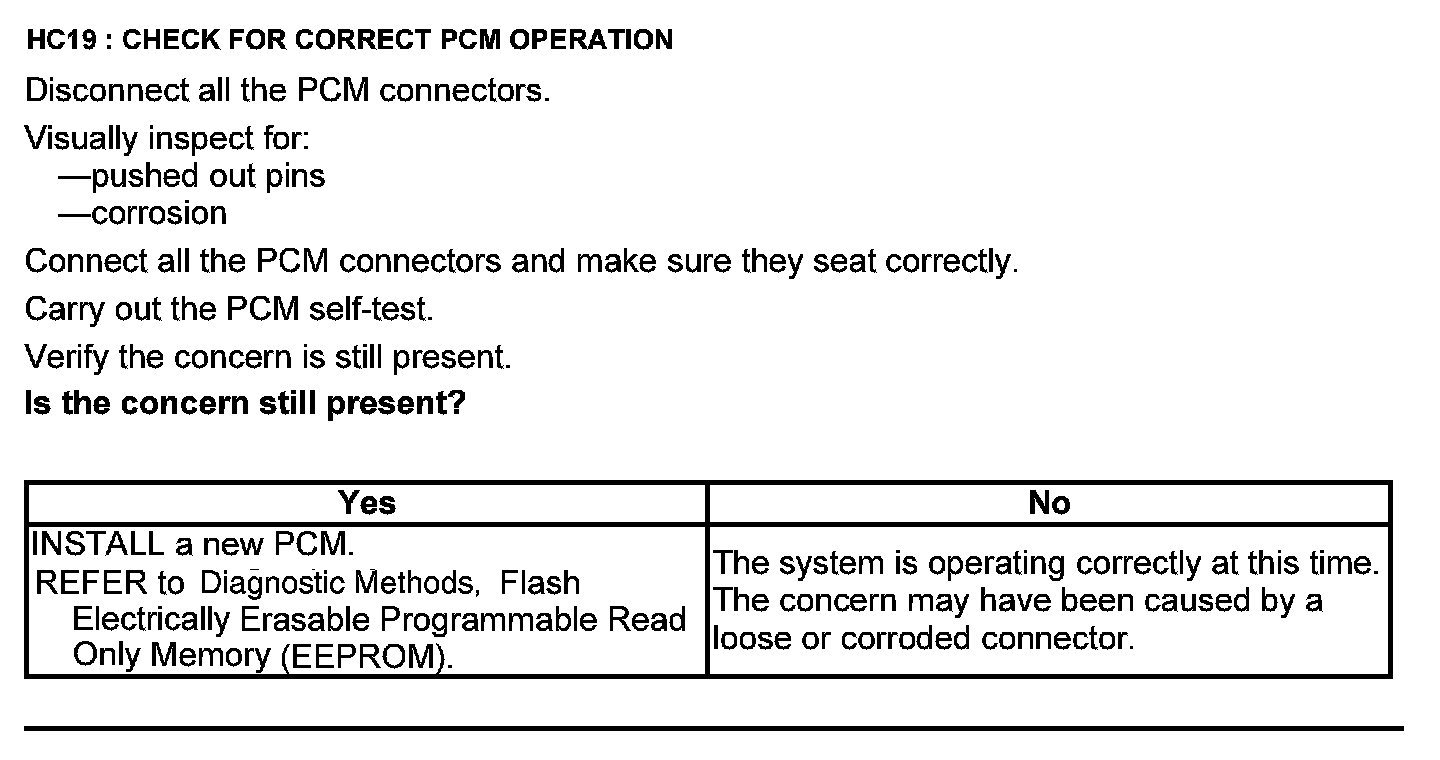

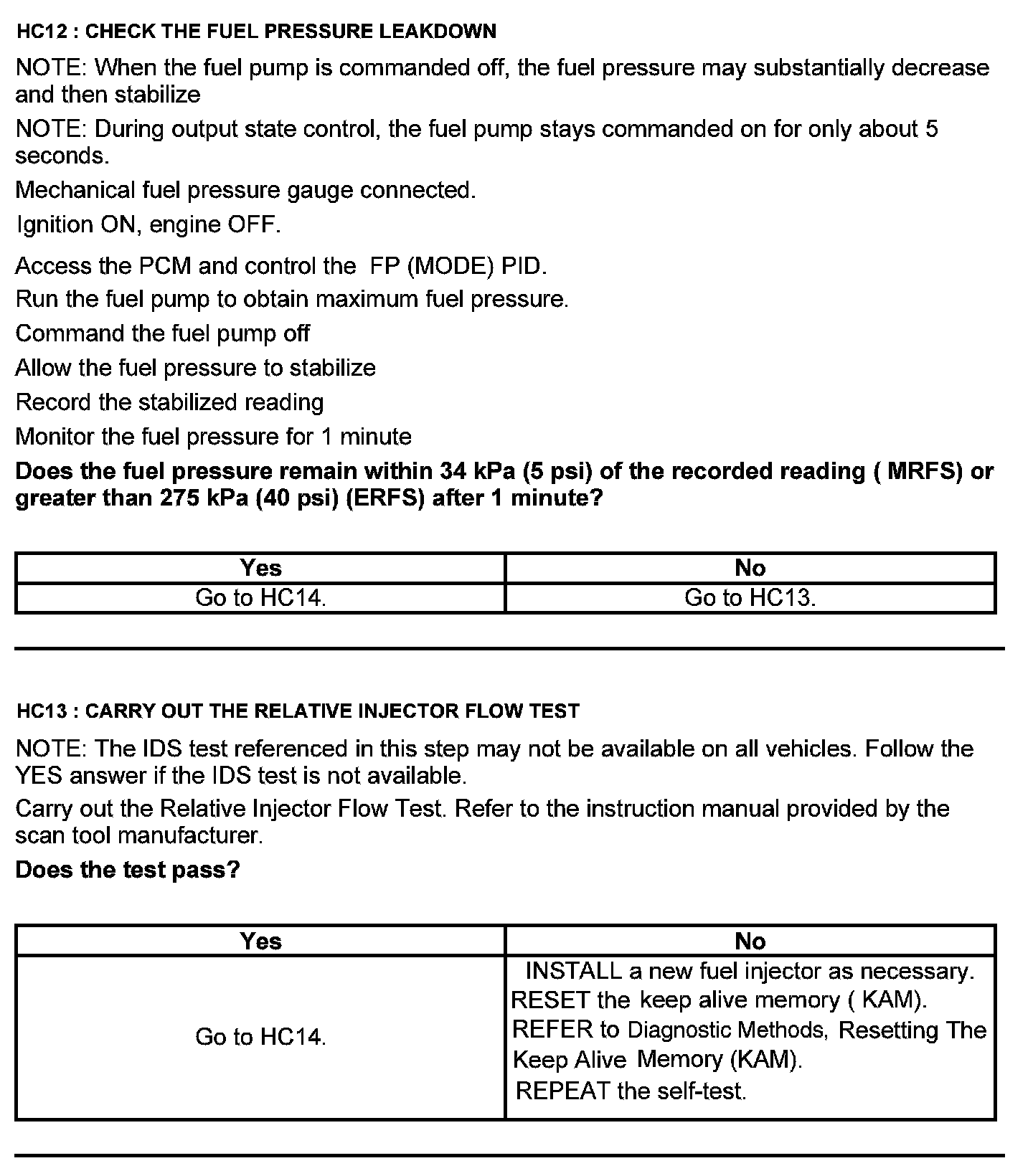

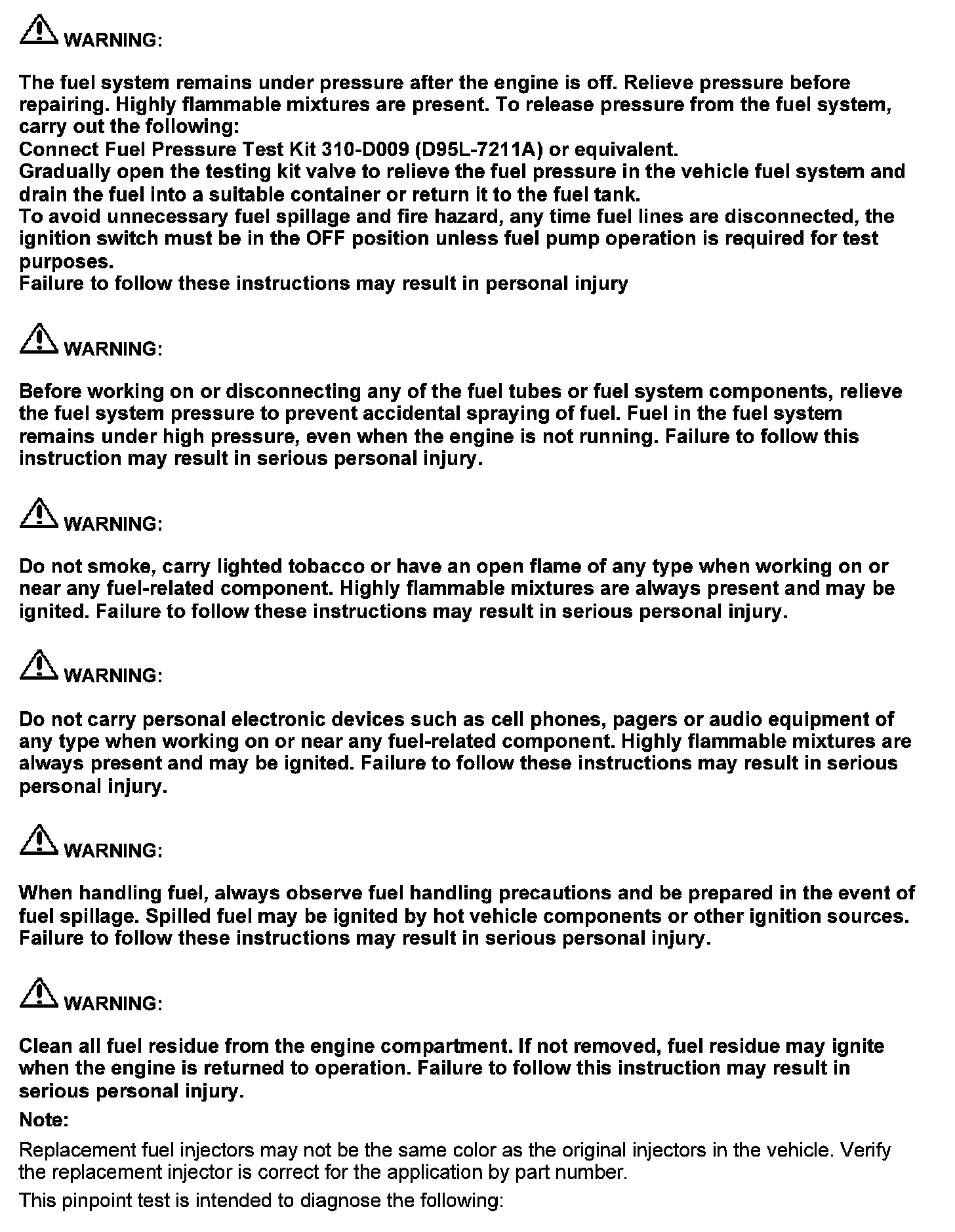

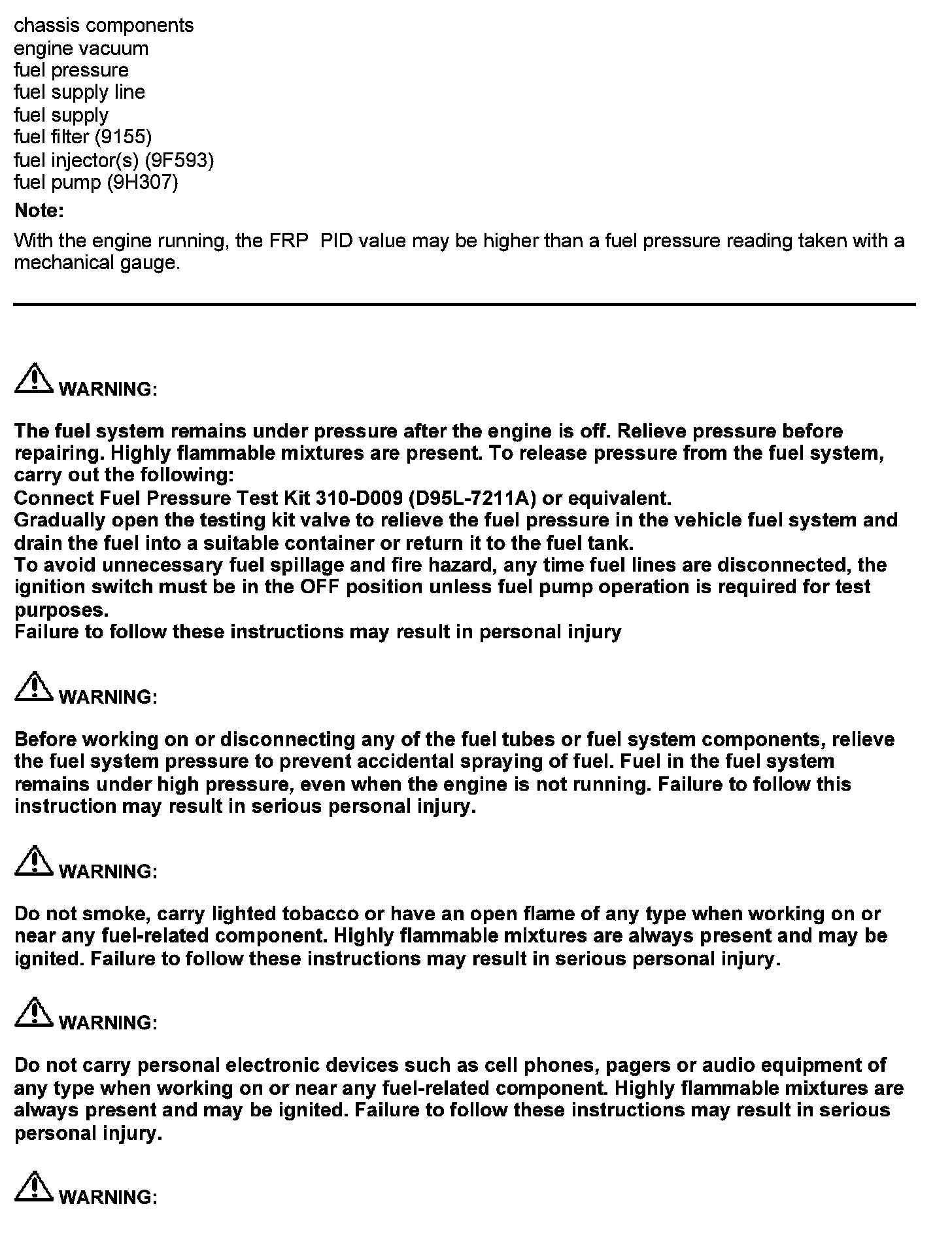

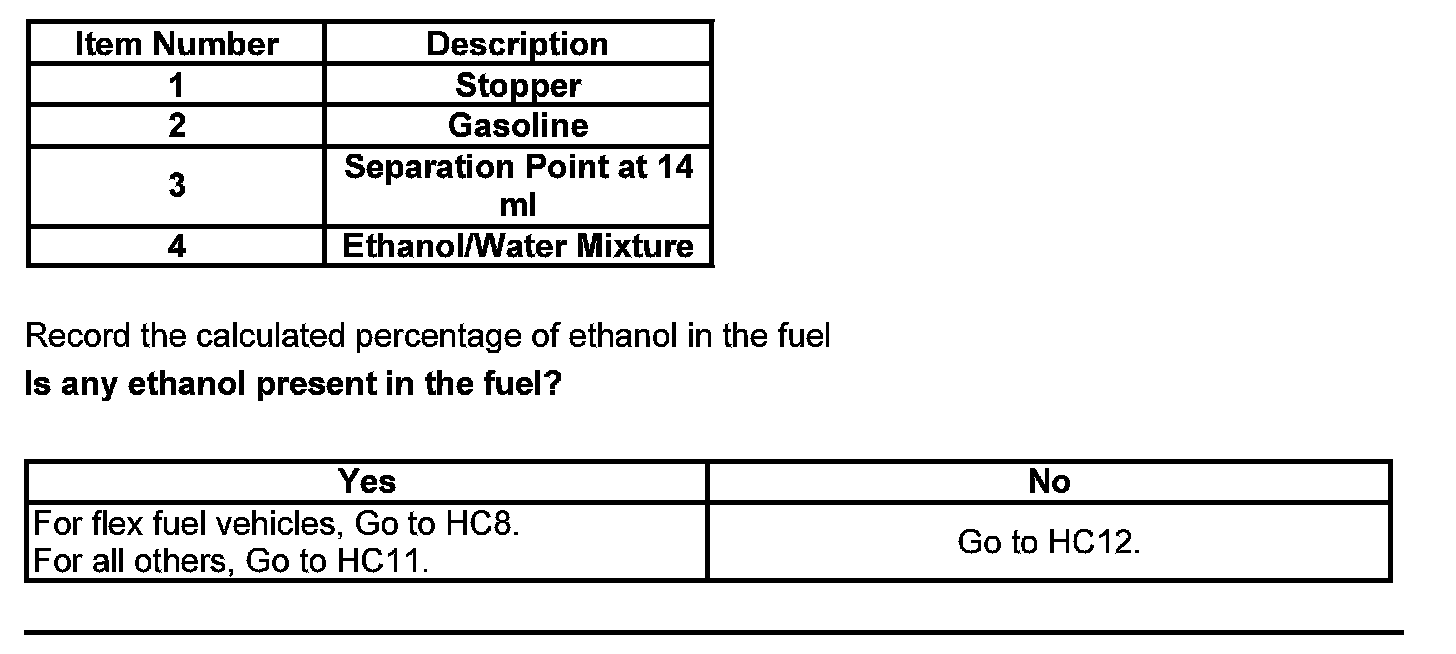

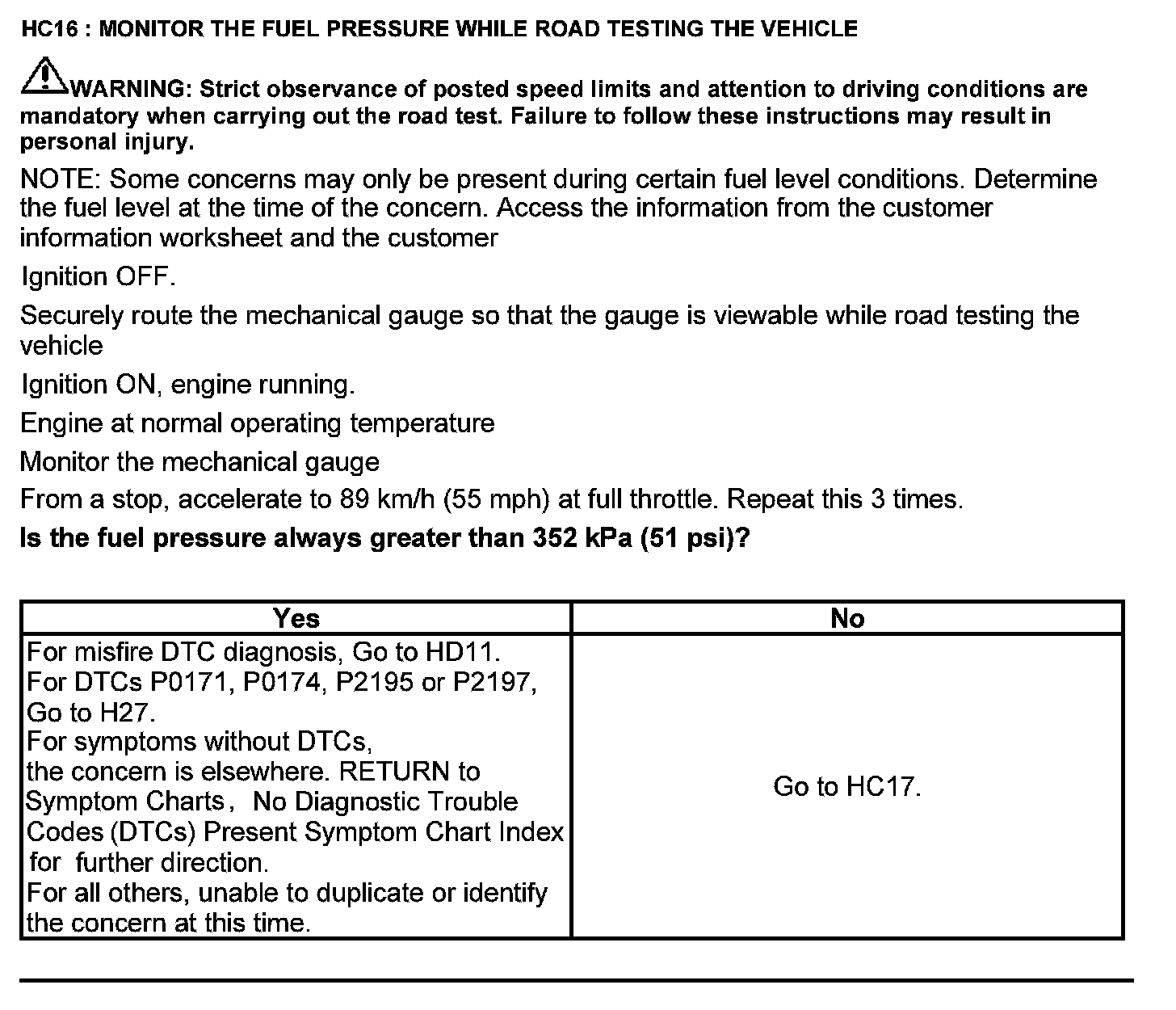

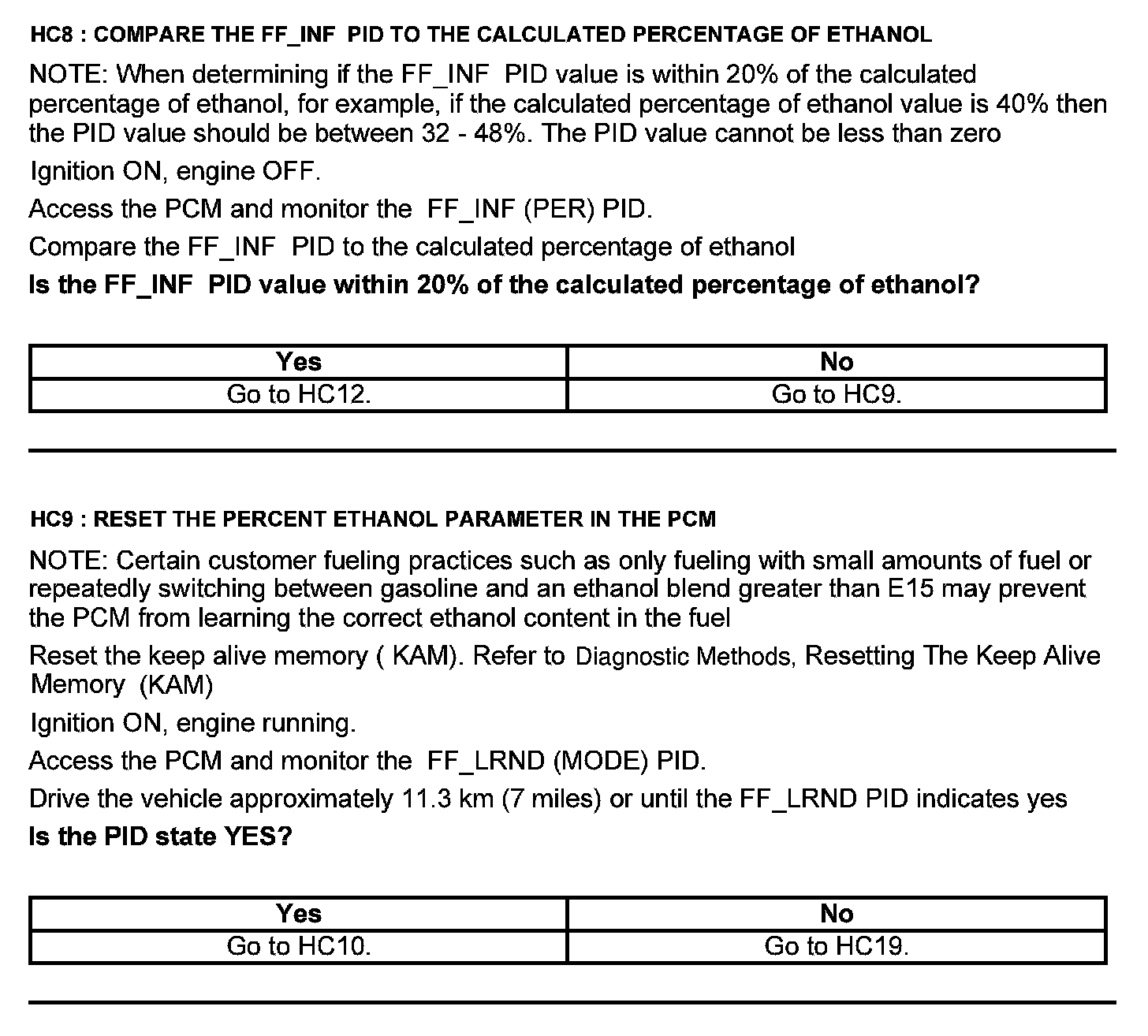

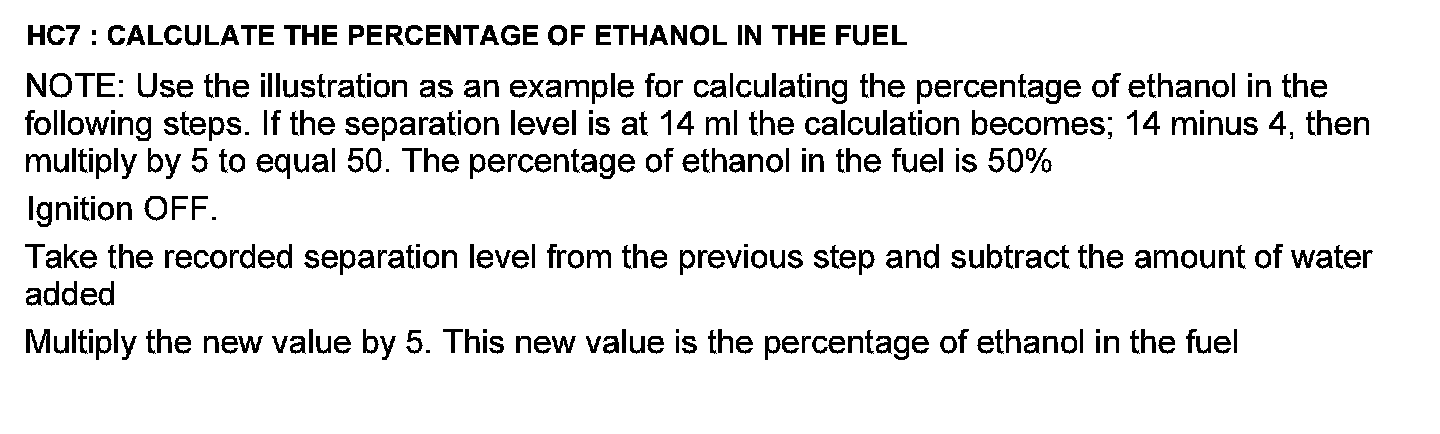

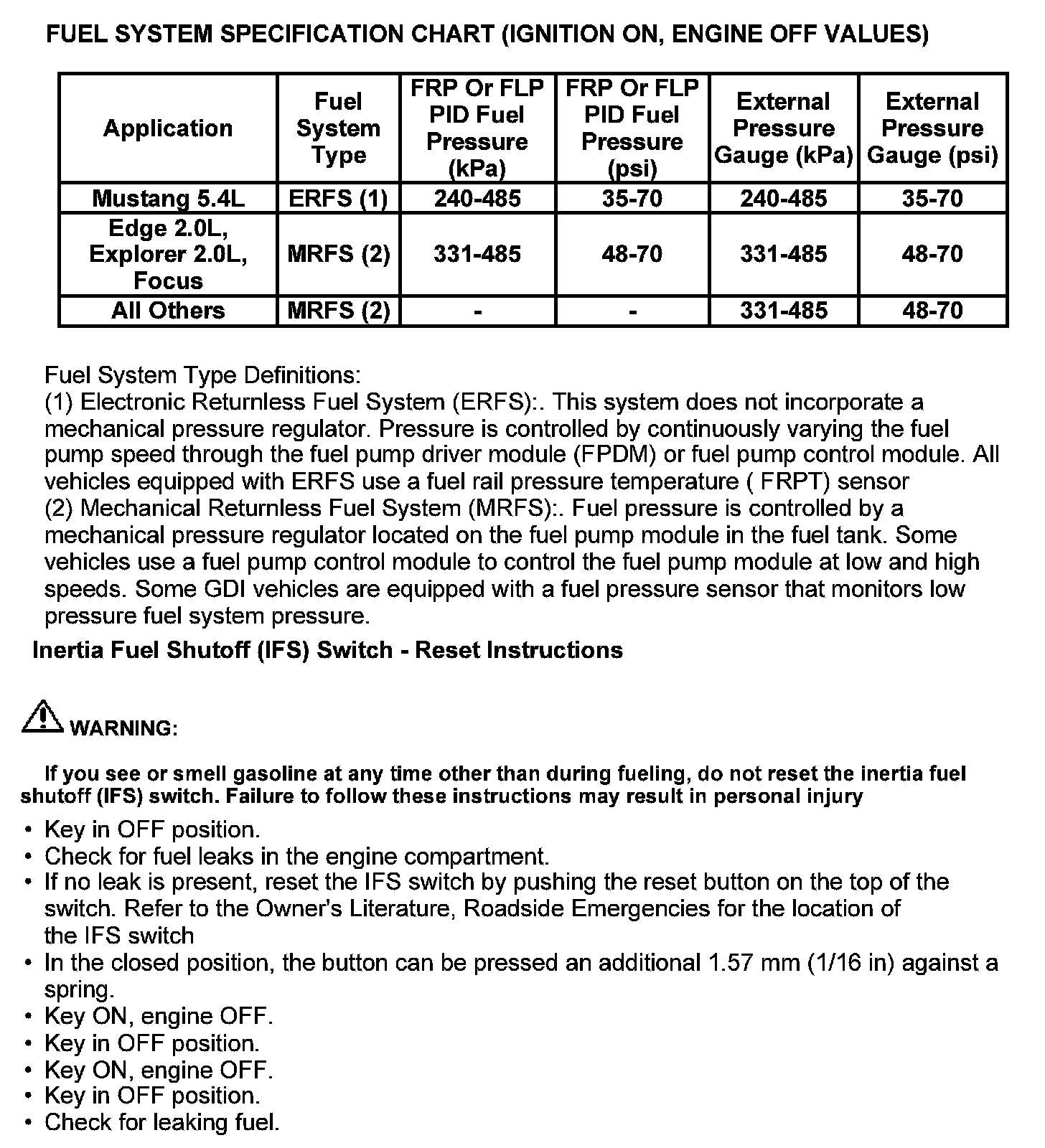

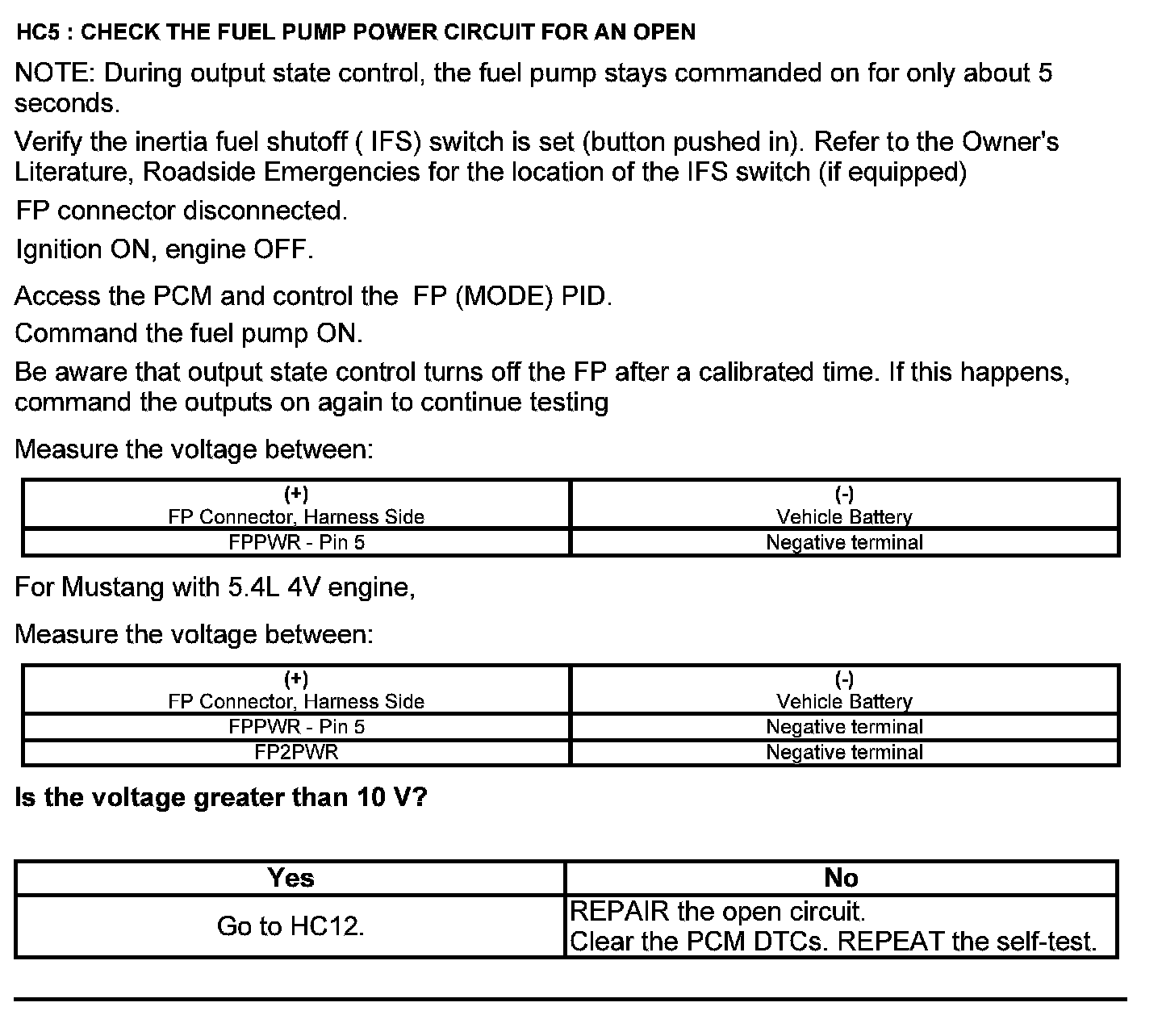

Fuel Delivery System - Vehicles that start

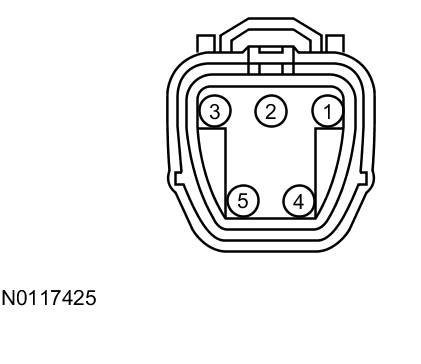

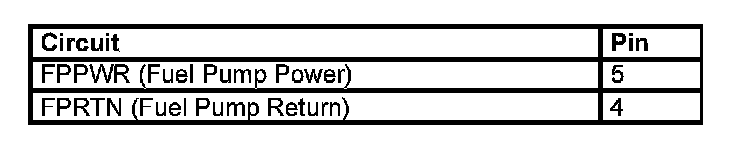

Fuel Pump (FP) Connector






Harness Side
