Test FB: Power Take Off (PTO)

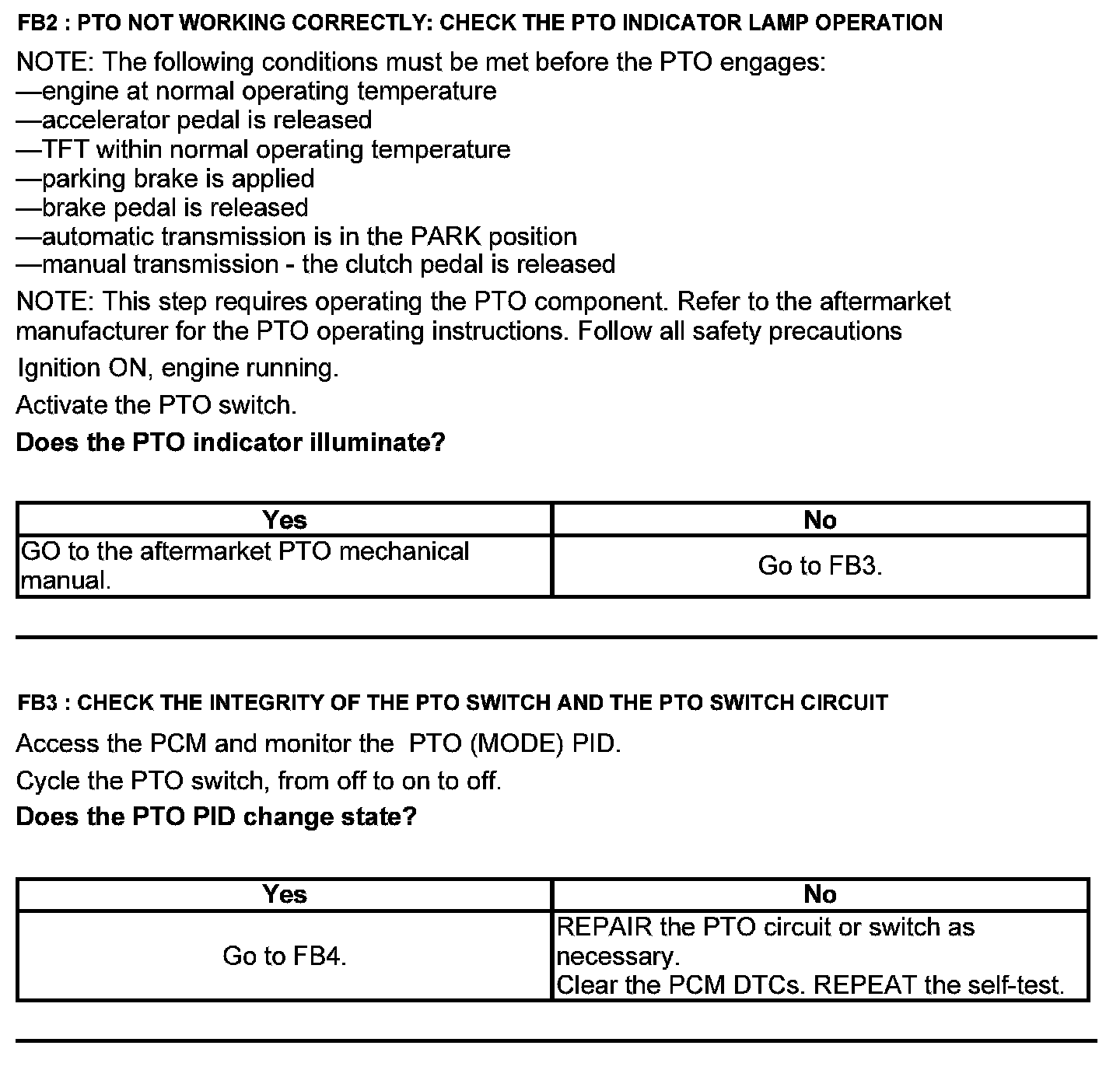

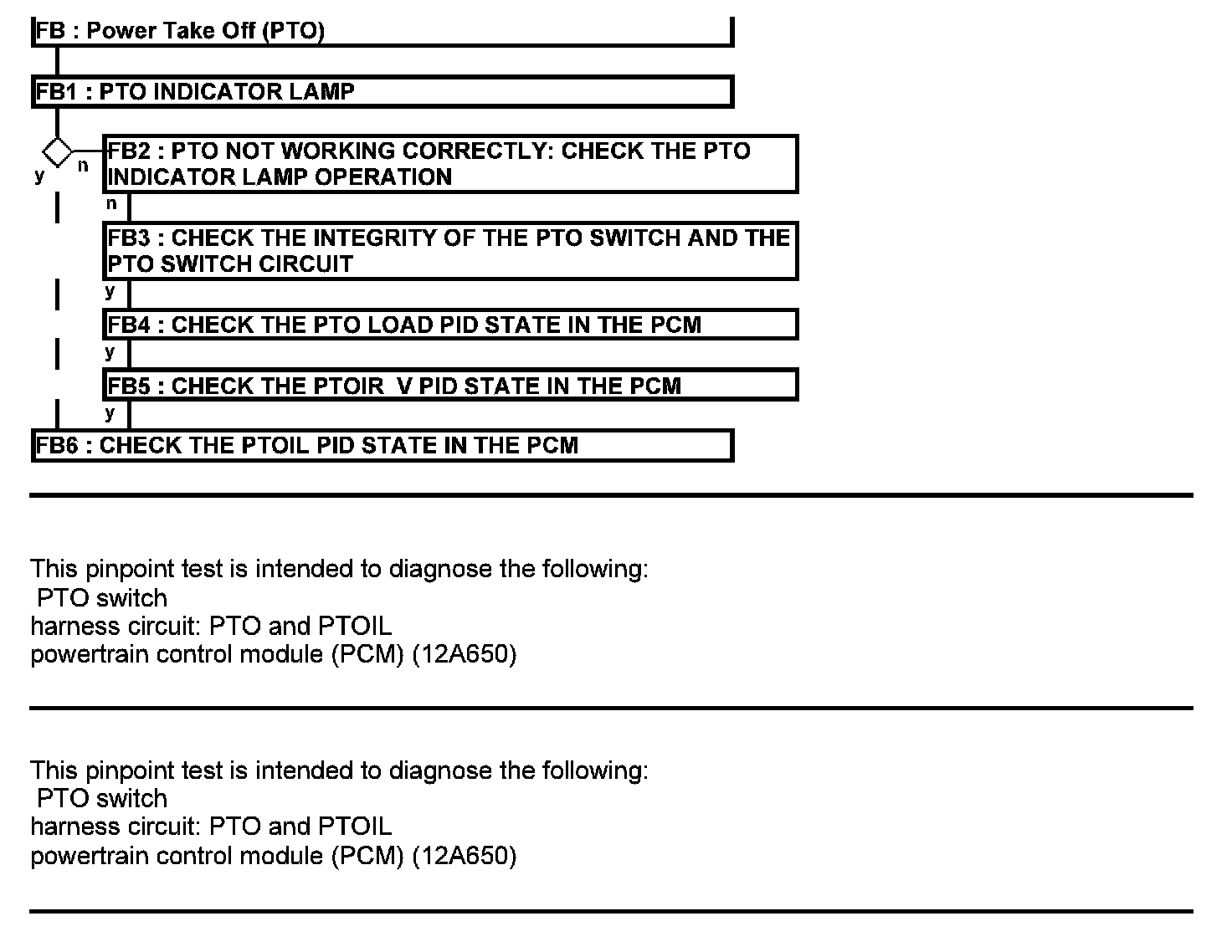

Power Take Off (PTO)

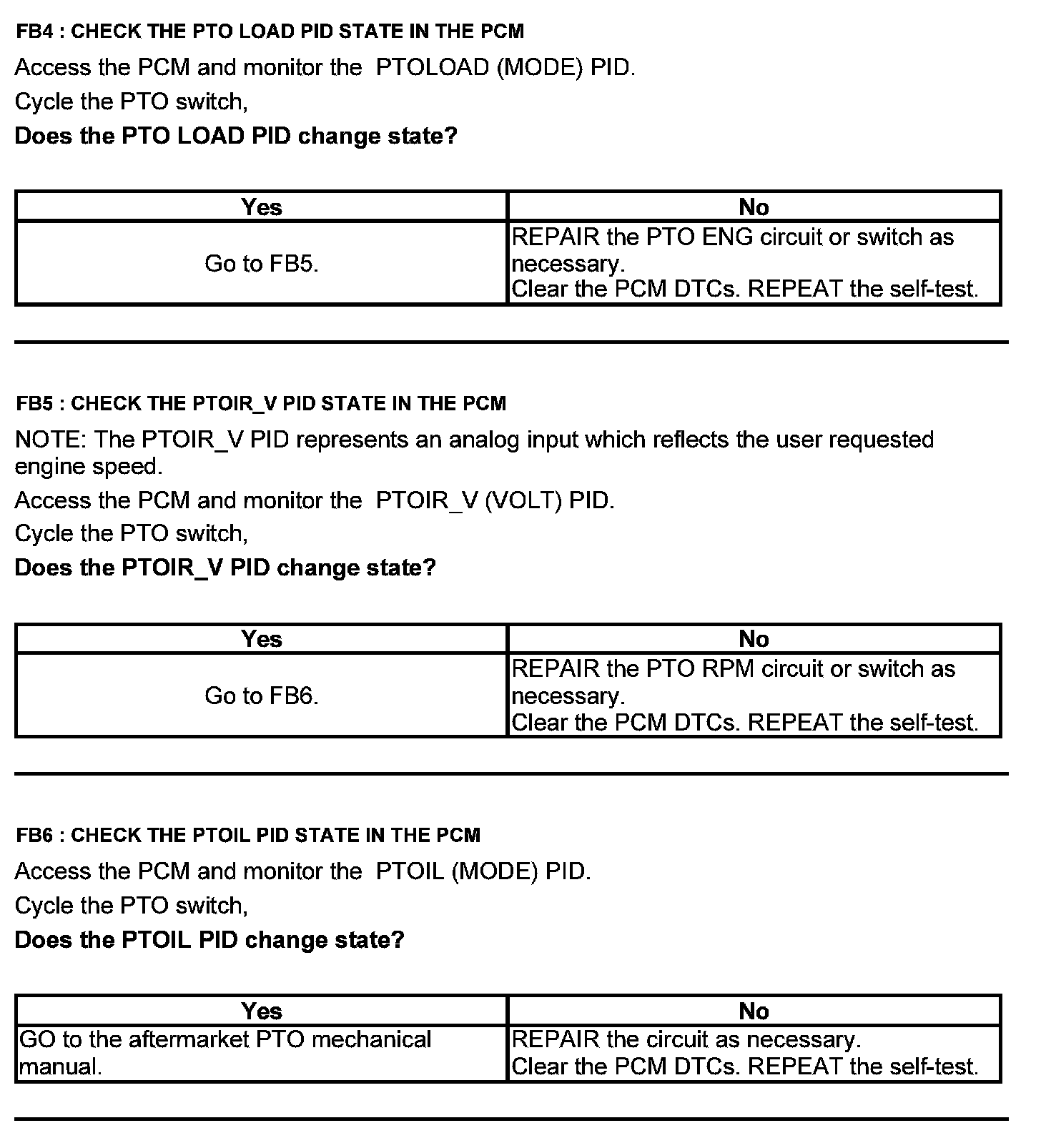

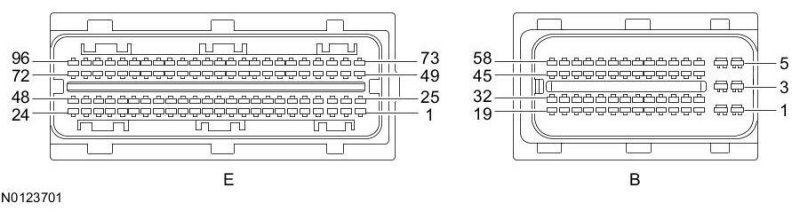

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
