Electronic Engine Controls




Electronic Engine Controls

Component Location

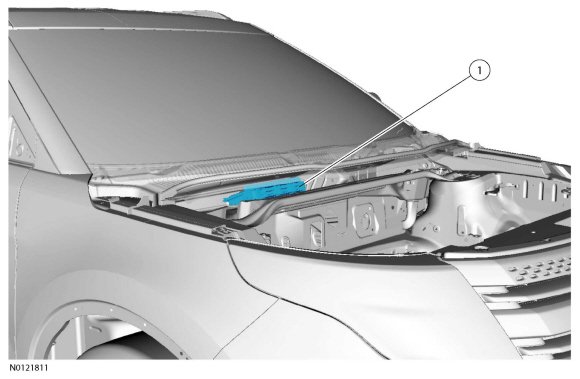

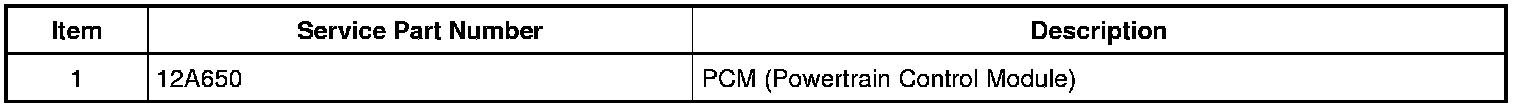

PCM Location - 2.0L, 3.5L and 3.7L

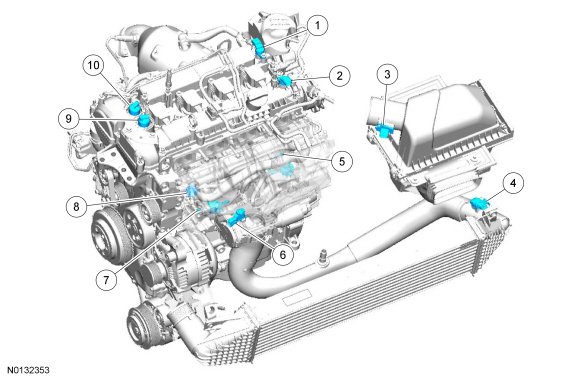

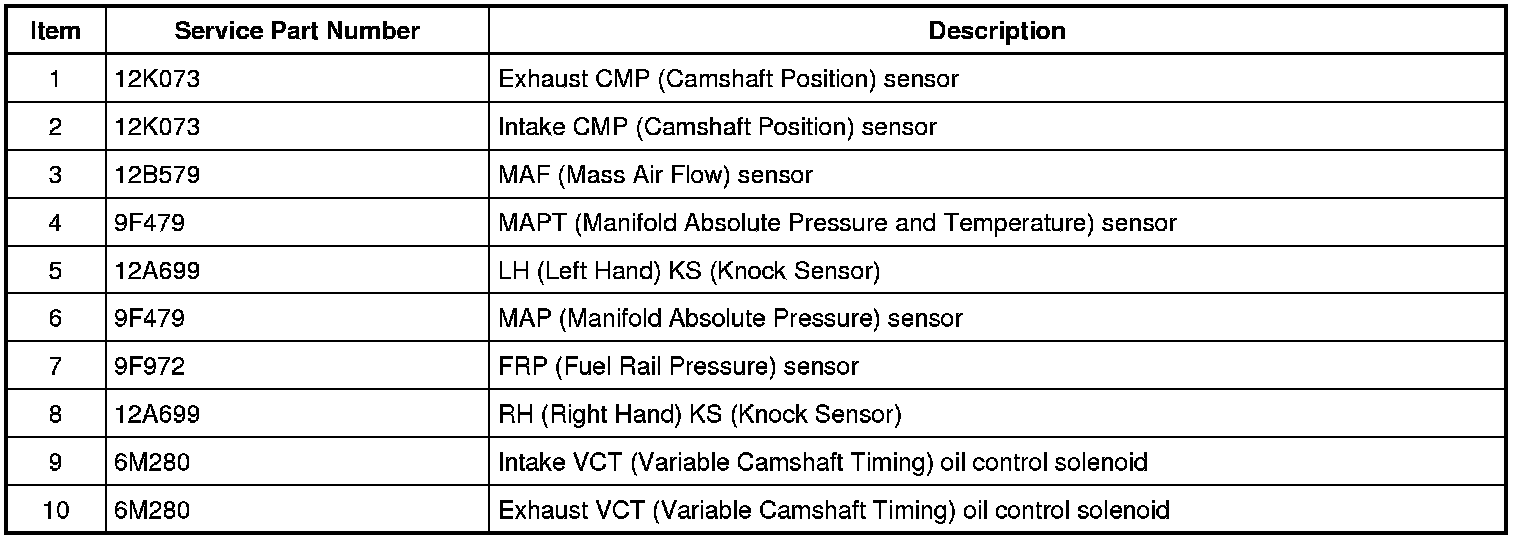

Front Engine Sensor Locations - 2.0L

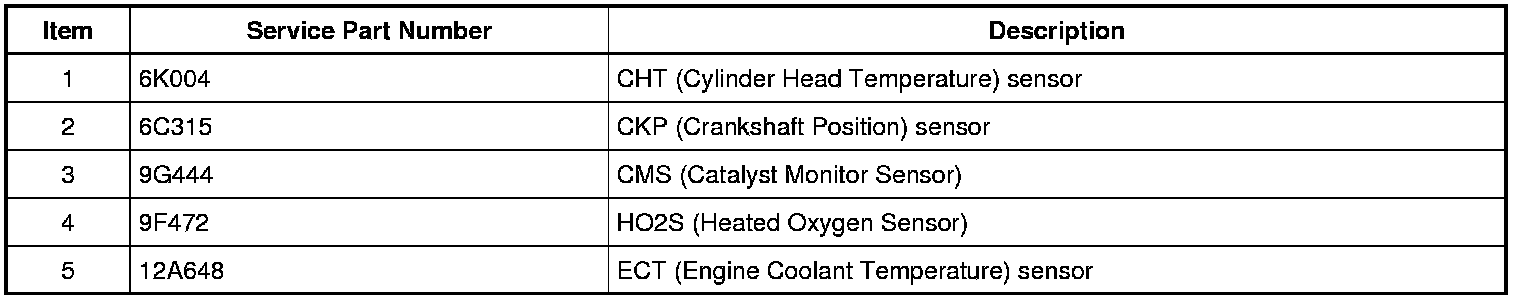

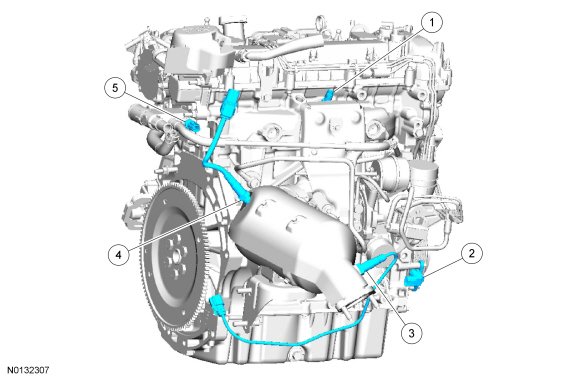

Rear Engine Sensor Locations - 2.0L

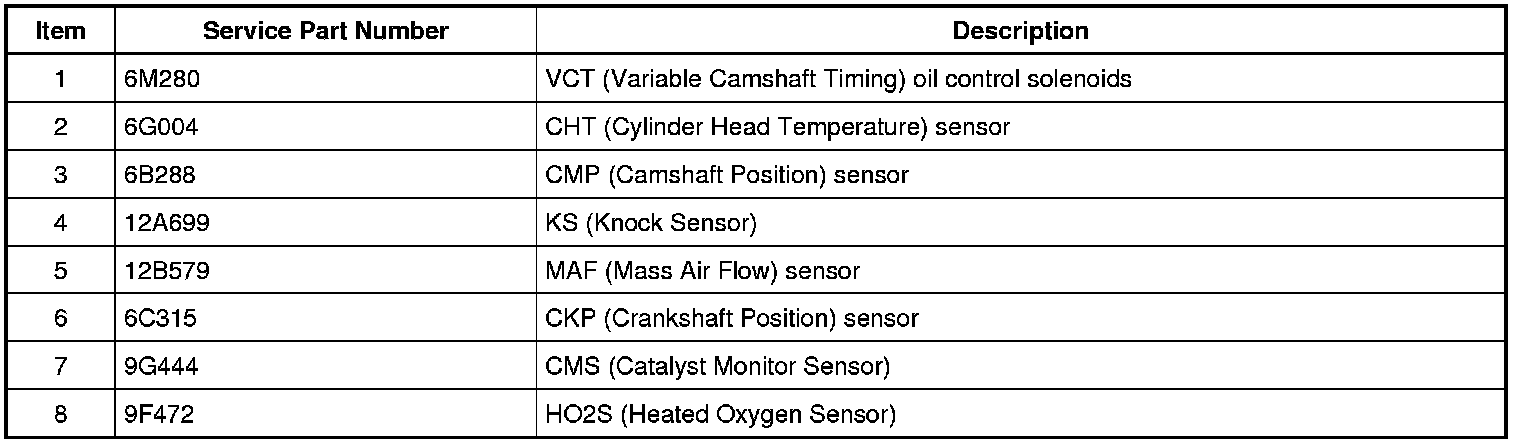

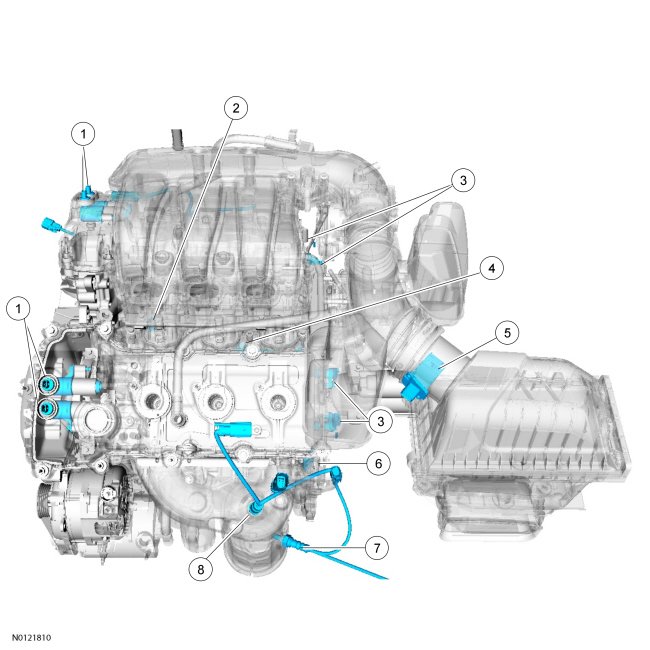

Sensor Locations - 3.5L and 3.7L










Overview

Refer to Computers and Control Systems Information Description and Operation.
