Turn Signal - Exterior Mirror

Turn Signal - Exterior Mirror

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

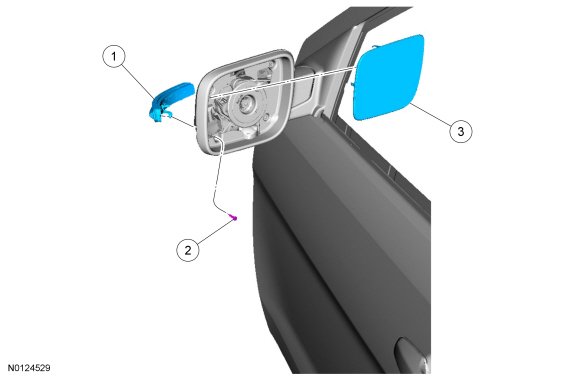

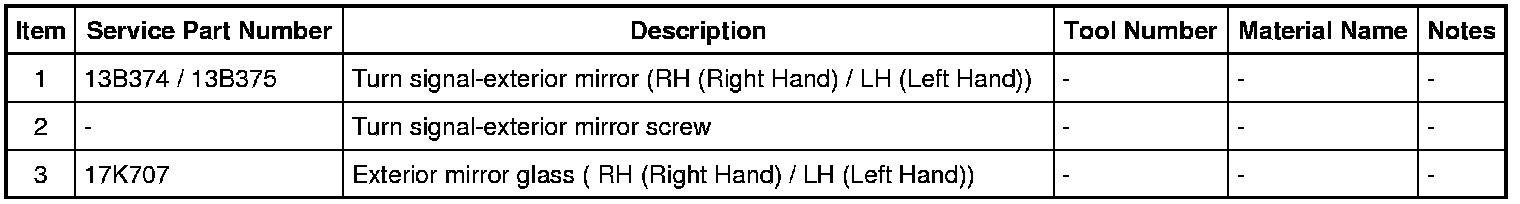

Exploded View










Removal

1. Remove the exterior mirror glass. REFER to Exterior Mirror Glass .



2. Remove the turn signal-exterior mirror screw.

3. Remove and disconnect the turn signal-exterior mirror.

Installation

1. Connect and install the turn signal-exterior mirror assembly.

2. Install the turn signal-exterior mirror screw.

3. Install the exterior mirror glass. REFER to Exterior Mirror Glass .
