Rear Lamp Assembly

Rear Lamp Assembly

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

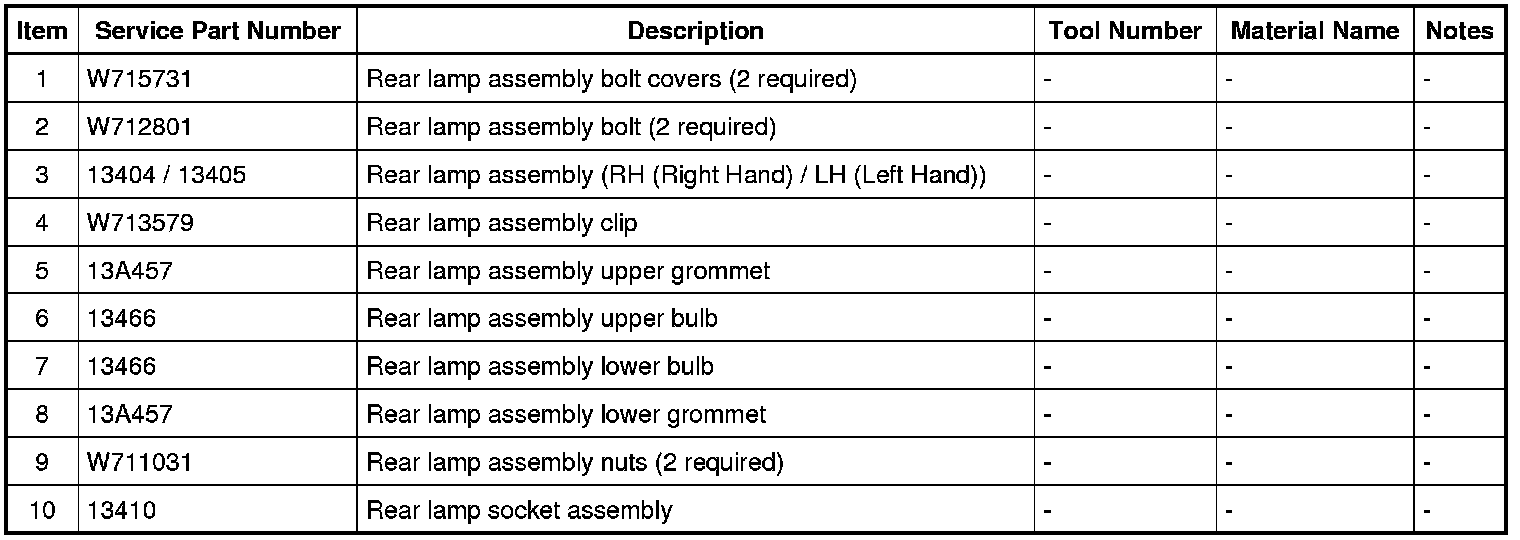

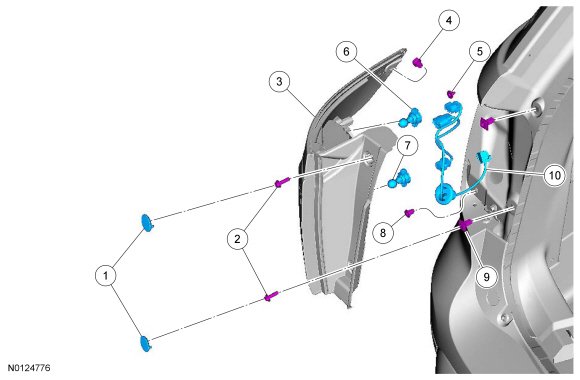

Exploded View










Removal

1. Remove the 2 rear lamp assembly bolt covers.

2. Remove the 2 rear lamp assembly bolts.

3. Remove the rear lamp assembly and disconnect the electrical connectors.

Installation

1. Connect the electrical connectors and install the rear lamp assembly.

2. Install the 2 rear lamp assembly bolts.
- Tighten to 3 Nm (27 lb-in).

3. Install the 2 rear lamp assembly bolt covers.
