Interior Lamp - Second Row With Moon Roof




Interior Lamp - Second Row With Moon Roof

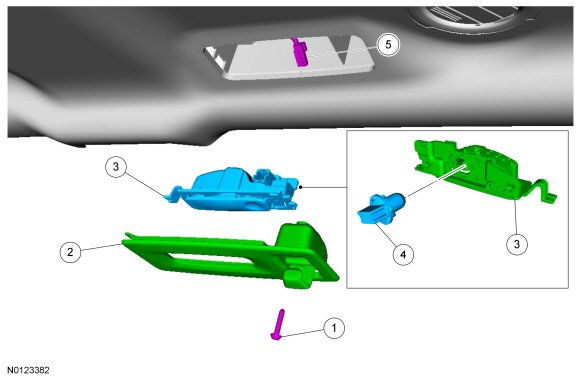

Exploded View
