Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

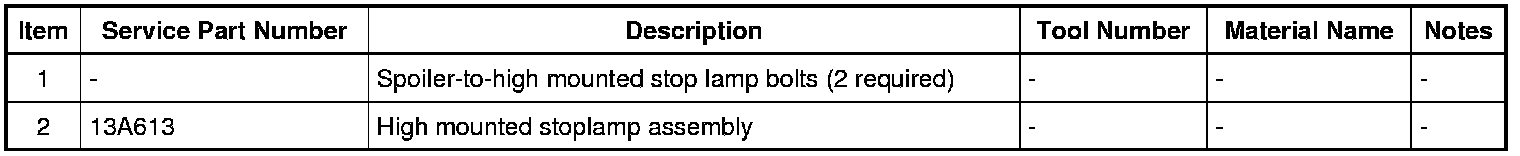

Exploded View










Removal

1. Remove the rear spoiler. REFER to Spoiler .

2. Remove the 2 spoiler-to-high mounted stop lamp bolts.

3. Remove and disconnect the high mounted stoplamp assembly.

Installation

1. Install and connect the high mounted stoplamp assembly.

2. Install the 2 spoiler-to-high mounted stoplamp bolts.

3. Install the spoiler. REFER to Spoiler .
