Diagnostic Routine AO

Diagnostic Routine AO

Diagnostic Overview

The Turn Signal On Warning Chime Is Inoperative

Normal Operation and Fault Conditions

REFER to Turn Signal On Chime Tone .

Pinpoint Test

1. CHECK THE SAFETY BELT WARNING CHIME OPERATION

1. Ignition OFF.

2. Ignition ON.

3. Monitor the safety belt warning chime when the ignition switch is transitioned from OFF to RUN.

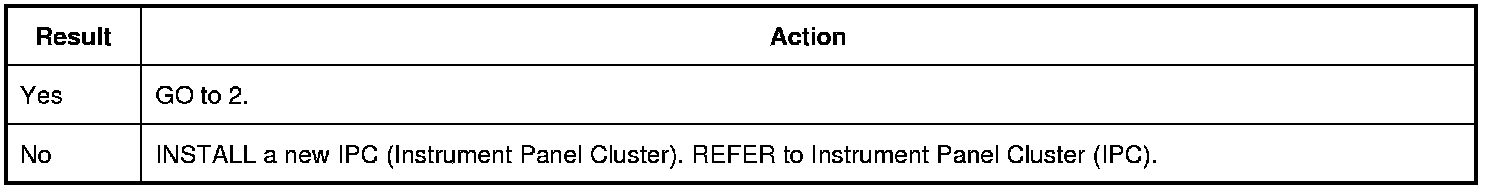

Does the safety belt warning chime operate for approximately 6 seconds?








2. CHECK THE TURN SIGNAL INDICATOR OPERATION

1. Operate the turn signals.

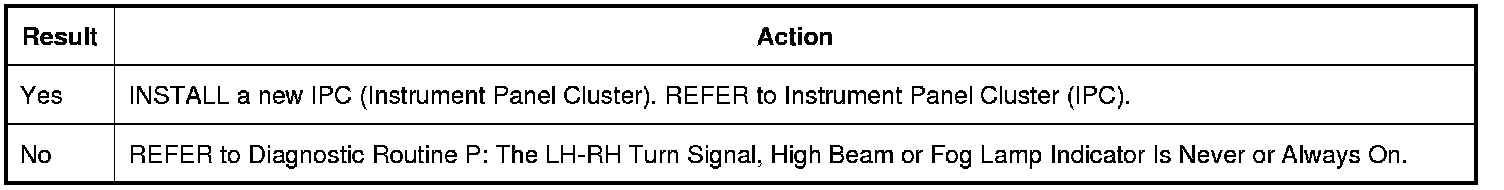

Do the turn signal indicators operate correctly?
